Released

Description

Content has been automatically translated.
Show original

Smooth Filament Feeding Companion (Highly Recommended)AMS-style dryer internal feed port for smoother filament delivery, preventing PTFE tube kinking and jams, only 20g from 小凡不是逗逗凡 - MakerWorld



Optimized dimensions to fit within the aesthetically pleasing 40*23*30 box

Several millimeters of clearance are maintained between the top, bottom, left, and right sides and the enclosure

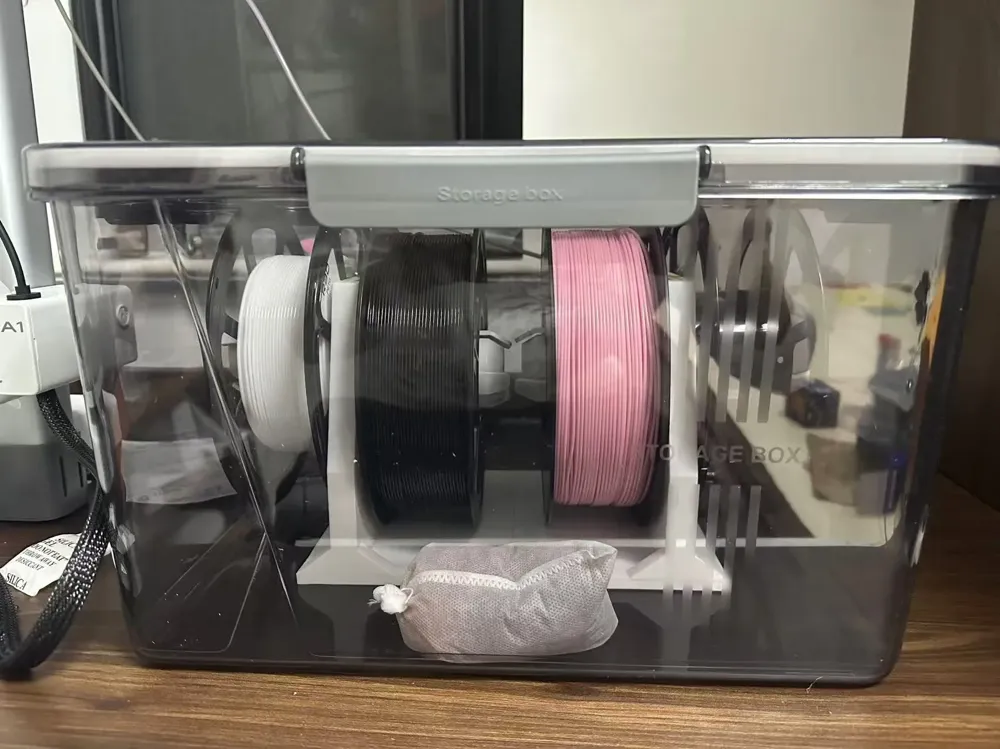

A 10cm space is provided at the front and rear for desiccant placement

Compatible with filament spools up to 20cm in diameter



Accompanying drying kit:

Four-spool dryer & desiccant box Polydryer+Sanlu S4 combination, supports amslite



Accompanying insulation kit (requires drying kit):

Pharmaceutical dryer insulation kit



AMSLite feed and output components, this top-mounted beam bracket is recommended (A1 version, no hardware required):

A1 AMSlite top-mounted beam bracket from Noke - MakerWorld



PTFE tube insertion for AMSLite input/output components, this is recommended:

ams lite feed port, PC4-M6, PTFE tube connector



If the pharmaceutical box seal is inadequate, print this:

Improved sealing latch for pharmaceutical seal box



You might also consider this:

A1MINI AMS lite swivel stand from 听说 - MakerWorld

I do not own an A1mini, and haven't tested this, but search for similar solutions
