[Open Source] Small Steel Mesh Screen Printing Jig
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
3.7 h
2 plates
0.1mm layer, 2 walls, 15% infill
Designer
5.7 h
1 plate
Open in Bambu Studio
Boost
11
35
1
1
29
12
Released
Description
Content has been automatically translated.

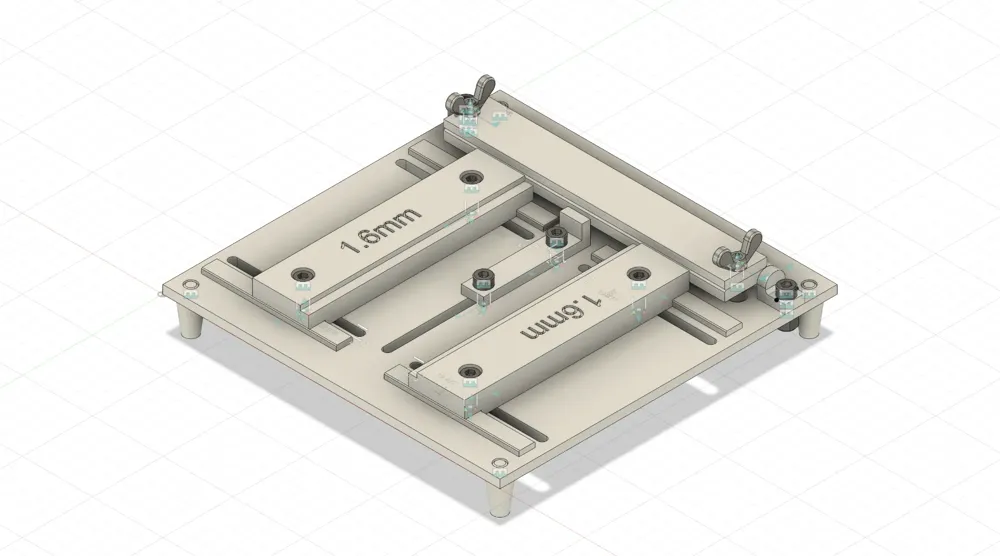

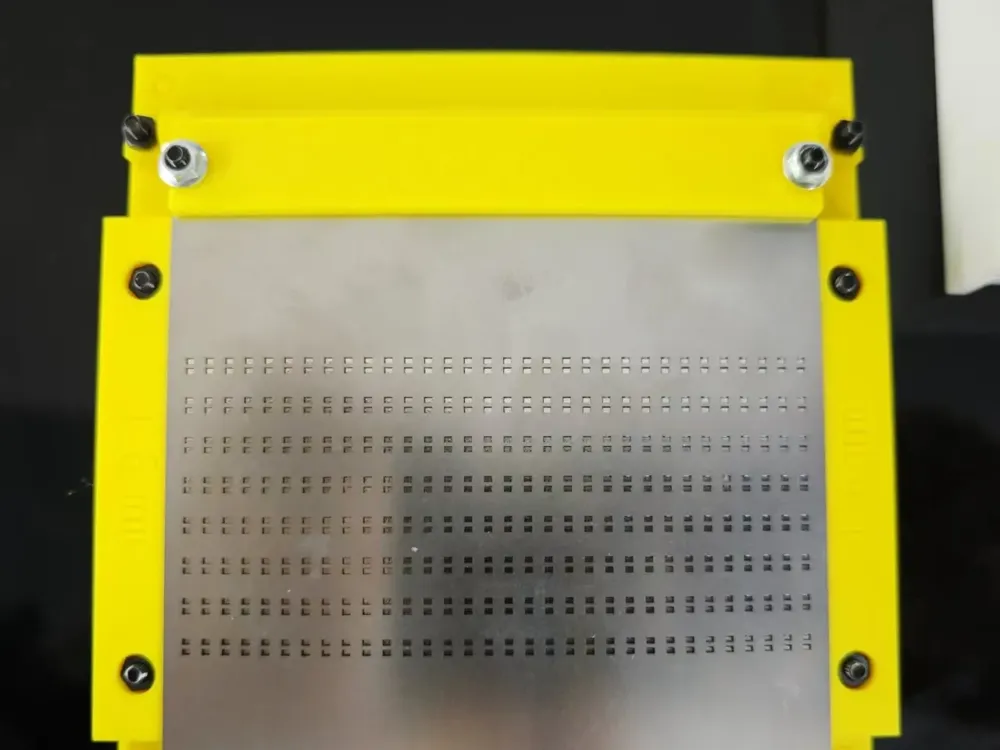

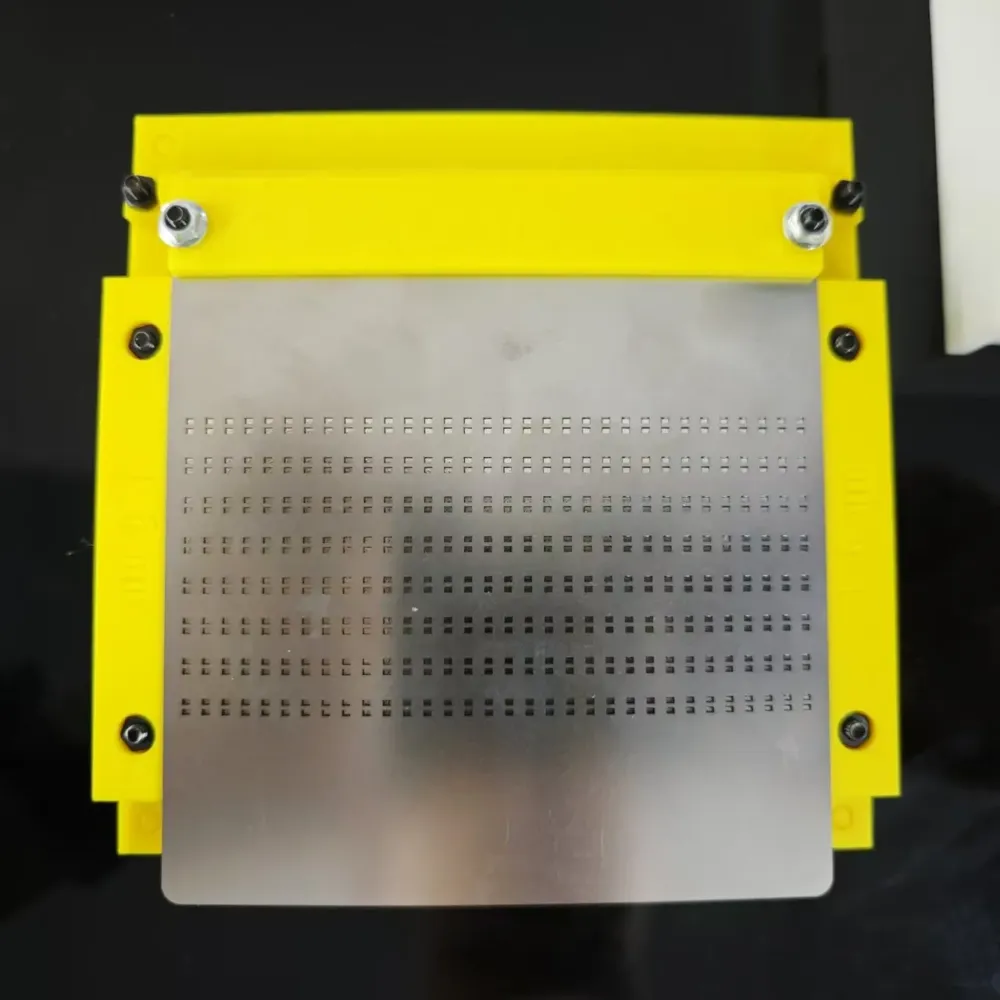

Thanks to B station user ZimuMo for open-sourcing this small steel mesh screen printing jig, which is compatible with most small PCBs. Sharing it with everyone.
I have designed a new jig that supports PCBs up to 96mm wide. I hope you like it.
Hardware required:
| Type | Quantity |
|---|---|
| M3x12 Socket Head Cap Screws | 4 |
| M3x10 Socket Head Cap Screws | 6 |
| M3 Butterfly Nuts | 8 |
| M3 Self-locking Nuts | 2 |
