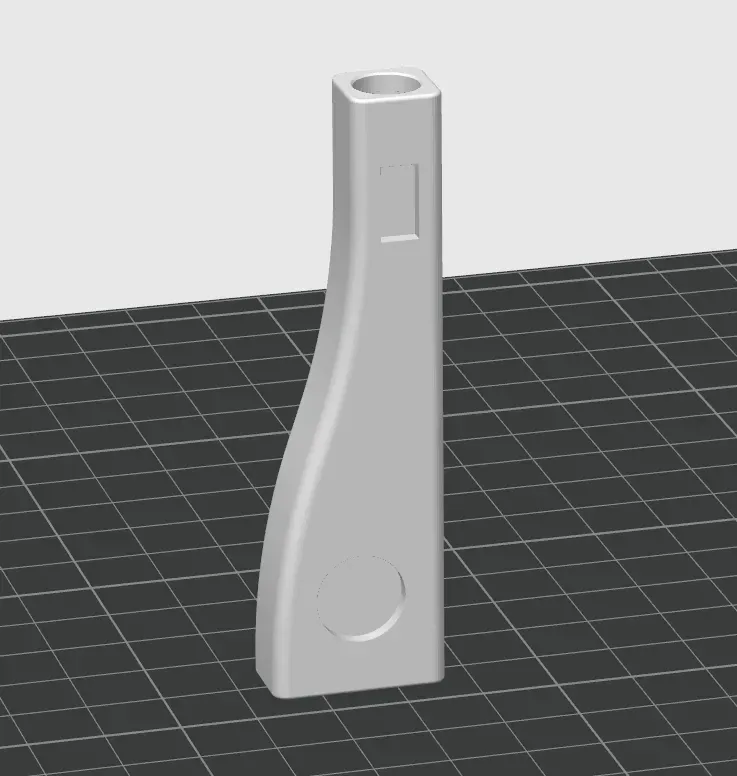

AMS Dual-Channel Expander
Print Profile(1)
Description
This AMS feed extender is compatible with Bambu P1 and X1 series printers.

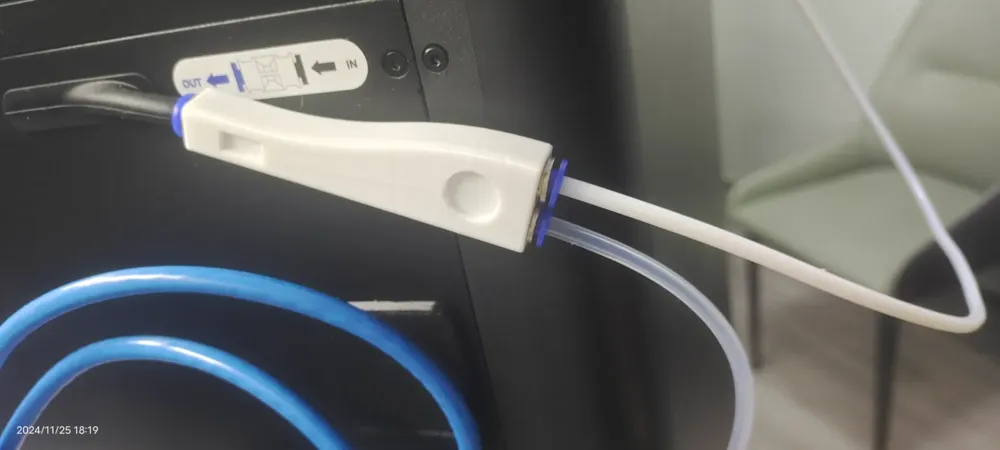

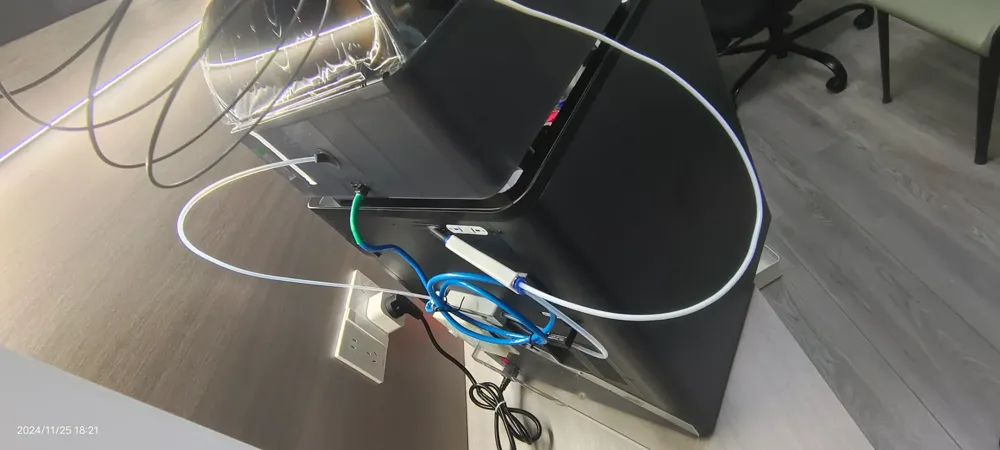

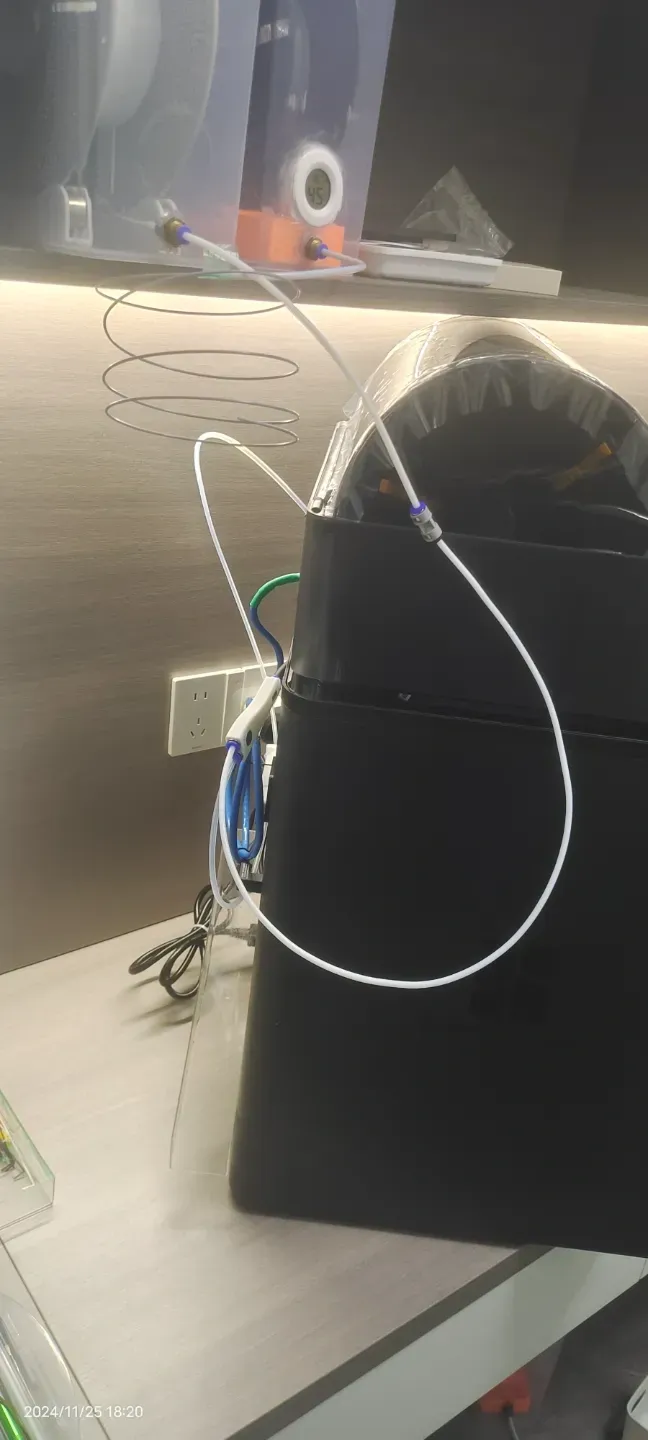

The extender enables seamless switching between the AMS and external filament spools or sealed containers, resolving the incompatibility issue where external spools cannot be used after installing the AMS.

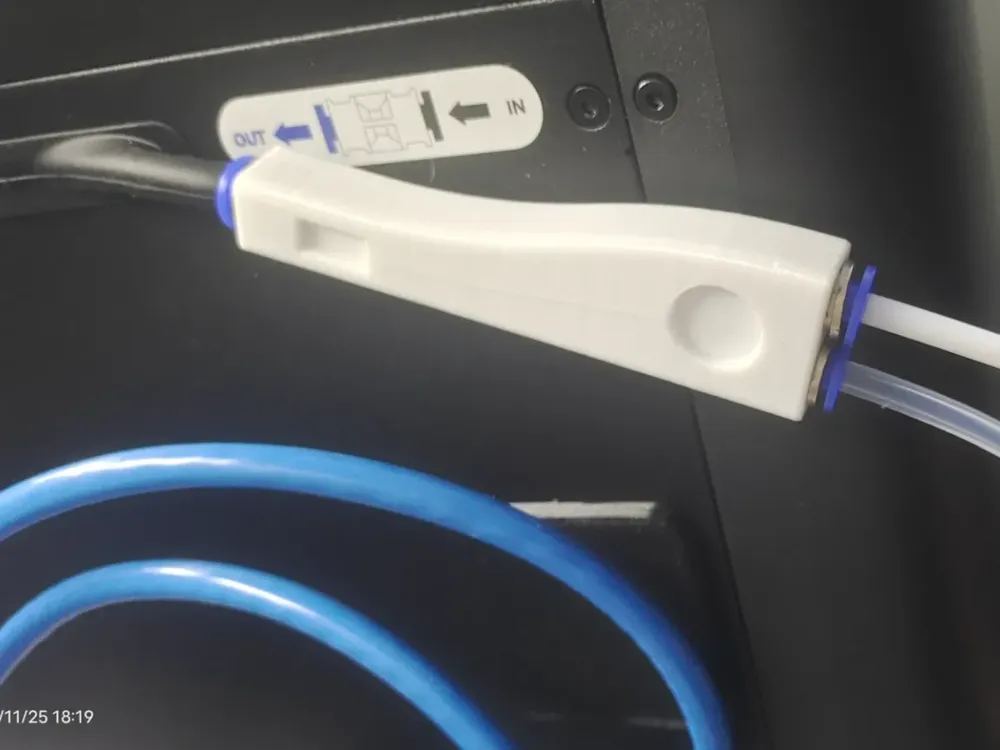

Assemble the feed tube according to the image (insert the straight tube into the AMS)!!!! If the filament cannot be smoothly inserted into the single-head port, use a 0.2mm H2 wrench to enlarge the hole.

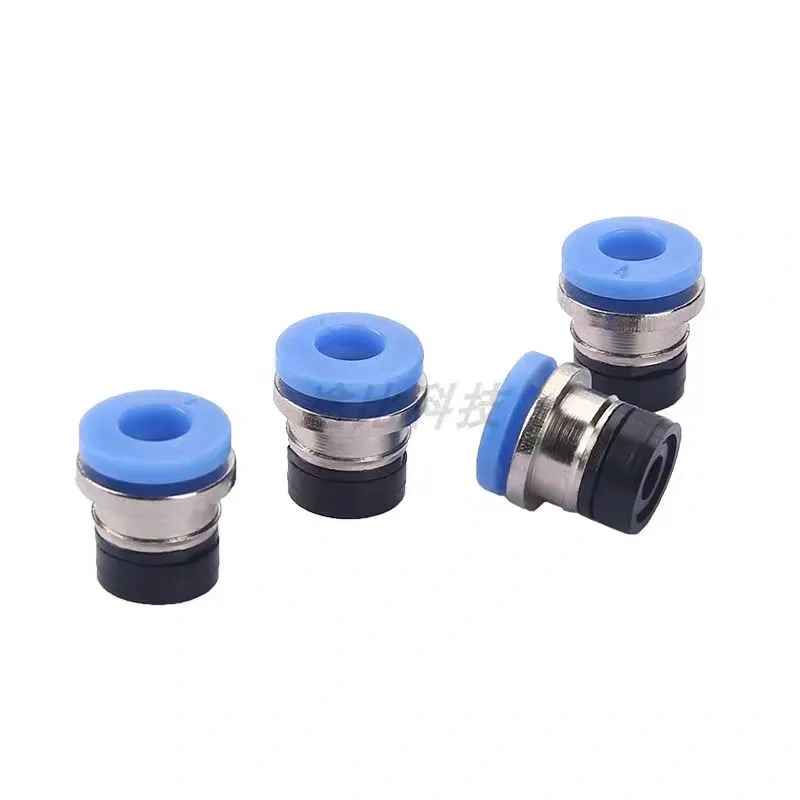

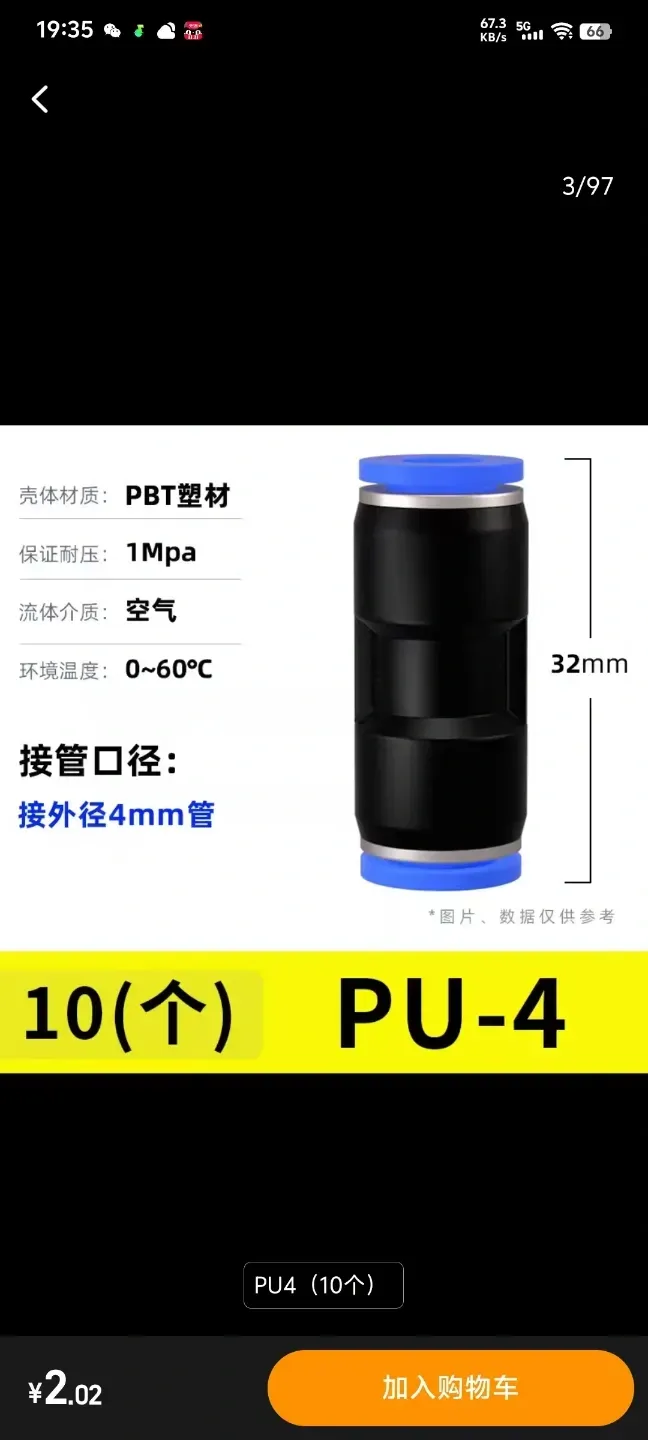

Please use three 4mm Bowden coupler fittings to embed the extender, directly screenshot and search or purchase dual-channel 4mm pneumatic fittings on PDD or TB, use water pliers to cut off the fittings to remove the Bowden couplers, this is cheaper than buying Bowden couplers individually!!! When inserting the Bowden couplers, please press them vertically.
Side magnets slots added, two 5x10x2mm rectangular magnets and two 12x2mm thick round magnets for convenient backplate adsorption!!!
This was not easy to make, please boost me!!!
