Bambu Lab X1 P1 Series Top Frame 4MM LED Strip Extension
Print Profile(1)
Description

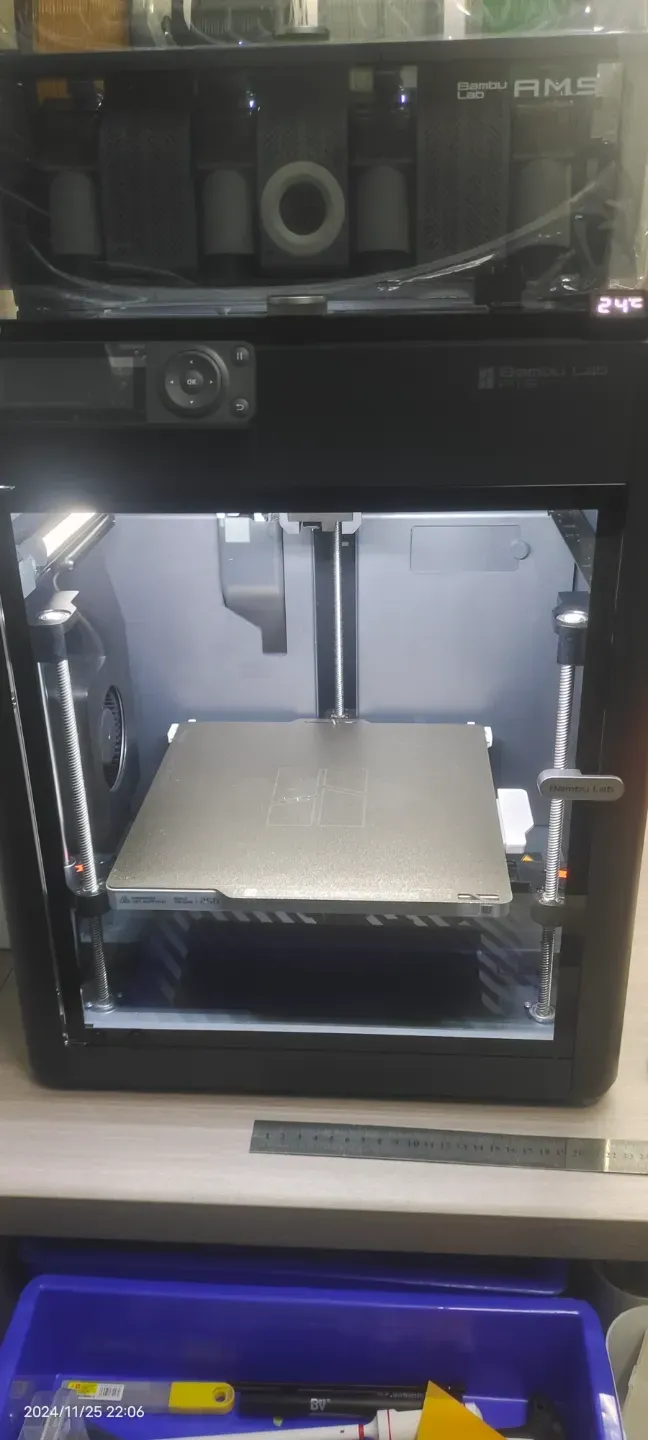

The Bambu Lab X1 P1 series top frame 4MM LED strip extension is compatible with Bambu Lab X1 and P1 series machines.

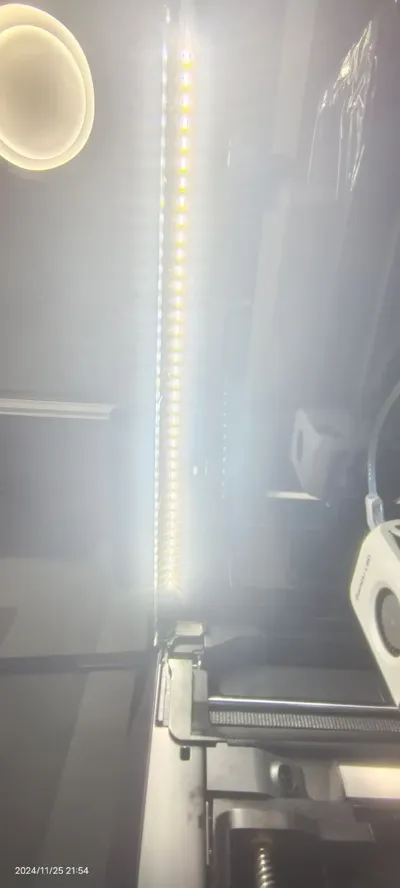

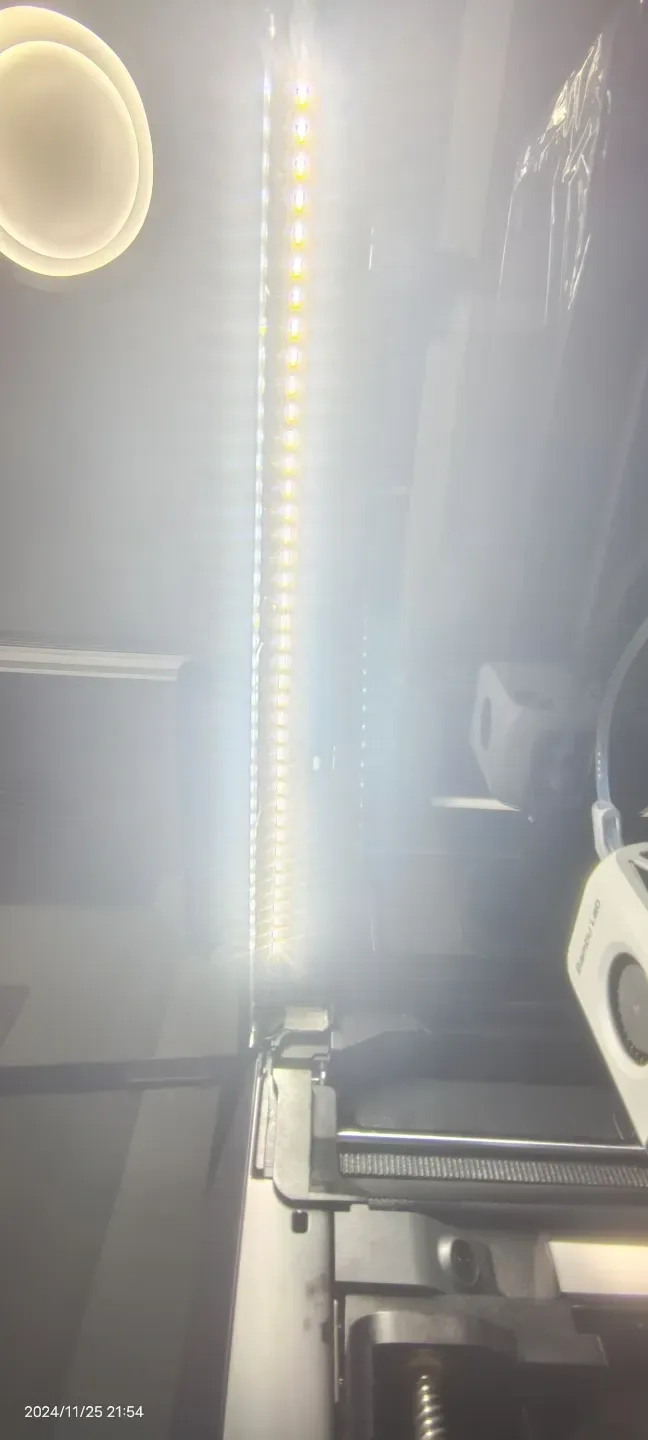

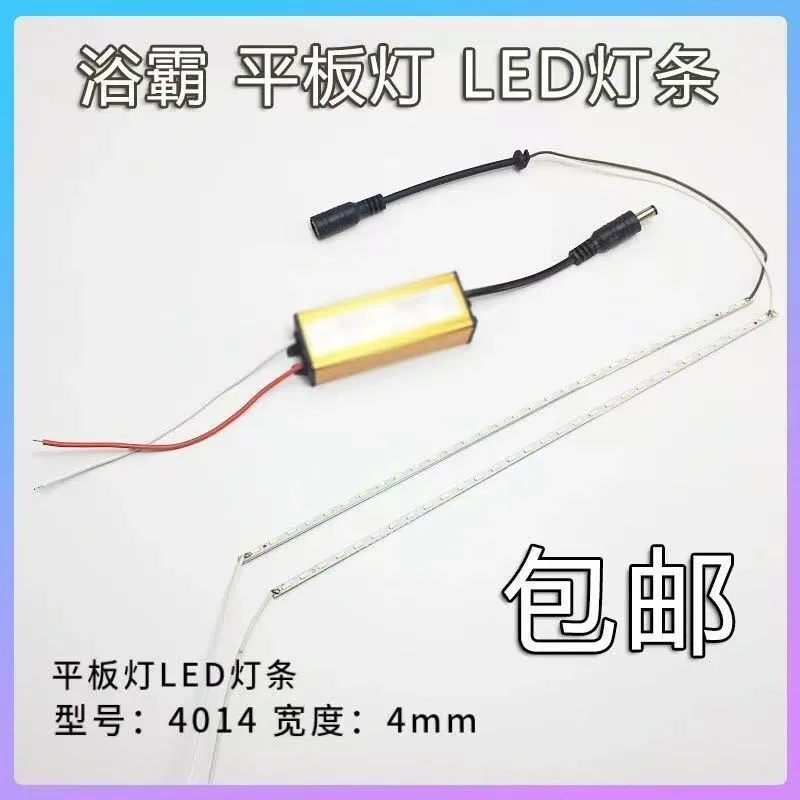

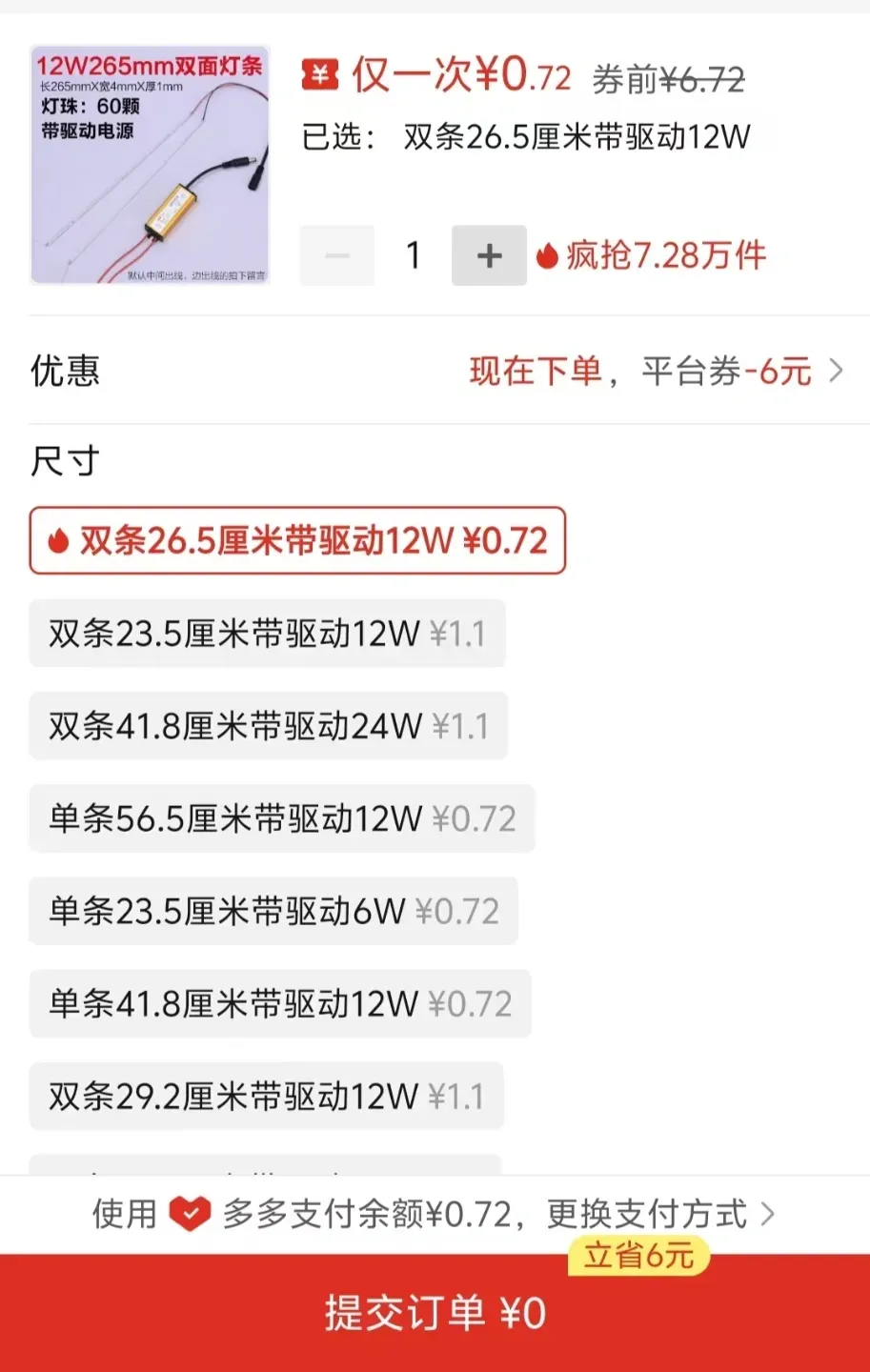

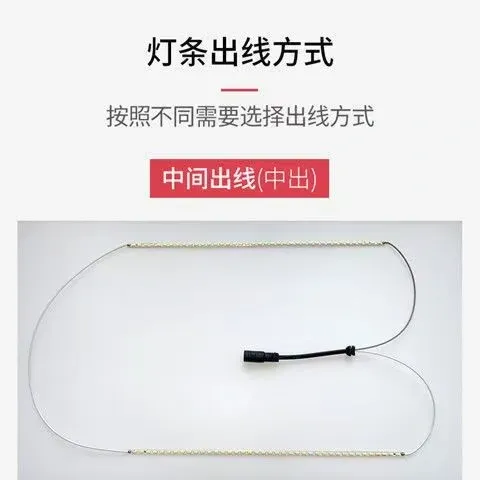

This LED strip can be purchased from various online retailers such as PDD and TB. As it's a ceiling panel light accessory, it is a high-brightness LED strip, considerably brighter than COB or multi-LED strips!
Caution!!! The LED strip operates on a wide voltage range: 6V - 64V low voltage. We recommend using a voltage of 36V or less for safety!!! It can be directly powered by the machine's 24V power supply.

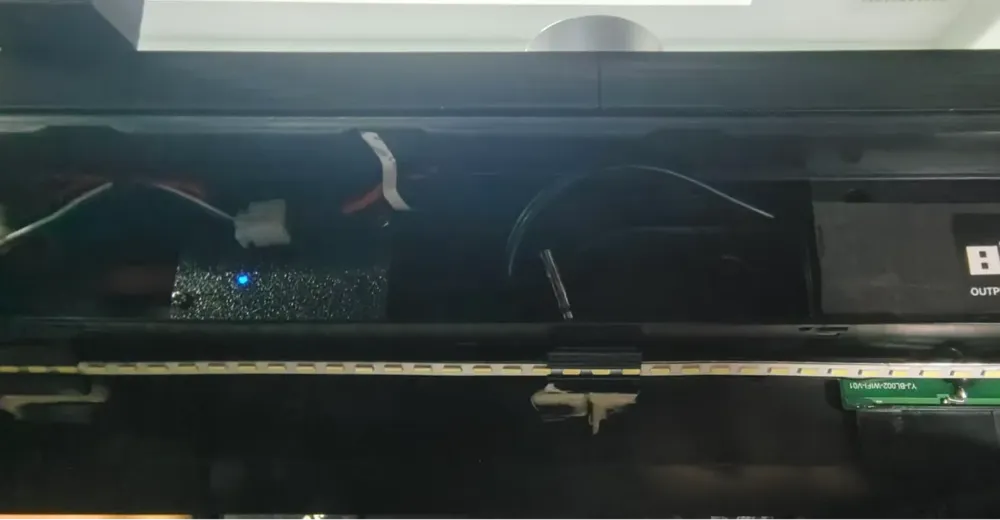

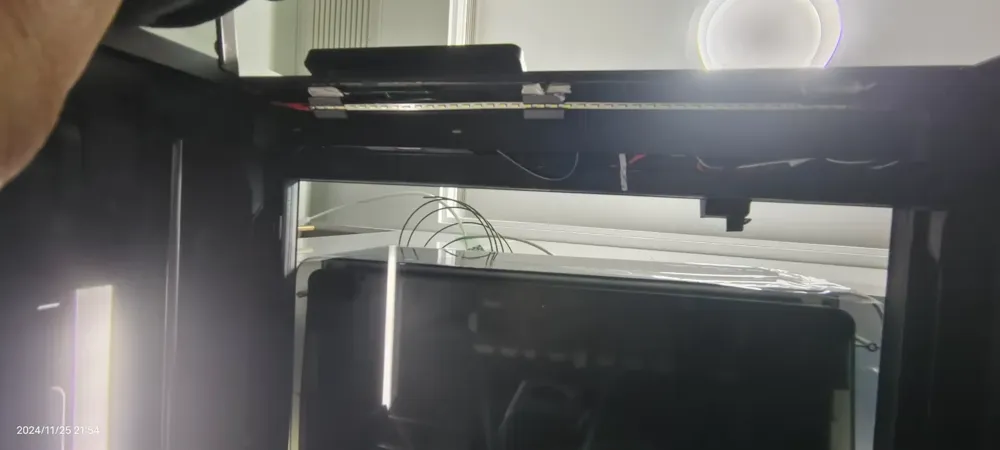

Installation requires using 3M adhesive tape or structural adhesive to attach it to the underside of the top frame. After installation, the extruder will not interfere with the LED strip.

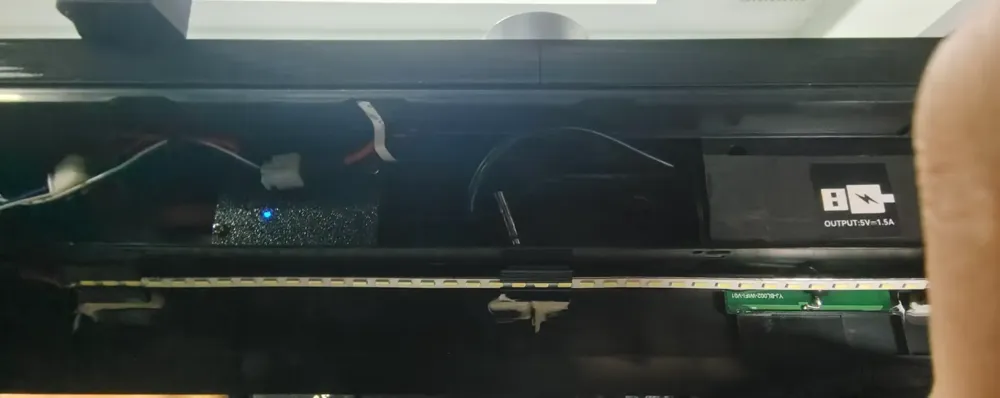

(Caution!!! This LED strip is unidirectional. Wiring is located at both ends, so during installation, route the other end of the wiring to the rear upper triangular area of the extension board to conceal it!!!)
It can be used with the machine's 24V power supply and a Xiaomi smart relay, or with an external power supply!!!
