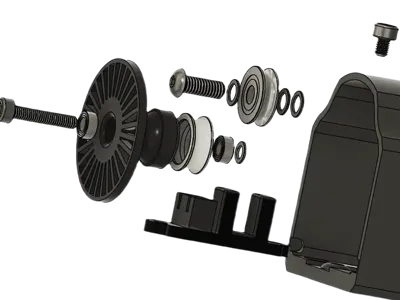

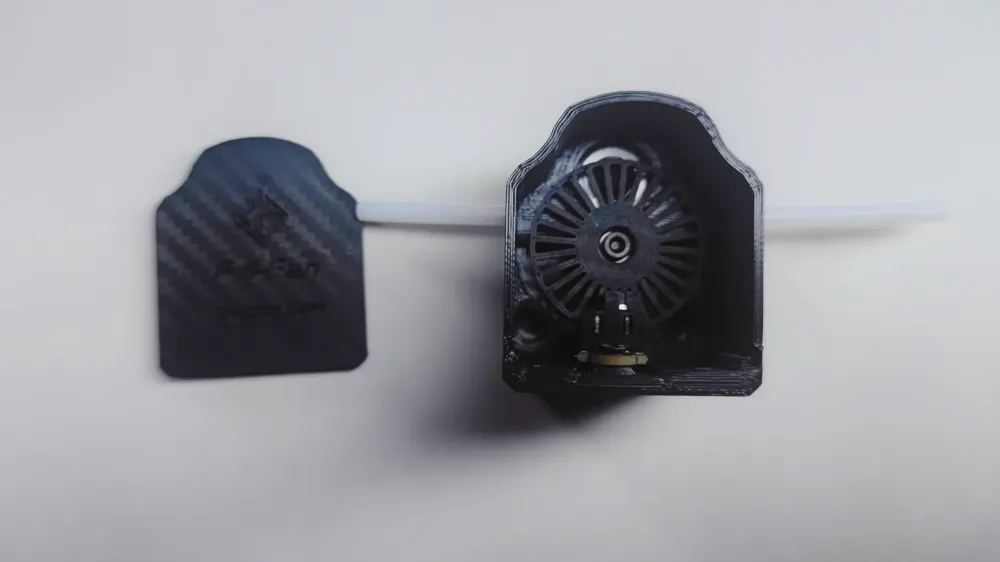

Filament run-out, nozzle clog, filament tangle detection sensor jam detection run-out detection

Click the link to view more of my intriguing designs

Feifan's open-source project, for more open-source project details, visit the Feifan community www.cn2220.com

Currently only compatible with Klipper firmware printers

Two enclosure types are available:

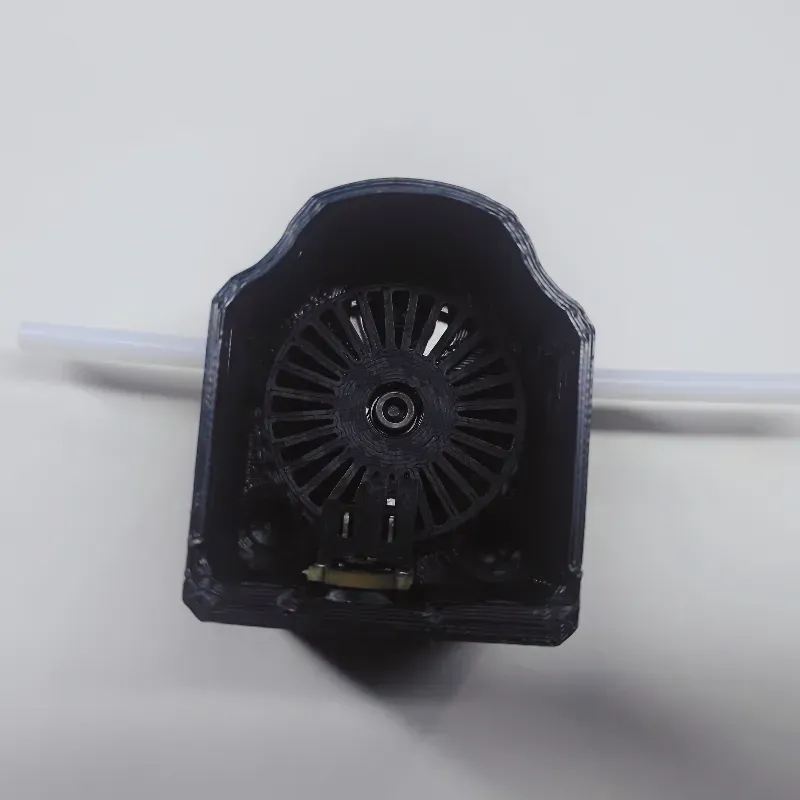

PTFE direct-insertion type (for personal use, apply a small amount of super glue to the PTFE tube if it's not tight enough)

PC4-M6 pneumatic fitting type (with two additional pneumatic fittings)

Note: The two enclosure types are not interchangeable

Functional Description:

Automatic print pausing upon filament depletion

Automatic print pausing upon nozzle clogging

Automatic print pausing upon filament entanglement

Automatic print pausing upon motor stall

Compatible with PLA, PETG, and ABS filaments

If you prefer not to assemble it yourself, you can purchase a finished product through the following link:

Bilibili Workshop (bilibili.com)

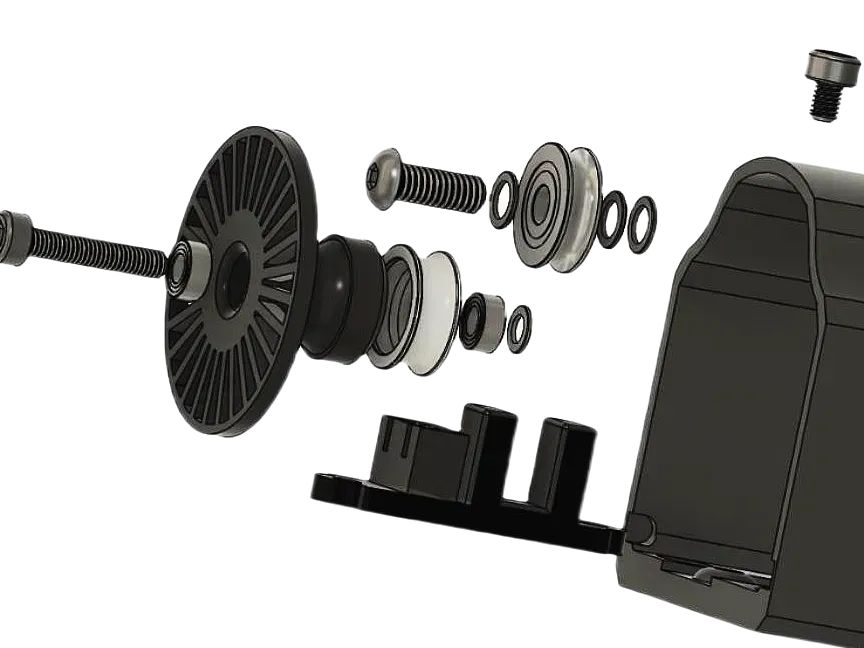

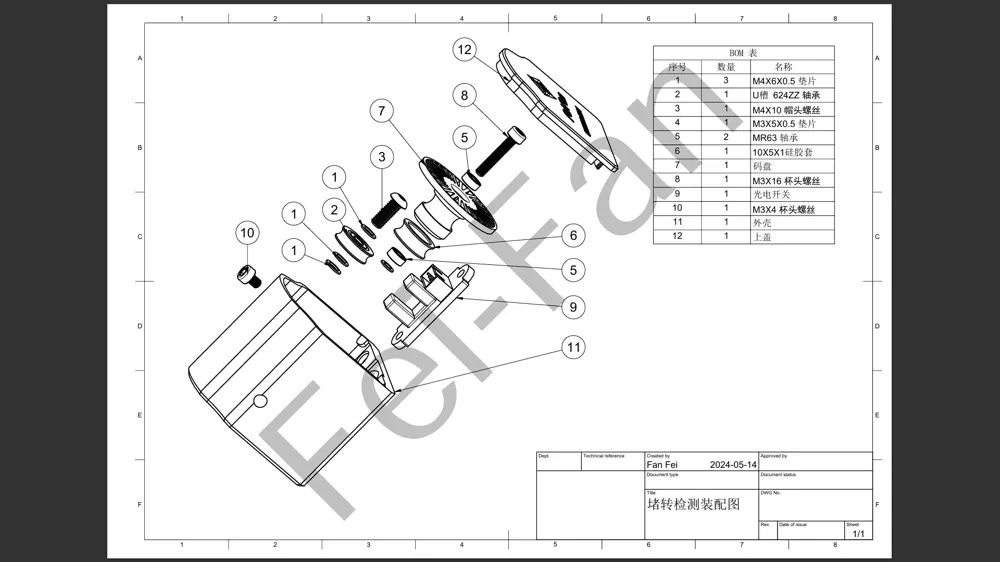

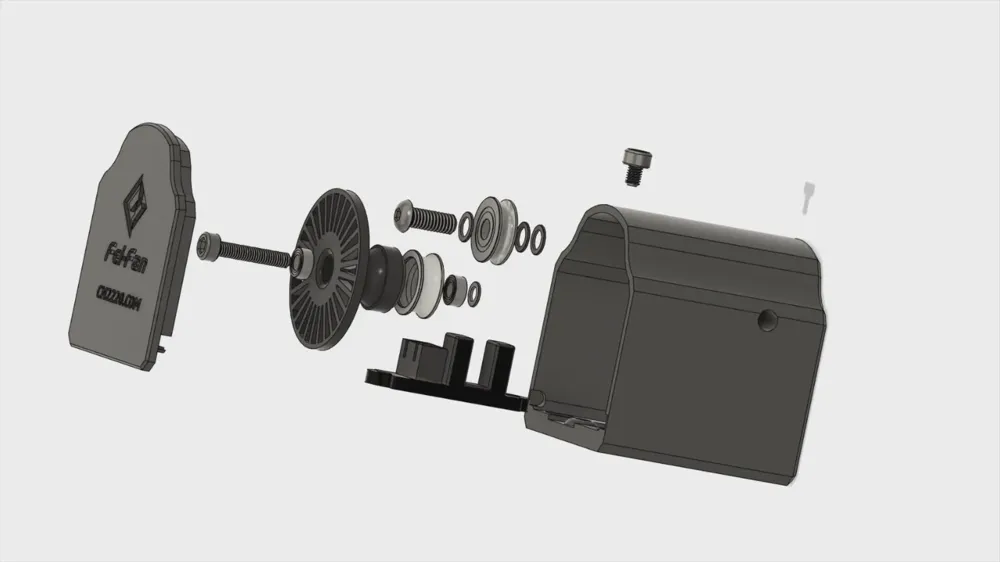

Please scroll down to view the attached BOM and assembly diagrams, the BOM includes links to purchase components

Klipper firmware configuration reference (due to formatting issues, it is recommended to directly use the one in the attached BOM)

#####################################################################

# Motor Stall Detection

#####################################################################

[filament_motion_sensor Motor Stall Detection]

detection_length: 10.0 # Detection distance, unit mm (recommended between 7-12mm)

extruder: extruder # Corresponding extruder name, do not modify switch_pin: PC5 # Signal interface (refer to the motherboard pin diagram or the pin interface number in the original configuration) pause_on_runout: True # Do not modify

runout_gcode: # G-code commands executed after filament depletion is detected.

M118 Filament depletion detected # Sends a prompt message to the screen, you can customize after M118 (if the screen does not support Chinese, please replace it with Filament Load Detected)

M600 # Pause printing

insert_gcode: # G-code commands executed after filament insertion is detected.

M118 Filament loaded detected # Sends a prompt message to the screen, you can customize after M118 (if the screen does not support Chinese, please replace it with Filament Load Detected)

event_delay: 3 # Try not to modify

pause_delay: 0.5 # Response time, try not to modify (if false positives occur, increase to 1)
