15mm Threshold Ramp for Robot Vacuum Cleaners
IP Report
Print Profile(1)
0.2mm layer, 4 walls, 15% infill
Designer
10.1 h
1 plate
Open in Bambu Studio
Boost
66
215
15
7
414
154
Released
Description
Content has been automatically translated.

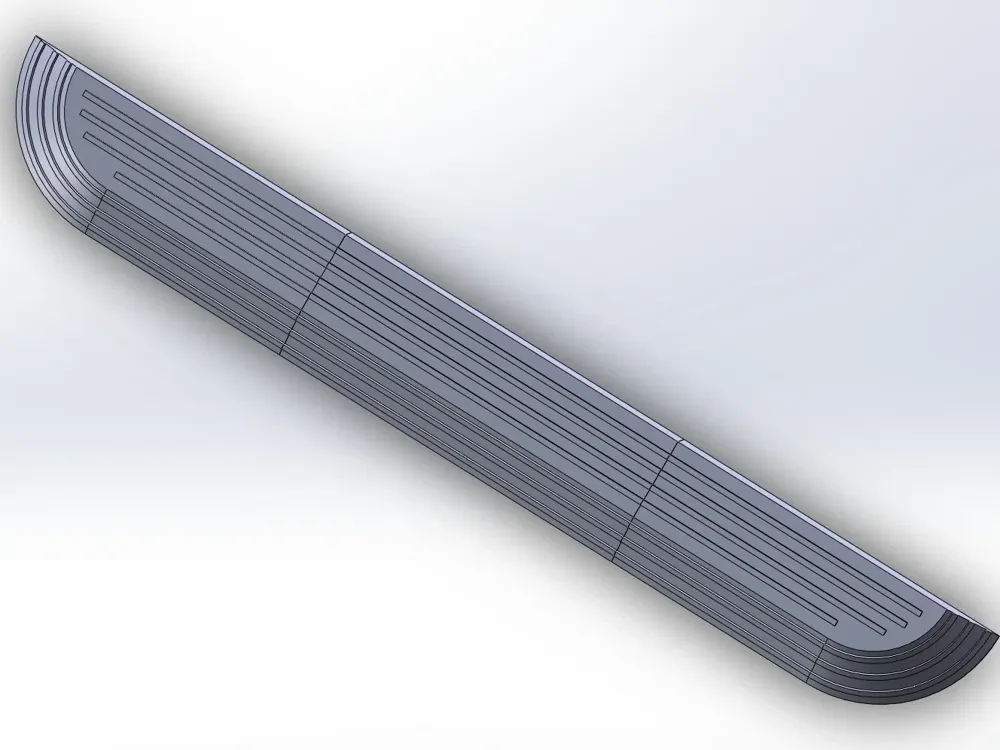

A 15mm high threshold ramp designed for Dreame robot vacuum cleaners at home. I checked the website and didn't find a suitable one, so I designed one myself based on the official threshold ramp.
The outer wall thickness is 3mm, and a 2mm reinforcing rib is added inside. No infill is used.

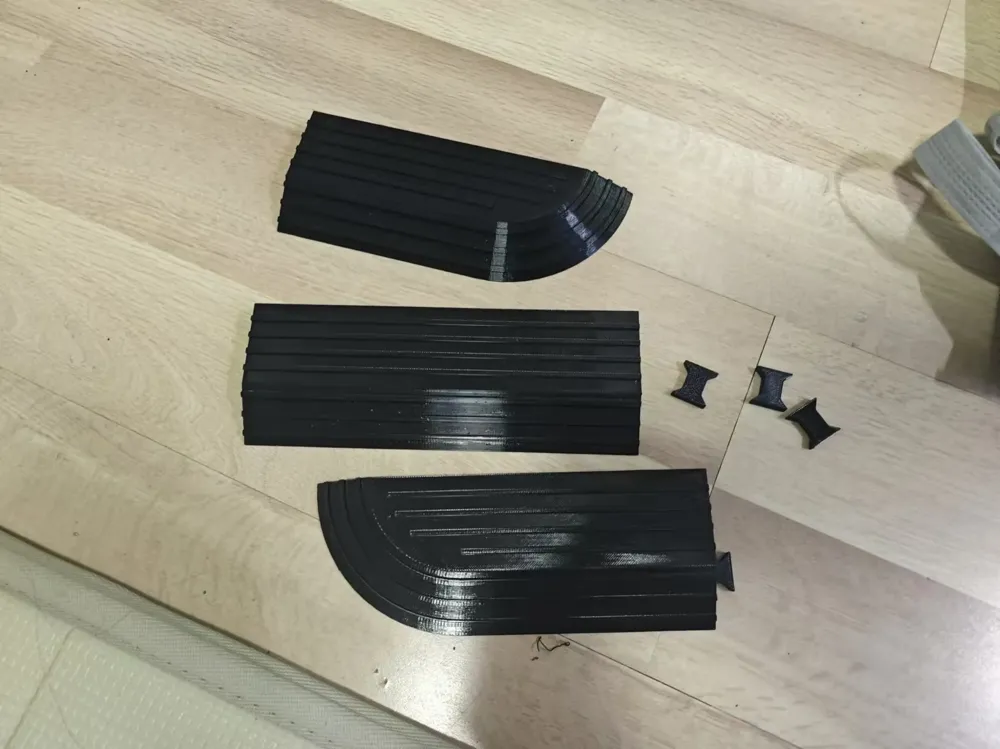

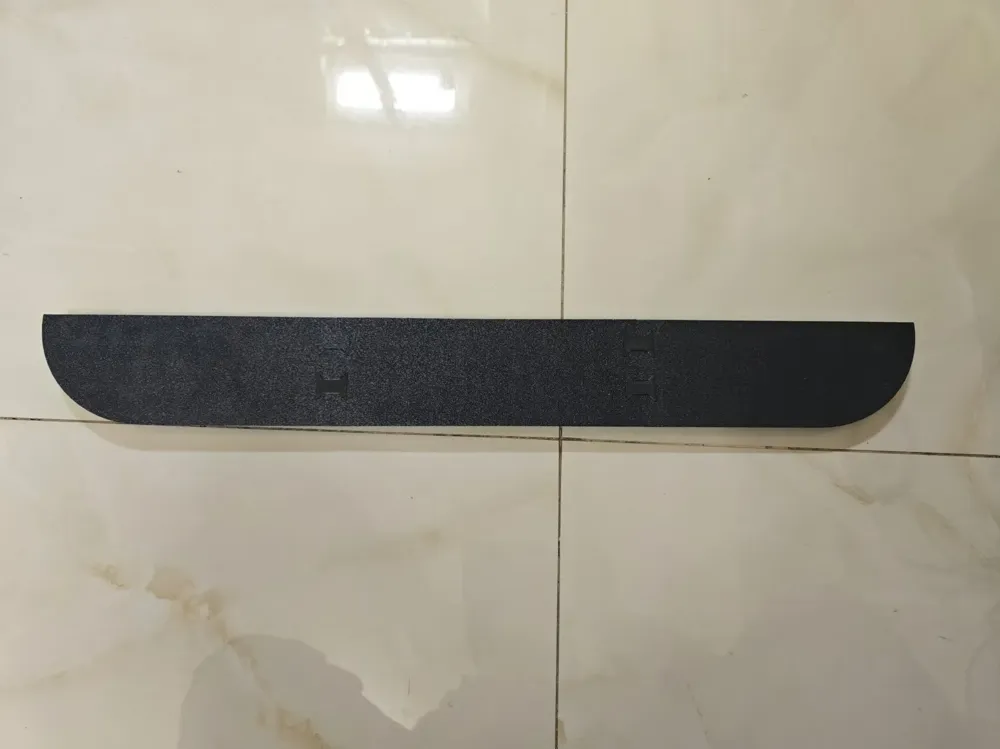

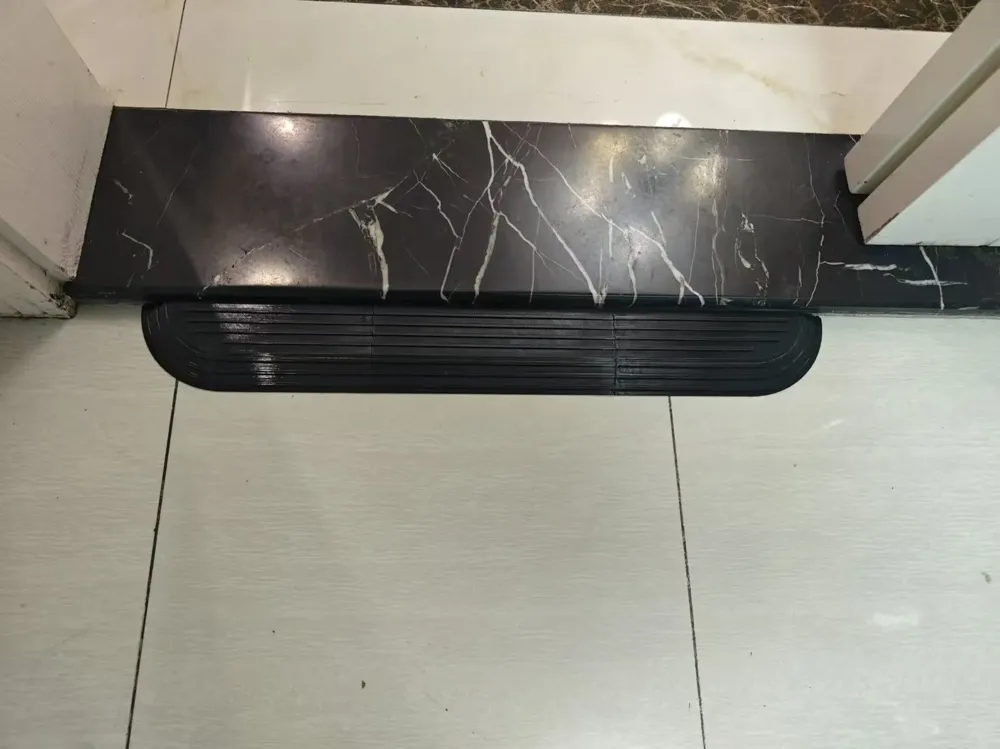

Tests show it can cross a 3cm high threshold. The two side pieces are 190mm each, and the middle part is 200mm.

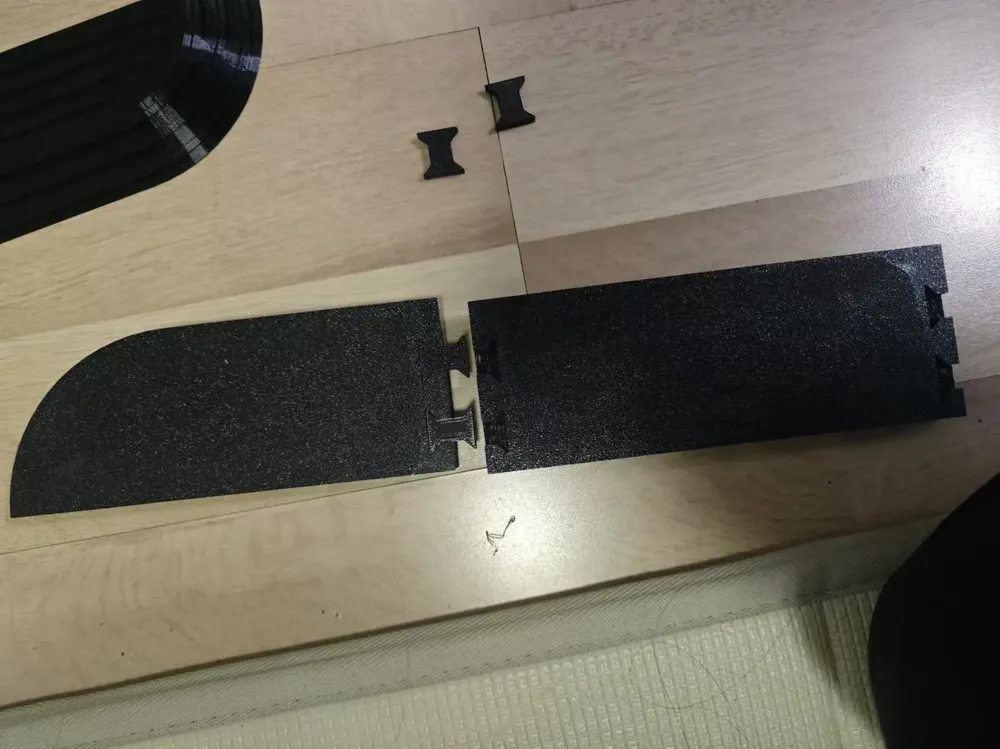

The various components are connected with connecting pieces. If assembly is difficult, you can adjust the printing parameters of the connecting pieces and reassemble them after printing.
The length can be adjusted as needed.
