Underdesk Drawer, Supportless Print, Integrated 40mm Gridfinity Base
Print Profile(1)
Description
Boost Me (for free)

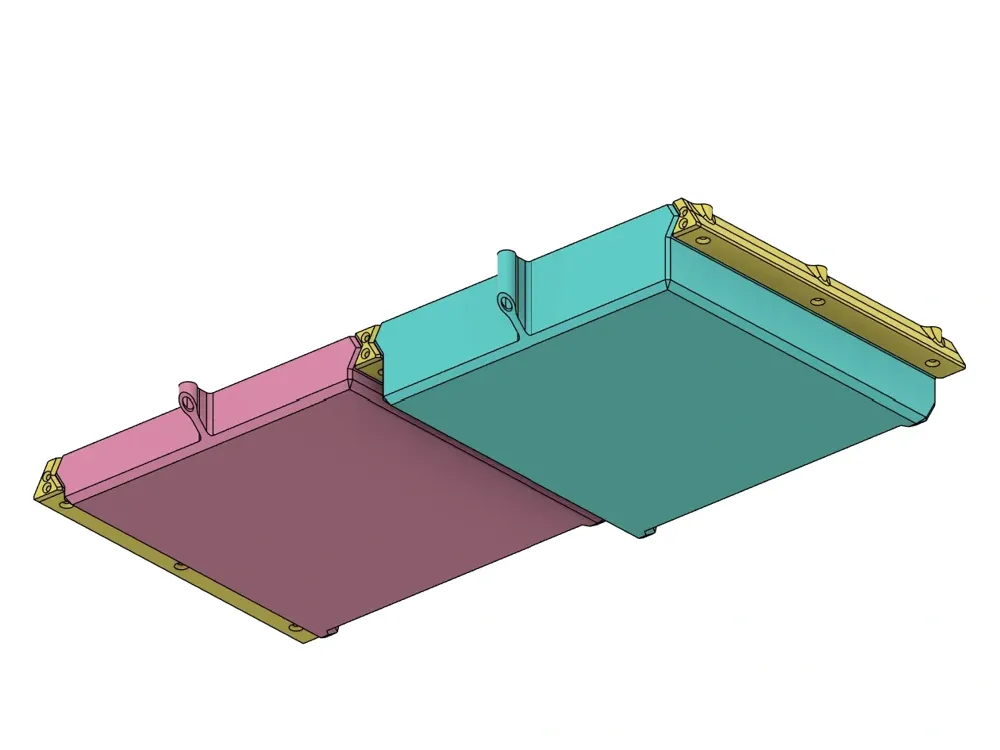

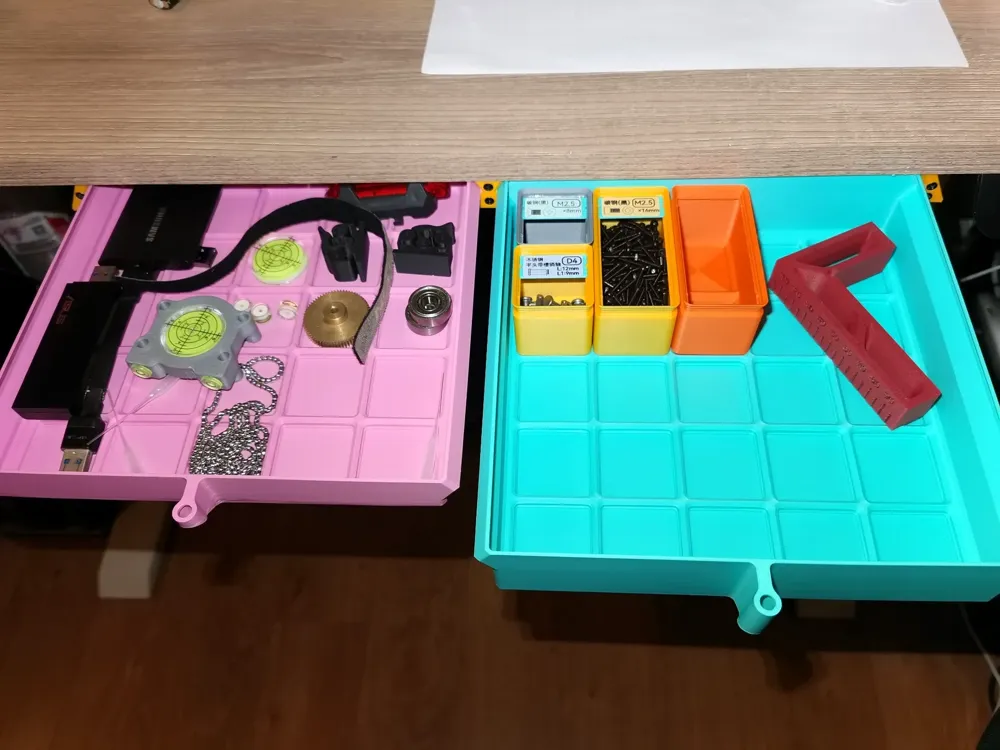

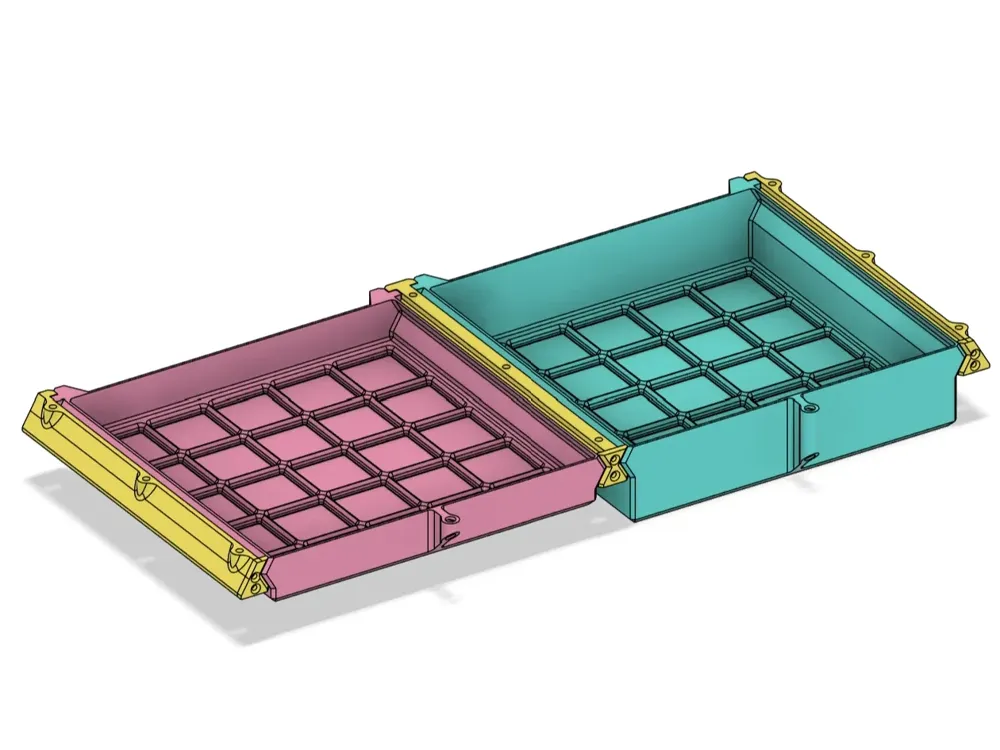

An under-desk drawer with front and rear stops, available in 30mm and 50mm heights, with a drawer width of 210mm and a depth of 210mm

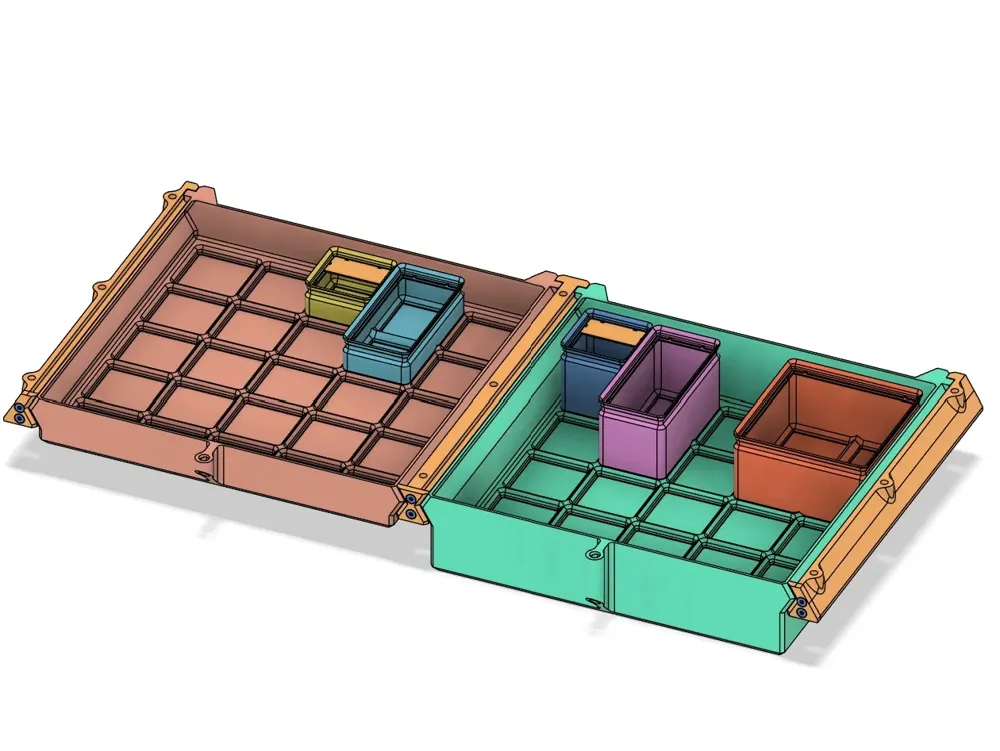

Compatible with 40mm Gridfinity storage boxes (https://makerworld.com.cn/en/models/679384), with an internal size accommodating up to 25 grids (5x5) (Important Note: Standard Gridfinity grids measure 42x42mm and will not fit in this base plate)

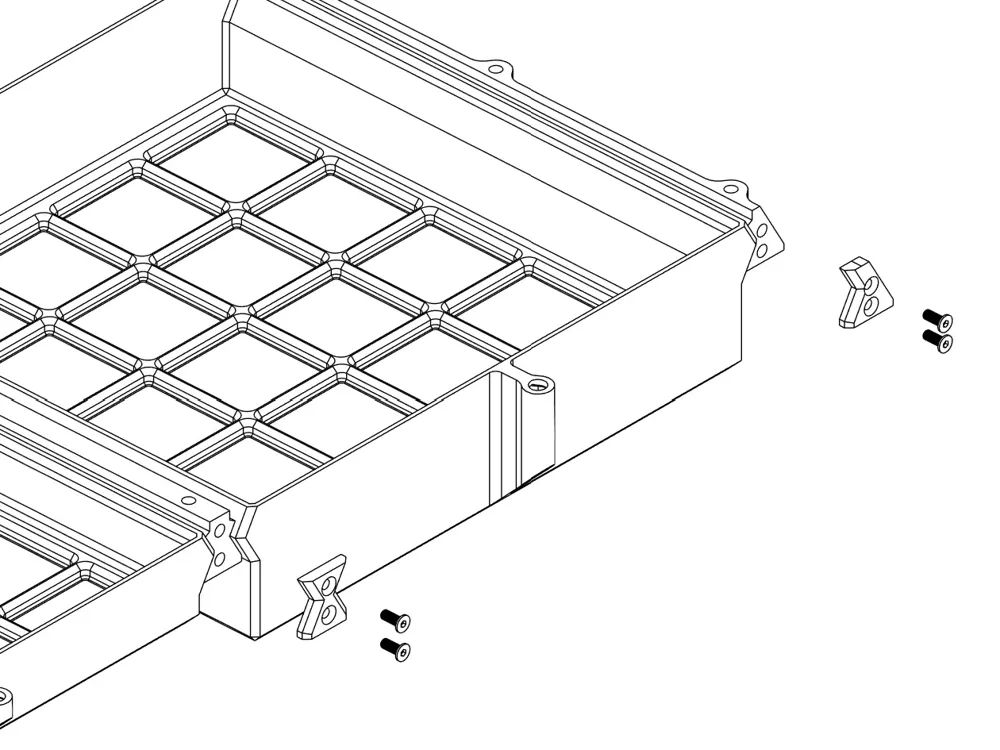

The front stop can be removed for easy drawer replacement
Additional hardware: Several M3*5mm heat-set nuts, several M3*8mm countersunk screws, several M3*30mm self-tapping wood screws

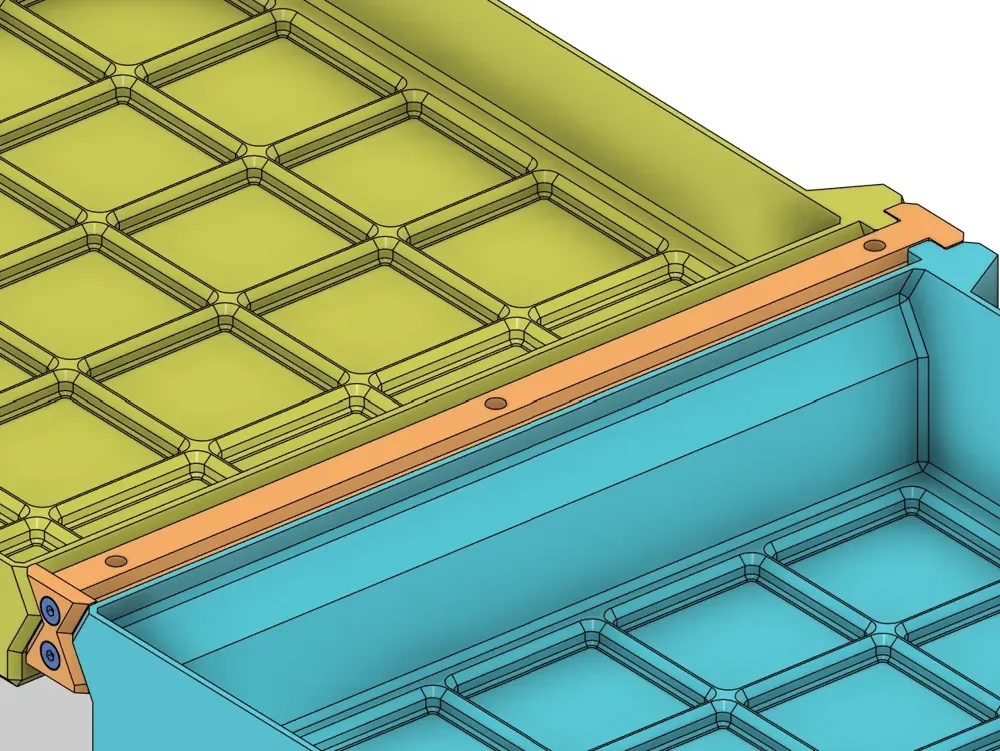

During installation, consider printing a 1:1 A4-sized diagram of the hole positions and affixing it to the underside of the tabletop. Pre-drill 2mm diameter holes according to the diagram before installing the guides. After installing the guides, insert the drawer and finally attach the front stop
- Employing a thin-shell design for enhanced strength while minimizing print time and material usage, requiring no supports
