Upgrade Your Soldering Fume Extractor with an Integrated Power Socket!

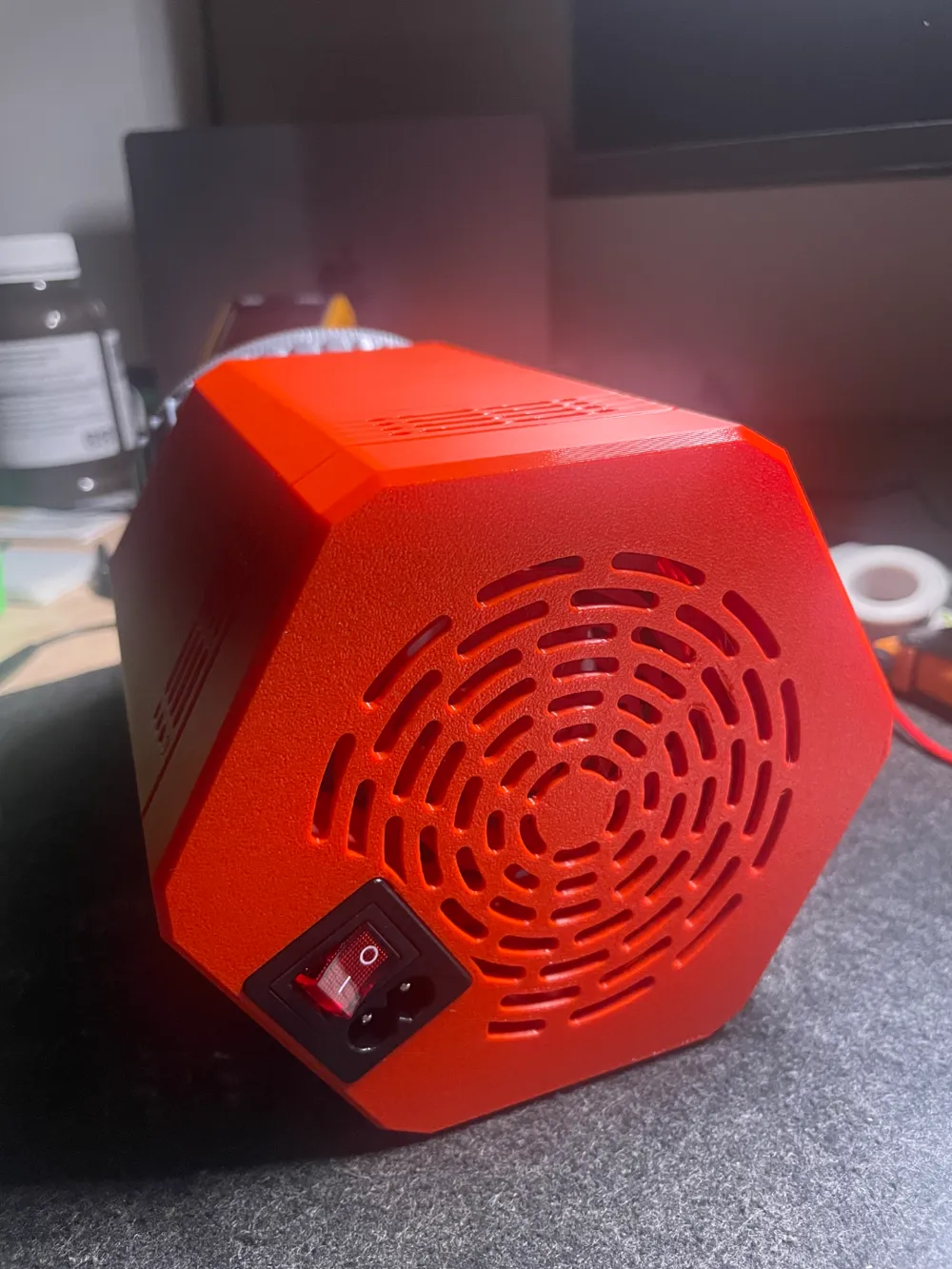

Take your soldering fume extractor to the next level by adding a built-in power socket for convenient on/off control without needing to unplug the power source. This mod is simple, practical, and makes your workspace more efficient!
Please consider giving this model a boost; it helps me continue making free models.
Boost Me (for free)
If you enjoy this model and want to support my work, please like and consider giving it a boost!
What You’ll Need
• Power Socket: IEC320 Socket
• A modified base (to replace the original one).
• Basic tools for assembly, such as a soldering iron, screwdriver, and multimeter.
Instructions

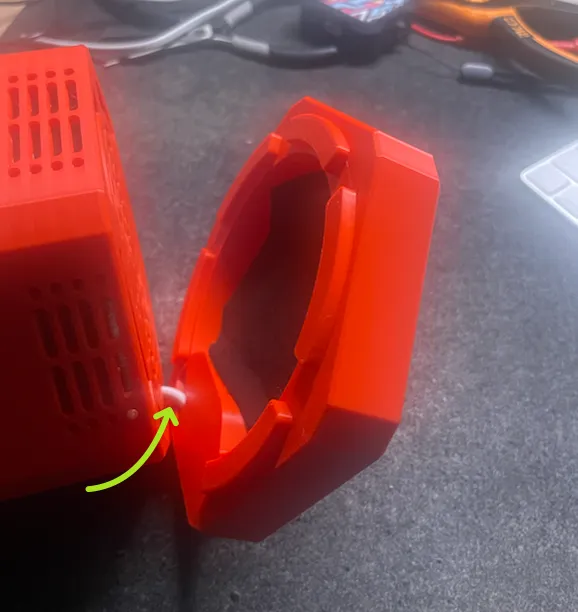

1. Replace the Base: Swap out the original base with the modded one, ensuring the fan wire is positioned as shown in the reference image.

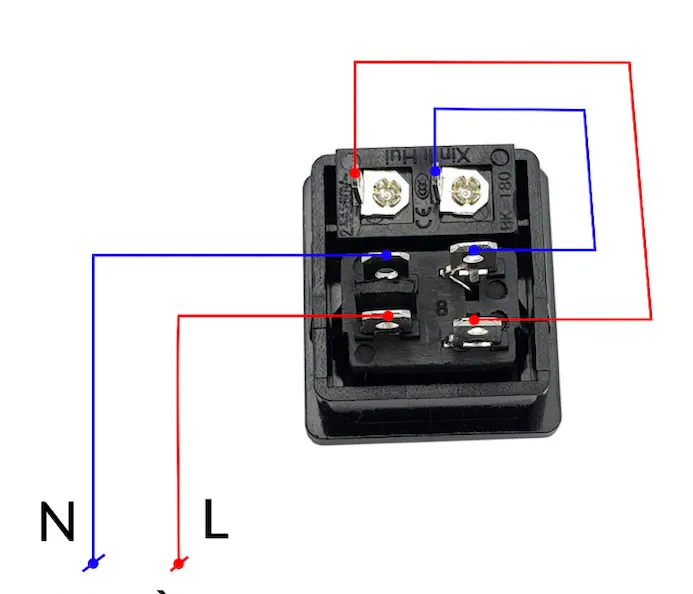

2. Connect the Wiring: Follow the provided wiring diagram to connect the fan and the power socket correctly. Ensure proper insulation for safety.
3. Assemble and Test: Reassemble the unit, test the connections with a multimeter, and enjoy your upgraded fume extractor!
This simple upgrade not only enhances functionality but also adds a professional touch to your DIY project. Perfect for makers looking to refine their soldering setup!
