XGIMI Polar Z6 Projector Headrest Mount

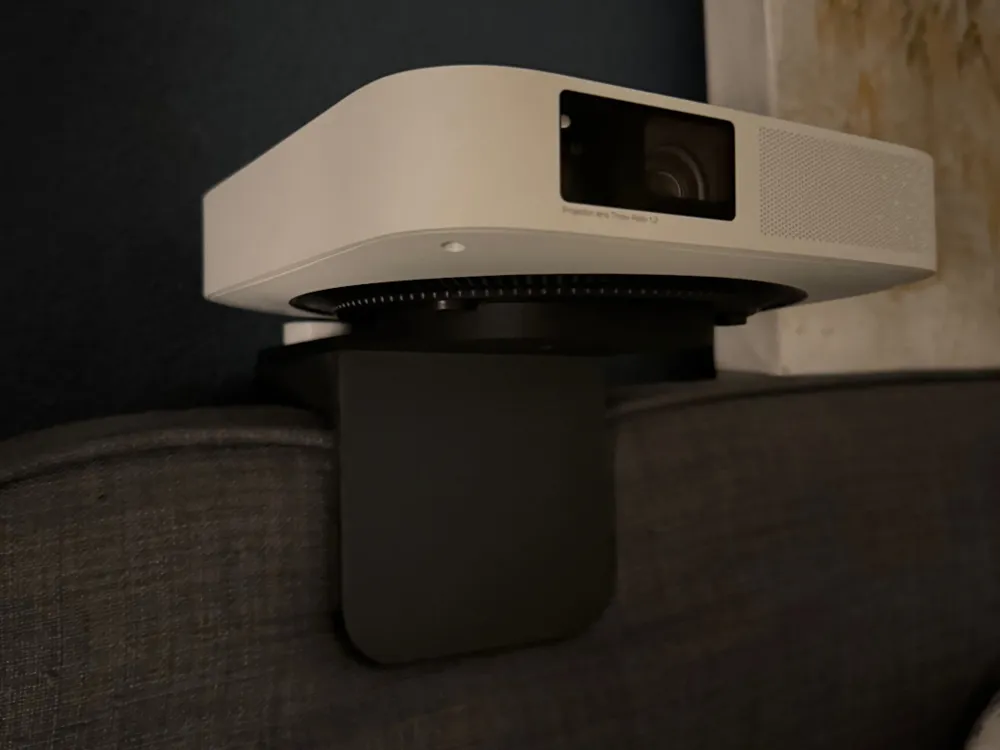

A simple fixture for mounting the XGIMI Z6 (Z6X and maybe some other Xgimi beamers) on the headrest of a bed.

The Print consists of three parts:

Bottom: This part goes on a headrest with 7-7.5mm width and is printed on the side, so it will strongly clamp onto soft bed headrests with roughly that size and still be strurdy. Some minimal supports are needed.

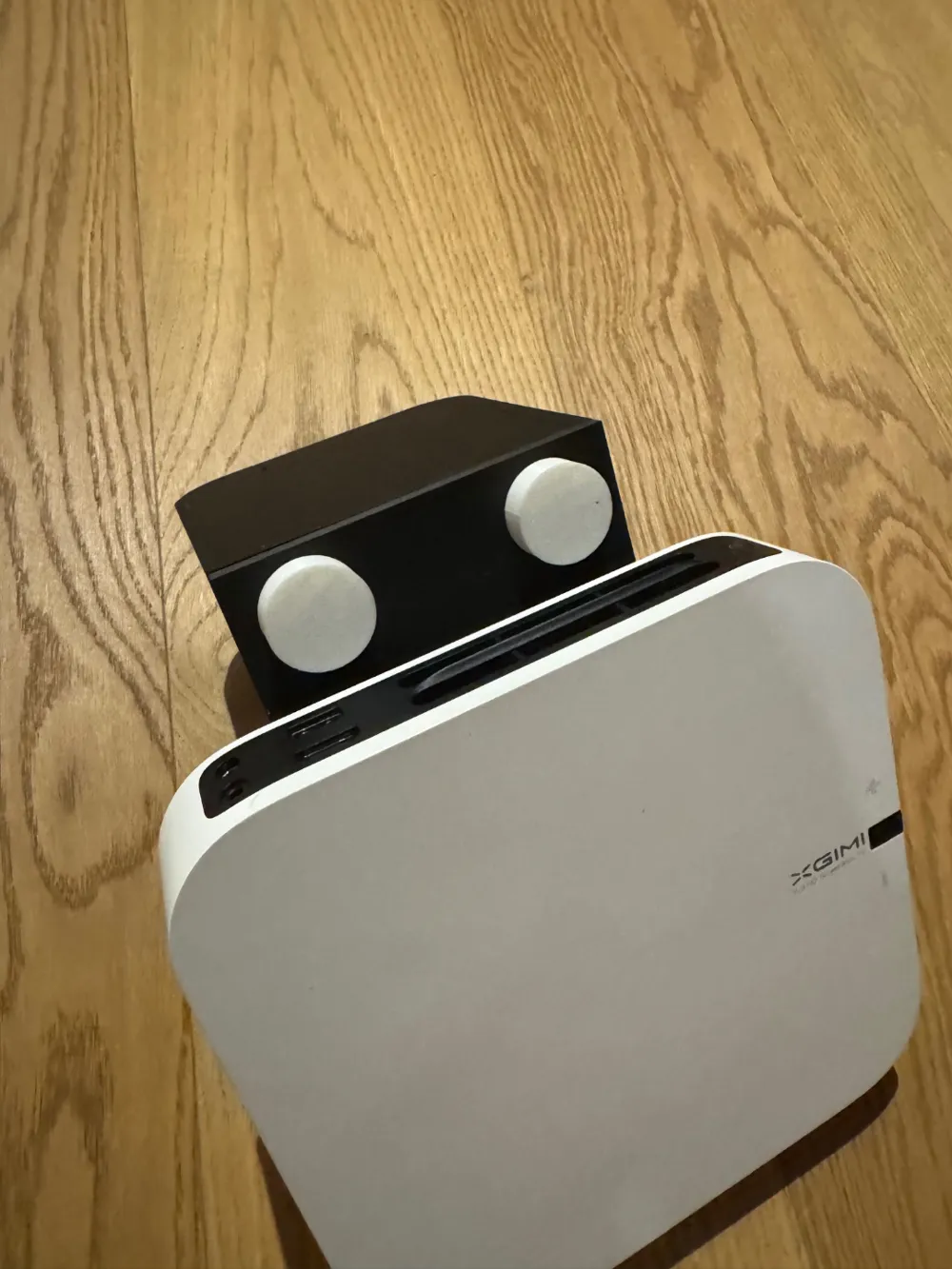

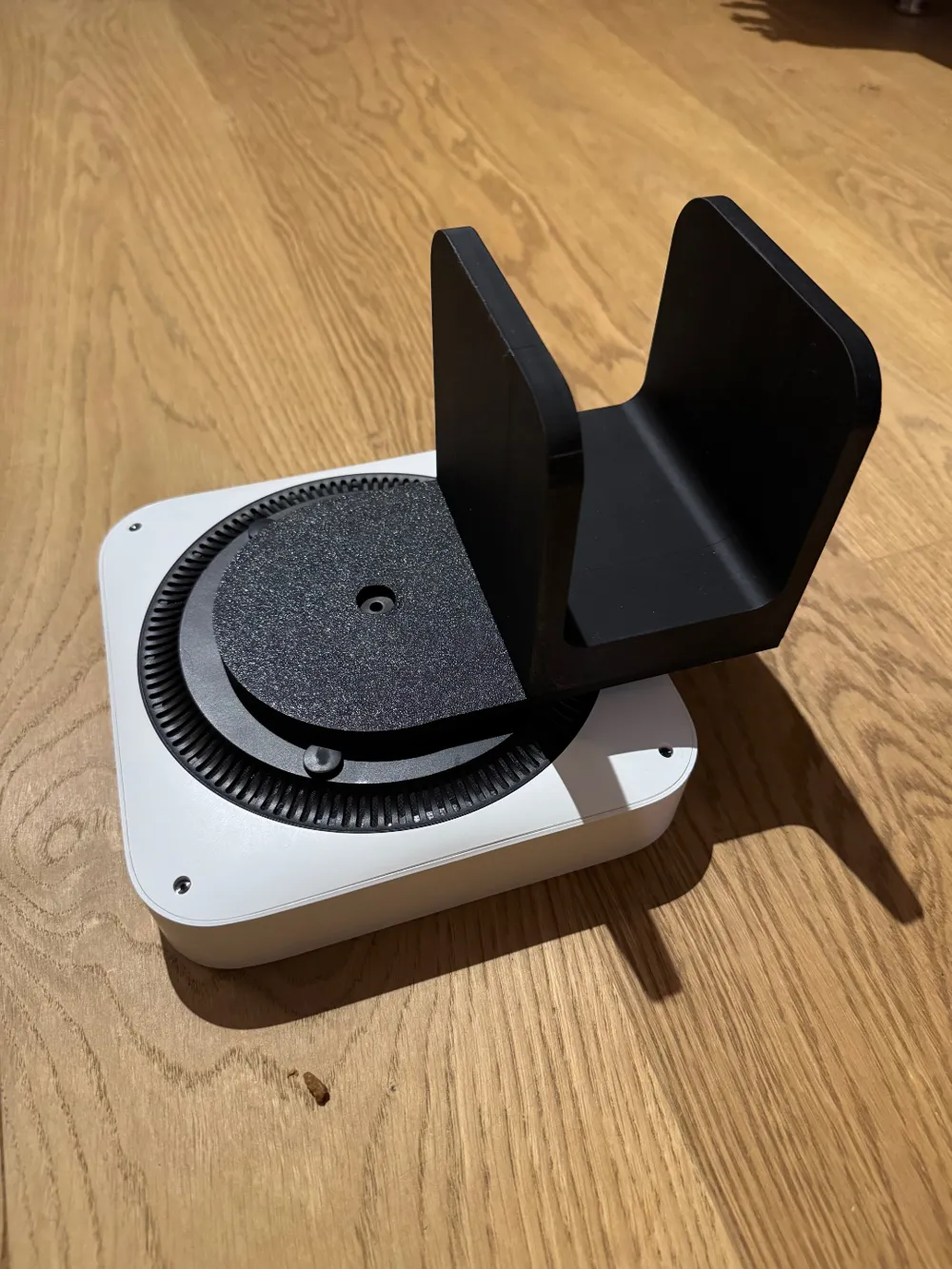

Top: This part goes onto the beamer directly and can be printed without any supports. To fix the beamer to the mount, a metal ¼" standard Screw can be used (i used one of an Arca Swiss camera mount)

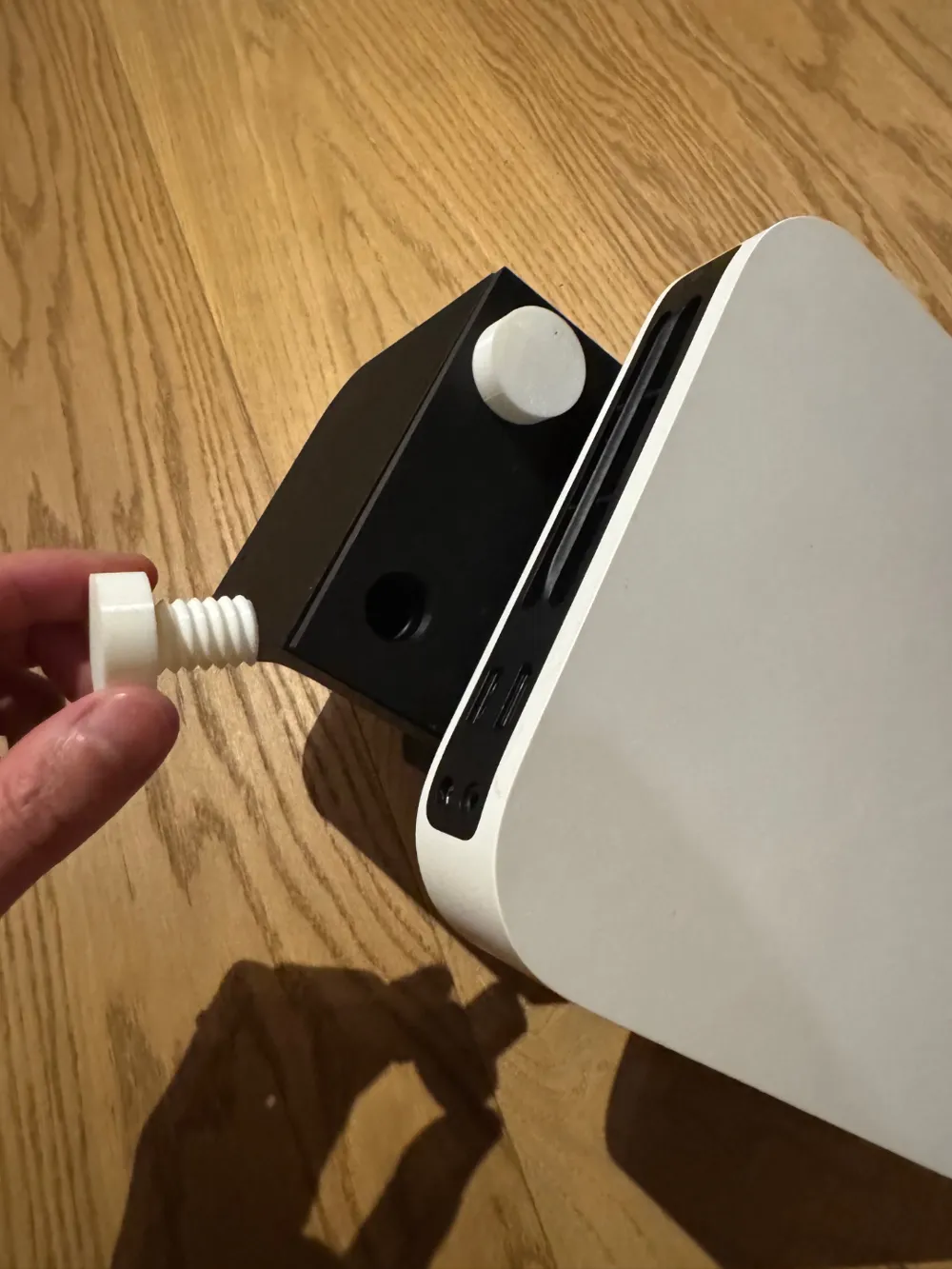

Screw: Two screws are used to connect Bottom to Top part and if printed in the same material (PLA) they fit snuggly, and can be hand tightened very well. In the next version i will update them to have a hexagonal head to be even easier to screw on by hand.
