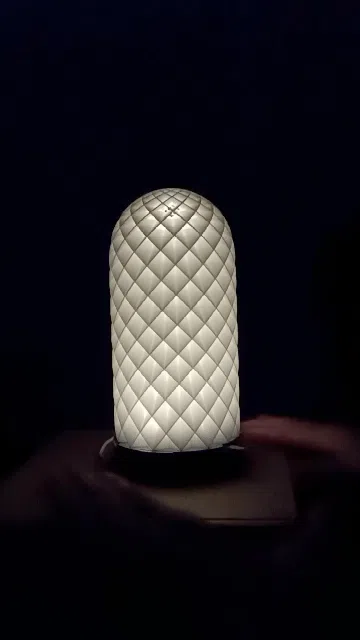

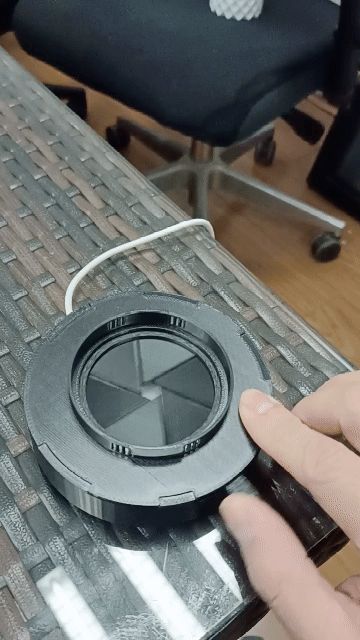

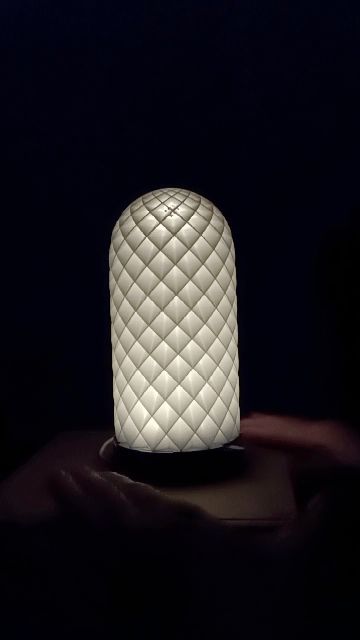

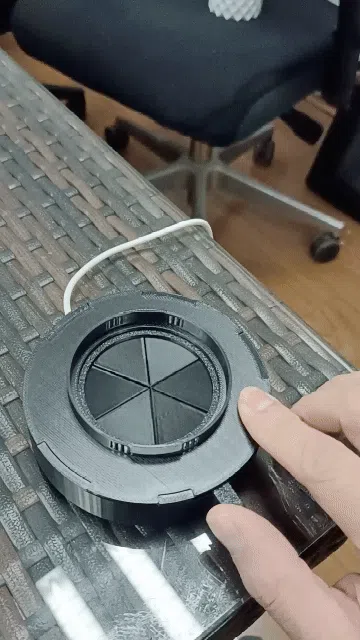

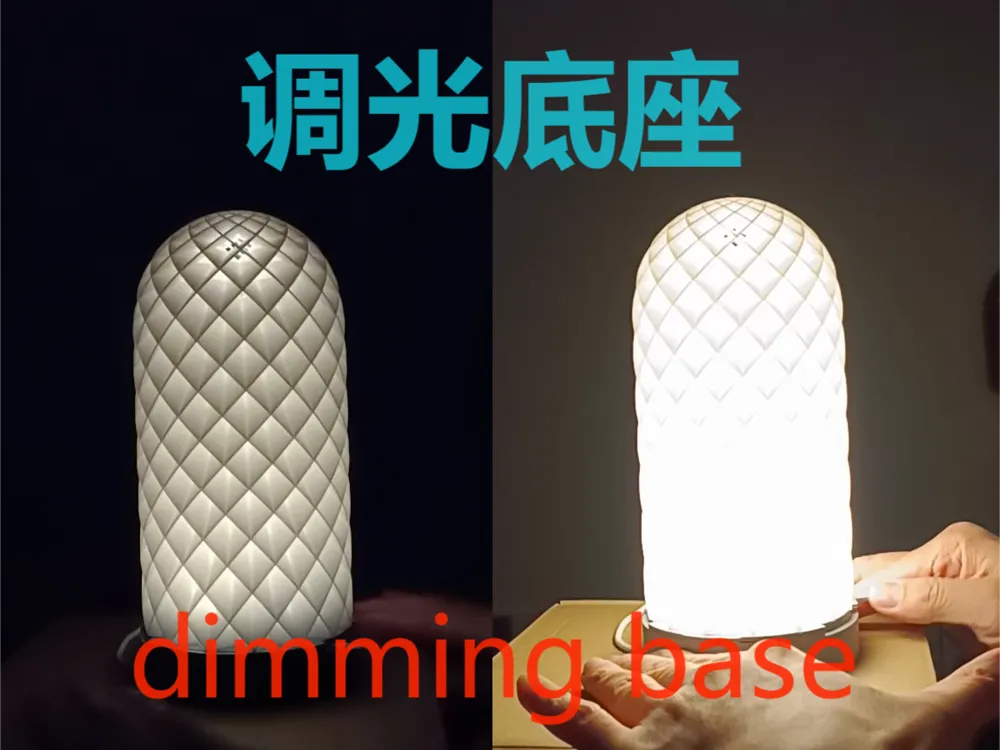

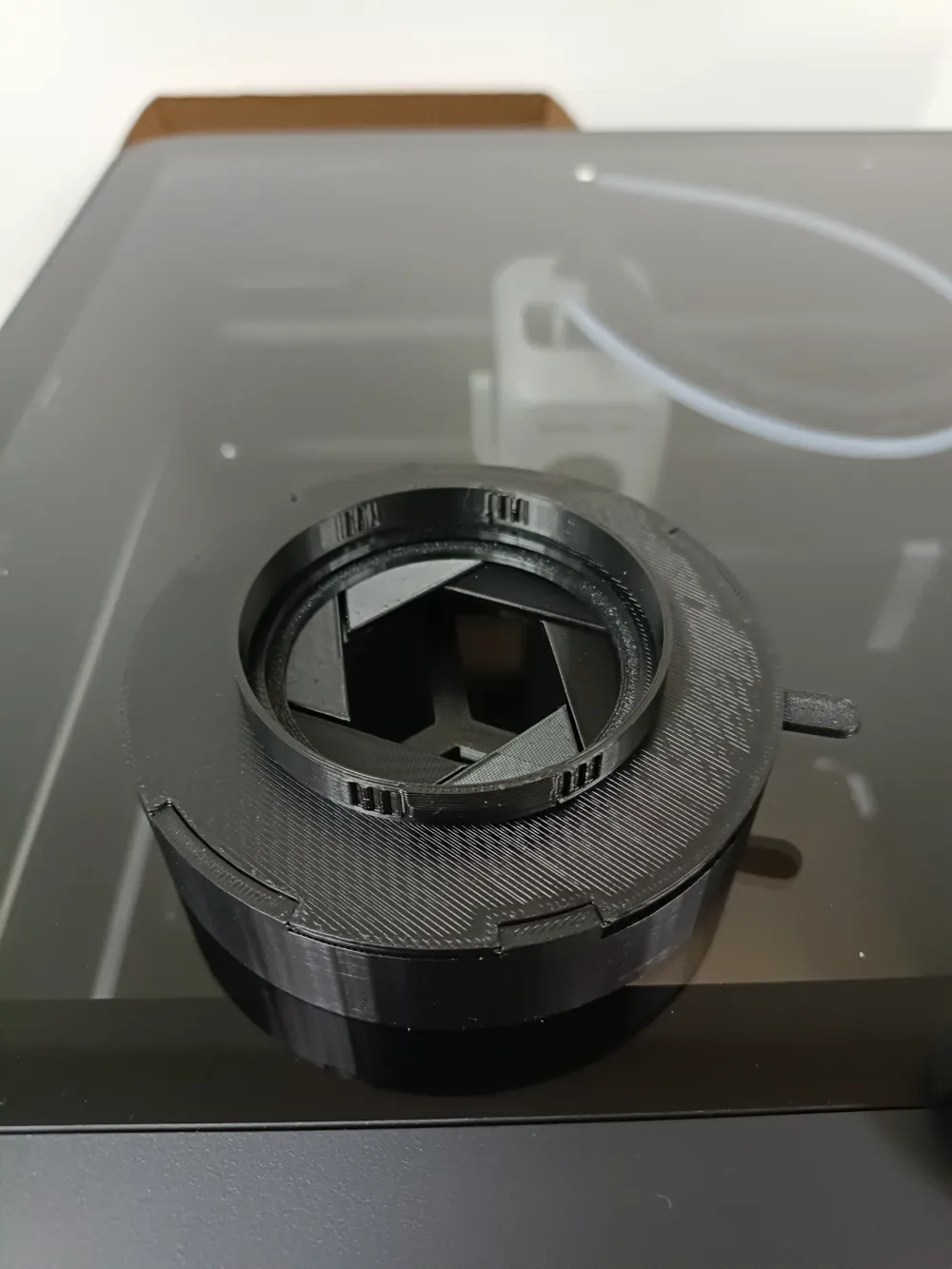

This is a universal dimming base, allowing you to freely adjust the brightness of your 001 LED night light. It is only 2CM wider and 1CM taller than the official base.
It uses the same snap-fit design as the 001 LED kit, making it compatible with a variety of lampshades.
Boost Me (for free)
Please boost me
If your lampshade uses a non-official snap-fit, you can open Bambu Studio, separate the components of part 5, and combine the top cover with your snap-fit.

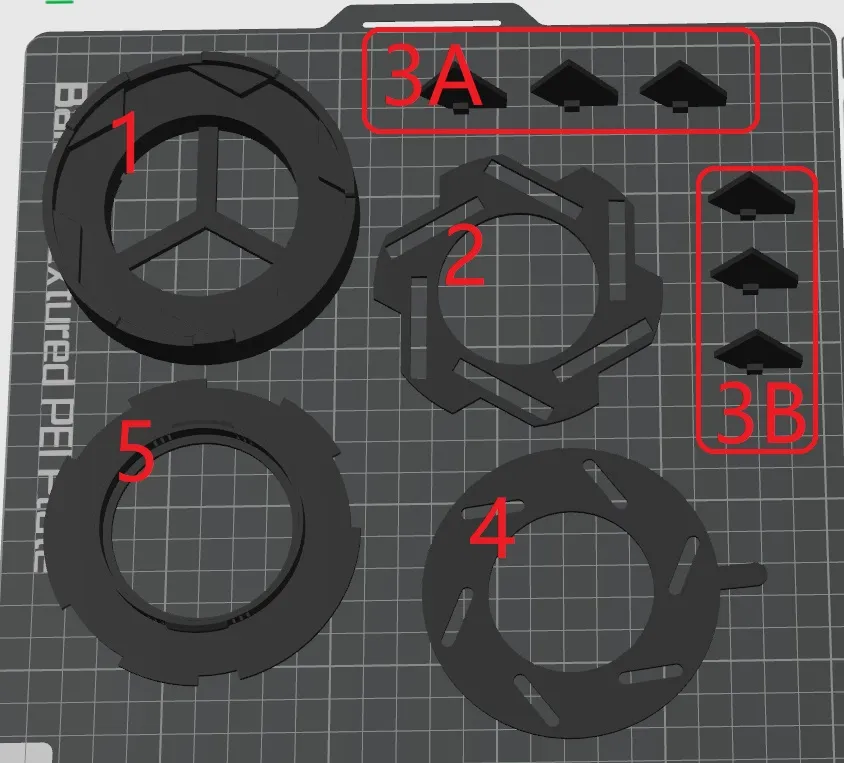

P1S and other printers can print this on a single plate, while the A1 mini requires two plates.

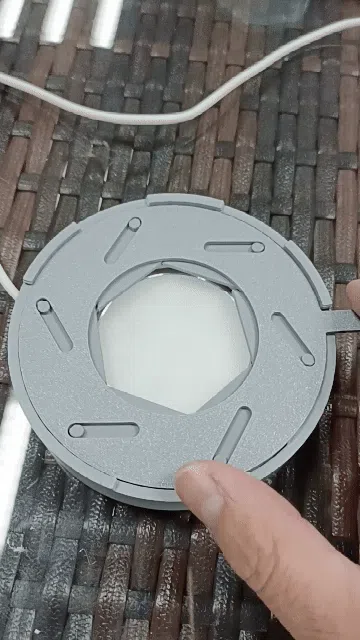

It is crucial to note that there are two types of blades, labeled 1 and 2. When arranging them, ensure they are spaced apart to avoid jamming.
Assembly Instructions
1. Insert the LED into part 1
2. Insert part 2
3. Insert parts 3-1 and 3-2 alternately

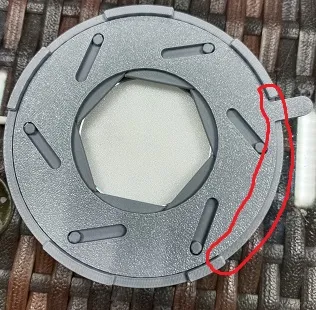

4. Insert part 4, paying attention to the slot position. Adjust slightly to ensure smooth opening and closing
5. Snap on part 5

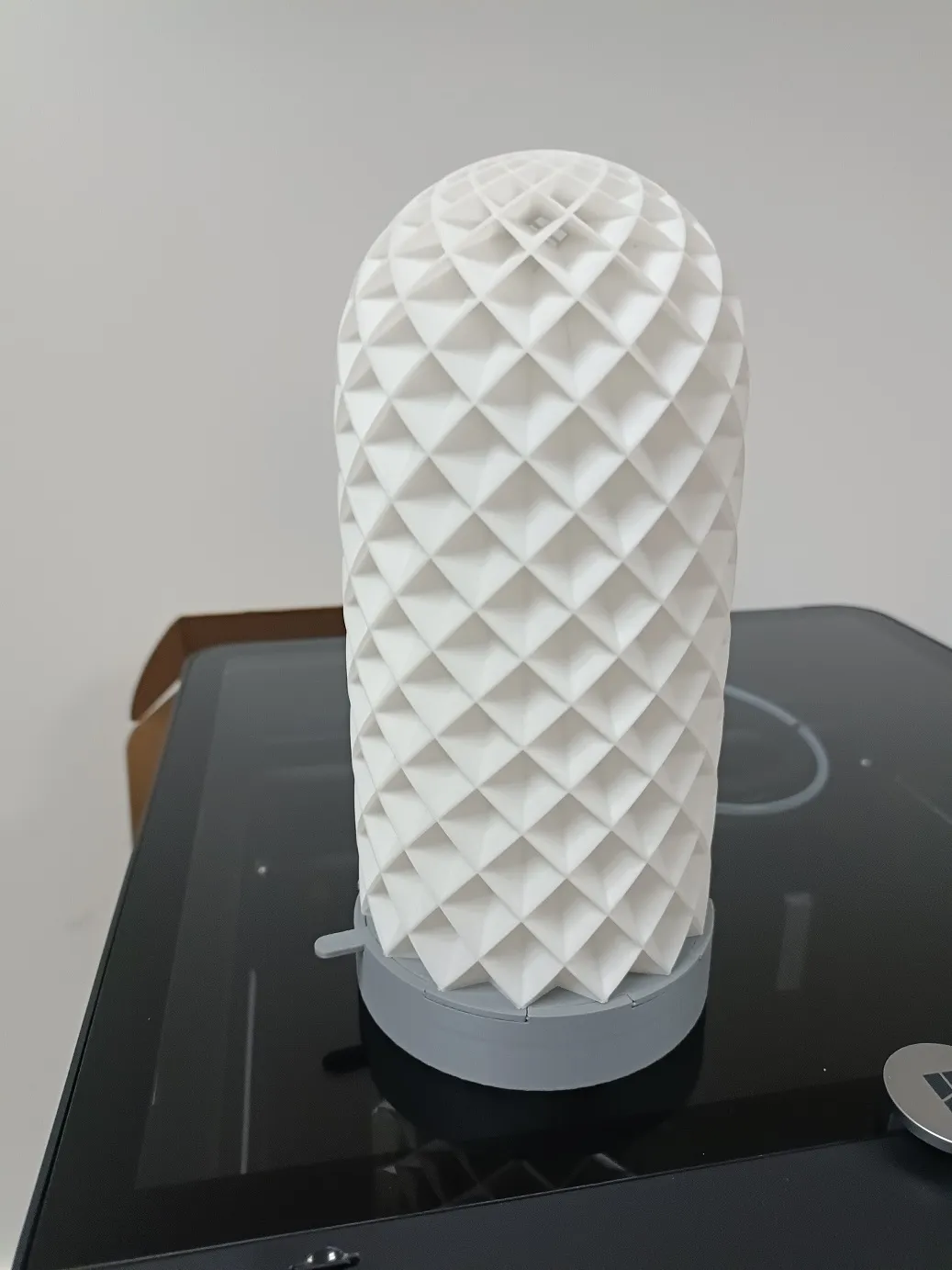

6. Attach the lampshade, and you have a dimmable LED light.
Remember to use sufficiently opaque material. I used both gray PLA matte and black PETG, and both worked well.
