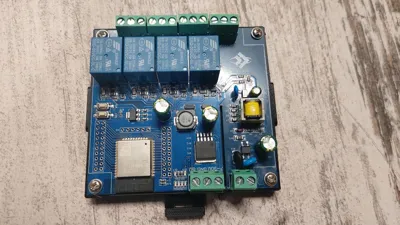

DIN Rail ESP32 4-Channel Relay Enclosure
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
3.5 h
1 plate
Open in Bambu Studio
Boost
36
123
7
3
193
73
Released
Description
Content has been automatically translated.
Amazon ESP32 4-Channel Relay
Aliexpress ESP32 4-Channel Relay
Assembly instructions module
1. Drill holes using a drill.
2. Secure the module with four screws.
3. Insert the side with the longest clamping strips into the housing.
4. Insert the side with the shorter clamping strips and snap it into place.
Documentation (1)
Assembly Guide (1)
4-Kanal Relais.PDF
