Wardrobe Restraining Lines for Adria Twin Supreme SGX

Greetings,

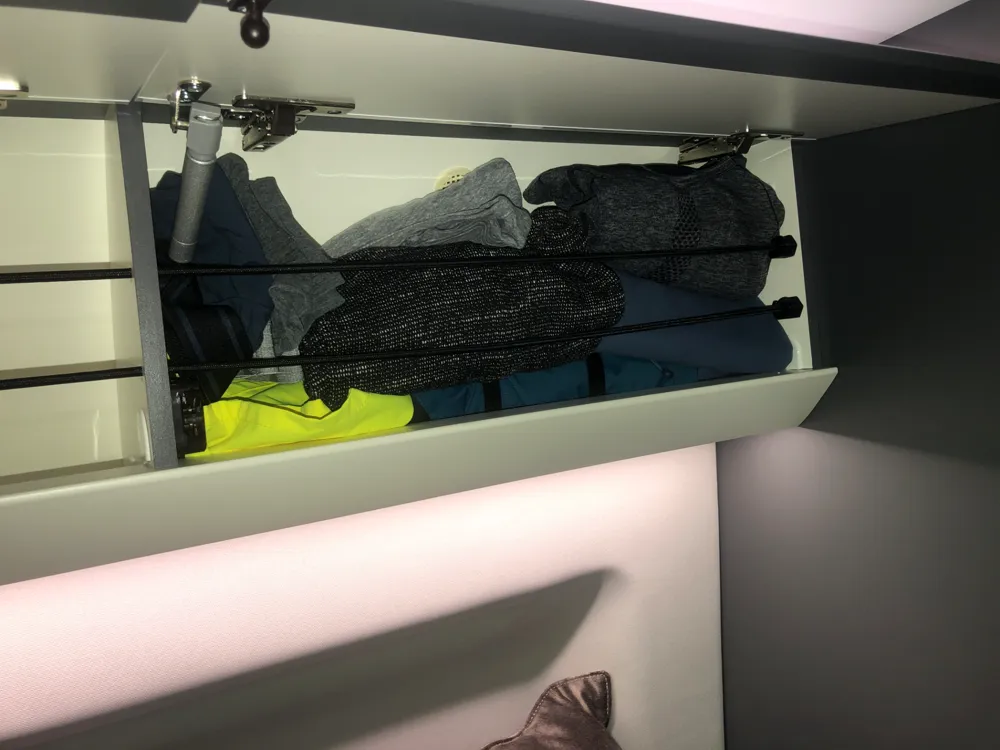

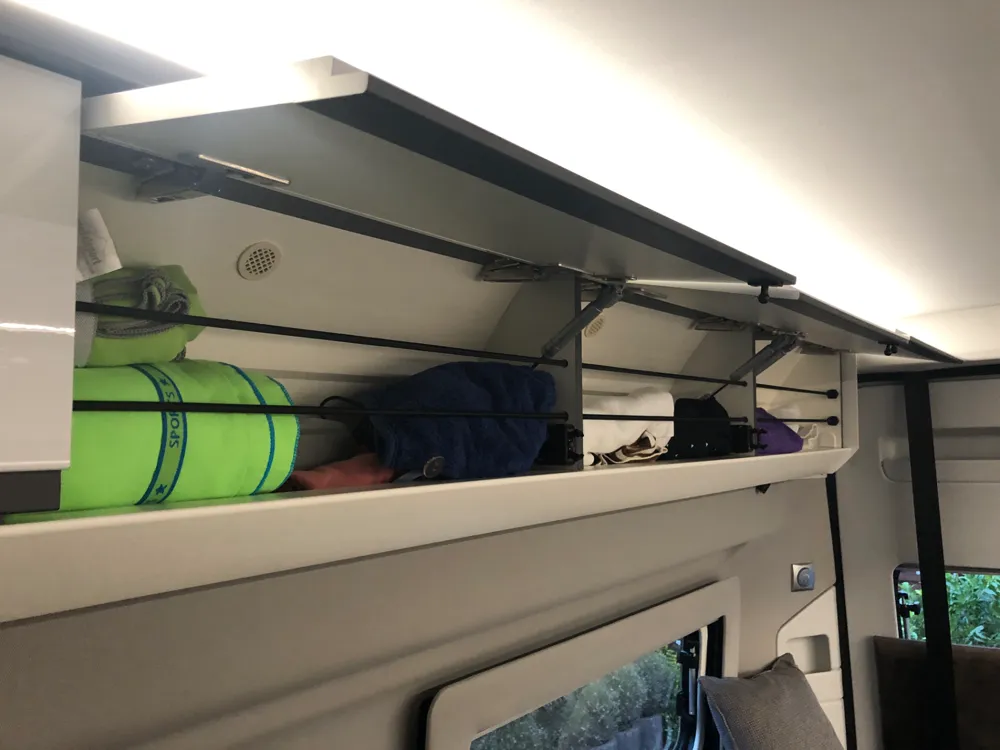

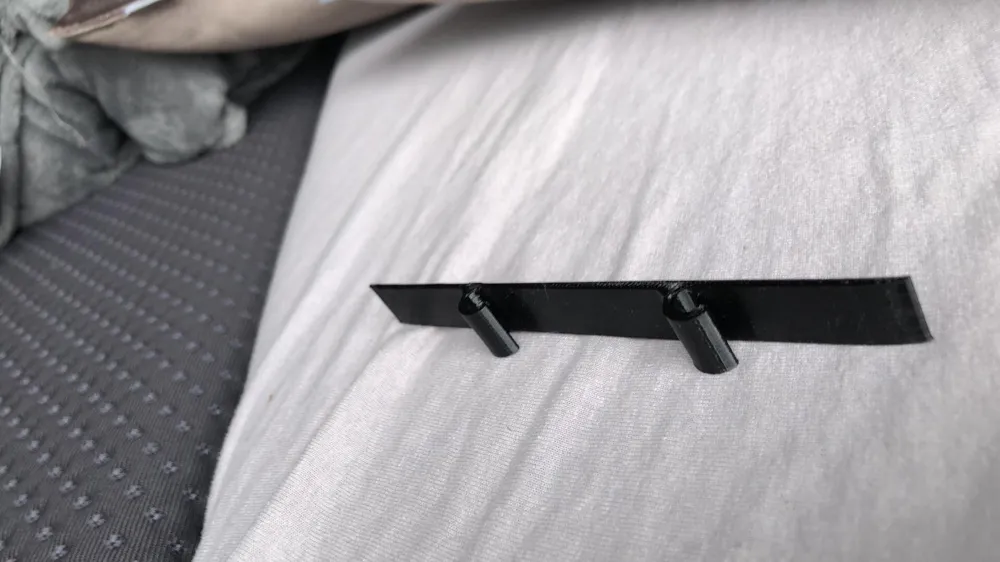

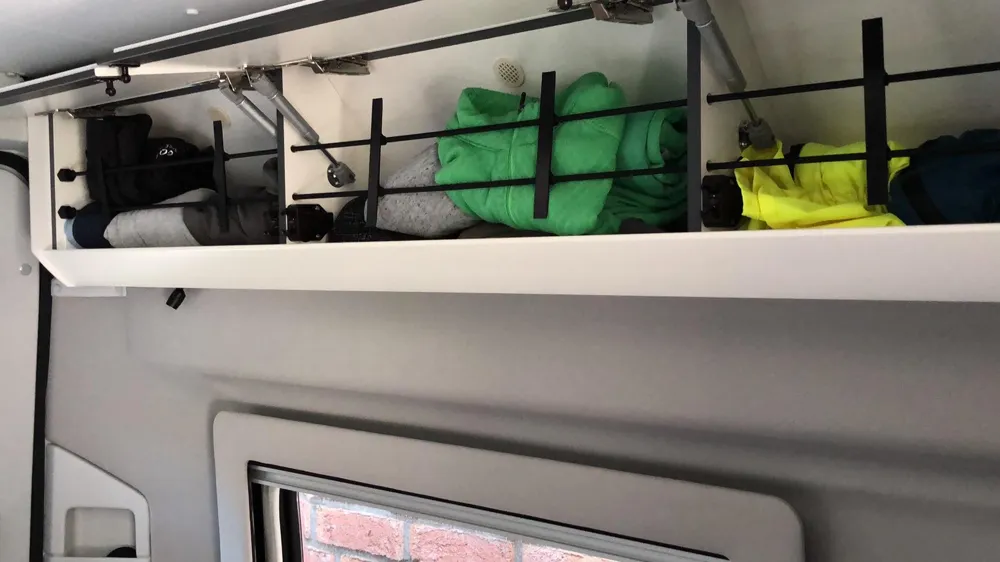

This showcases my creation: a retention system to prevent clothes from falling out of the wardrobe in an Adria Twin Supreme SGX. The rear cabinets lack depth, necessitating rolled clothing; these ropes with cross-braces offer an effective solution. The 3D printed components require eight 3.5x15mm wood screws and approximately seven meters of 6mm tension rope, which I sourced from Amazon. You'll also need a 7/8mm wood drill bit, a 2.5mm pilot drill bit, and a drill jig is included.

Assembly:

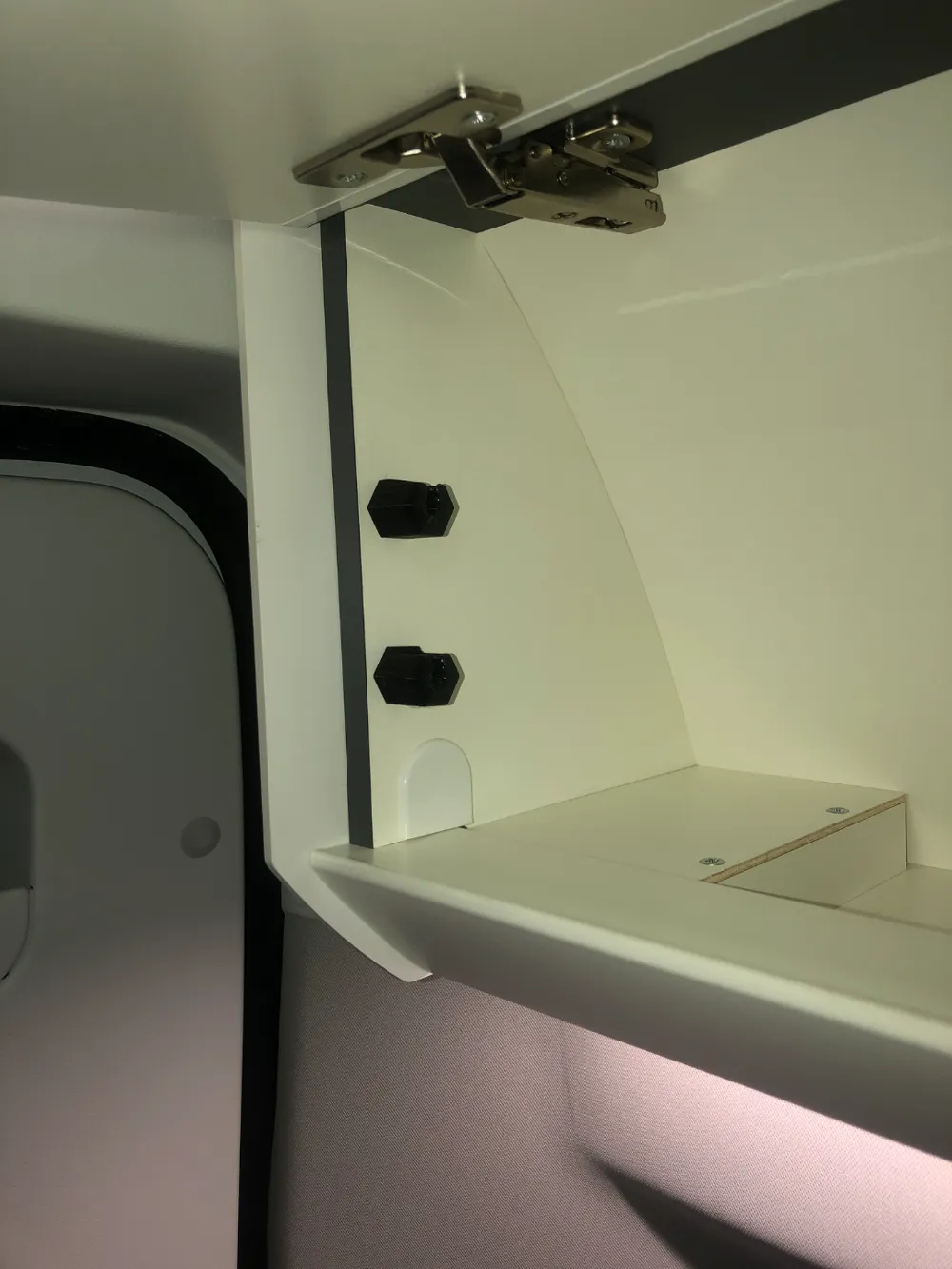

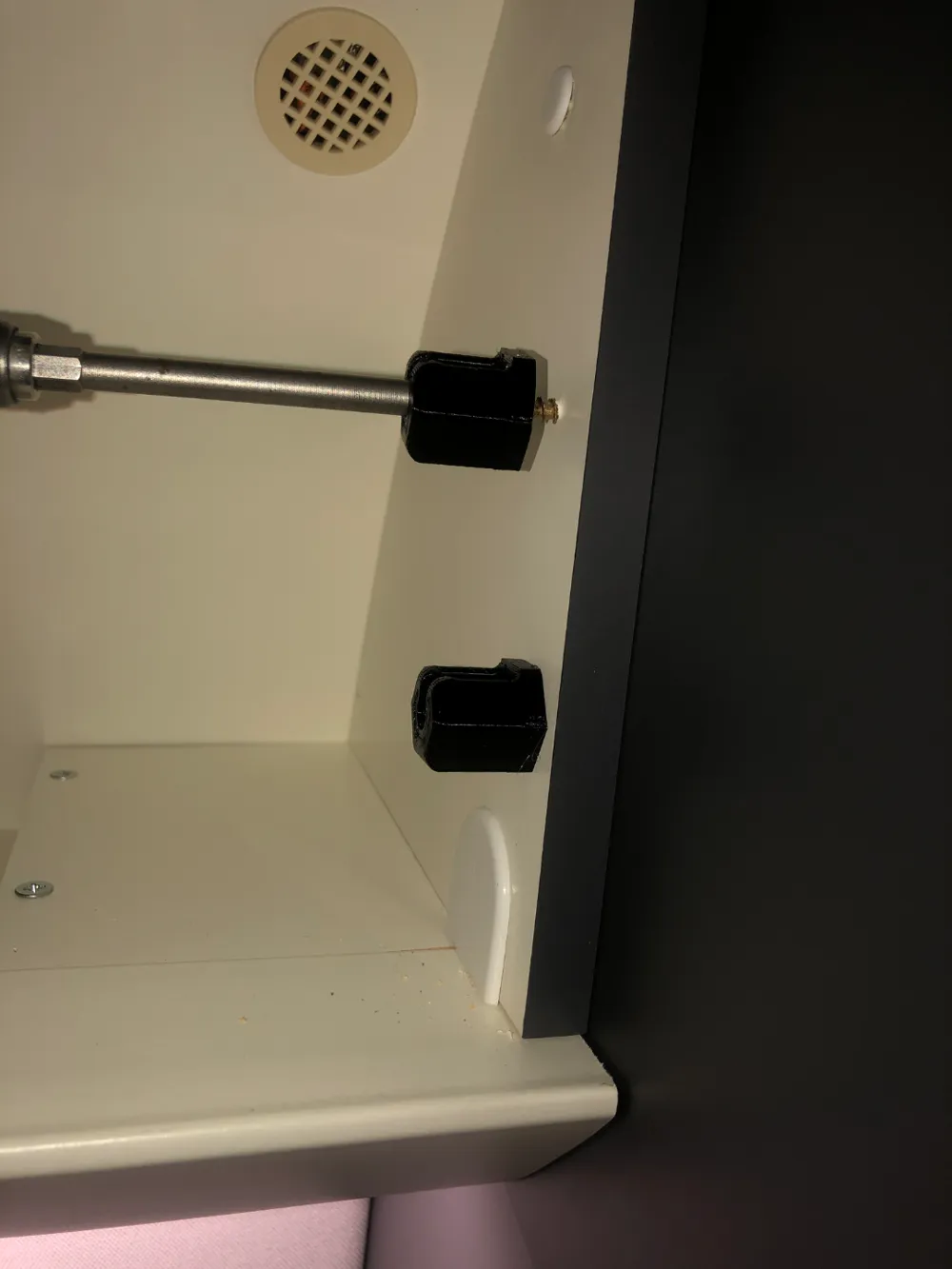

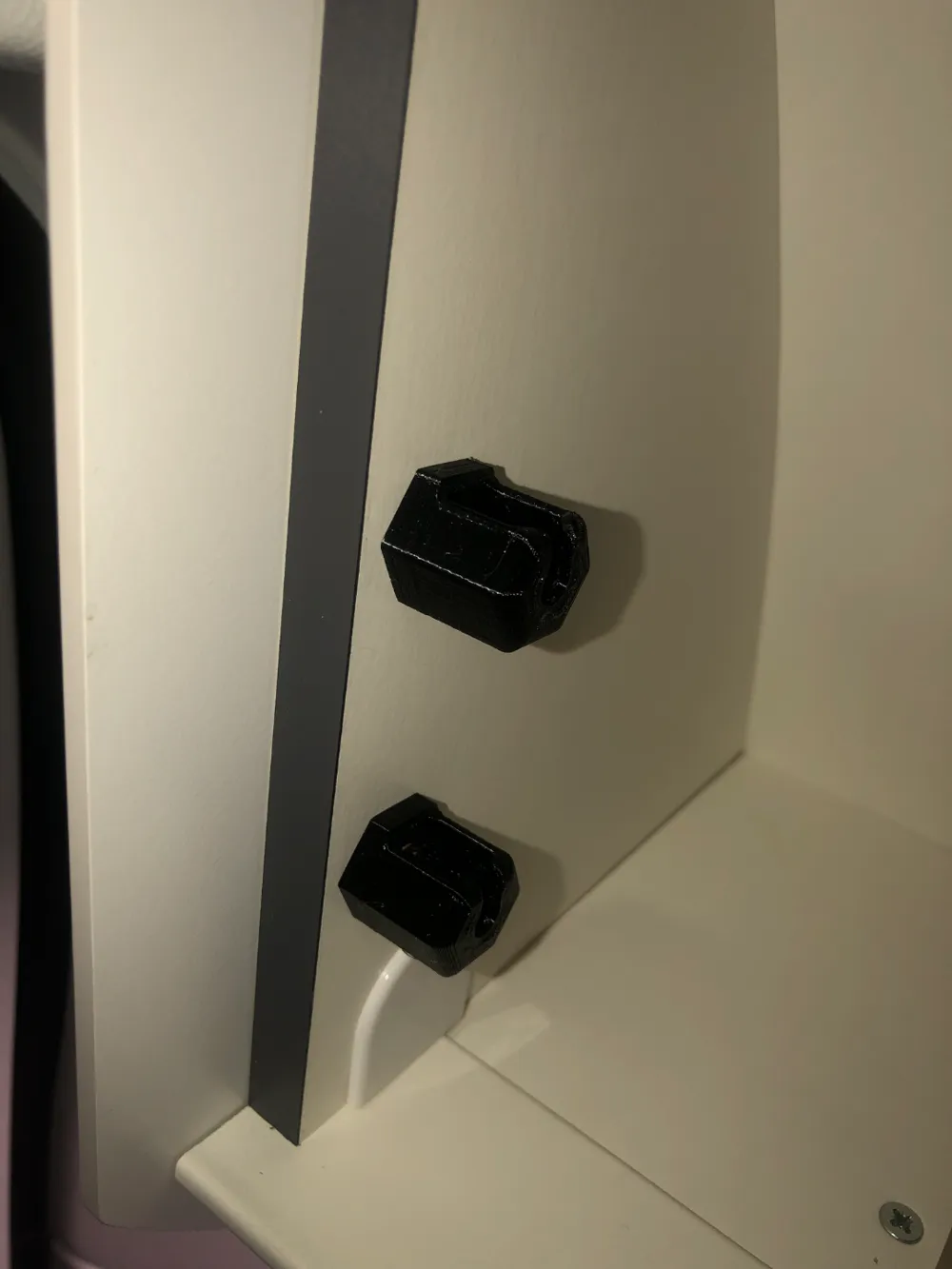

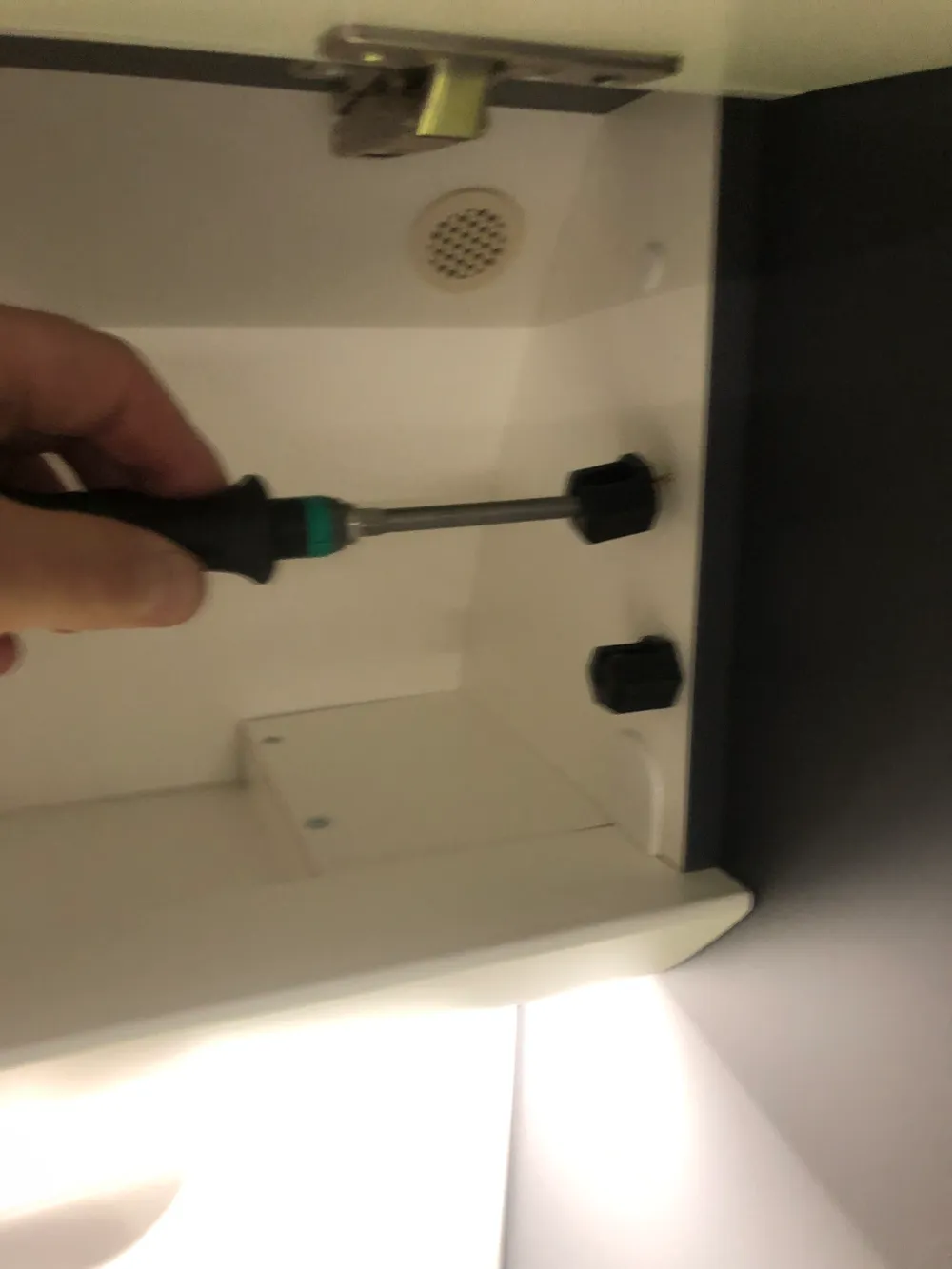

1. Position the drill jig on the exterior rear cabinet wall and pre-drill two mounting holes, 10mm deep, using the 2.5mm bit. Secure the rope holders with a screwdriver, applying firm yet gentle pressure. Repeat this process on the opposite side and for the front cabinets.

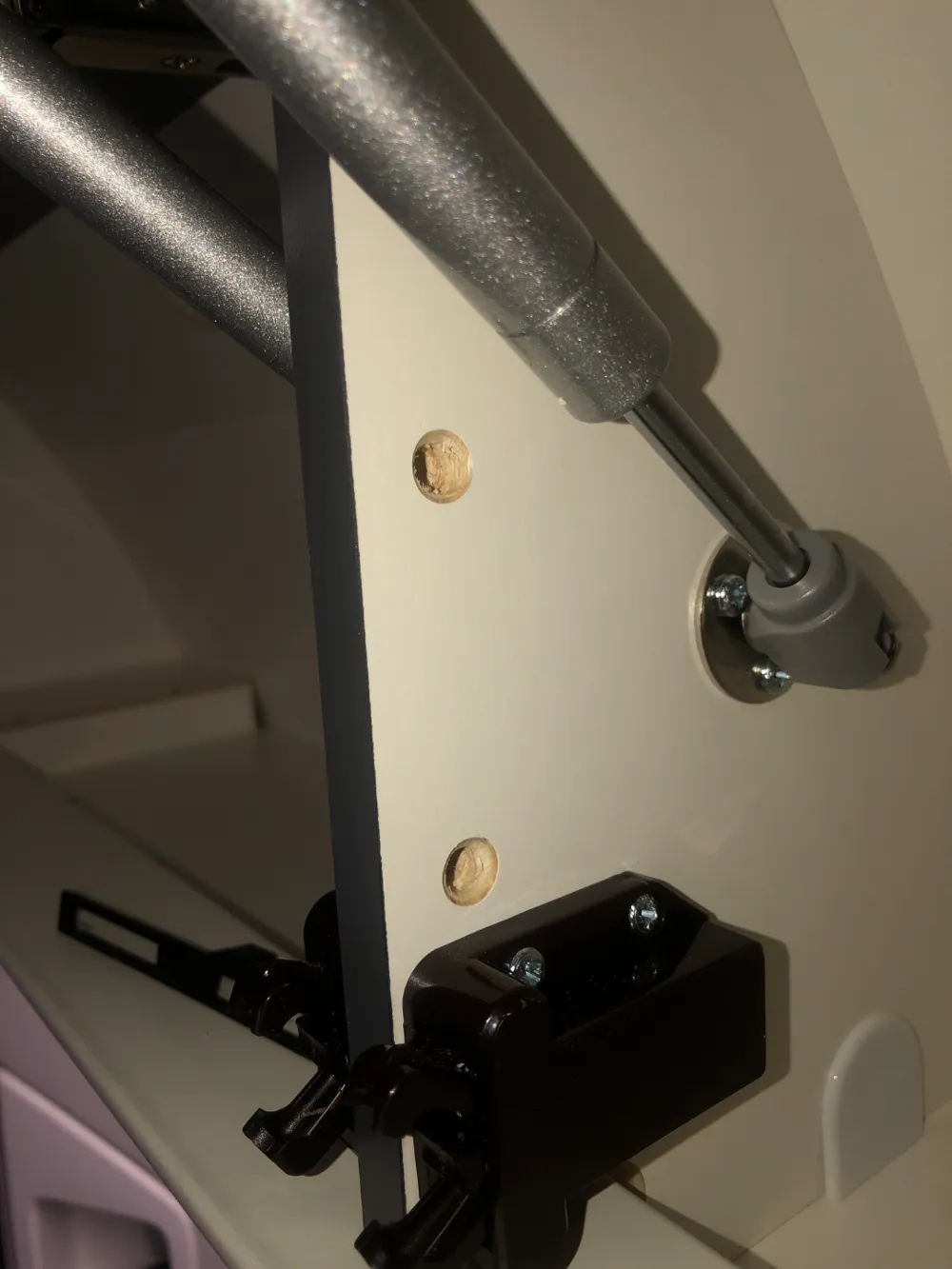

2. Position the drill jig on the central cabinet partition and drill through with the 2.5mm bit. Then, carefully drill halfway through from one side, using the 7 or 8mm bit, and finish from the other to avoid wood splitting. Use scrap wood behind the drill exit to prevent damage. Optionally, countersink the holes. Repeat this process on the remaining three partitions.

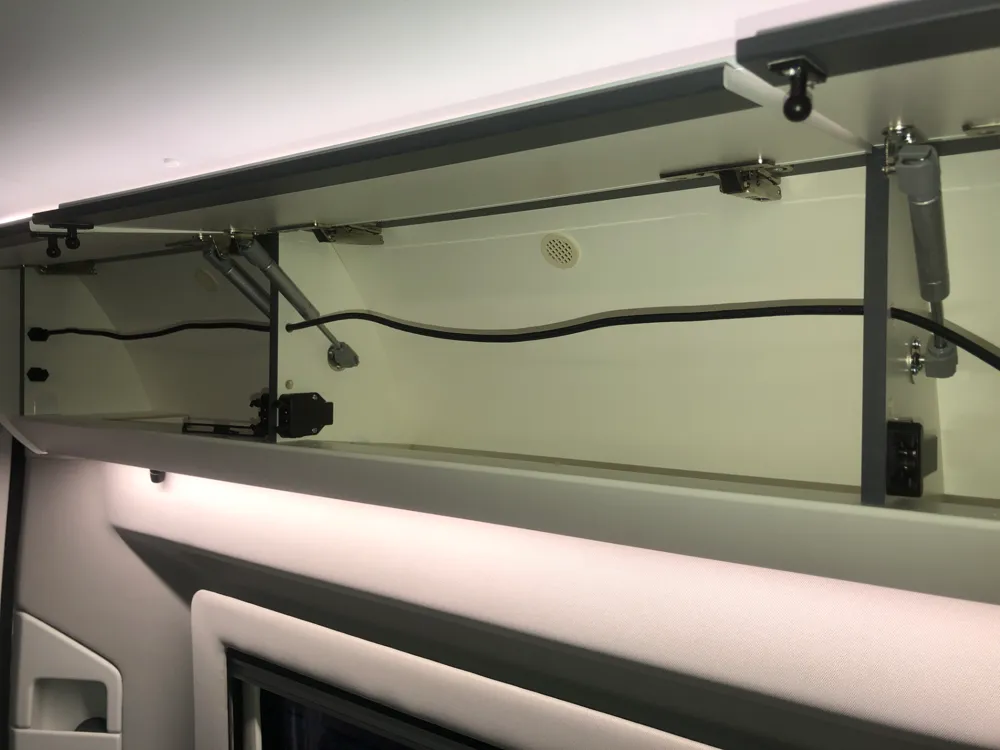

3. Cut the rope to 1.7 meters and seal the ends with a lighter. Tie a knot at one end, keeping the remaining length minimal. Secure the knot within a holder on one side, thread it through the partitions, knot the opposite end, and secure it within the corresponding holder. If tension is insufficient, shorten the knot. Repeat this procedure for the other three ropes.

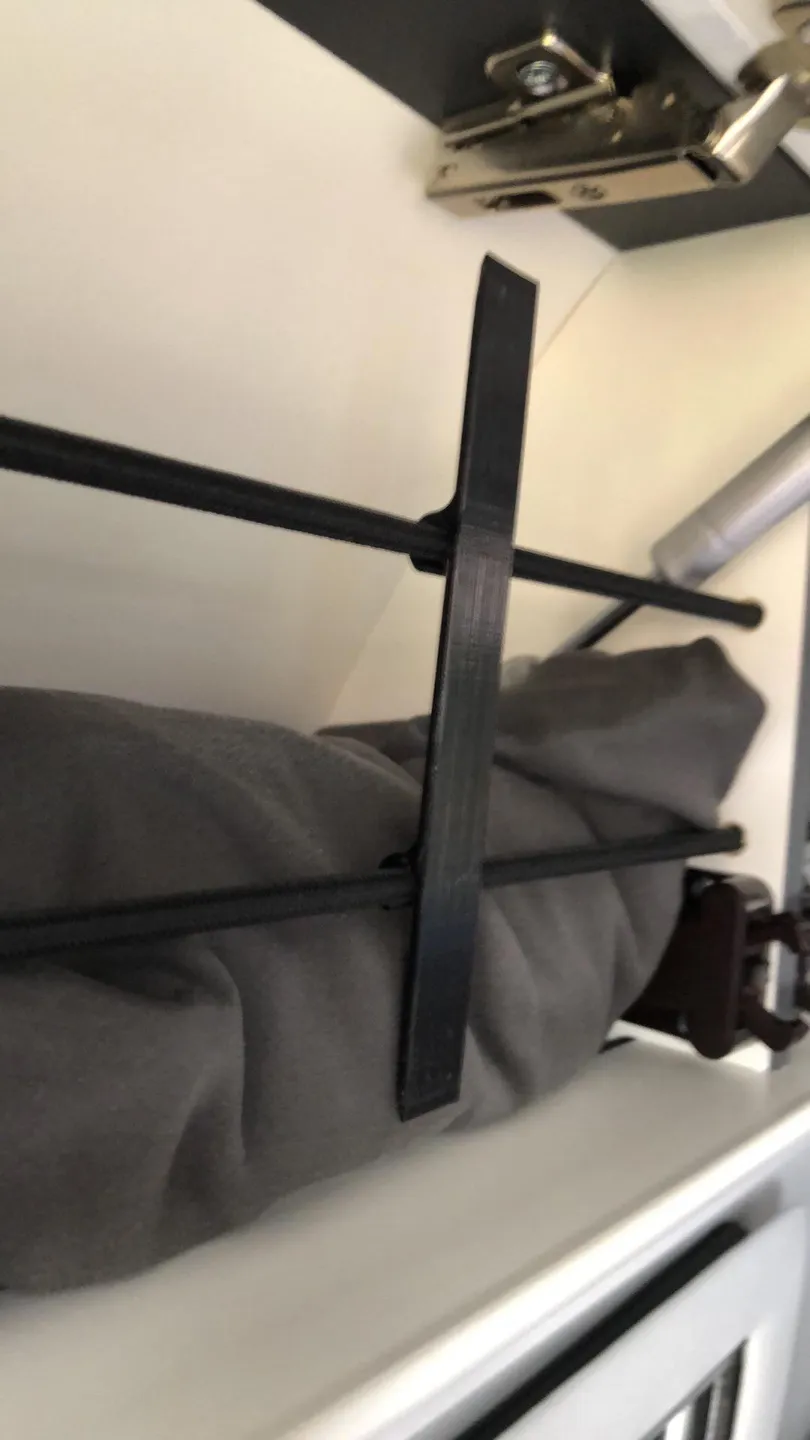

4. Attach the clips to the ropes—complete. We found three clips per section optimal.

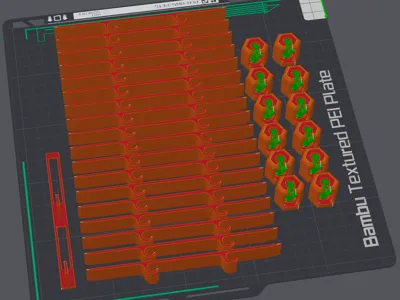

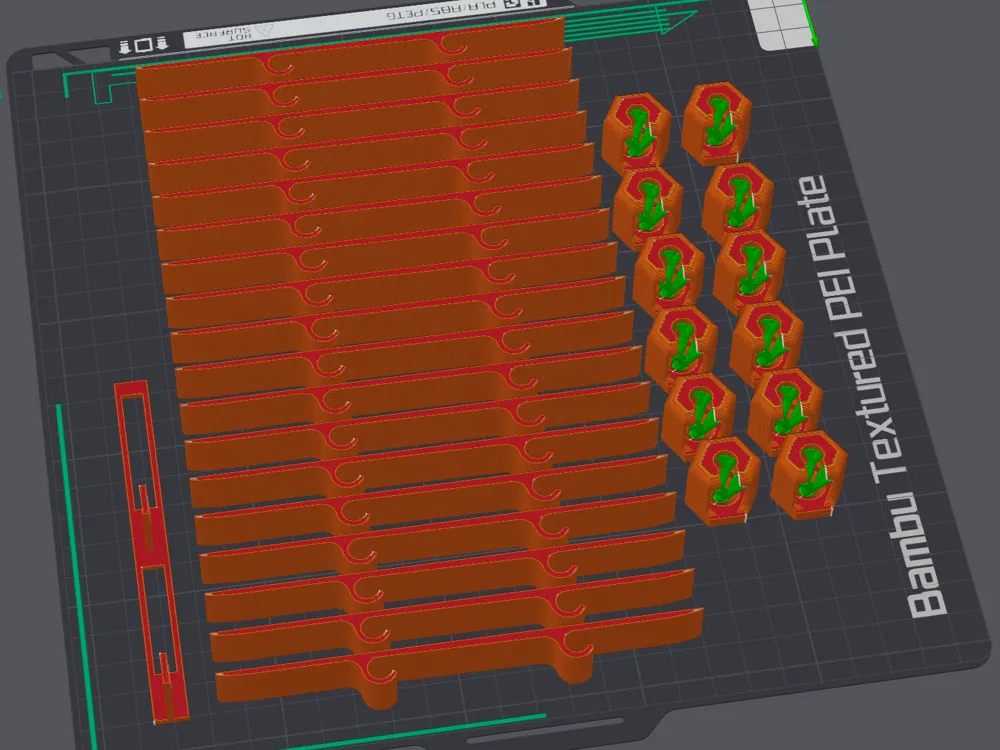

Printed using PETG, 0.16mm layer height, 3 wall lines, 15% infill.
