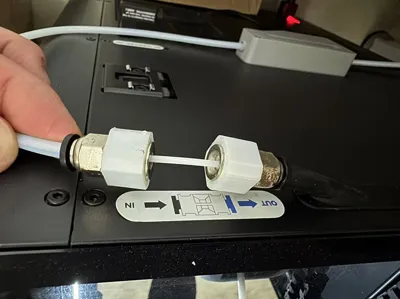

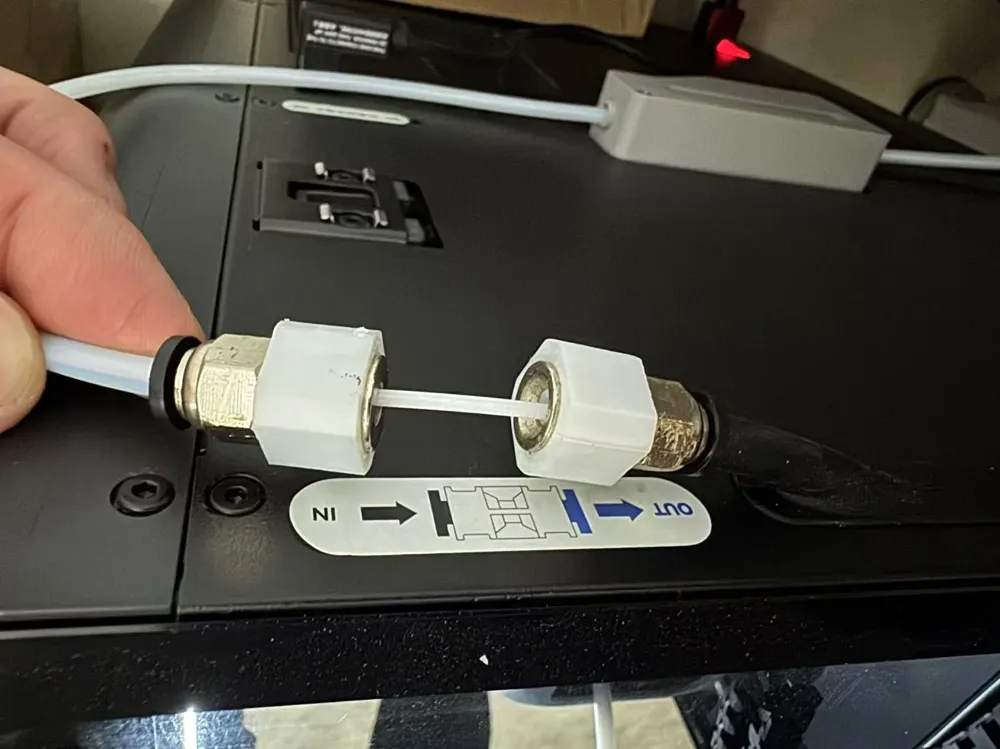

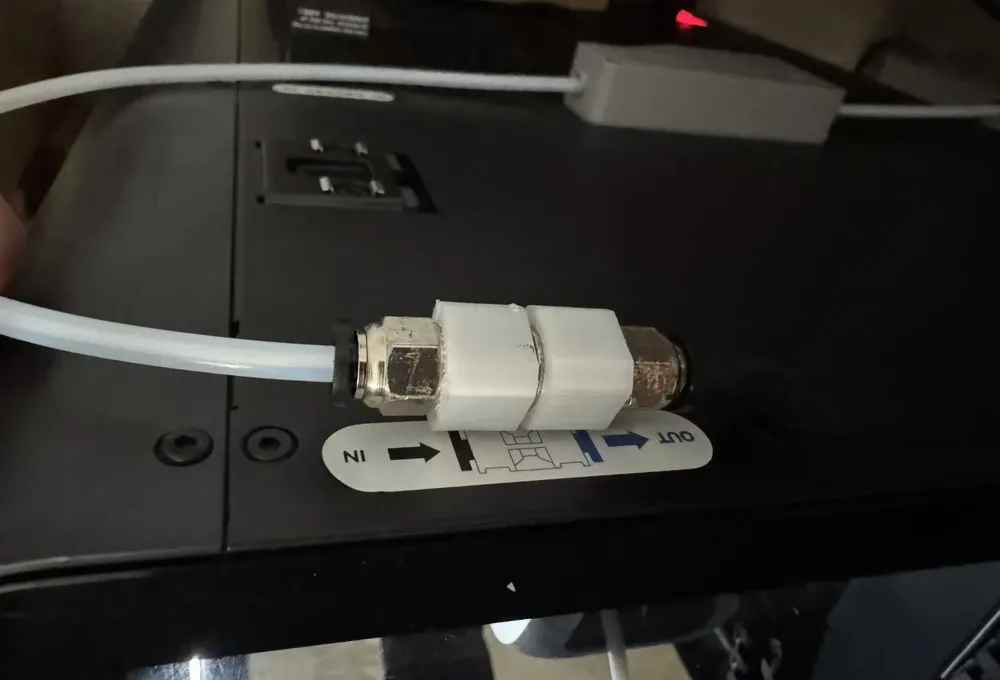

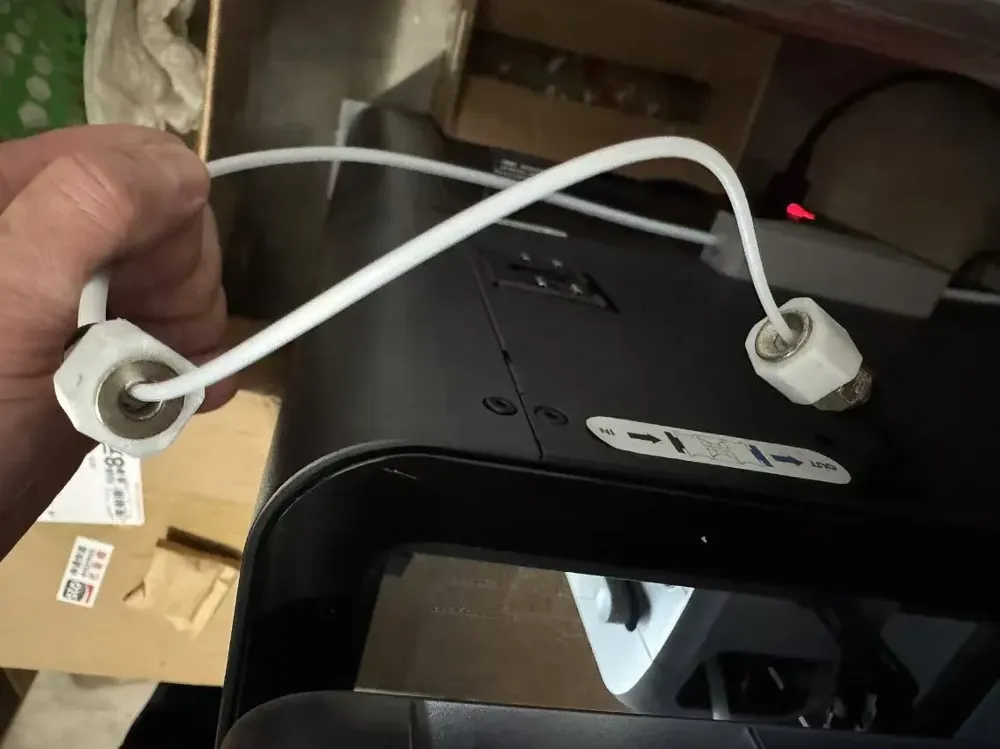

P1 Printer AMS Feed Tube Magnetic Quick Connector

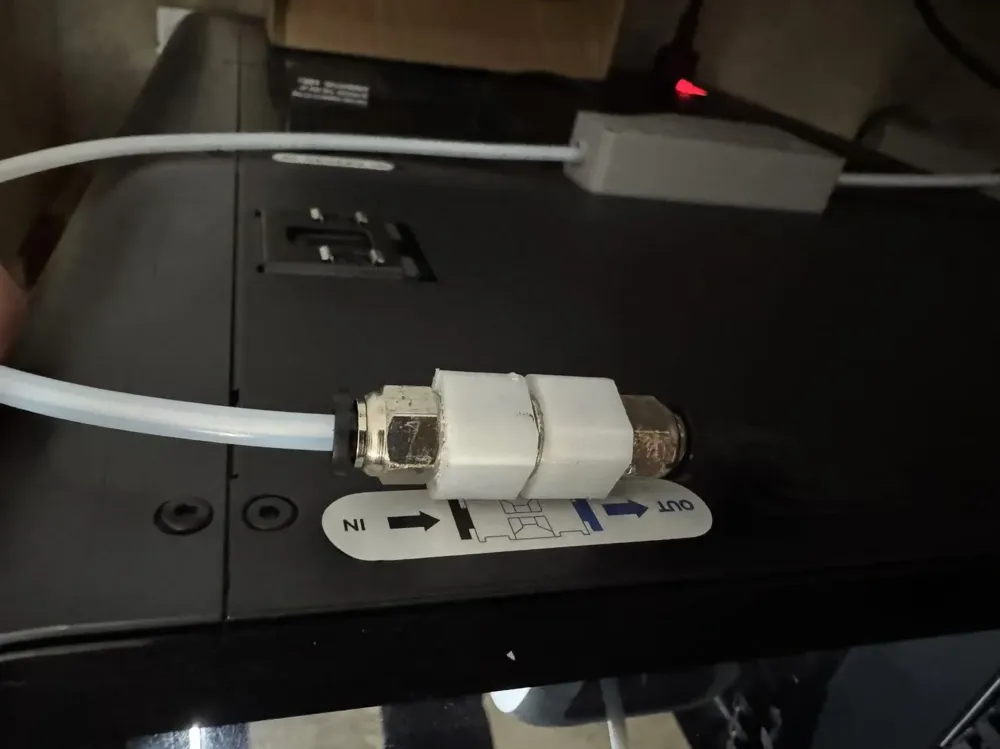

P1 printer AMS feed tube magnetic quick connector, short print time, no supports needed.

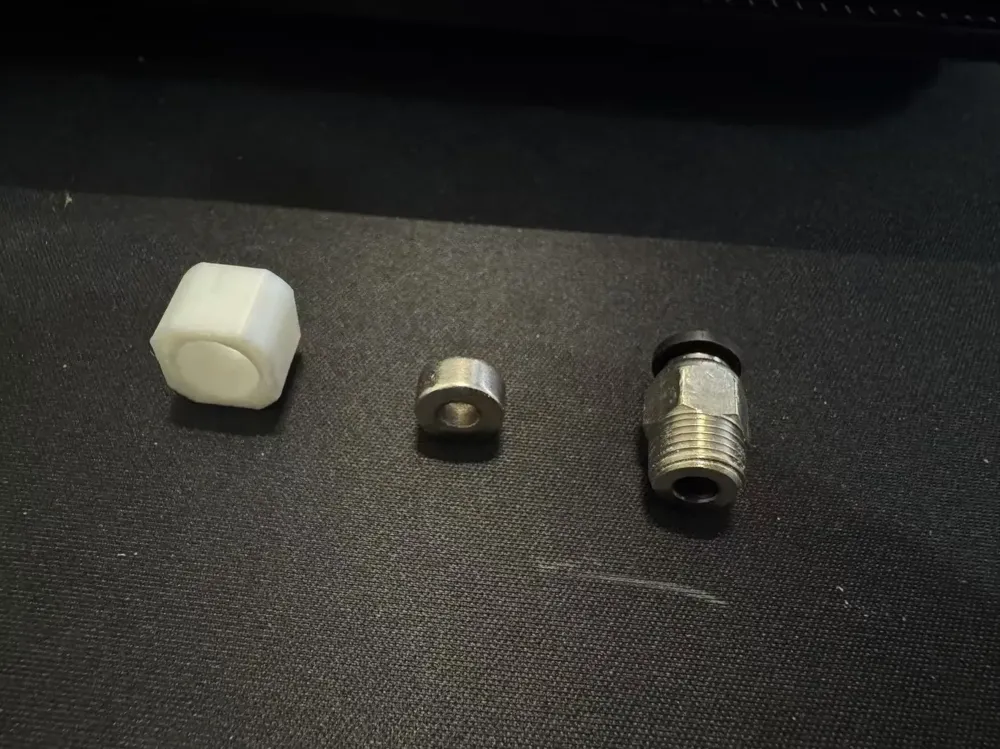

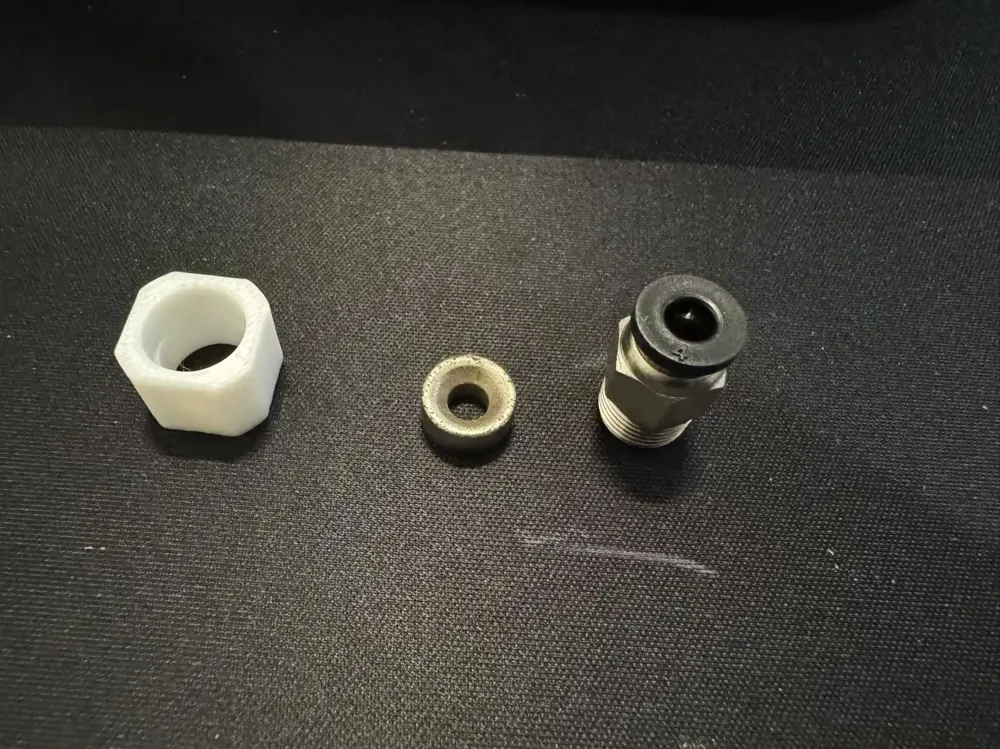

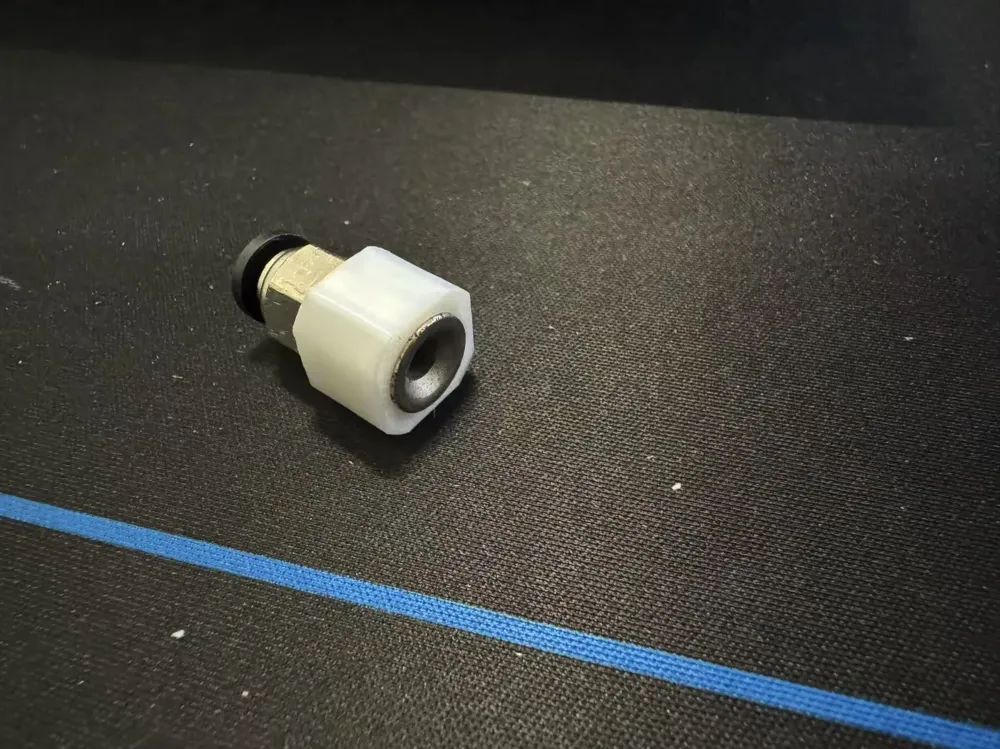

You will need to purchase a 10mm outer diameter magnet, 4.7mm thick. Ideally, choose one with an internal chamfer as shown in the image. The magnet will require tapping into place.

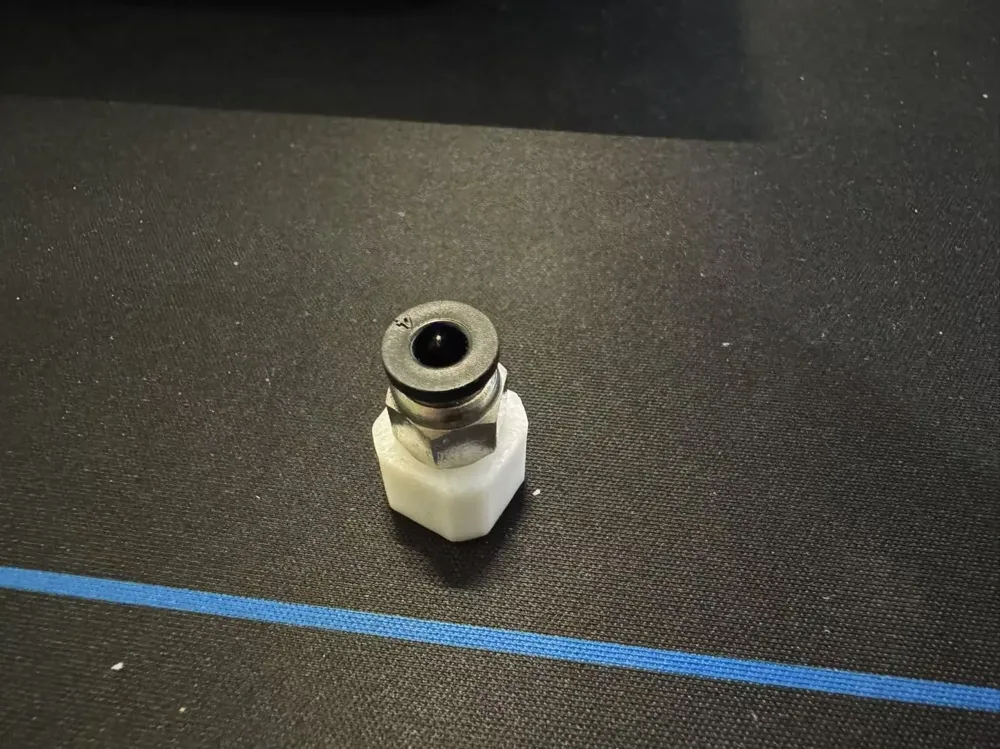

You will also need a PC4-01 (through) pneumatic fitting. The model lacks threads; use pliers to grip the fitting and gently heat the threads with a flame for easier screwing.

The P1 printer AMS feed tube magnetic quick connection, short printing time, no support required.

You need to purchase a magnet with an outside diameter of 10mm and a thickness of 4.7mm. Ideally, the magnet in the picture has an internal chamfer. When installing, the magnet needs to be tapped in a few times.

Additionally, you need a PC4-01 (through) pneumatic fitting. The model does not have threads; when installing the fitting, use pliers to grip it and slightly heat the threads with a flame to easily screw it in.
