Small Dual 4" Speaker Box

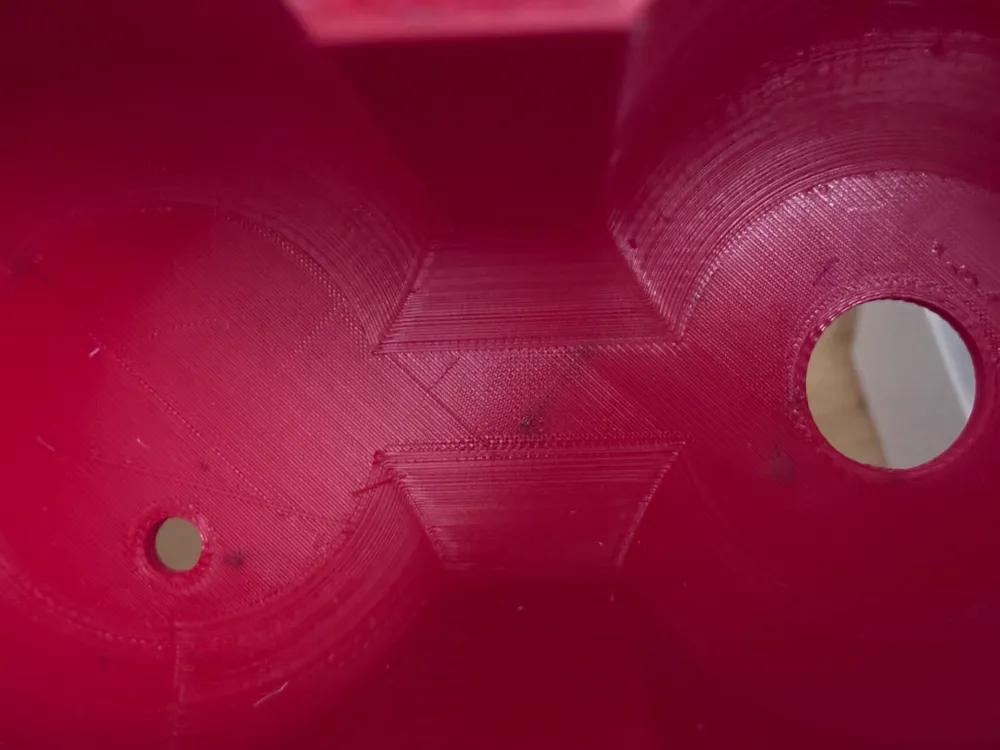

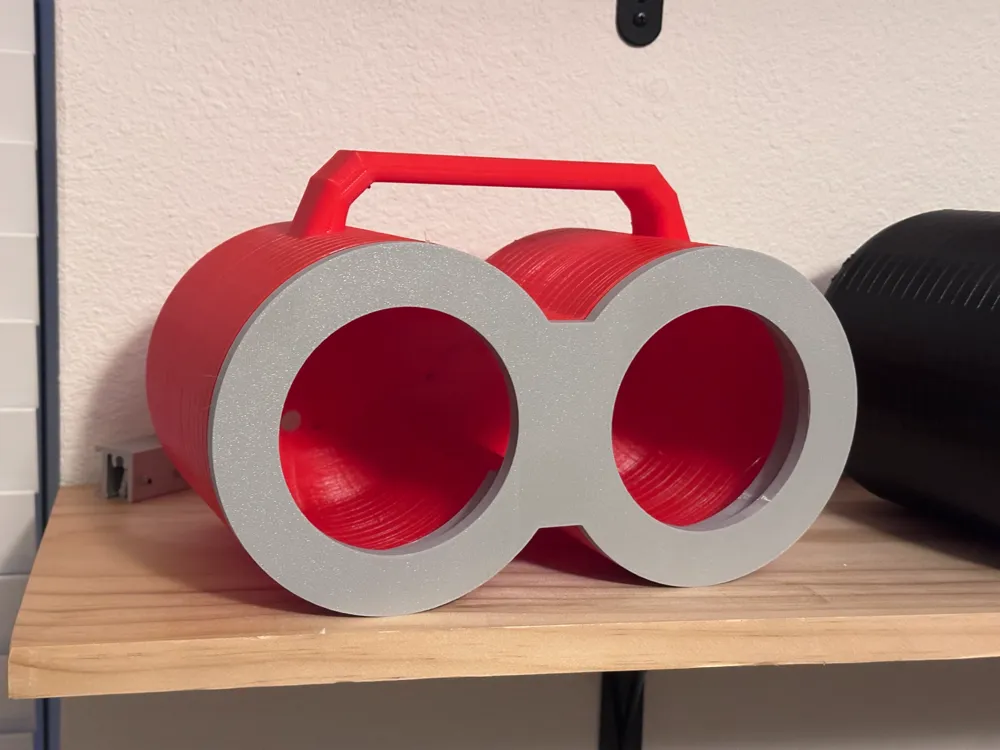

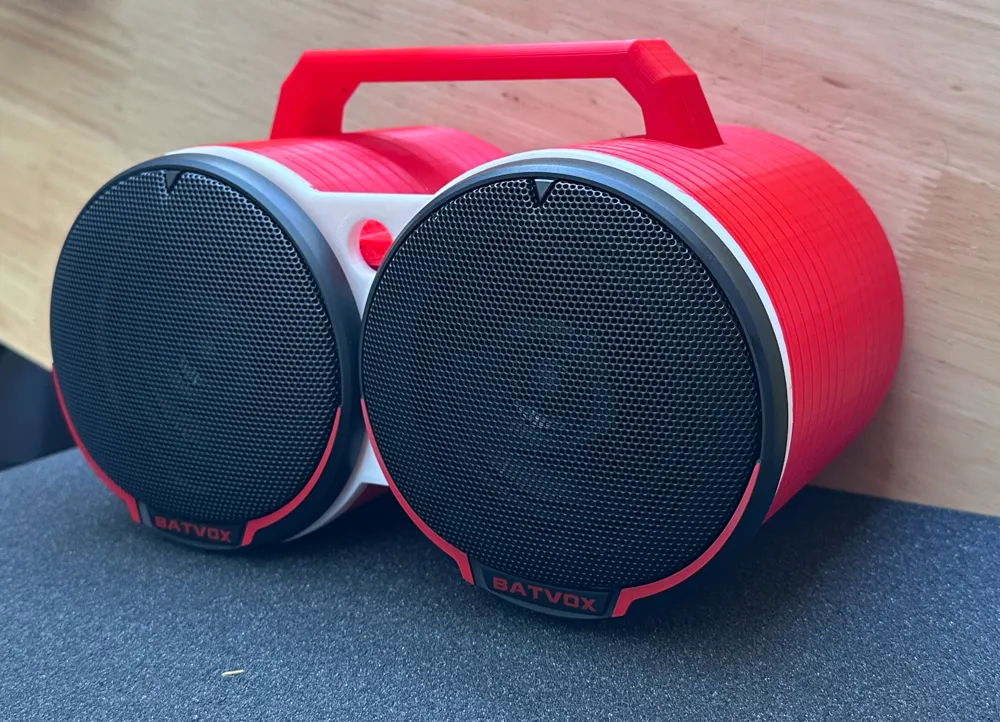

This is the original, simplified version of the box I'm making for myself. It will fit 2 4" speakers without grilles. At least the grilles for the Batvox 4" speakers didn't fit well, as they touched. There is an 11mm hole in the rear for the charging port, but the walls are too thick to screw it in so I glued it in. There is also a 32mm hole for a usb charging port/volt gauge in the rear. You'll have to drill the hole for the power button. The faceplate has a 1mm gap all around the lip so that it can be sealed easily with silicone.

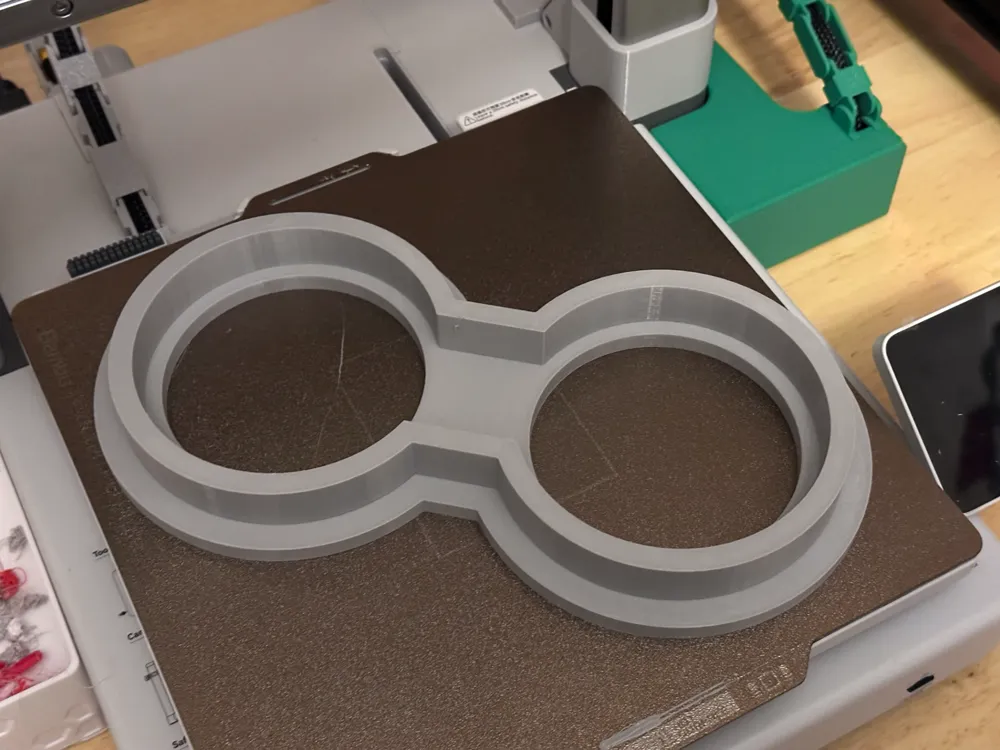

Turn the speaker box body over to print.
