Soldering Fume Extractor
Print Profile(2)

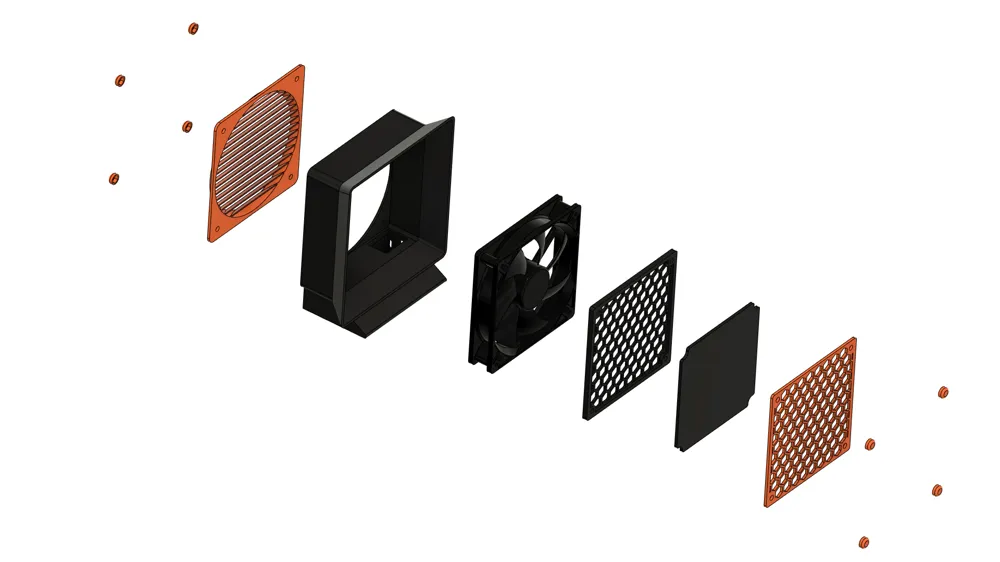

Bill of Materials
- 120x120mm PC fan 12v x 1: Detailed information in the assembly guide.
- Activated carbon filter sheet x 1: Detailed information in the assembly guide.
- Hex head M4 x 40mm screw x 4: Detailed information in the assembly guide.
- M4 nuts x 4: Detailed information and in the assembly guide.
- USB-C Step-Up Module x 1: Detailed information and purchase link in the assembly guide.
- 21x15mm rocker switch x 1: Detailed information and purchase link in the assembly guide.
Description
Questo estrattore di fumi stampato in 3D è una soluzione pratica ed elegante per mantenere pulito il tuo spazio di lavoro. Il suo sistema di alimentazione tramite USB-C garantisce la compatibilità con le moderne fonti di alimentazione, mentre la semplicità dell'assemblaggio e le poche componenti hardware richieste lo rendono accessibile anche a chi ha poca esperienza in elettronica o stampa 3D. Inoltre, l'estetica moderna, combinata con la griglia a nido d'ape funzionale, assicura che l'estrattore non solo lavori in modo efficiente, ma abbia anche un bell'aspetto sulla tuo banco da lavoro.
Che tu sia un hobbista o un professionista, questo progetto rappresenta il perfetto equilibrio tra funzionalità, semplicità e stile.
ENGLISH VERSION:

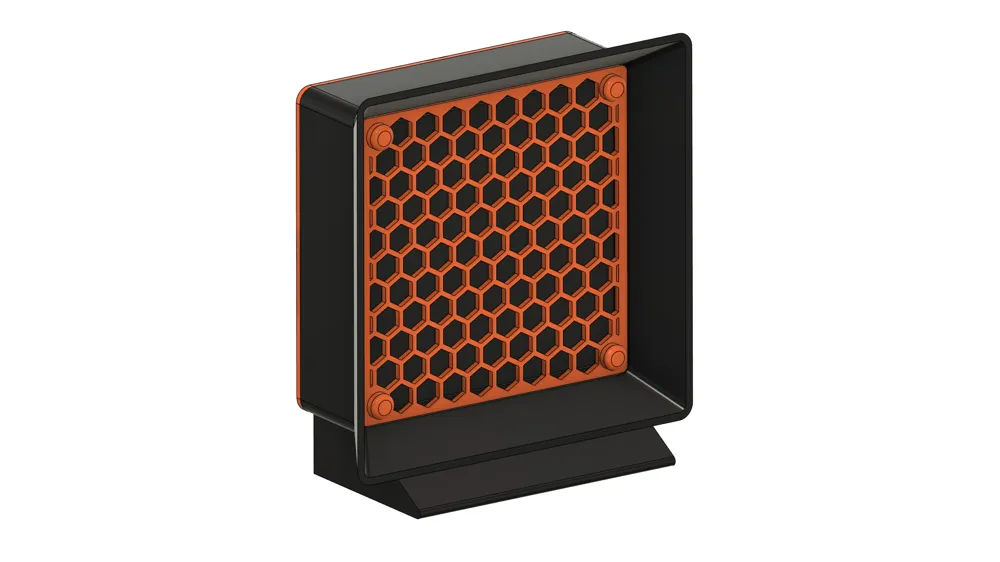

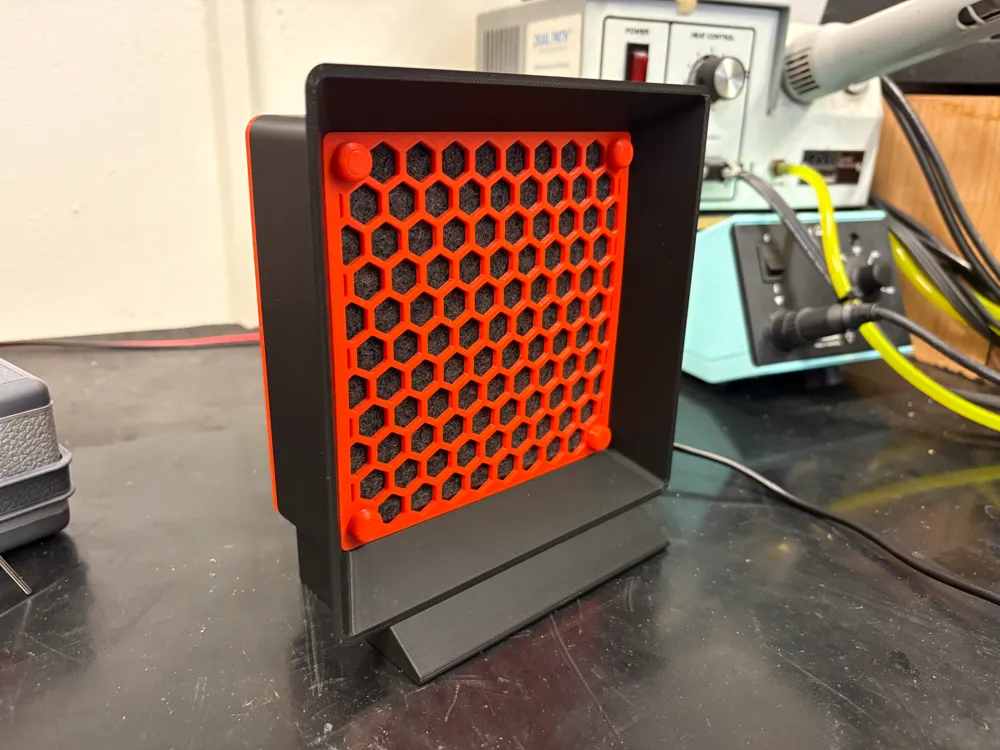

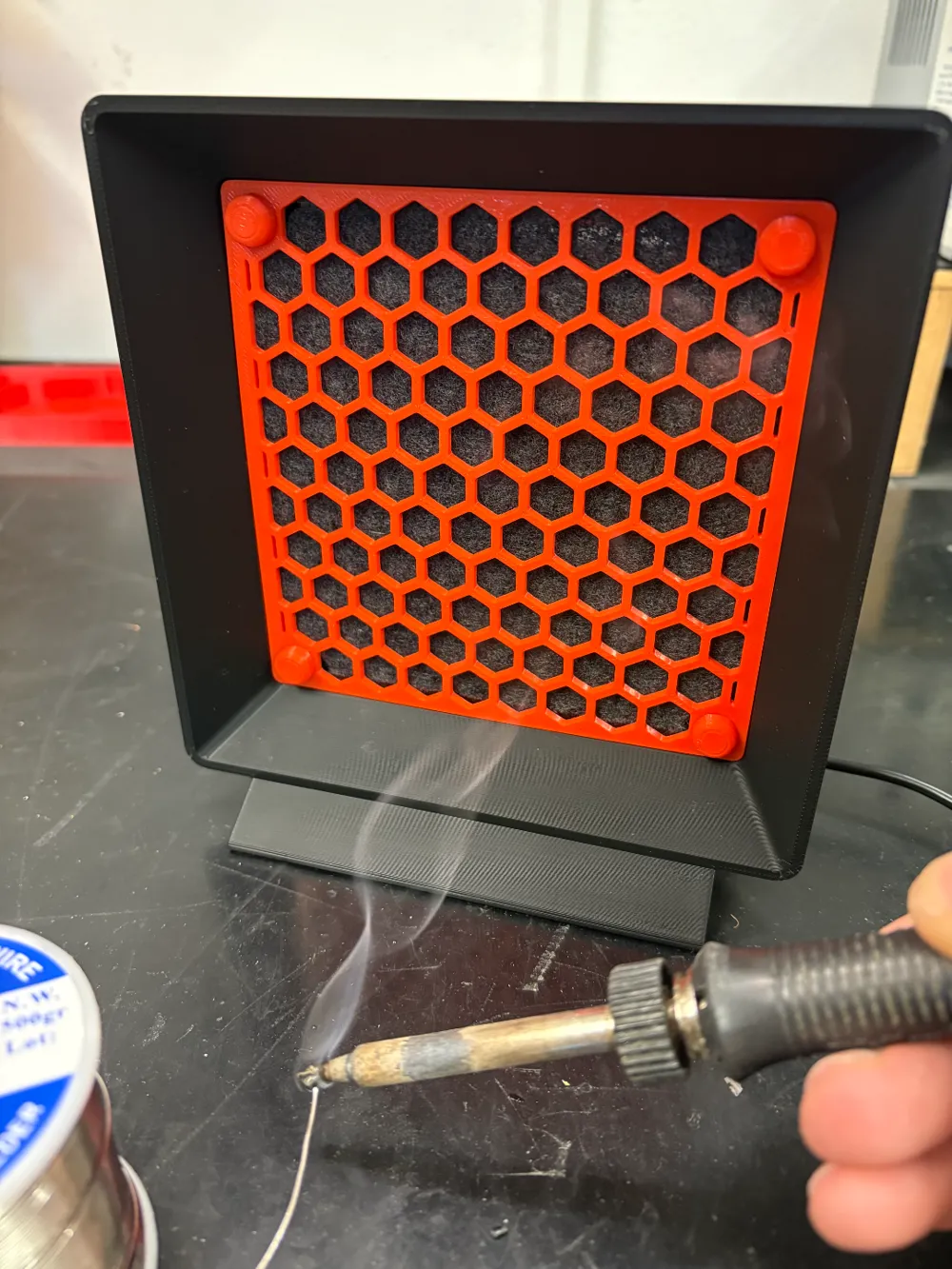

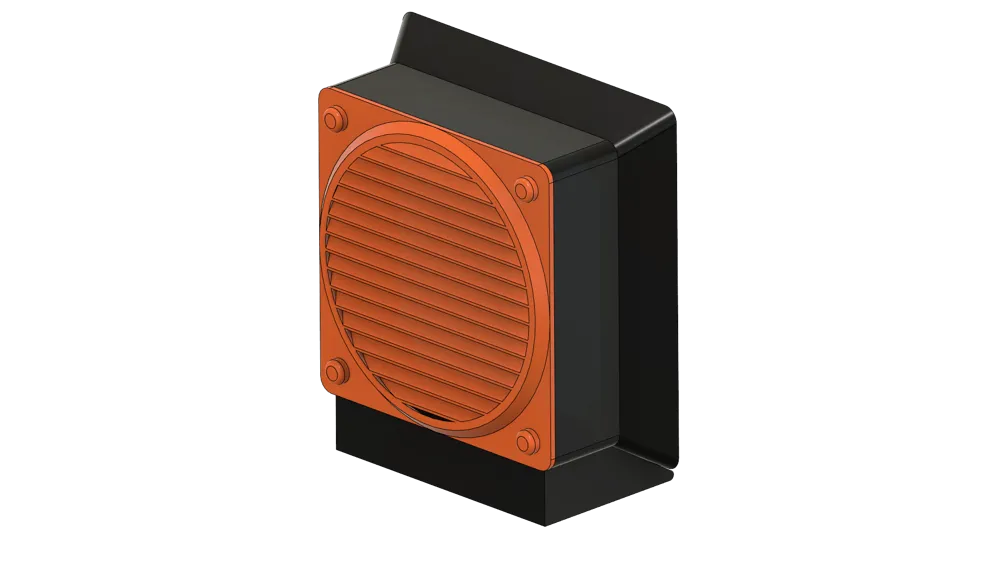

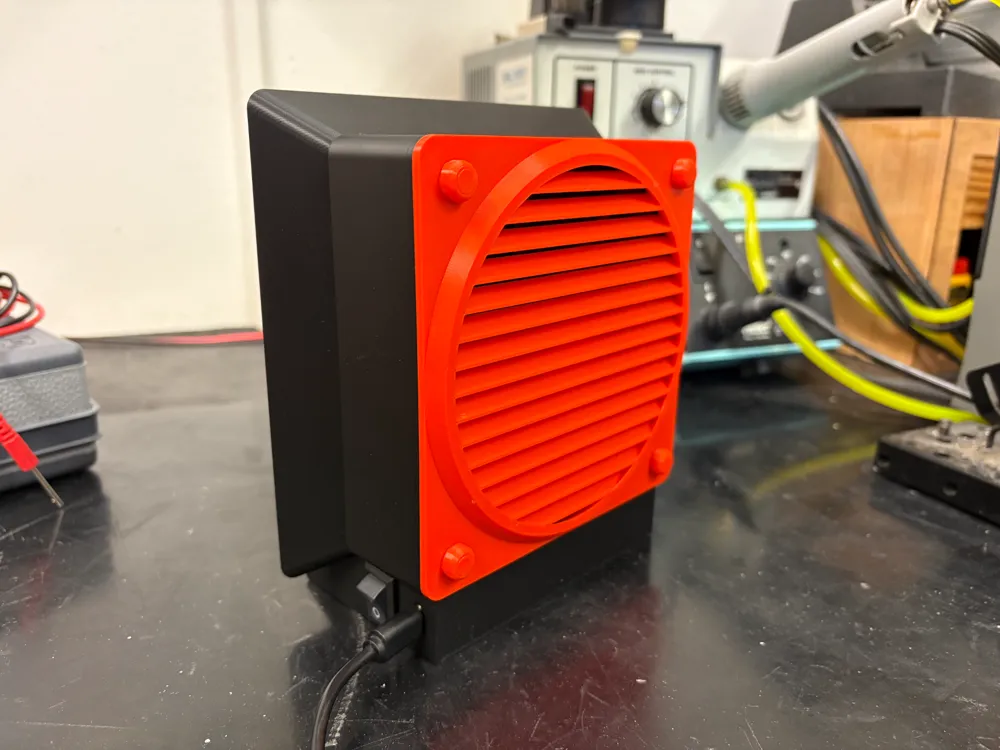

This 3D-printed fume extractor is a practical and elegant solution for keeping your workspace clean. Its USB-C powered setup ensures compatibility with modern power sources, while its minimal hardware requirements and straightforward assembly process make it accessible even to those with limited experience in electronics or 3D printing. Additionally, the modern aesthetic, combined with the functional honeycomb grille, ensures it not only works efficiently but also looks great on your workbench.
Whether you're a hobbyist or a professional, this project strikes the perfect balance between functionality, simplicity, and style.
