Oddball Design

cover


Upper


Lower




0.2mm layer, 2 walls, 15% infill

Biefkasten mit Reedkontakt

X-pro





Druckprofil für PETG-HF, mit 04er-Düse.&nbsp;Einzelheiten:<ul><li>Nur noch eine Bauplatte (256mm x 256mm) für alle Teile.</li><li>Größere Bohrungen für die Schrauben (4mm mit 7,8mm Senkköpfen).</li><li>Verstärkungen in den Bereichen der Schauben und den Angelpunkten der Klappe.</li><li>Korrektur am Rahmen durch zusätzliche Abzugskörper, damit er sich ohne größere Nacharbeiten zusammenbauen lässt.</li><li>Anordnung der Bauteile geändert sowie Einstellungen des Profil optimiert, um bessere Druckergebnisse zu erziehen und deutlich weniger Stützmaterial zu benötigen.</li><li>Einen anpassbaren Beschriftungstext auf der Klappe hinzugefügt (Post oder z.B. Familiennamen), wenn nicht gewünscht einfach löschen oder leer lassen.</li><li>Optional für Smarthome: Habe im Rahmen eine Aussparung für einen Reedkontakt (RK 2mm x 14mm) hinzugefügt und in der Klappe für einen Neodym-Magneten (8mm Durchmesser und 2mm Dicke). Kann zum Detektieren benutzt werden wenn die Klappe geöffnet wird.</li></ul>&nbsp;Vielen Dank, an den ursprünglichen Ersteller, Ihr Modell hat mir viel Zeit erspart.

Print profile for PETG-HF, using a 04 nozzle&nbsp;Details:<ul><li>Now only one build plate (256mm x 256mm) for all parts</li><li>Larger screw holes (4mm with 7.8mm countersunk heads)</li><li>Reinforcements in the screw areas and the hinge points of the flap</li><li>Frame correction through additional draft bodies, so that it can be assembled without major rework</li><li>Arrangement of the components changed and profile settings optimized to achieve better print results and significantly less support material</li><li>Added customizable text on the flap (post or e.g. family name), if not desired simply delete or leave blank</li><li>Optional for Smarthome: Added a recess in the frame for a reed switch (RK 2mm x 14mm) and in the flap for a neodymium magnet (8mm diameter and 2mm thickness). Can be used for detection when the flap is opened</li></ul>&nbsp;Many thanks to the original creator, your model saved me a lot of time

0.2mm layer, 2-3 walls, 25% infill, add text, smart contact

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

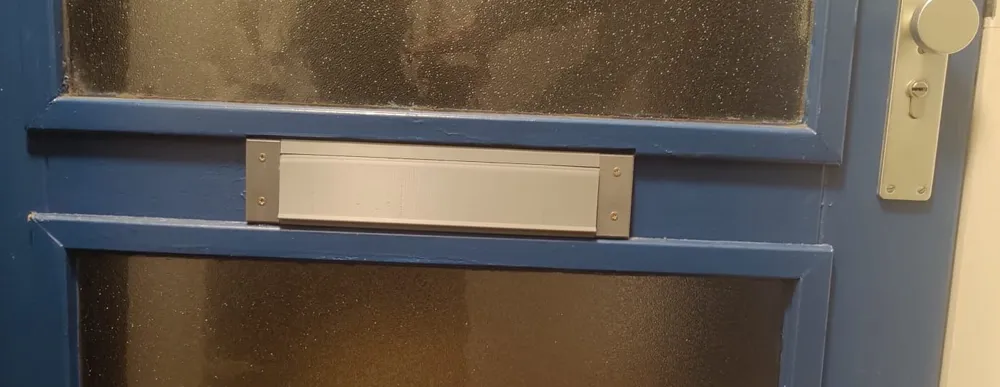

<boostme><boosttitle>Boost Me</boosttitle></boostme>A mailbox-letterbox lid/flap - the one at home was broken so I made one.&nbsp;the parts are on 3 print plates for the X1C, due to the size I am not sure if they work on other buildplates. It is the maximum size so I was lucky to be able to print this one.&nbsp;Peaces fit very tight, you may need to use a file to make it fit it perfectly. Depends on shrinkage and printing but in my case it worked out well directly.&nbsp;Printing the lid/flap itself : plate 3 may lead to some warping so the second time I printed it on a build plate of CryoGrip with a small brim on the bottom, it worked out very well (the result you see on the photo&#39;s&nbsp;There may be a little filing needen on the 2 pins of the flap and on the round top side of the axle of the lid to ensure that the flap closes automatically.&nbsp;So there may be a few issues but in the end it prints out fine (4 pieces fine in one go, the flap fine when a better adhesion to the buildplate is possible.

Lid/Flap for letterbox/mailbox
