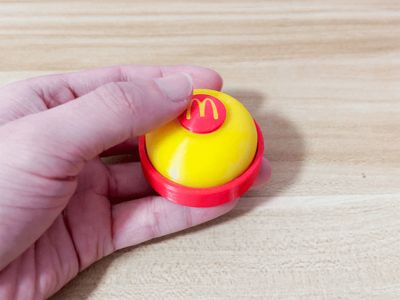

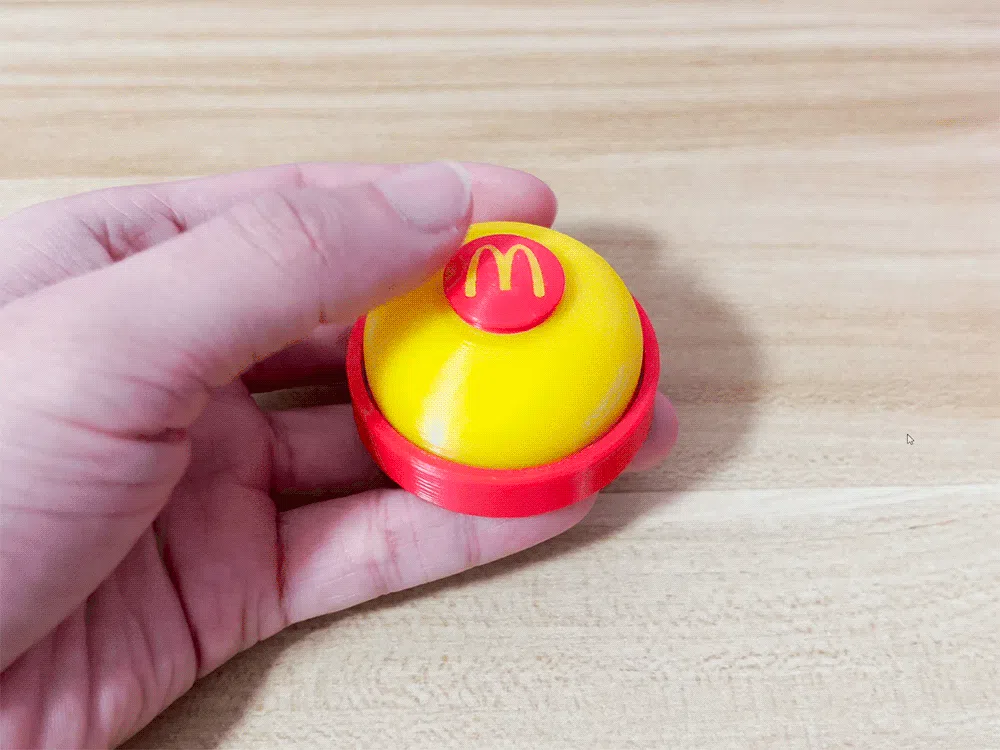

McDonald's Stress Relief Bell (Pressable)

McDonald's Stress Relief Bell (Pressable)

An adorably shaped stress-relieving push toy

Version One: Pure 3D Printed Version

This stress relief bell incorporates a printable spring mechanism, allowing you to create one solely with your 3D printer—no additional components required

We recommend using PETG or PLA filament (the spring is best printed with PETG; PLA lacks sufficient elasticity). The entire design utilizes threaded fasteners and snap-fit joints, eliminating the need for glue. The modular design allows for straightforward assembly and eliminates the need for multi-color printing

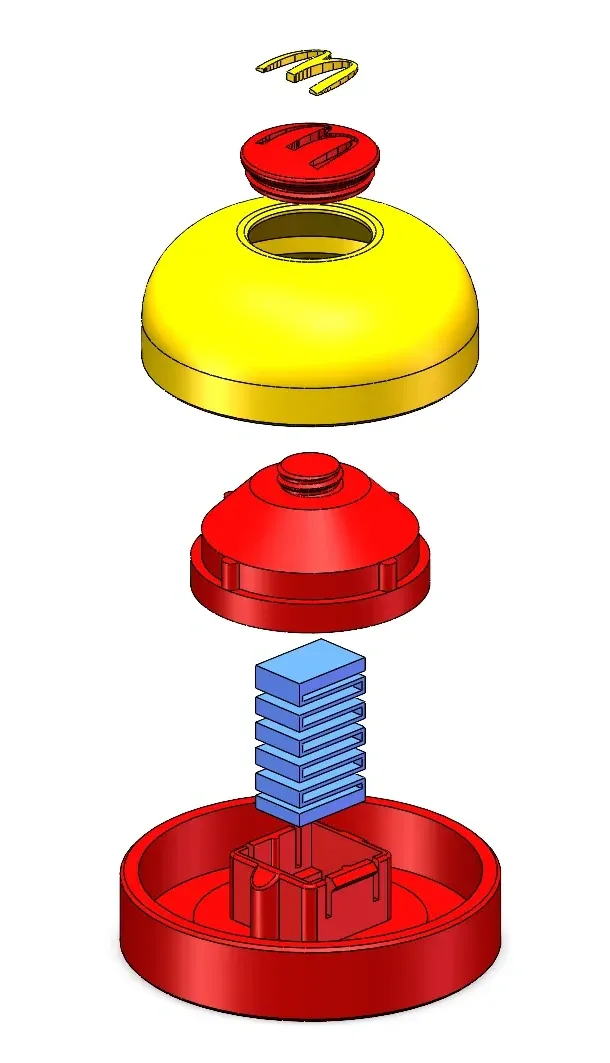

Assembly diagram:

• When installing the "M" logo, gently tap it into place using a small hammer. A secure fit should be achieved without glue

Version Two: Mechanical Keyboard Switch Version

Alternatively, we offer a version compatible with mechanical keyboard switches. Incorporating mechanical keyboard switches provides a satisfying tactile response and click sound

Installation is identical to the pure 3D printed version, simply substitute the printed spring with a mechanical keyboard switch

1. Mechanical keyboard switches must be purchased separately. Testing indicates that both tactile and linear switches deliver excellent results (though silent or clicky switches work as well). Personal preference is paramount; select clicky switches for a crisp sound or linear switches for a more subdued experience. Affordable options can be readily sourced online.

2. Standard cross-shaped switches and switches with dust guards are both compatible.

(If your installed switches are too tight or loose, adjust the XY hole compensation in your slicing software to achieve a proper fit)

------------------------------------------Divider----------------------------------------------

Version Three: Spring Version

Utilizing a spring instead of a printed component optimizes tactile feedback

A single 06*8*20 compression spring is required

Installation is the same as the pure 3D printed version; replace the printed spring with a 06*8*20 compression spring

We've also designed several other charming stress-relieving toys. Download them here:

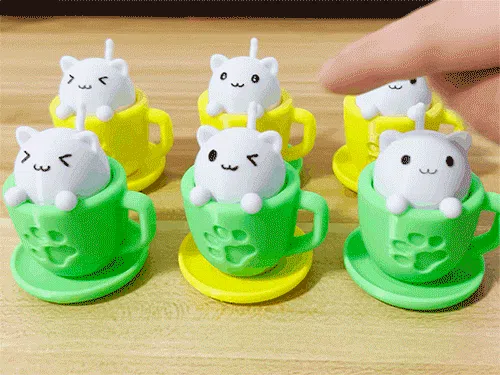

Stress Relief Cat Mughttps://makerworld.com/zh/models/649723

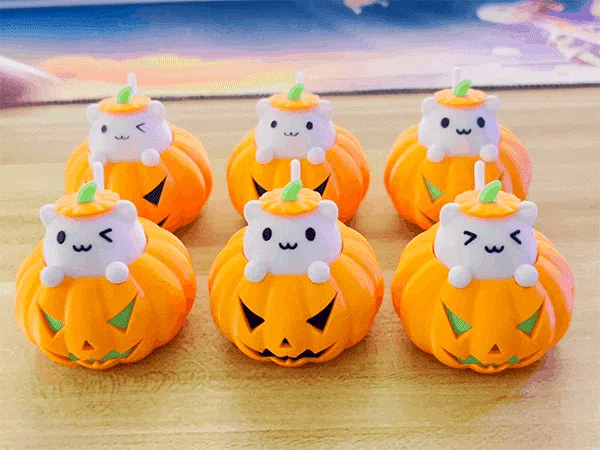

Stress Relief Pumpkin Cathttps://makerworld.com/zh/models/684279

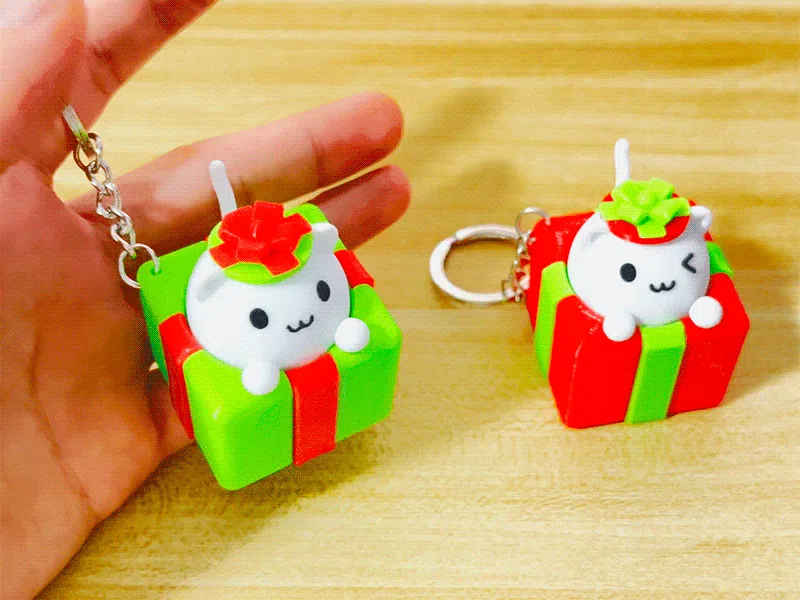

Christmas Gift—Stress Relief Cat Keychainhttps://makerworld.com/zh/models/797972
