Bambu Lab A1 Mini Spool Holder Slider Base (M3X8 compatible with original base screws)
Print Profile(1)
Description
为我助力 (for free)
嘟嘟嘟~谢谢各位支持~
Thank you all for your support~
拓竹 Bambu Lab A1 Mini 料盘支架滑块底座（M3X8 适配原厂底座螺丝）
Bambu Lab A1 Mini Material Tray Bracket Slider Base (M3X8, compatible with the original base screws)
原厂尺寸，匹配原厂料盘支架,采用原厂底座M3*8的规格螺丝固定,可以直接使用A1 Mini购买时拆卸Z轴限位器的螺丝

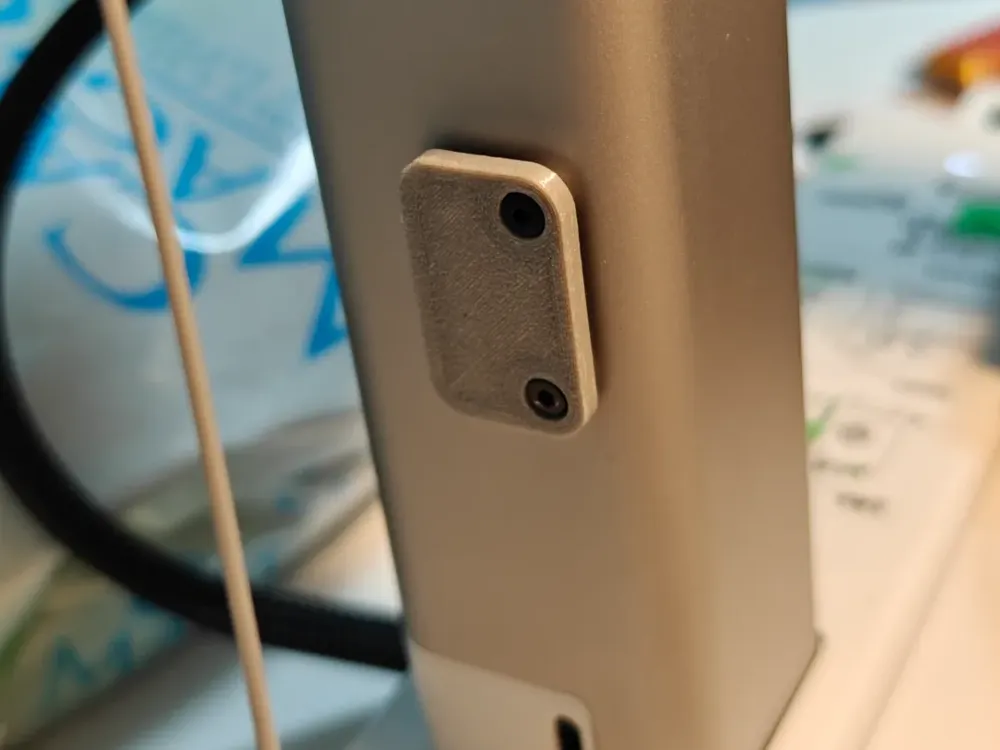

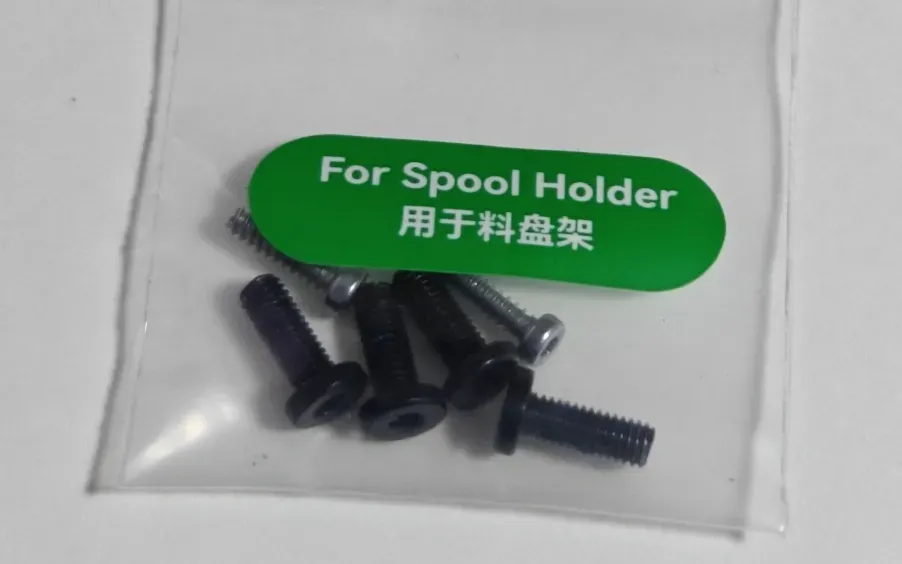

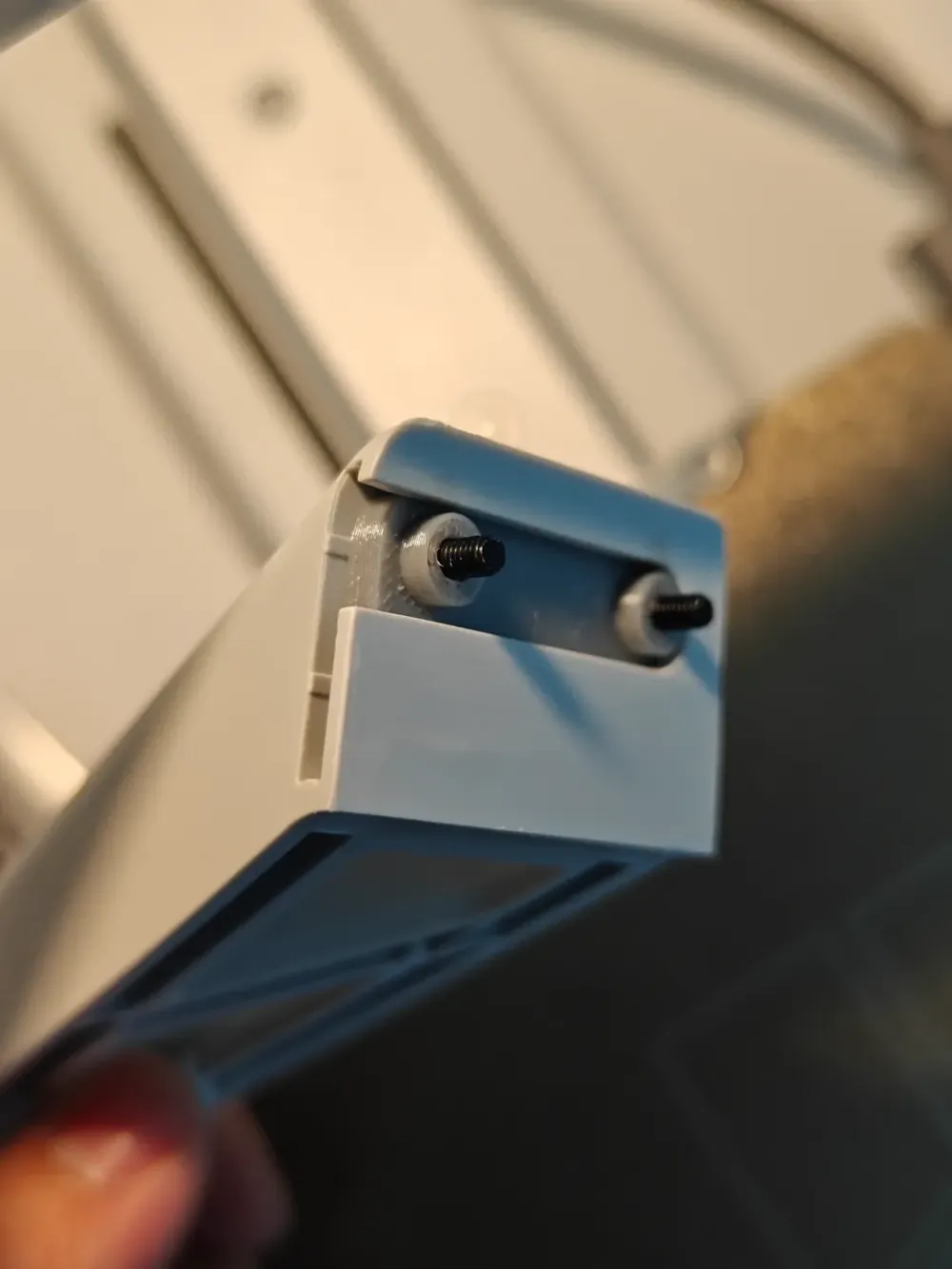

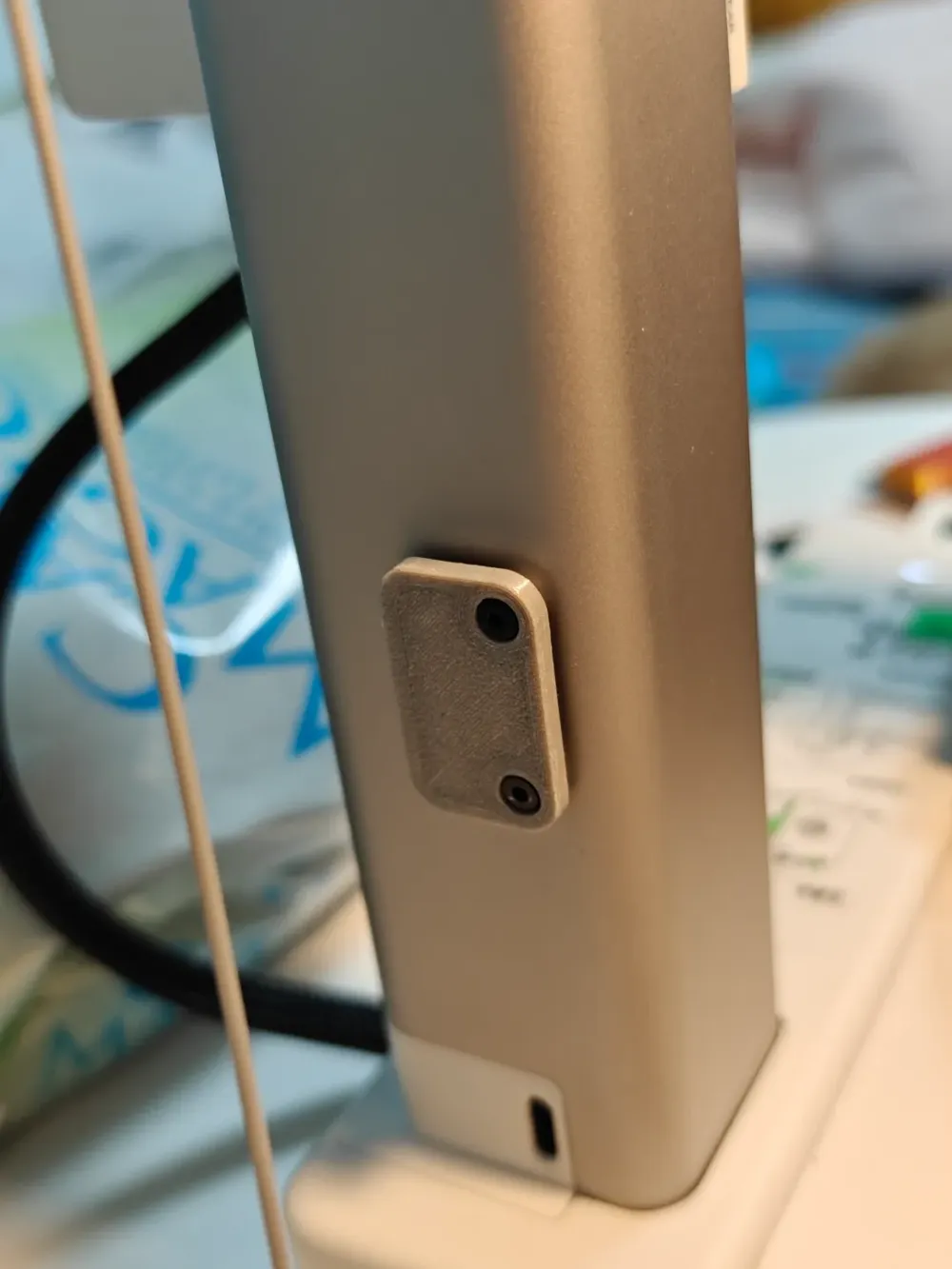

It is in the original factory size and matches the original factory material tray bracket. It is fixed with screws of the specification M3*8 of the original factory base, and the screws used to disassemble the Z-axis limit switch when purchasing the A1 Mini can be directly applied.
螺丝头位置设计的深度稍微深了一点，考虑到市面上购买的螺丝，螺丝头比原厂厚
The depth of the screw head position is designed to be slightly deeper, taking into account that the screw heads of the screws purchased on the market are thicker than the original ones.

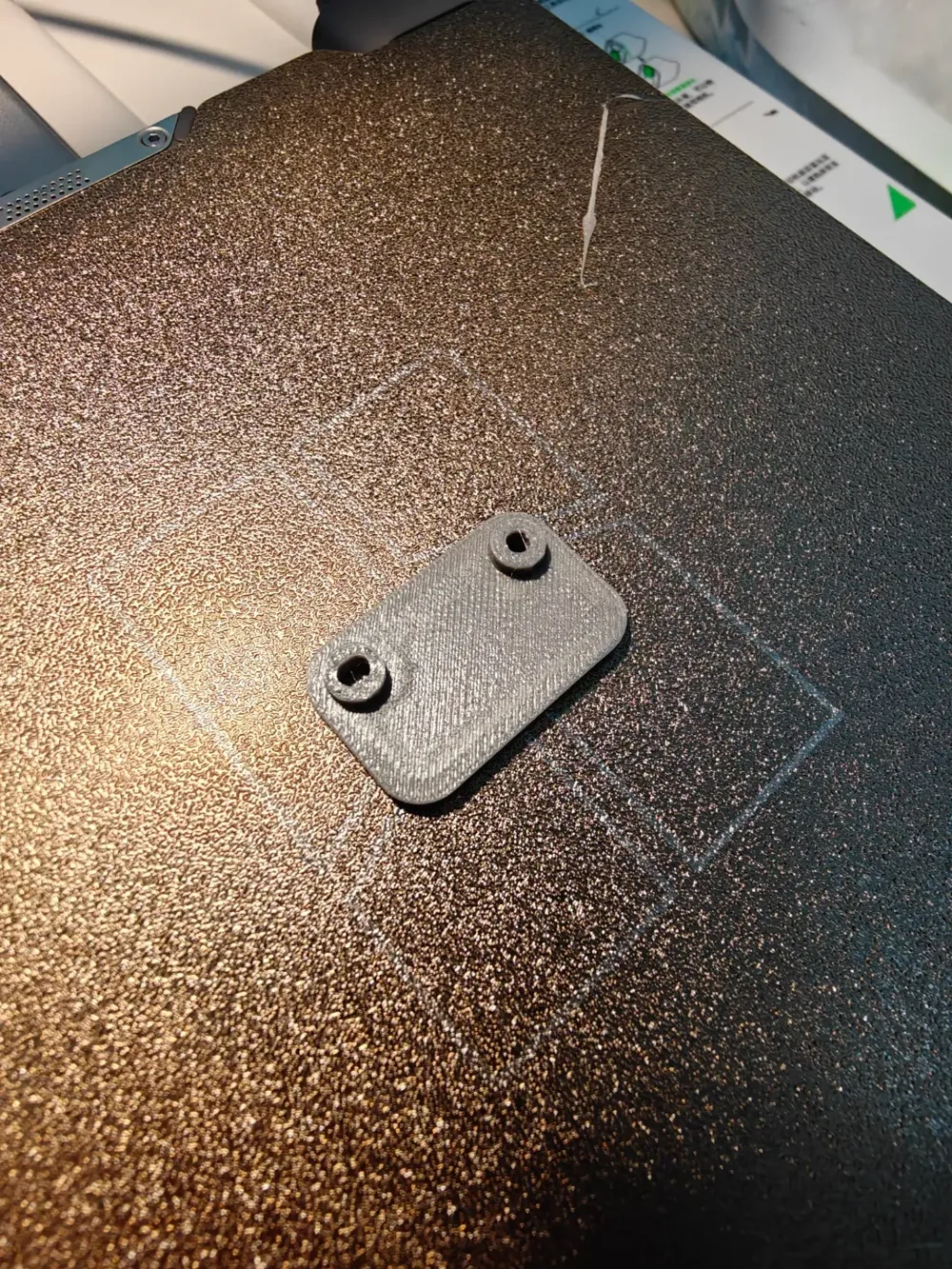

螺丝头位置为保证悬空打印时打印平整，模型手动增加支撑，打印完只需要拿原厂螺丝，反向插入顶出支撑圆柱即可

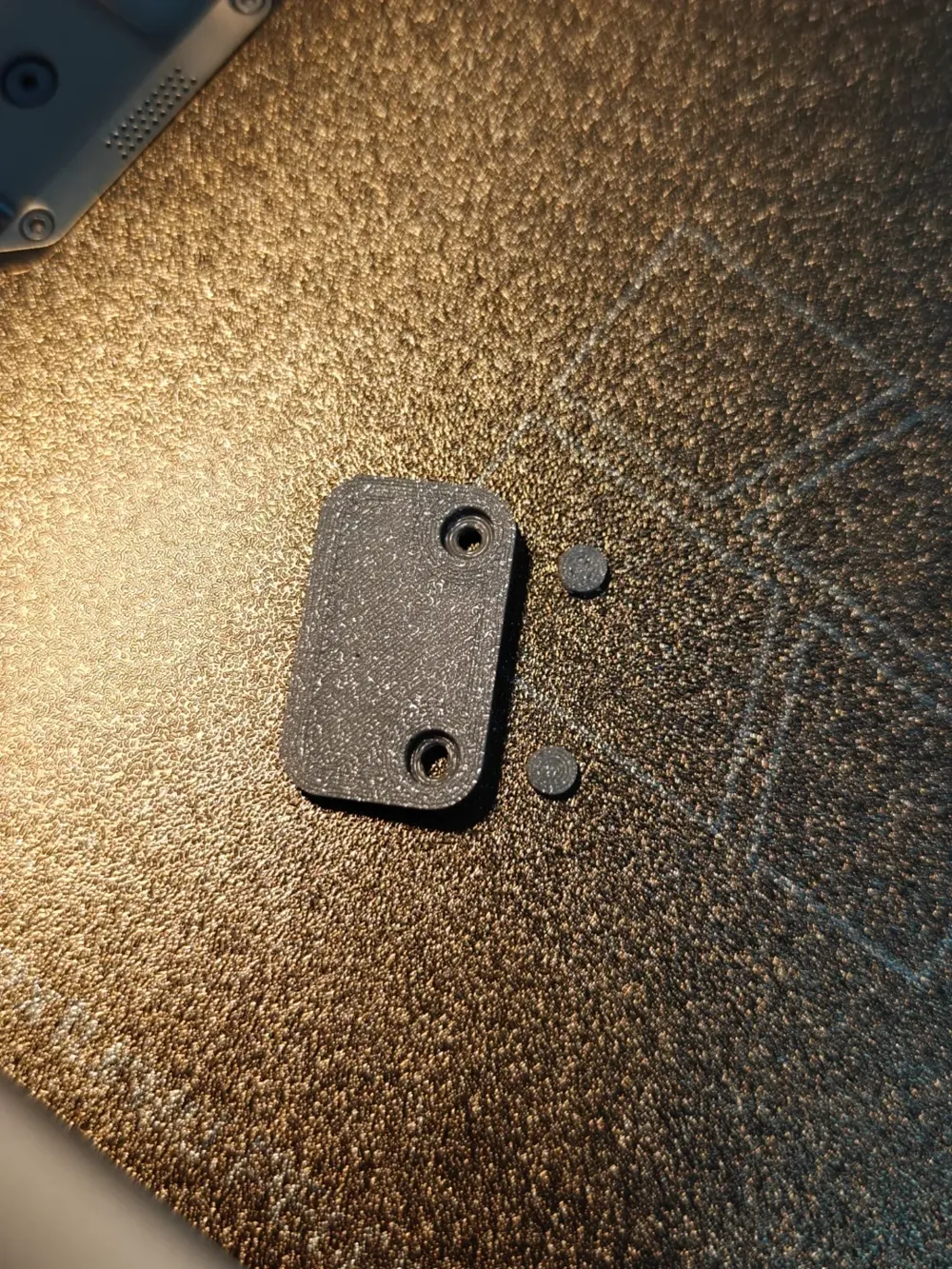

In order to ensure a flat print when printing the position of the screw head in mid-air, supports are manually added to the model. After printing, you just need to take the original factory screw, insert it in the opposite direction, and push out the supporting cylinder.
