A minimalist manual filament feed and retrieval module (for use with external drying boxes, eliminating the need to open the enclosure)
Print Profile(1)
Description

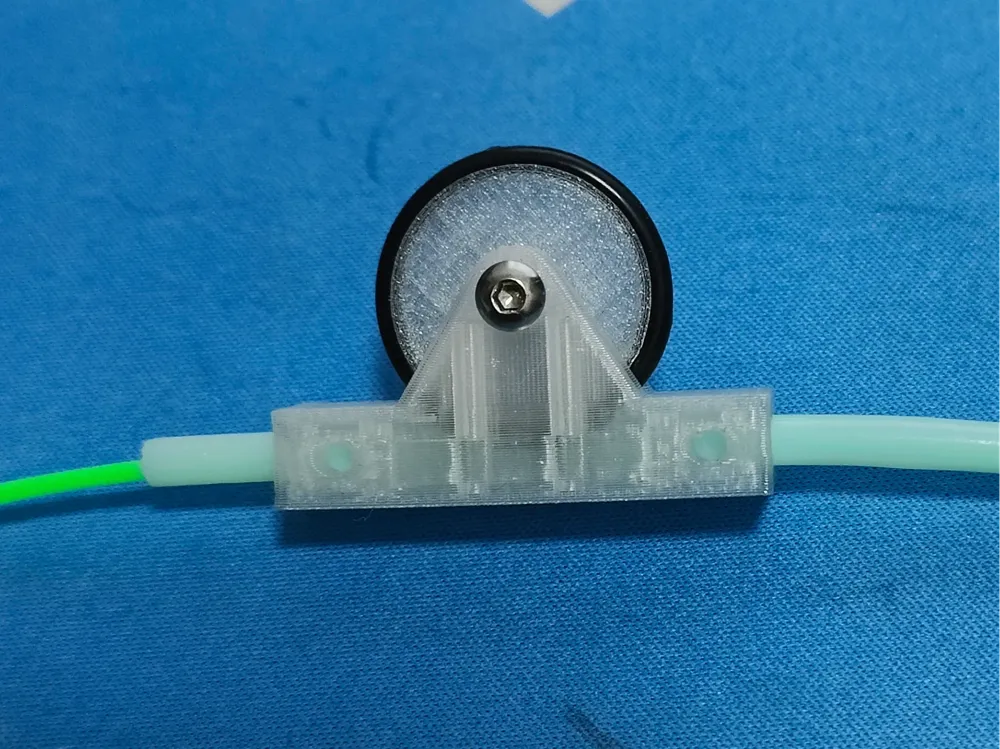

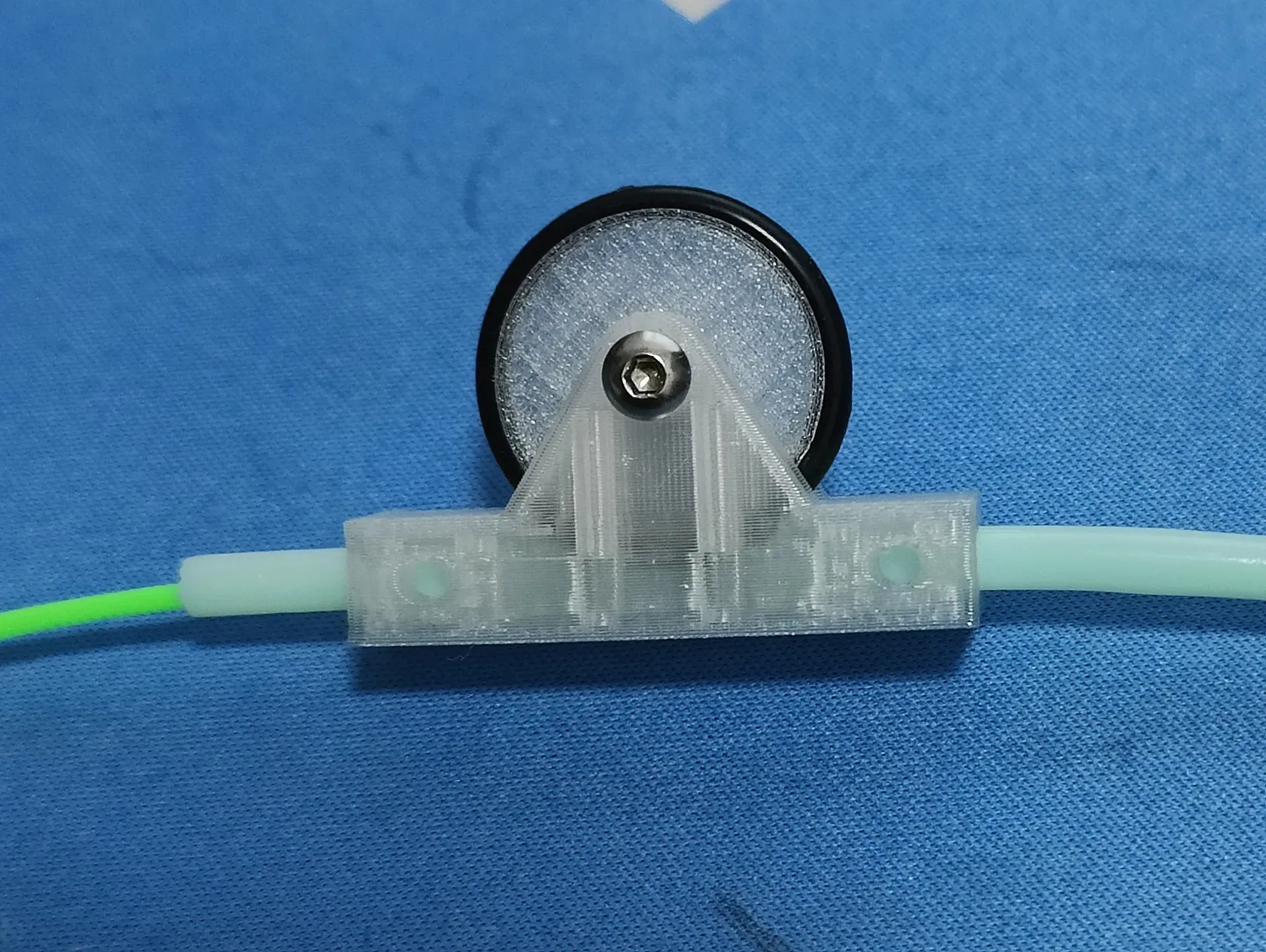

This assembly comprises only three printed components: a tubing cutter (for conveniently scoring 4mm PTFE tubing), and two further parts that, when combined, constitute the entire feed and output module (specifically, a roller and a bracket).
Assembly instructions:

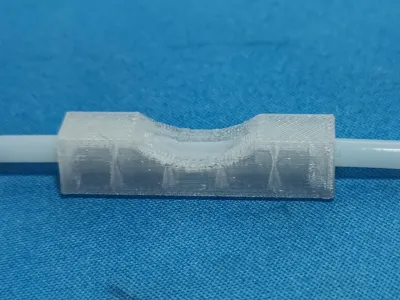

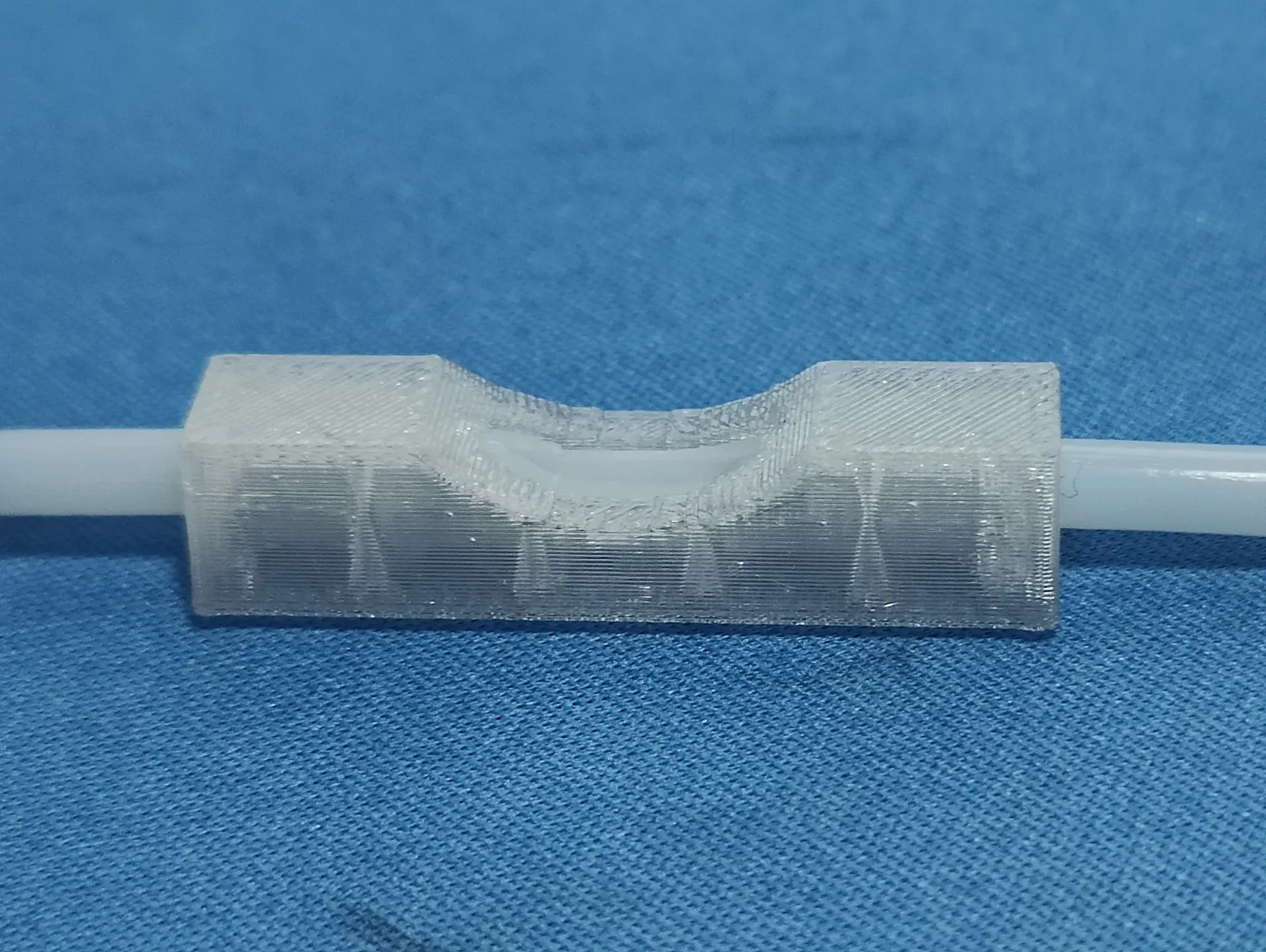

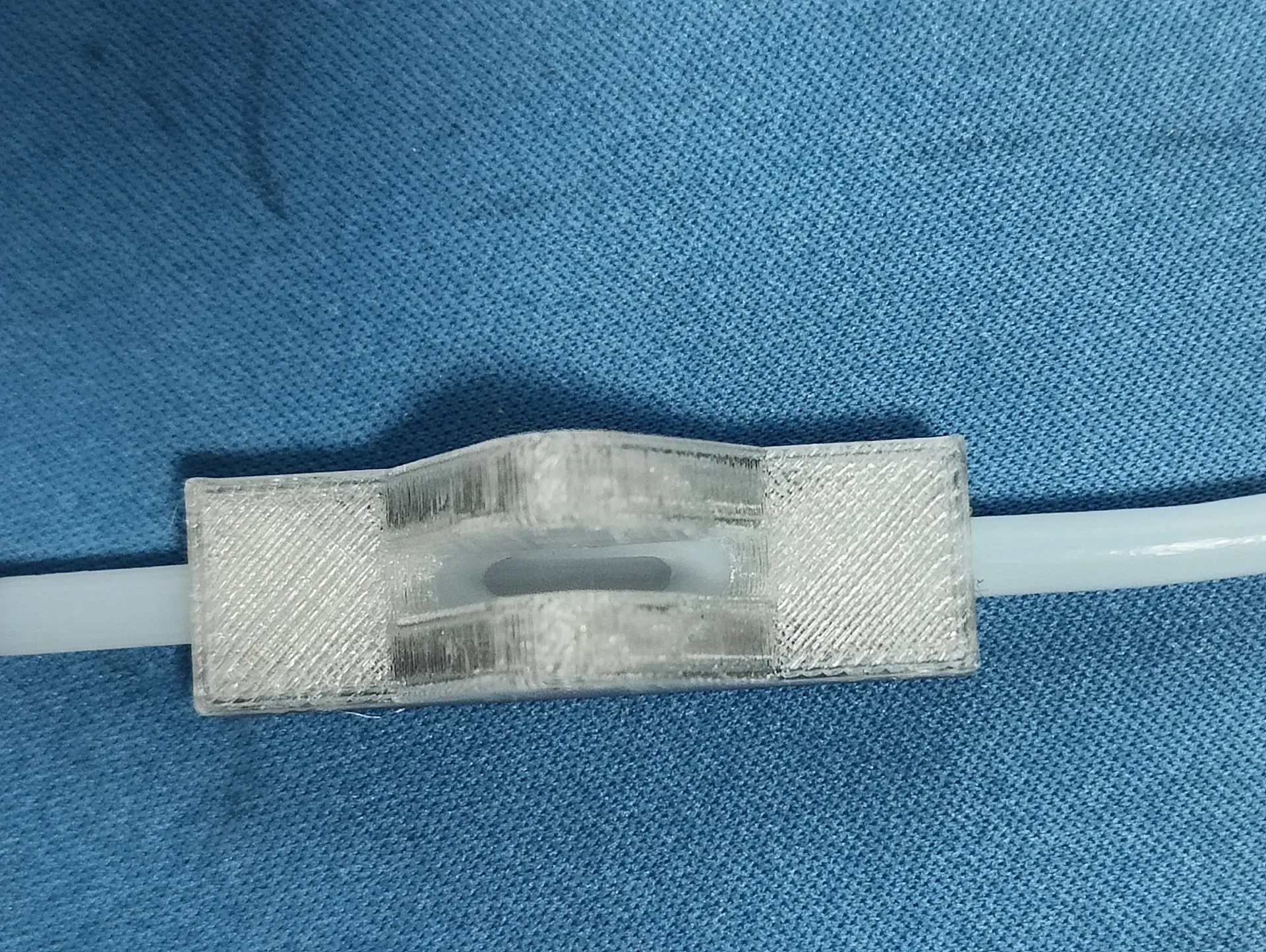

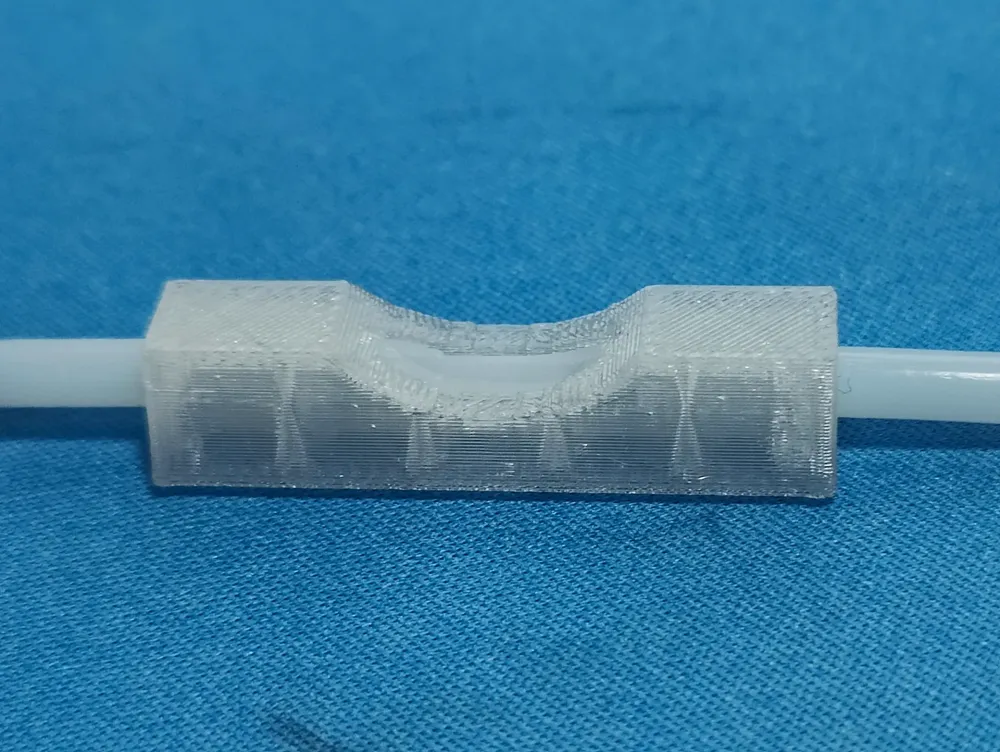

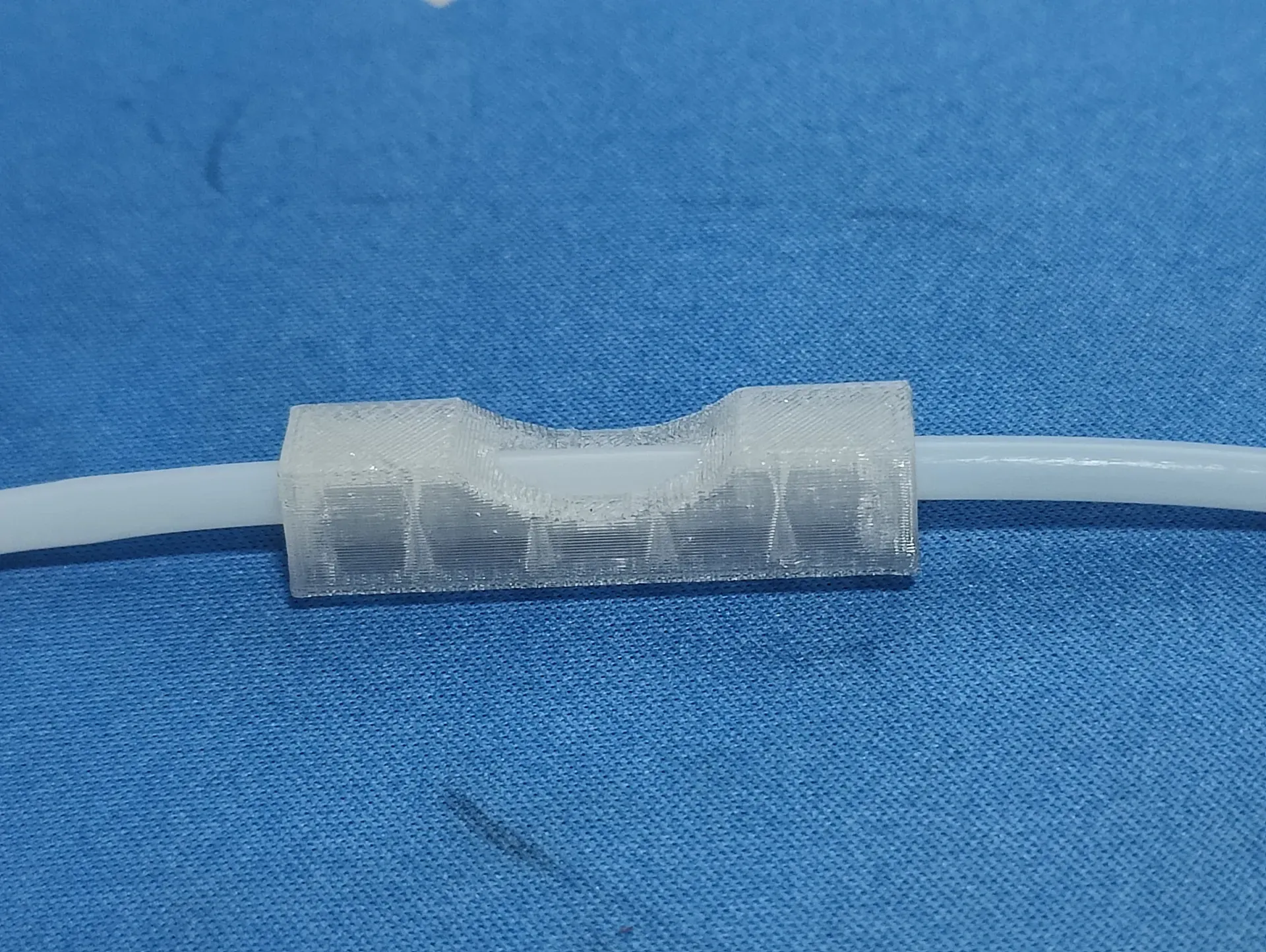

1. Attach the tubing cutter to the PTFE tubing at the desired location and create a score.

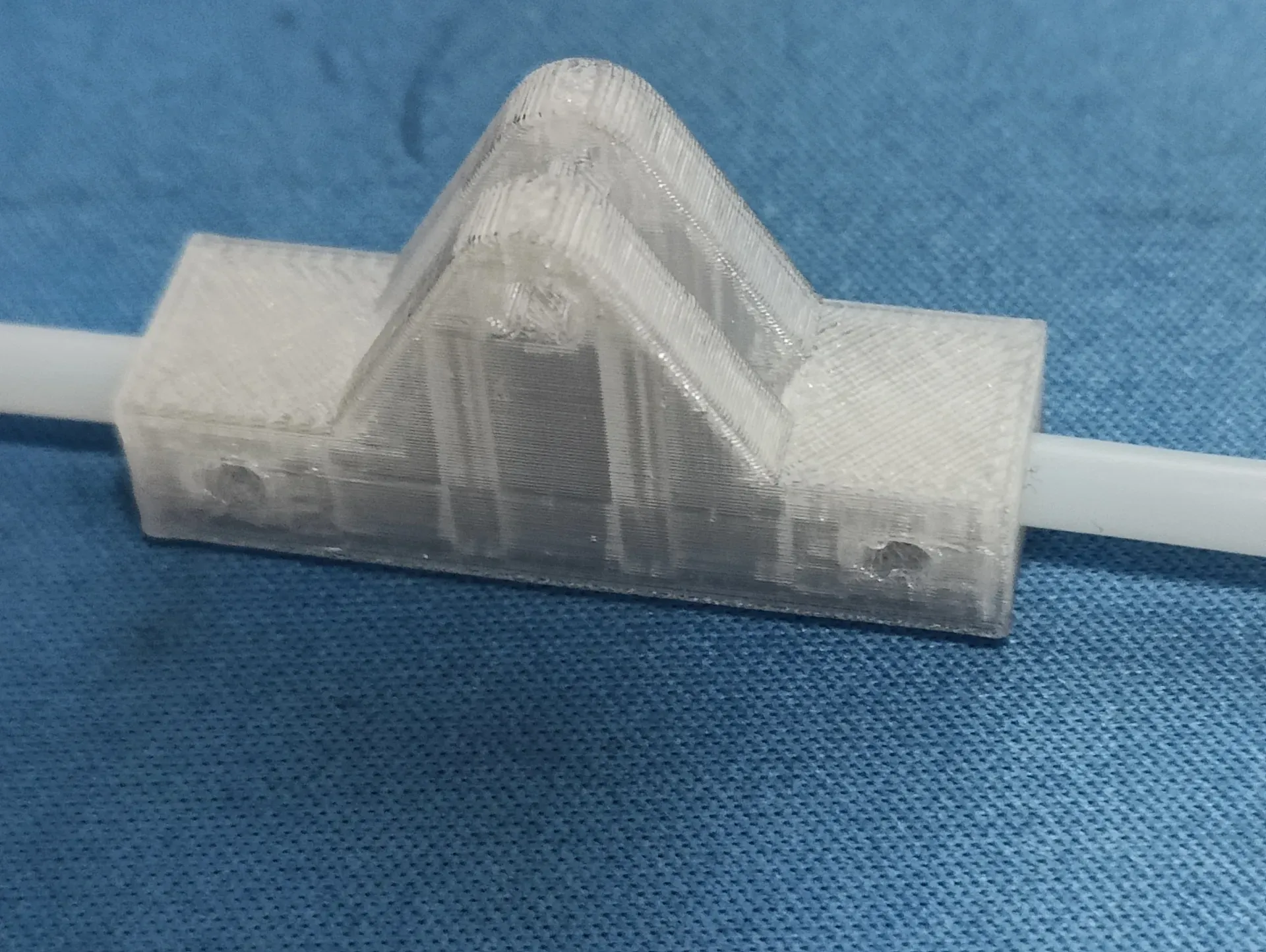

2. Remove the tubing cutter, insert the PTFE tubing into the bracket, aligning the bracket opening with the scored section of the tubing.

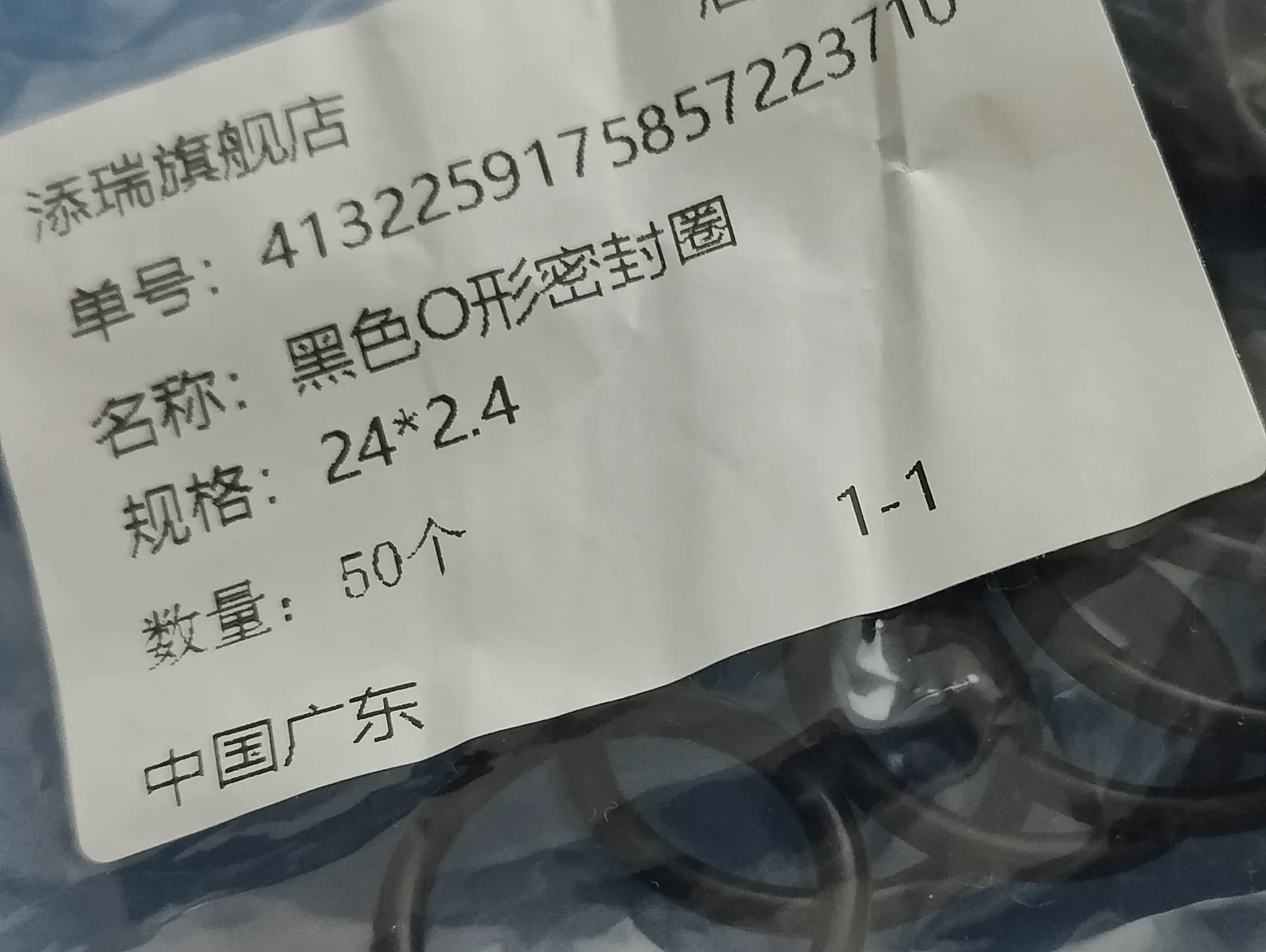

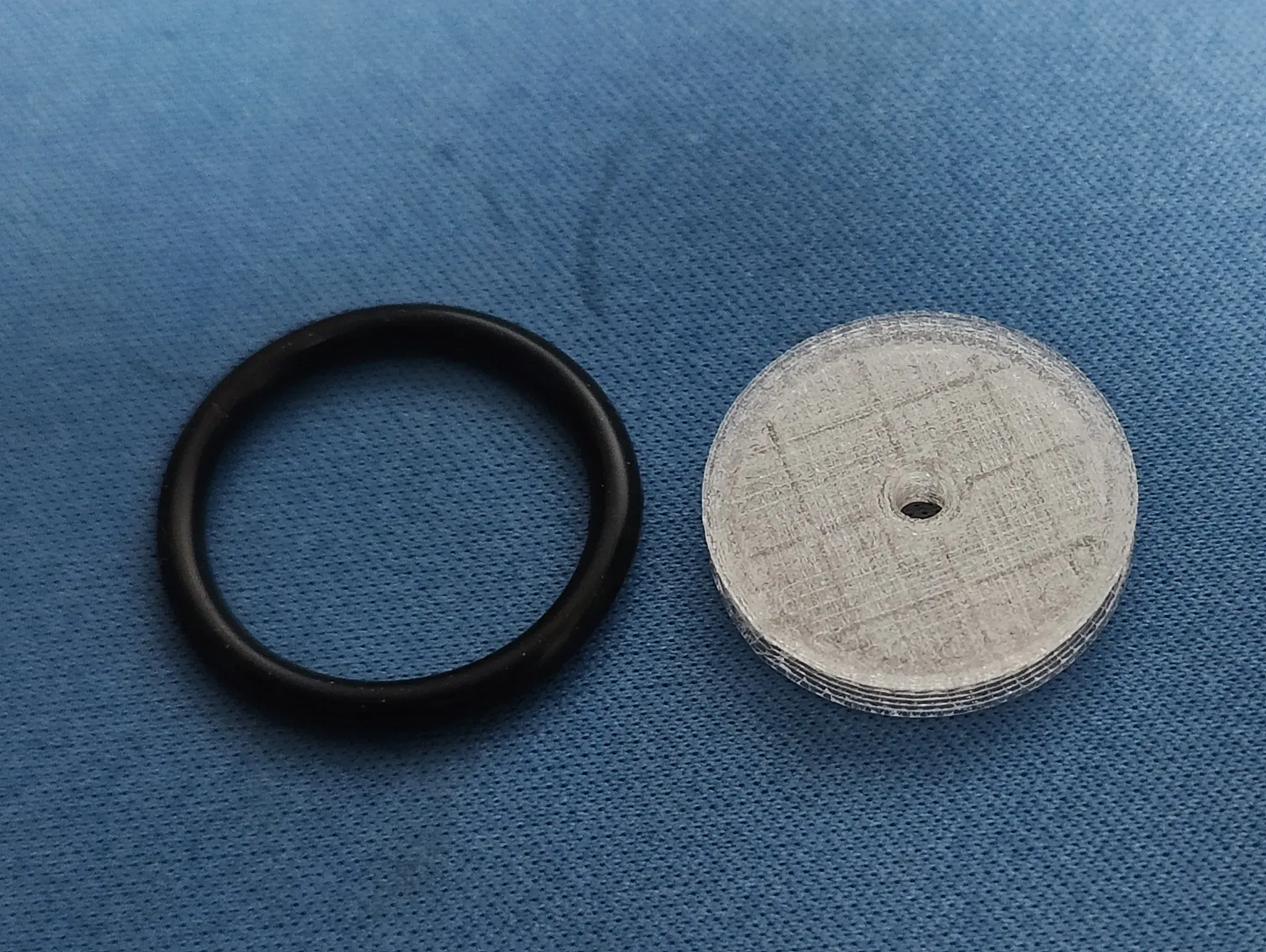

3. Install the rubber O-ring.

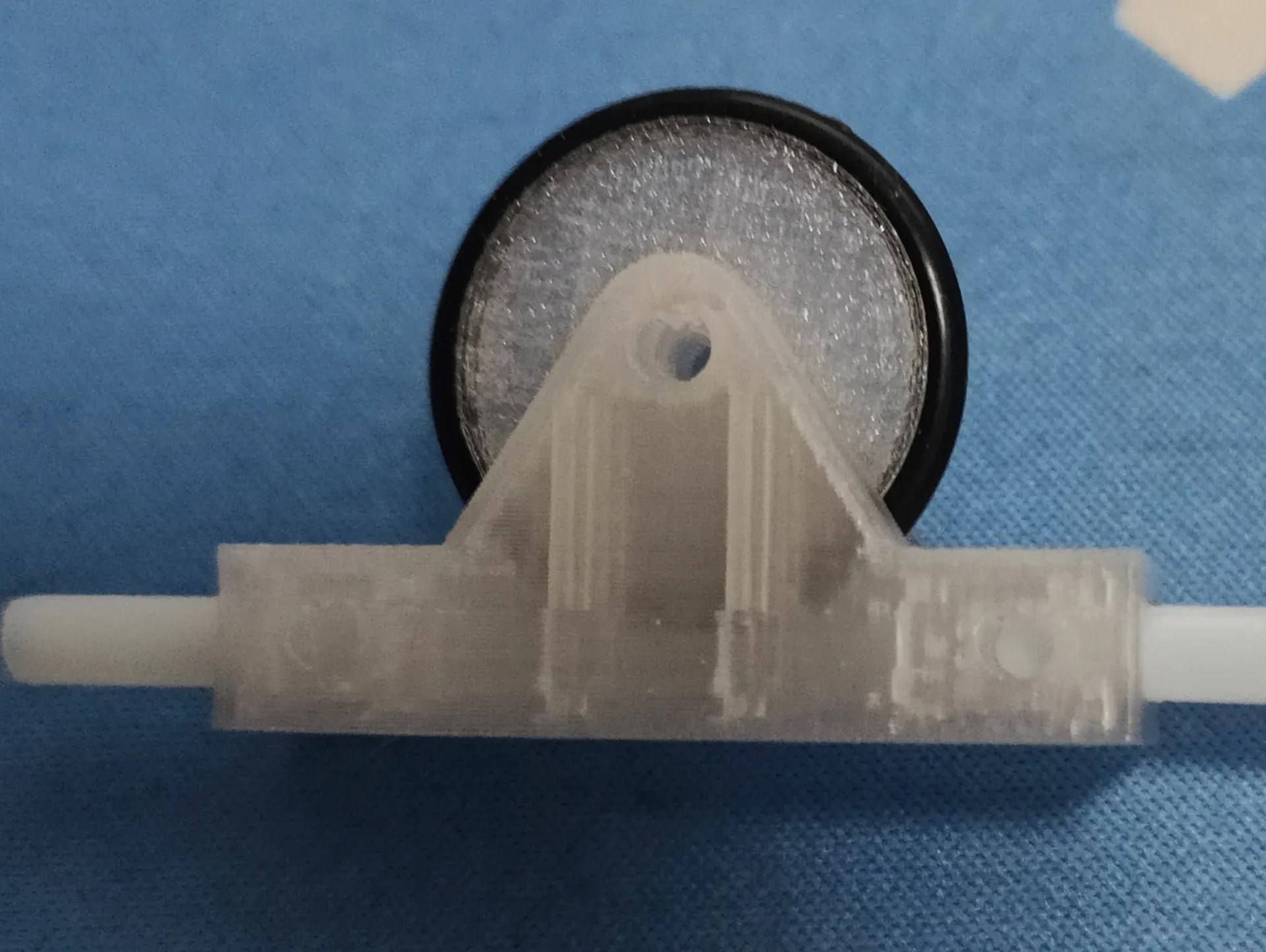

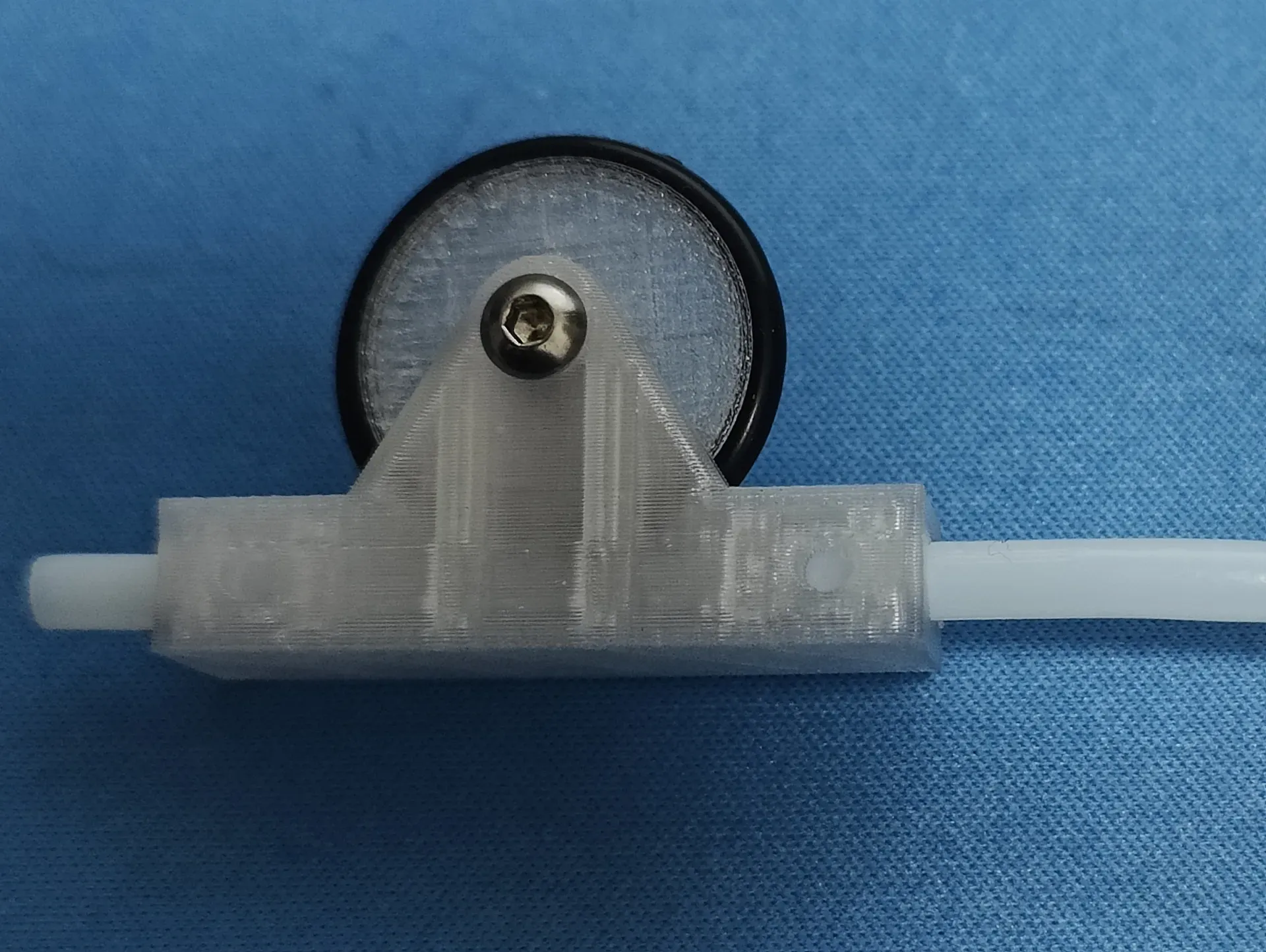

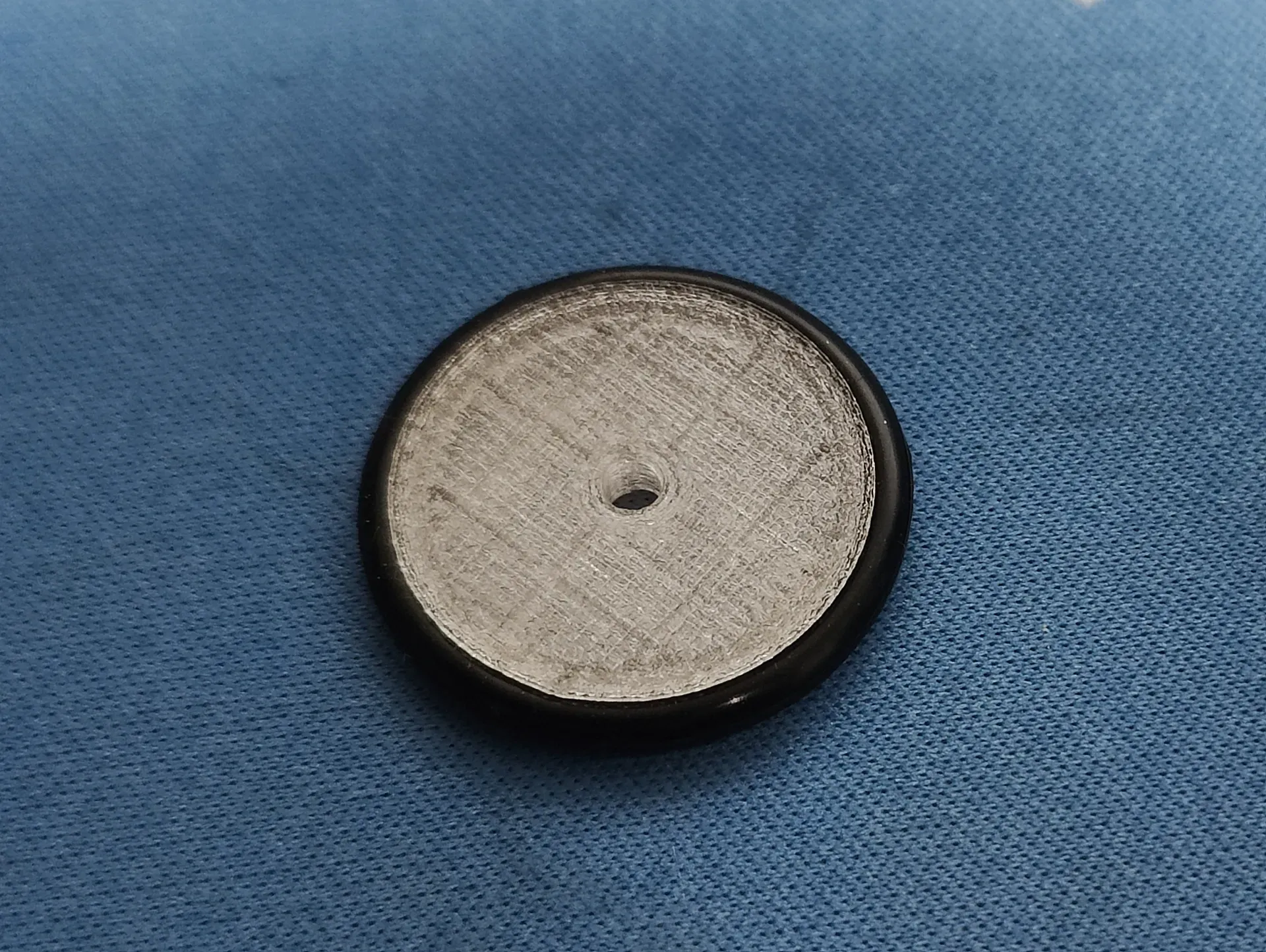

4. Position the O-ring-equipped roller into the bracket's aperture, then secure it using an M3 screw, threading it into the roller while simultaneously supporting the roller.
