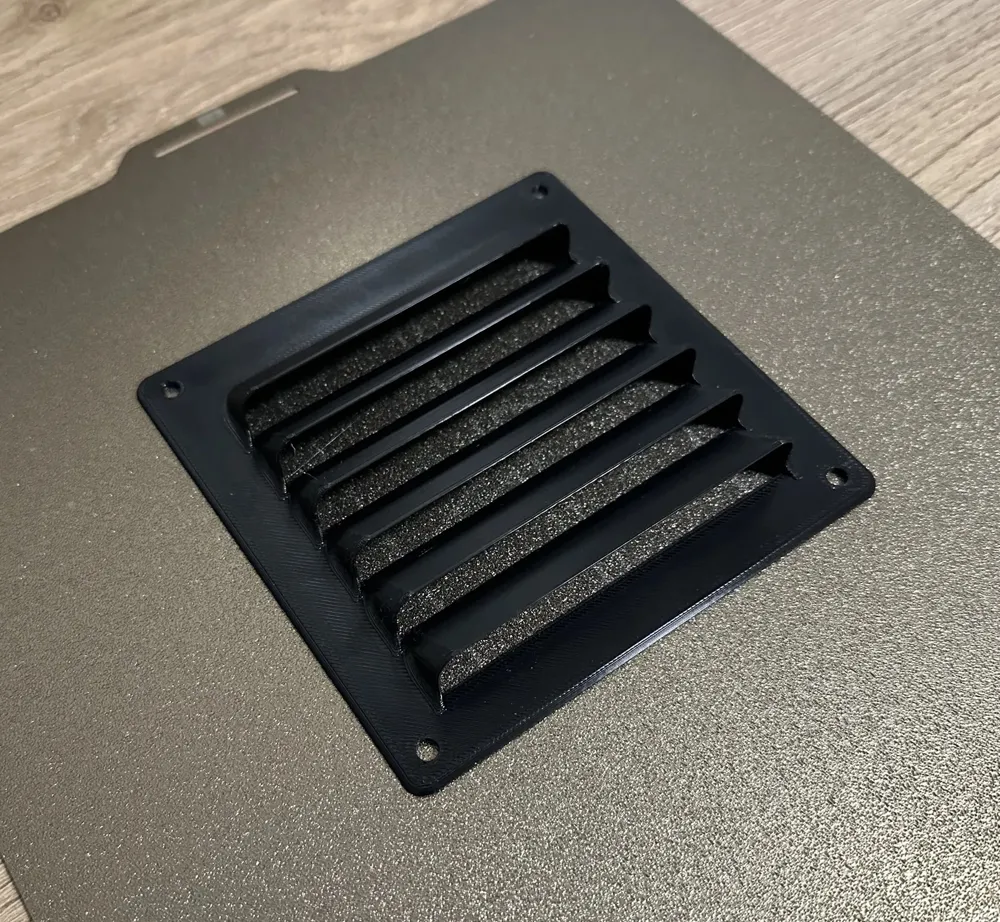

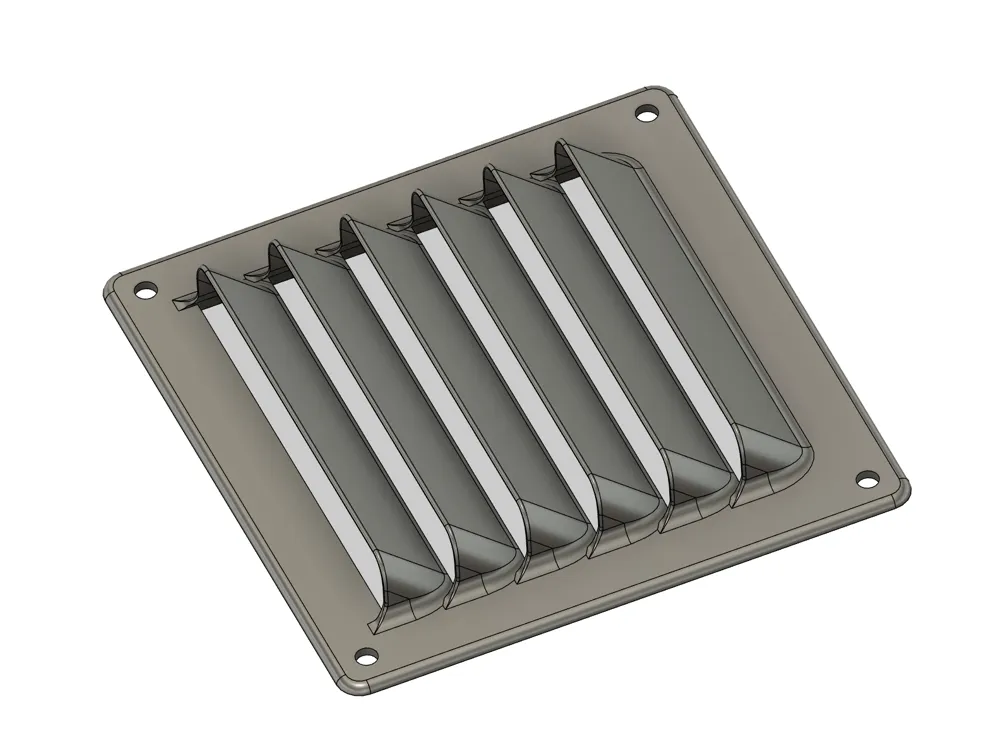

Louvres Air Vent Grill for 120mm Fan. The model is almolst fully parametric, everything can be changed through the User Parameters in Fusion 360, only the Distance in EDIT PATTERN ON PATH must be changed manual, after the change of the Base dimentions and the number of Vents, to meet the line, defined by the User Parameter “BorderVerDown”.

EDIT 20.08.2025: now you can change the Hole Diameter and Offset with the Customize option.

Fully customizable version can be found here.

The STEP and Fusion360 files are also here.
