Pneumatic fitting anti-scratch line straight connector
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
31 min
1 plate
Open in Bambu Studio
Boost
1
7
3
0
4
1
Released
Description
Content has been automatically translated.
The feed end of the pneumatic fitting is rather sharp, and it will scrape the filament, creating debris during feeding and retracting.

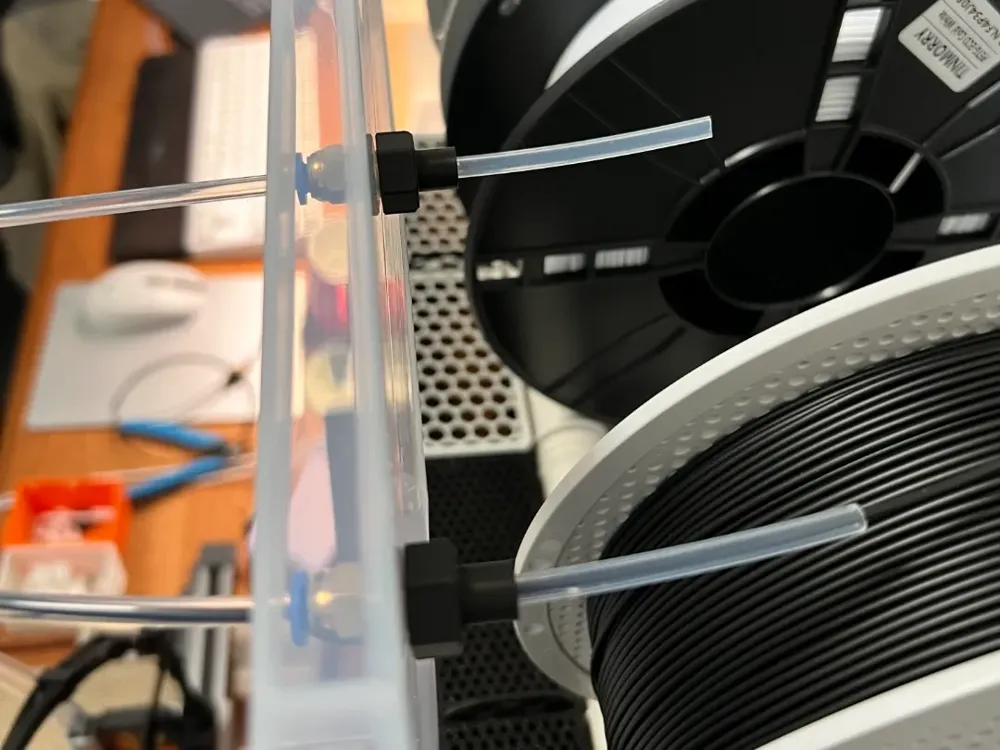

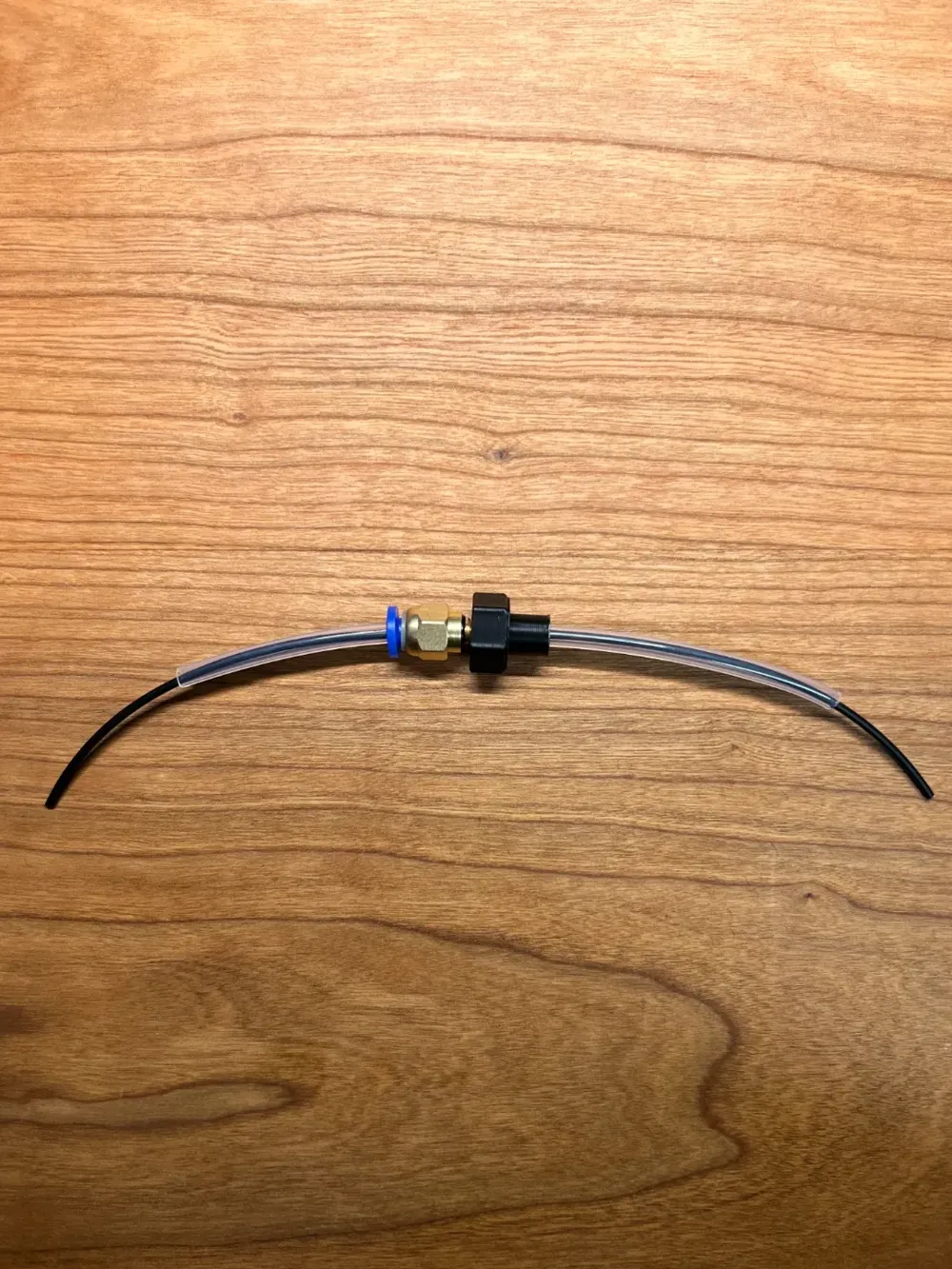

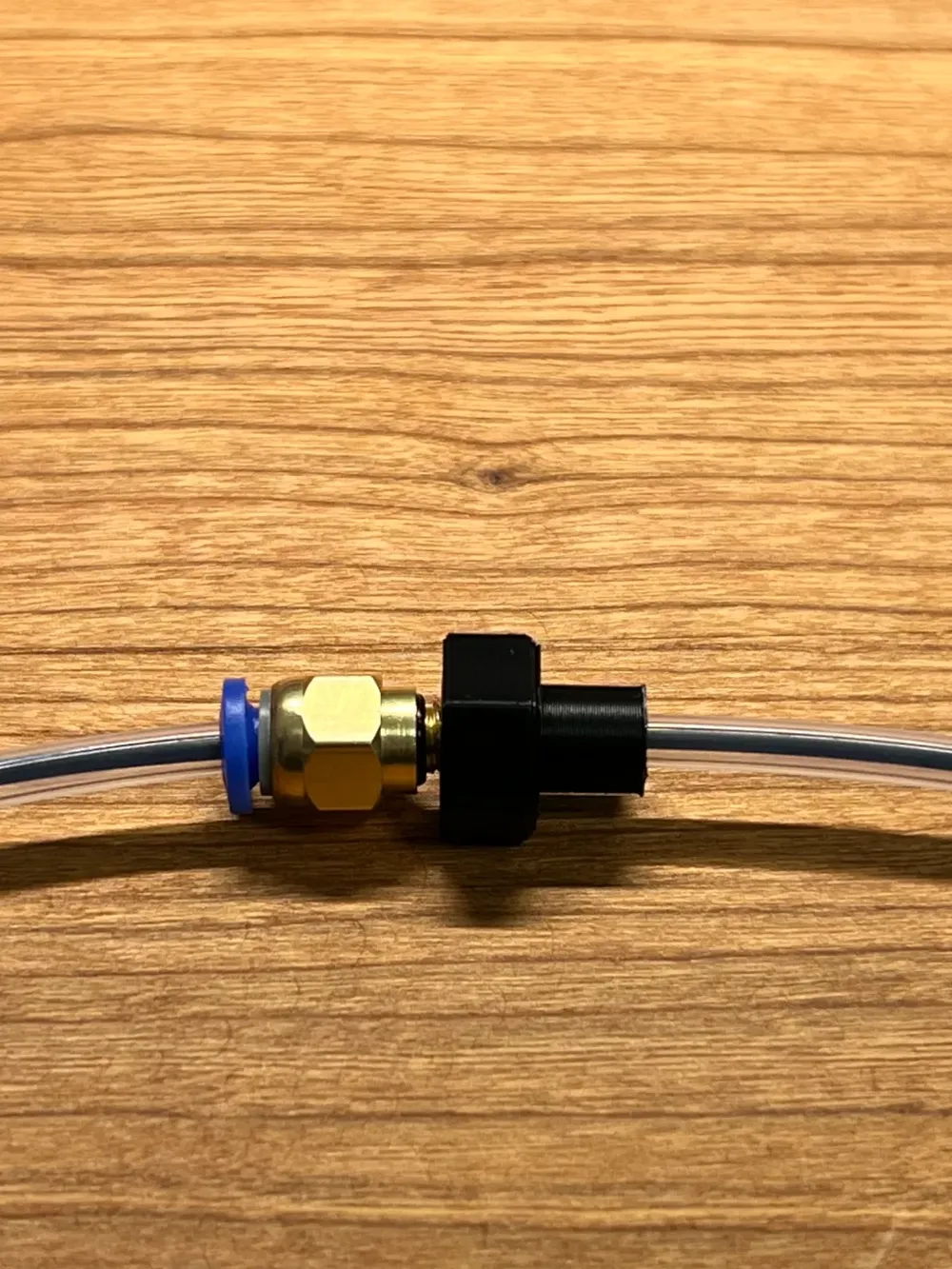

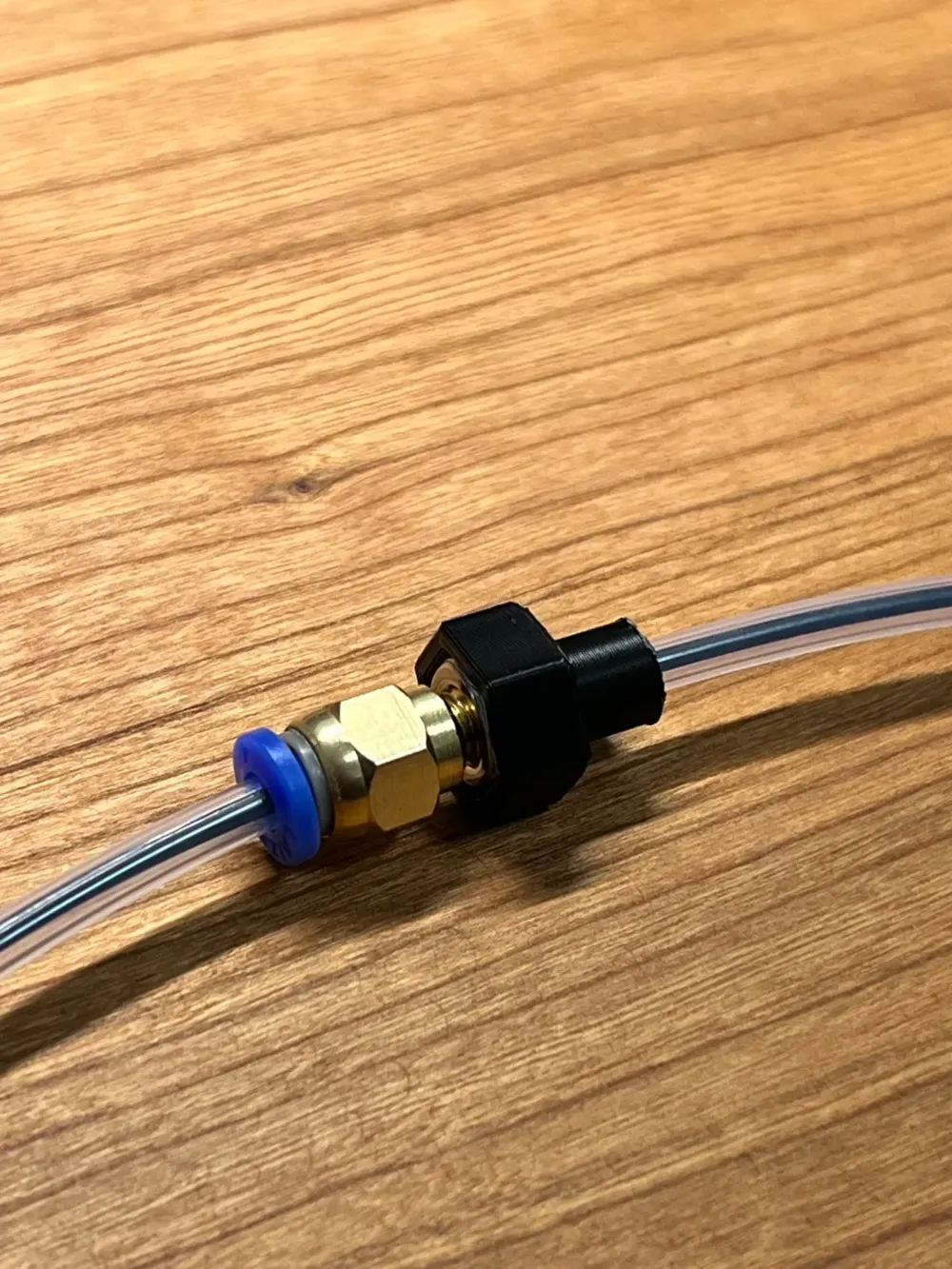

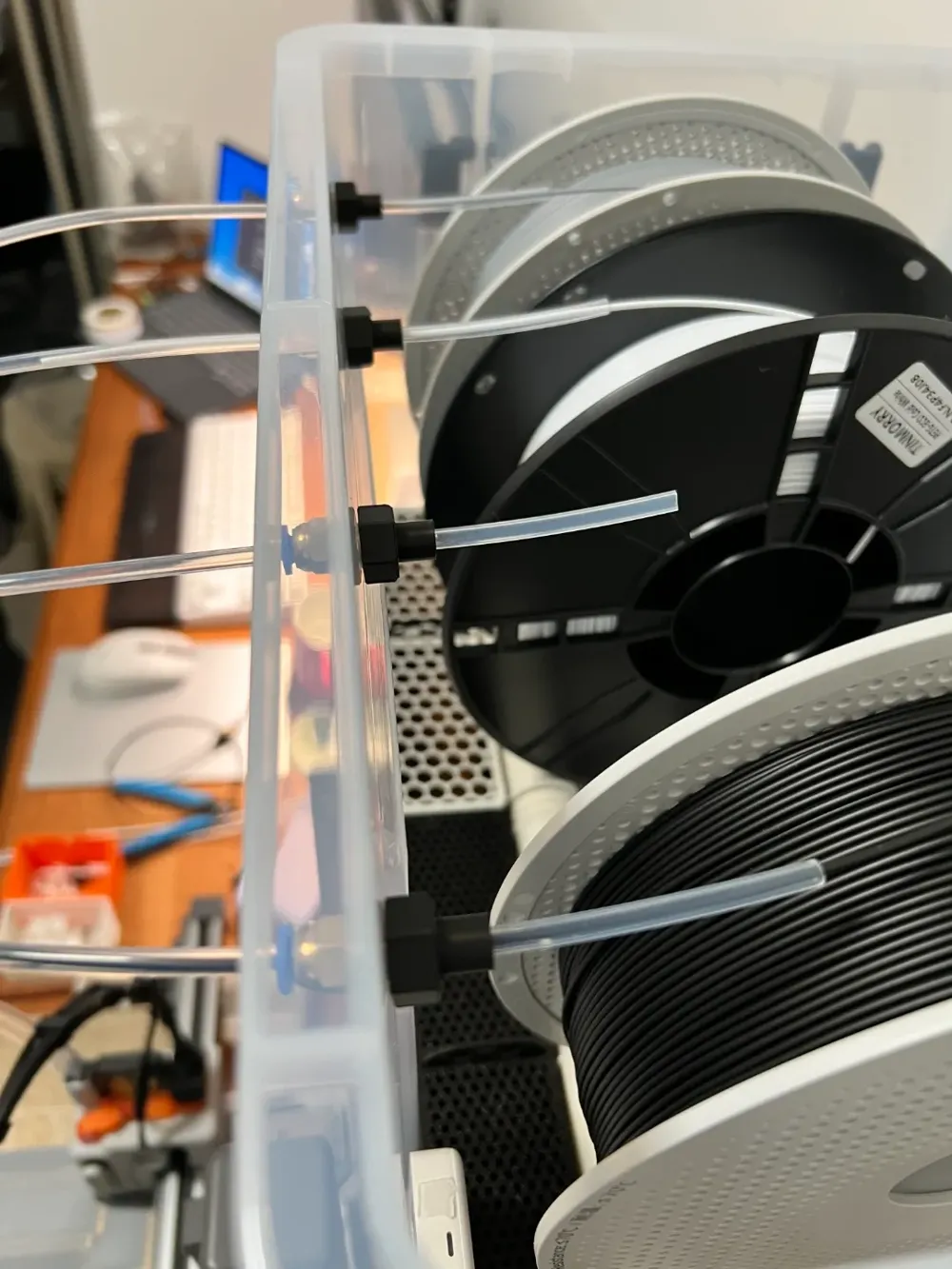

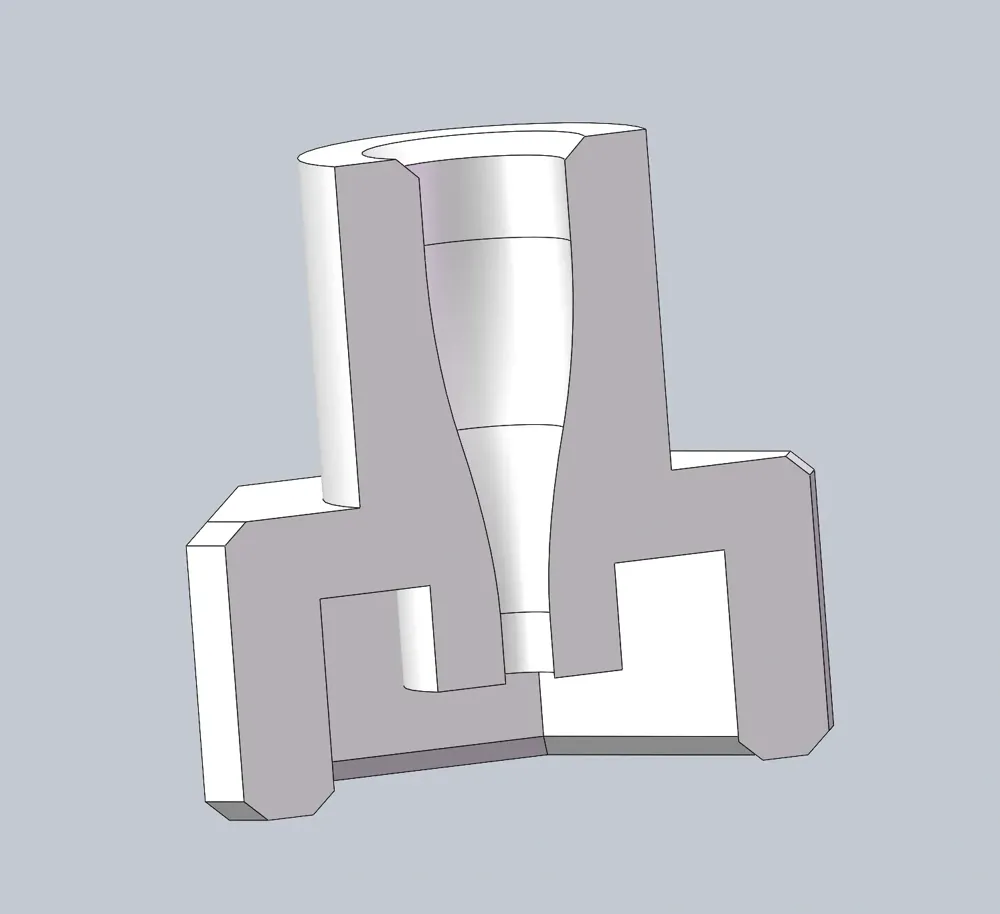

This model solves the above problem with a slightly smaller inlet aperture than the pneumatic fitting. It can be connected to a PTFE tube for smoother feeding.
Addendum: I later learned that there are through pneumatic fittings; mine was not, hence this issue.
