Caddx GoFilm20 GPS mount

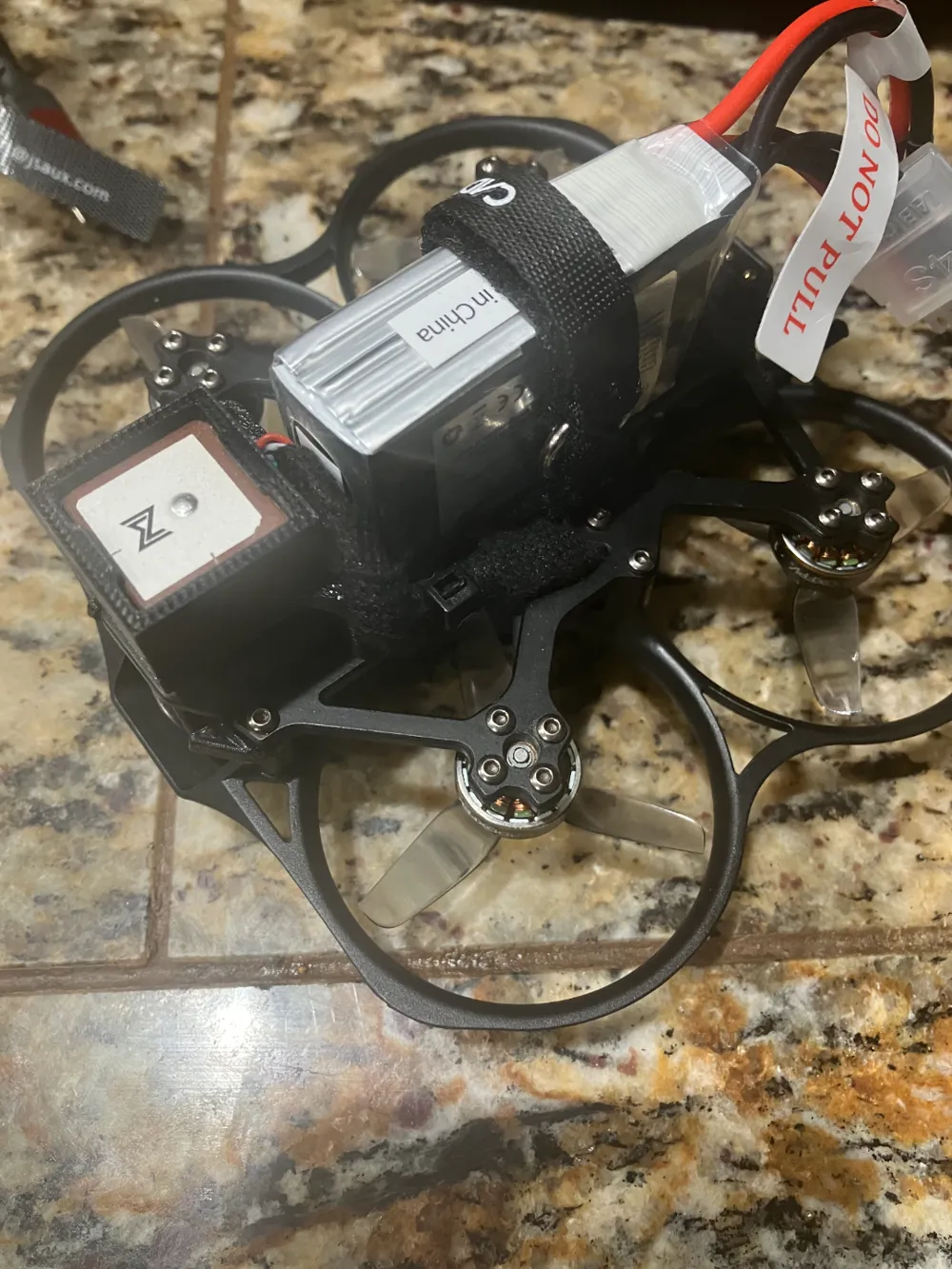

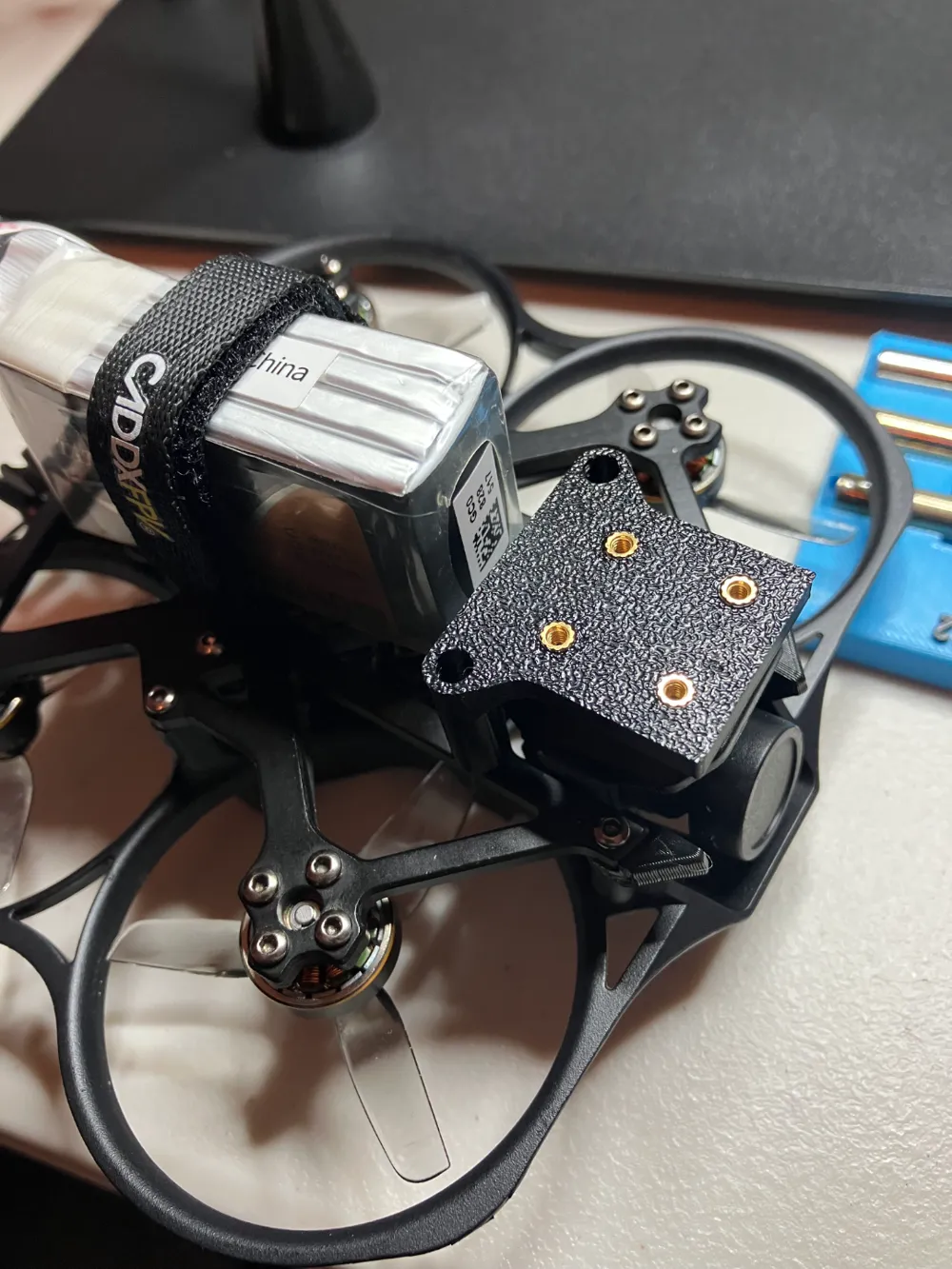

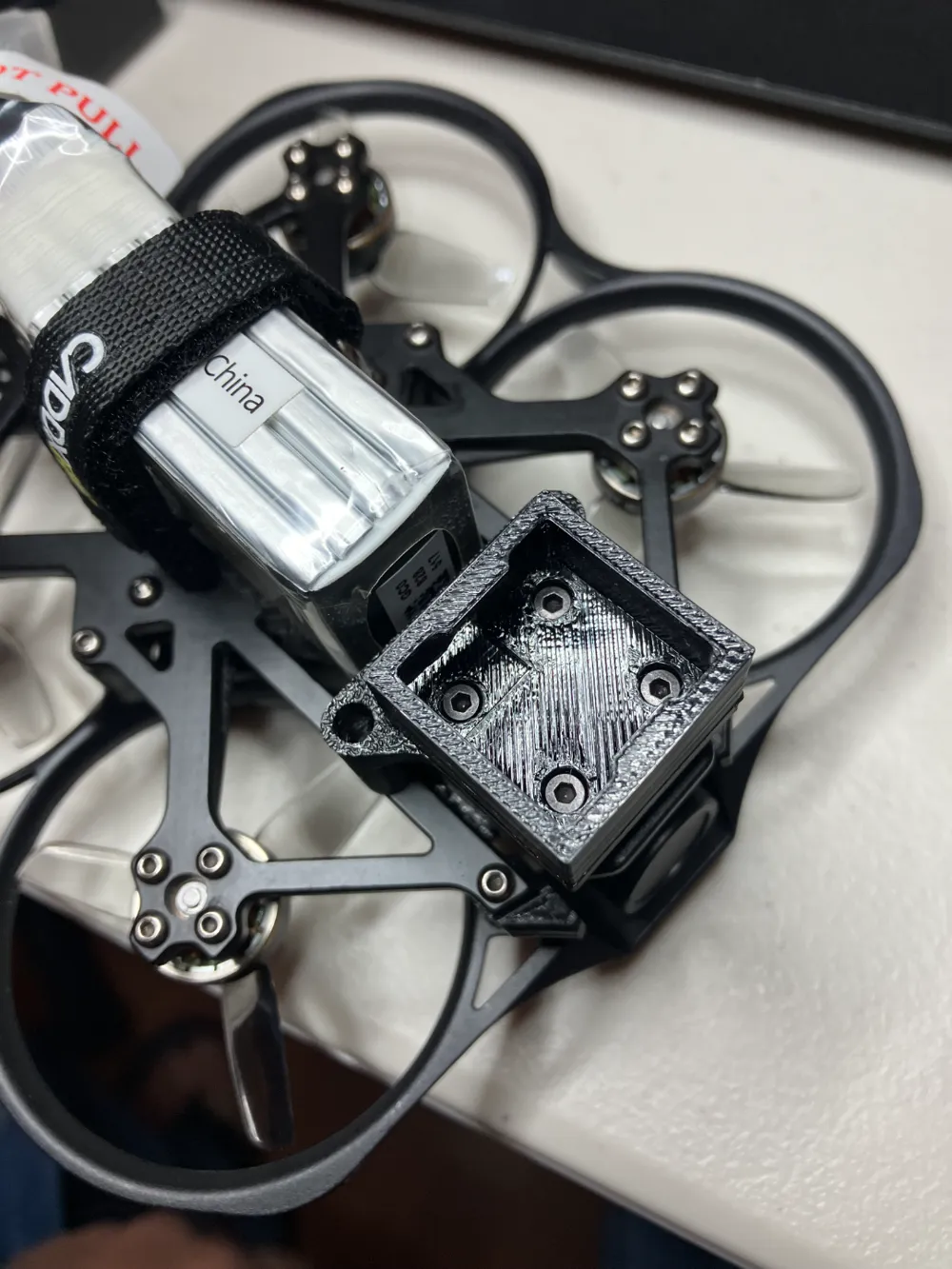

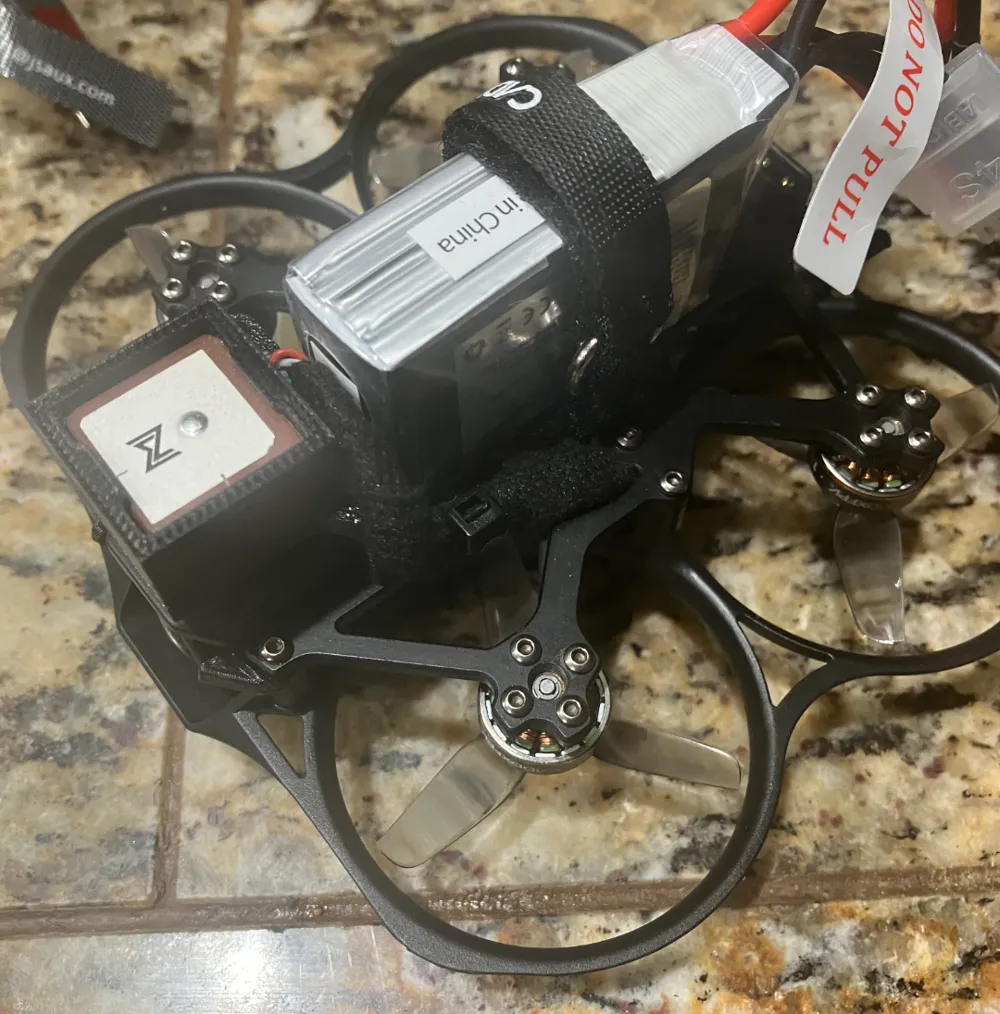

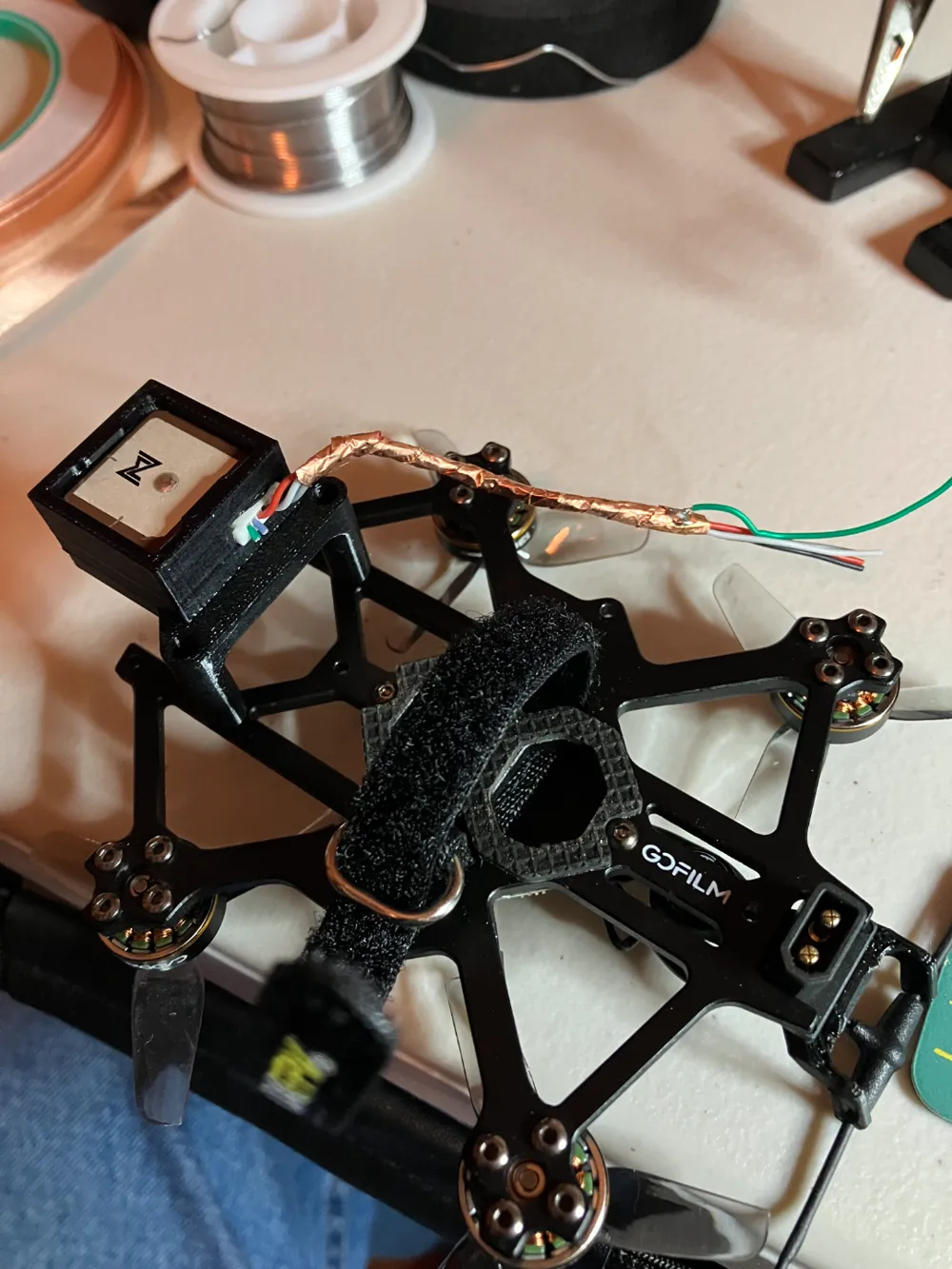

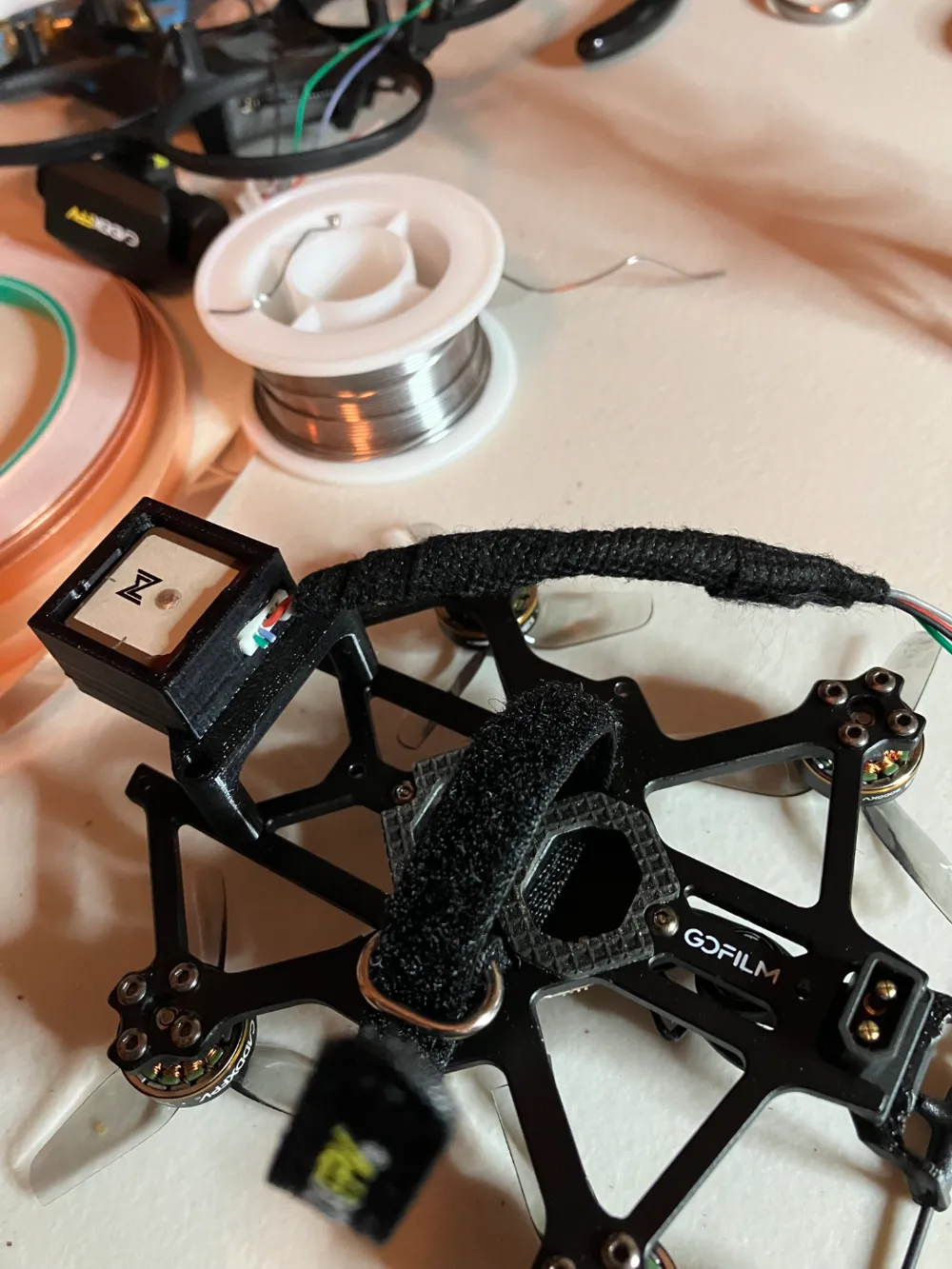

This is a GPS mount I made for my Caddx GoFilm20 Cinnewhoop. I used a Walksnail GPS module. The Gps holder is printed from TPU and the bracket is printed from PETG. I used 4 m2 threaded inserts approx 4mm Deep. I also used 2 m2 bolts to attach it to frame with 2 m2 nuts. After mounting the GPS module and bracket, I wrapped the wires with copper foil tape which I bought from Amazon. I also soldered a wire to outside of foil and attached that to ground with the GPS wires. Then I wrapped over the foil tape with a cloth tape to insulate it and keep it from shorting. See attached photos. It works great and picks up satellites quickly! you can get the pinouts of where to solder the wires from caddx Download Center CADDXFPV&Walksnail Download Page – CADDX FPV. Go to Caddx GoFilm20 manual and look for flight controller. i used TX6 and RX6 and power and ground (see top of photo in manual). Good luck and Happy Flying!
