Small, stable hygrometer holder for a dry box
Print Profile(1)

Description
Since I find silica gel containers in the box impractical and prefer using a container in the lid cutout of the muesli container, I was looking for a small hygrometer holder without an integrated silica gel container, but one that shouldn't lie loose in the box.
Since I hadn't found anything suitable, I dared to design one myself for the first time.
This small holder came out of it, which requires only just over 9g of filament and is printed on the P1S in only about 25 minutes.

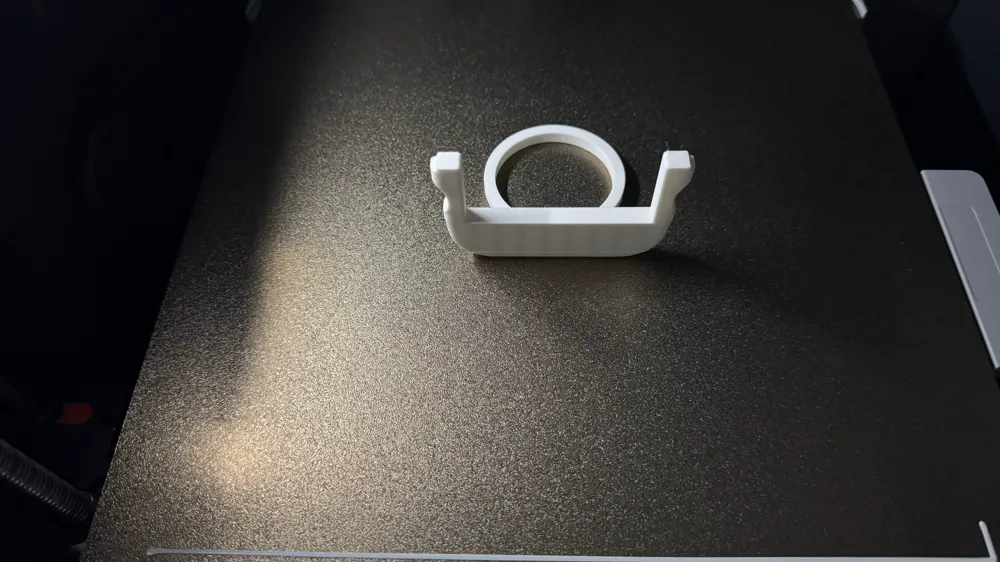

It requires no supports, as I placed the hygrometer ring of the holder flat on the print bed.
It is printed completely in one piece, so nothing needs to be assembled. Therefore, despite the small amount of filament, it is very stable.

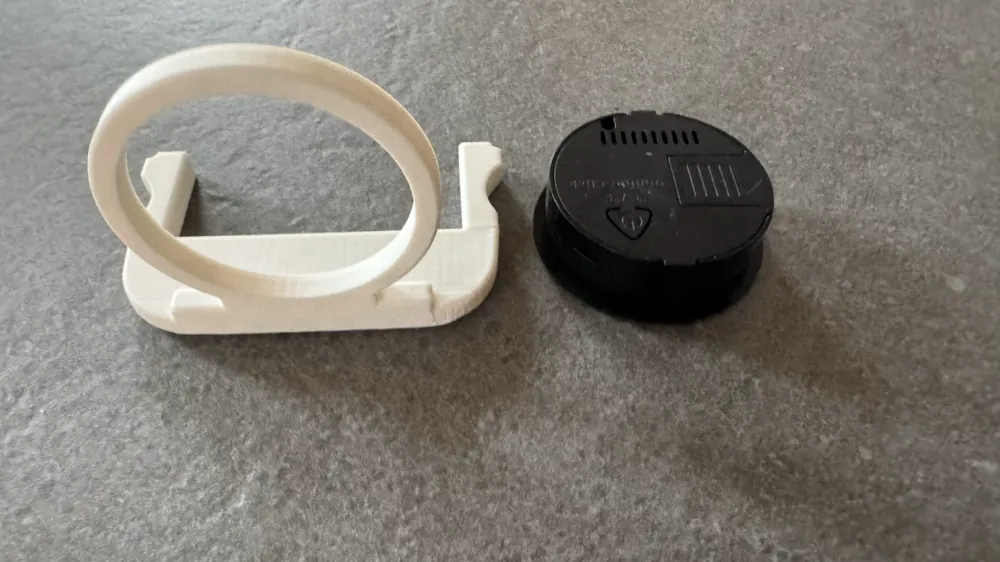

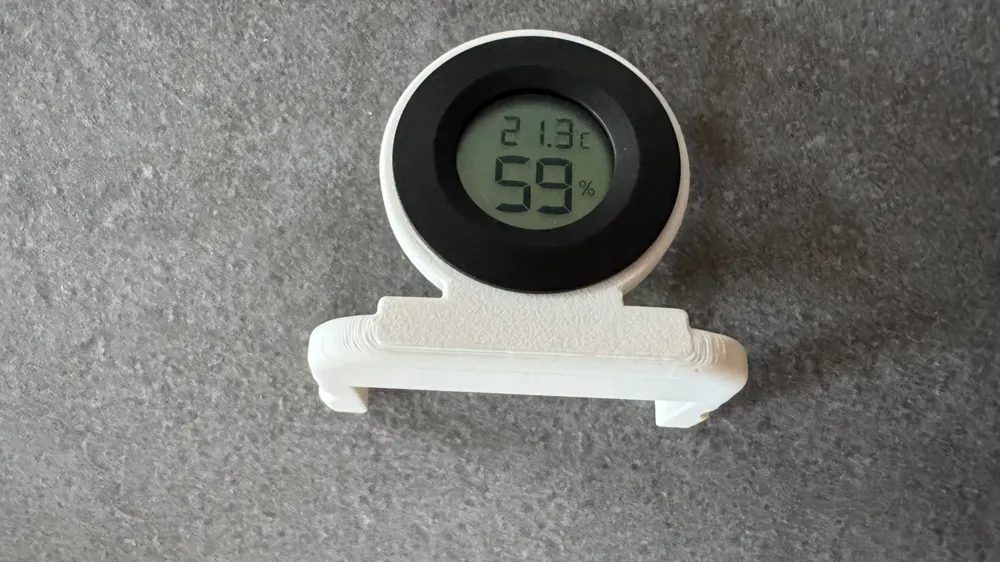

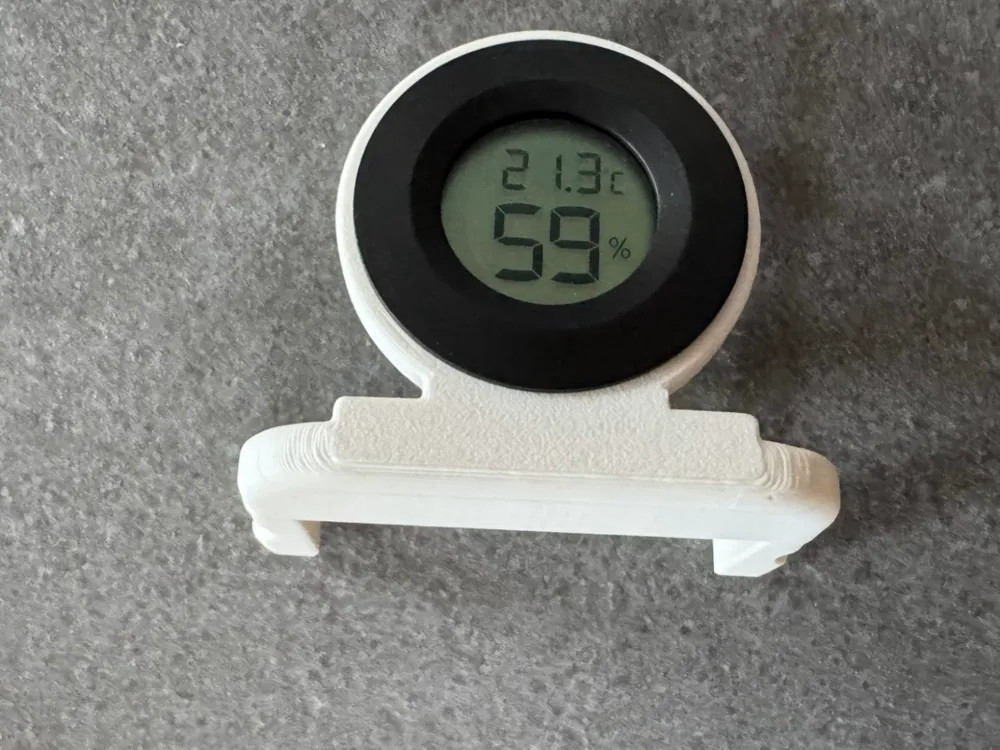

The ring has an inner dimension of 42mm, so the round 44mm hygrometers fit well and also hold perfectly with their detent. It doesn't matter where the detents are located.
The hygrometer can remain installed for battery replacement.
I used the Mini Digital Hygrometer Thermometer from Thlevel:
https://www.amazon.de/dp/B07JG9QZ2B?ref=ppx_yo2ov_dt_b_fed_asin_title

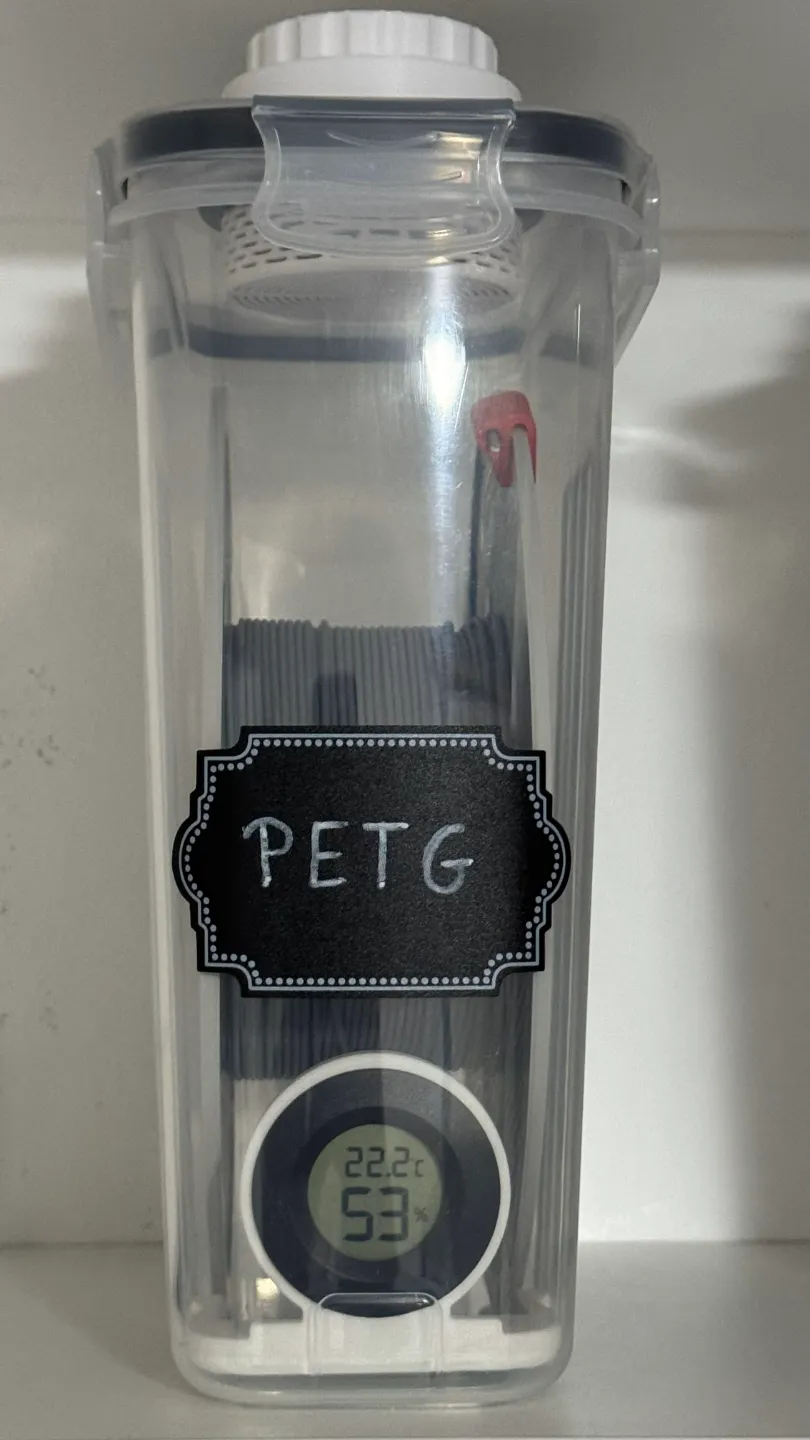

And the 4l muesli containers from Skroam (they look like the pictures of the Wildone container, unfortunately I cannot test whether the Wildone has the same dimensions):
https://www.amazon.de/gp/product/B0C1N9C3T7/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&th=1

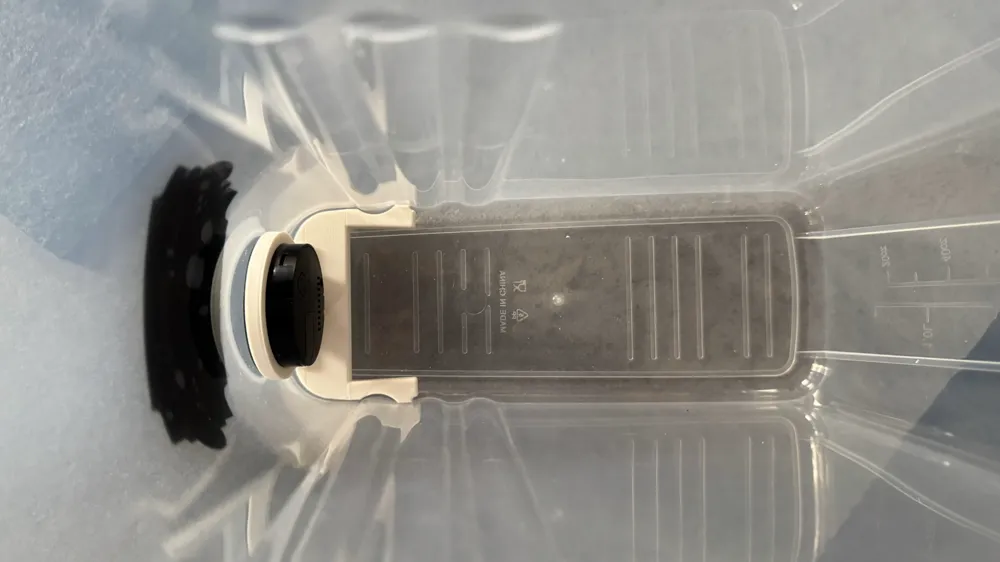

The Skroam containers have 3 recesses on each side. The holder clips into the front recess, so that the container can also be carried without the holder tipping over or slipping.

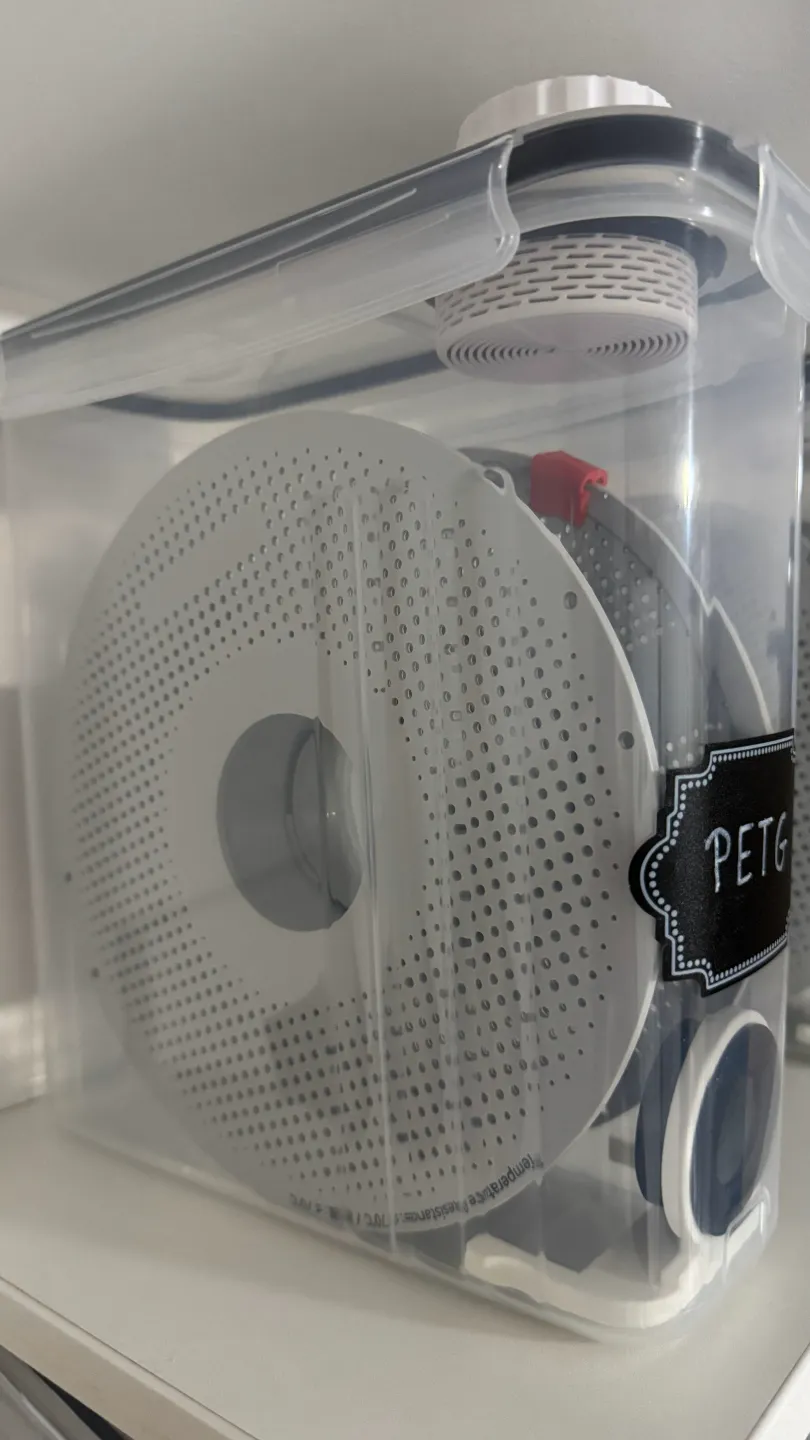

The holder ends are so short that a filament spool cannot hit them.
At its widest point (at the holder legs) the holder is 76mm wide.
