Three Exquisitely Designed Arduino UNO Enclosure Bases and Cases
Included are the Arduino UNO R3 development board CAD source files
Introduction
Previous creators have designed exceptional enclosures for the Arduino UNO R3 development board, designs the author considers superb, hence the sharing of these print models and Bambu A1 print parameters
Recommended Filament: PLA or PETG

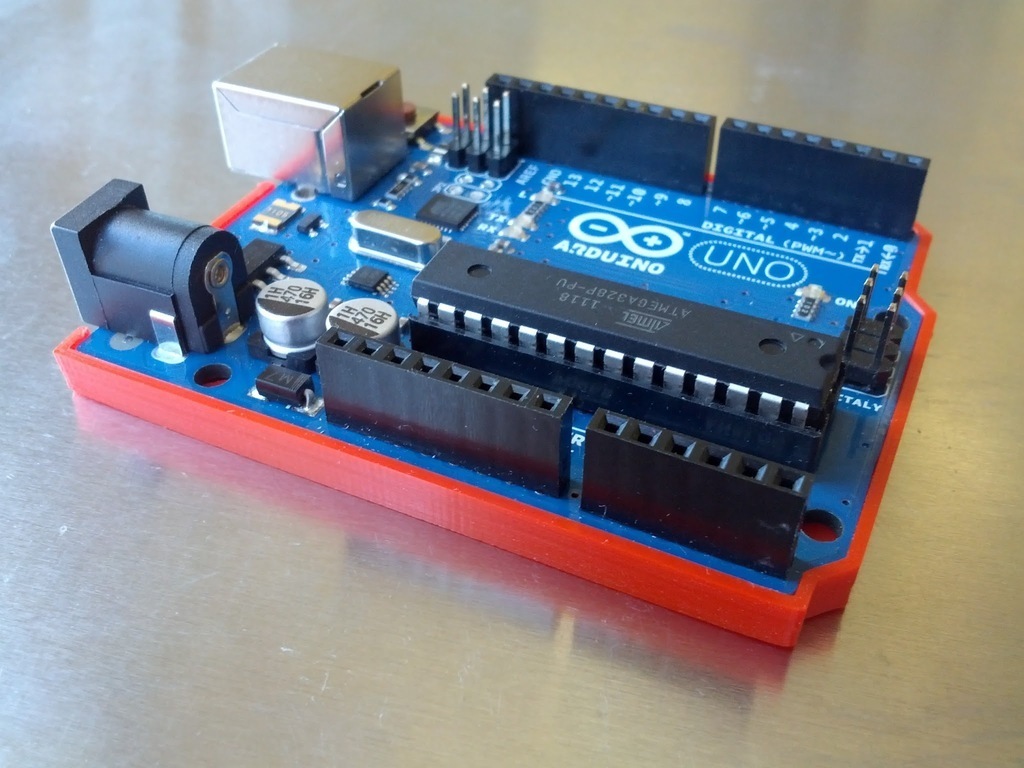

- First Base (minimalist, no worry about scratching your desk): https://www.thingiverse.com/thing:26237

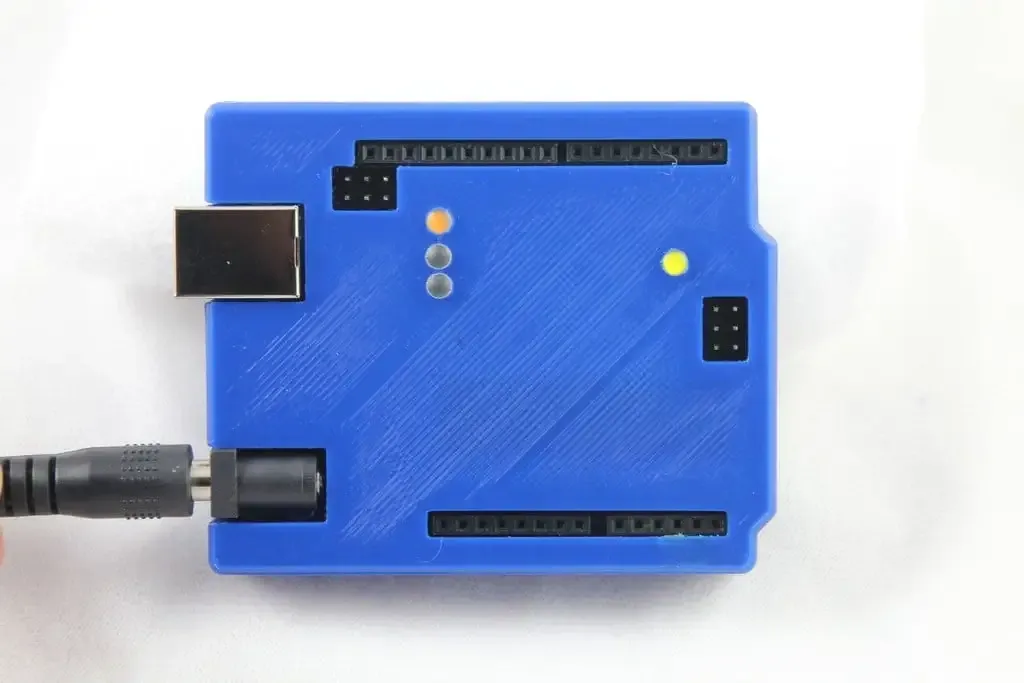

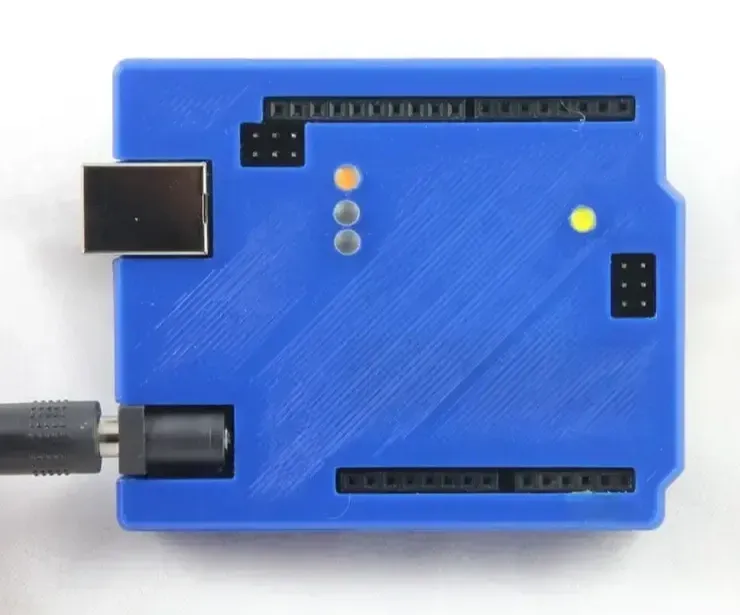

- Second Enclosure (assembled appearance is the author's favorite): https://www.thingiverse.com/thing:994827

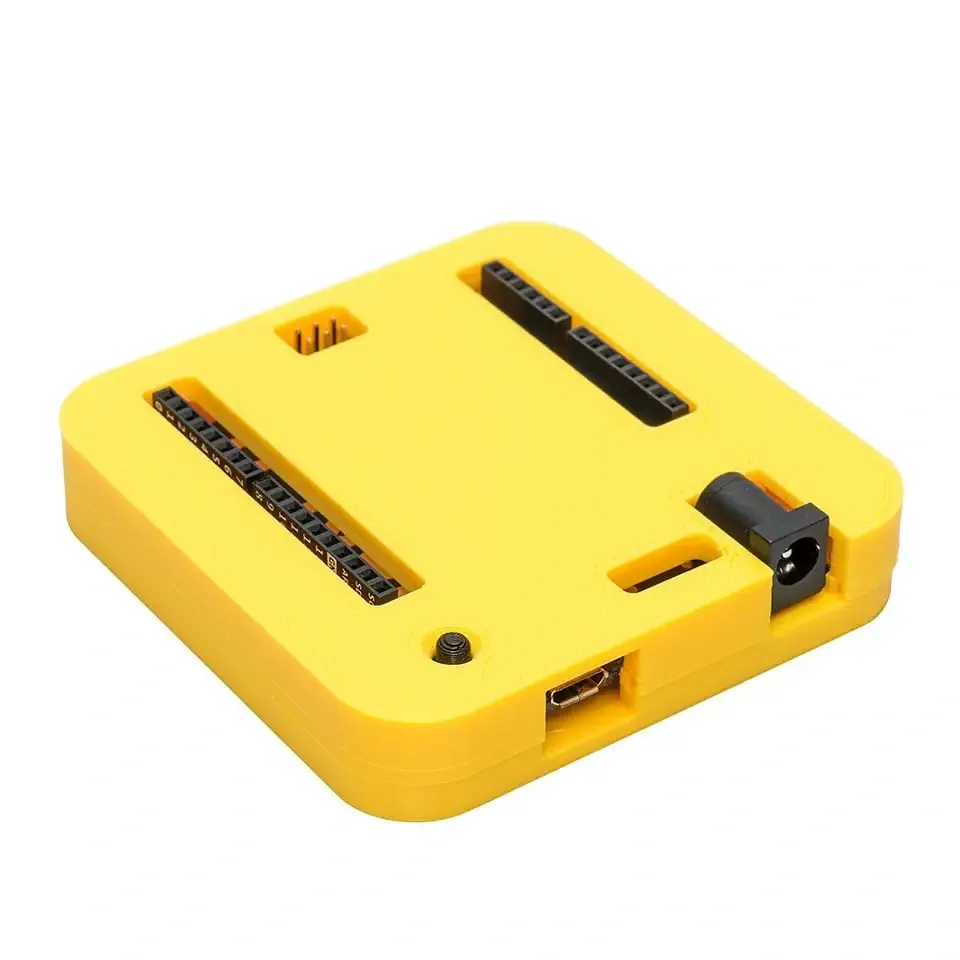

- Third Enclosure (supports pressing the reset button with the enclosure on): https://www.thingiverse.com/thing:628929

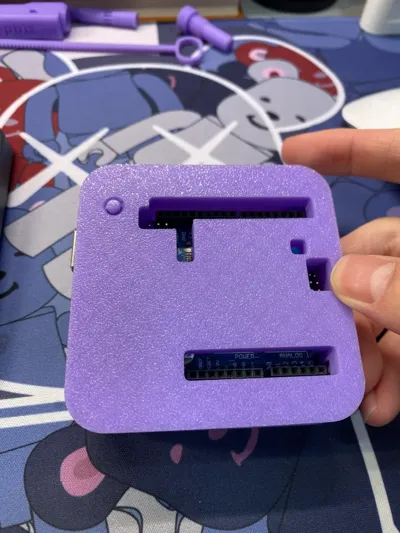

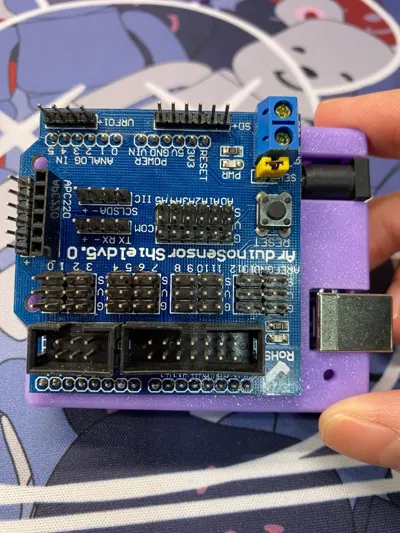

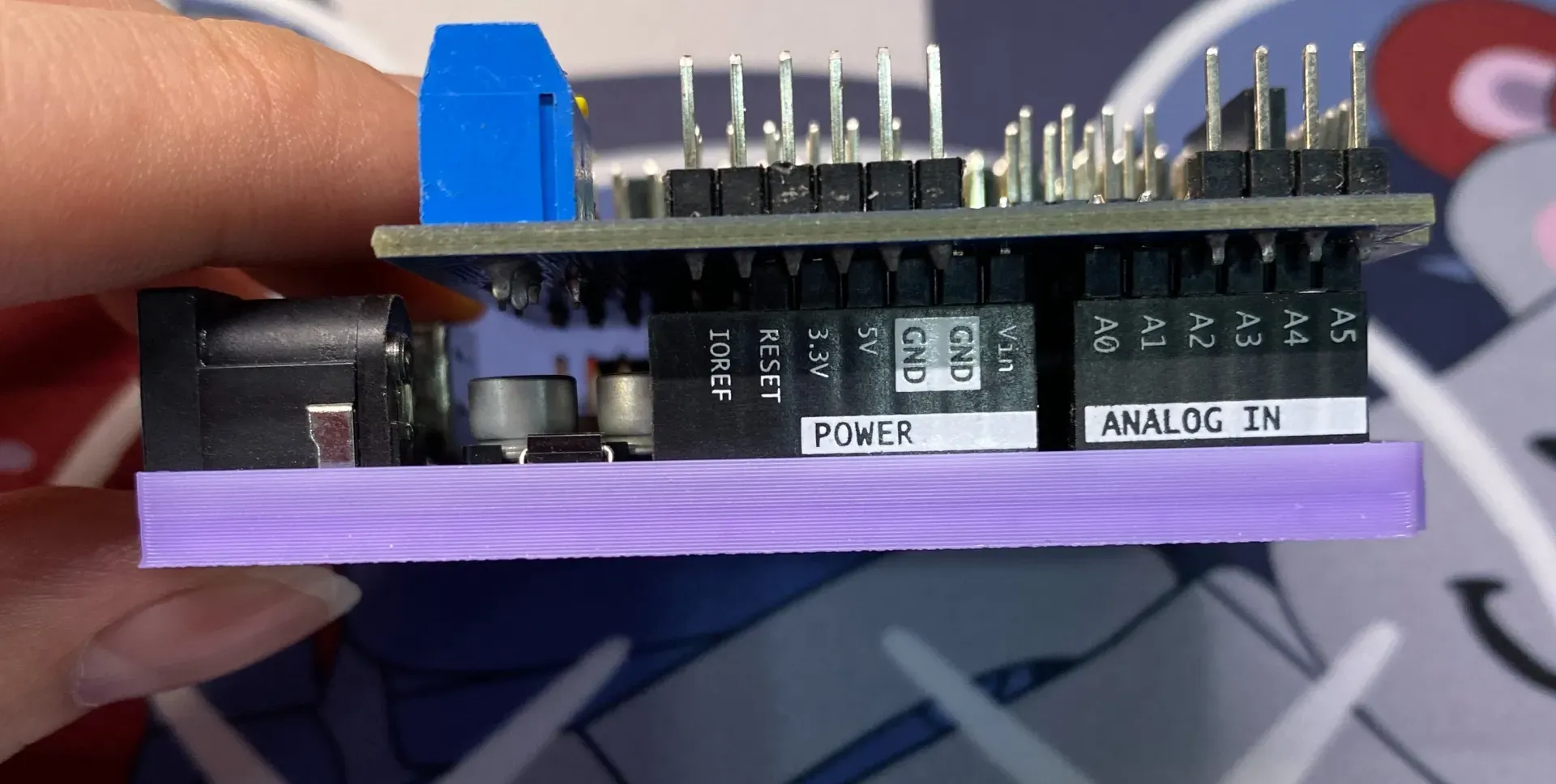

The author's printed samples:
Boost Me (for free)
Appendix:

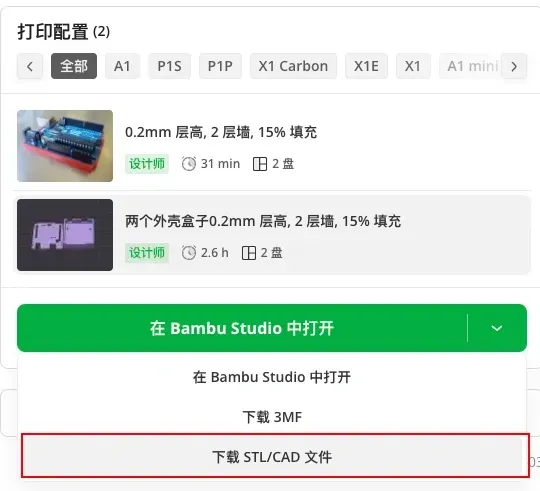

How to obtain the Arduino UNO R3 development board CAD files
