Description

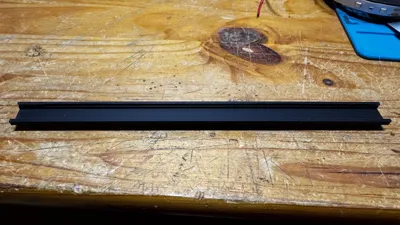

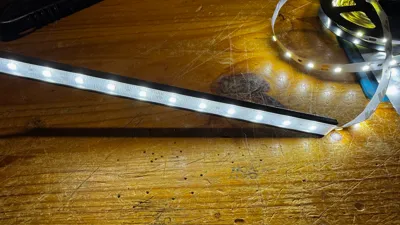

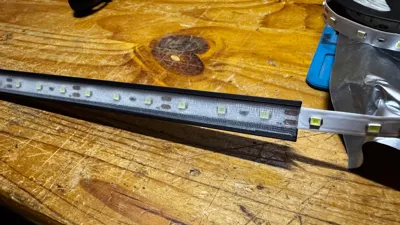

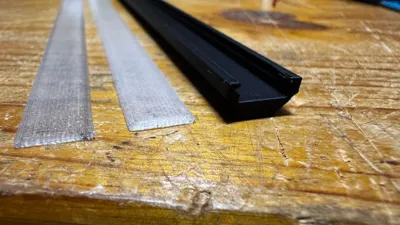

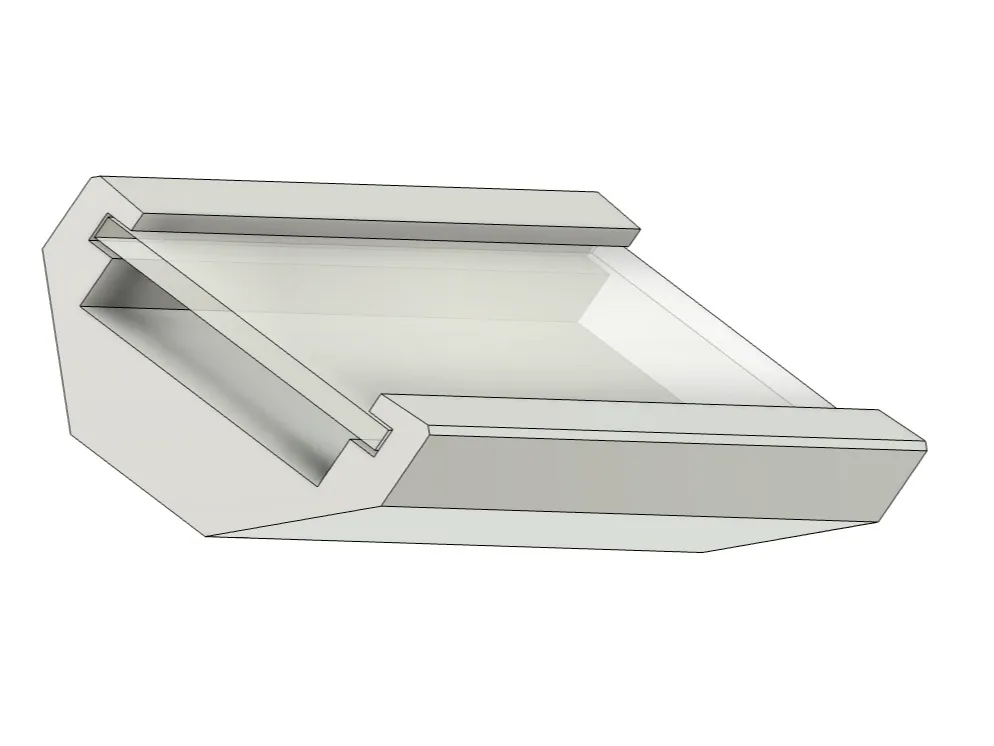

This LED profile is for 10mm max led stripe width. Led stripe is mounted at 45 degreess. Base is printed with jayo black matt PLA and cover with jayo transparent PLA. You can print it laying on bed, with supports (print fast, cover fits good) or standing (prints longer, better cover fit). You can scale it to make longer or shorter. Soon I will add more length and version with connector to make longer strips holds well.

print in PLA (matt and transparent)
0.2 layer height (35 minutes print for profile and cover)
version without connectors can be scaled shorter or longer

Added new version of profile (v3), stronger end better to print.
