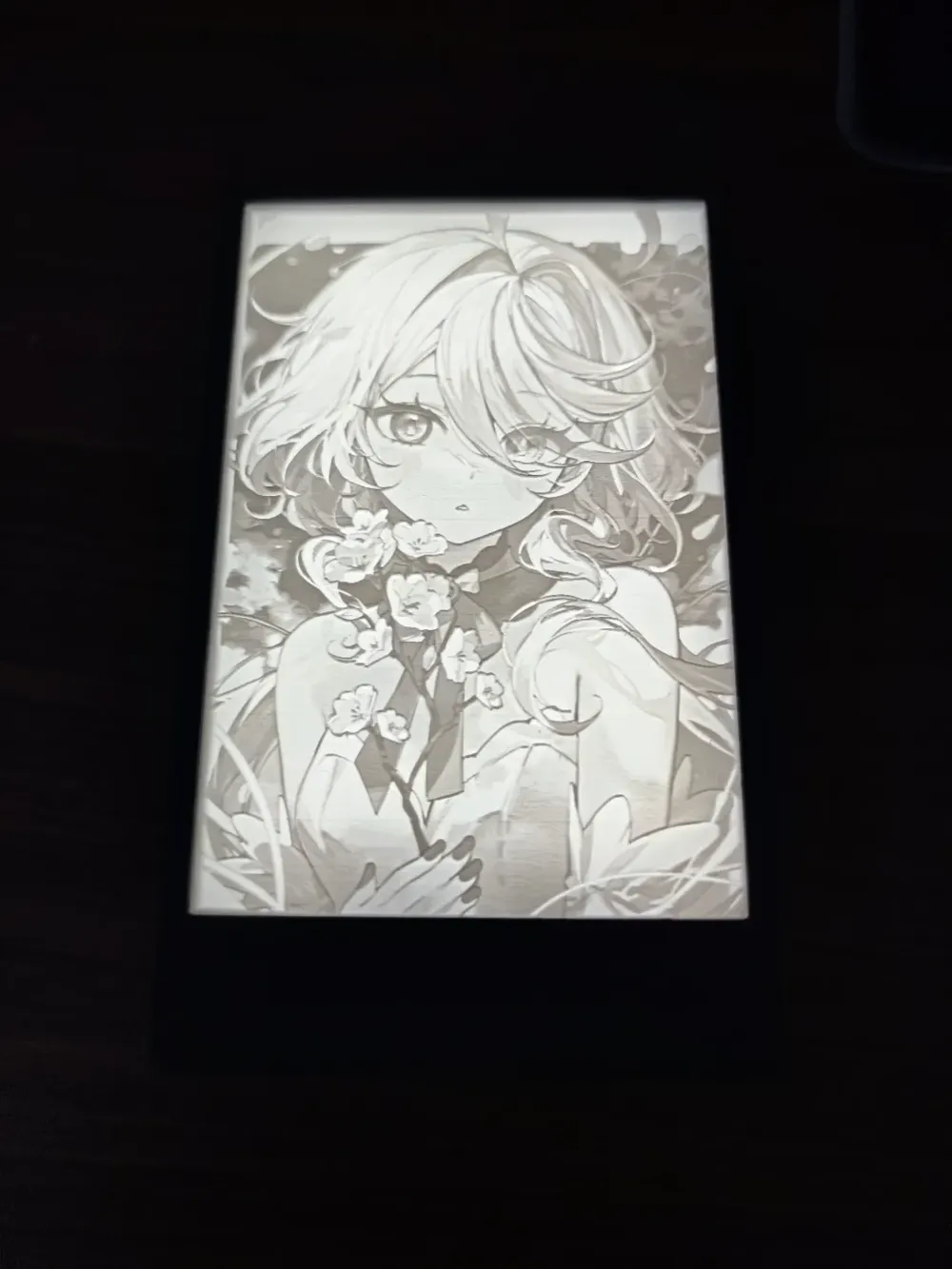

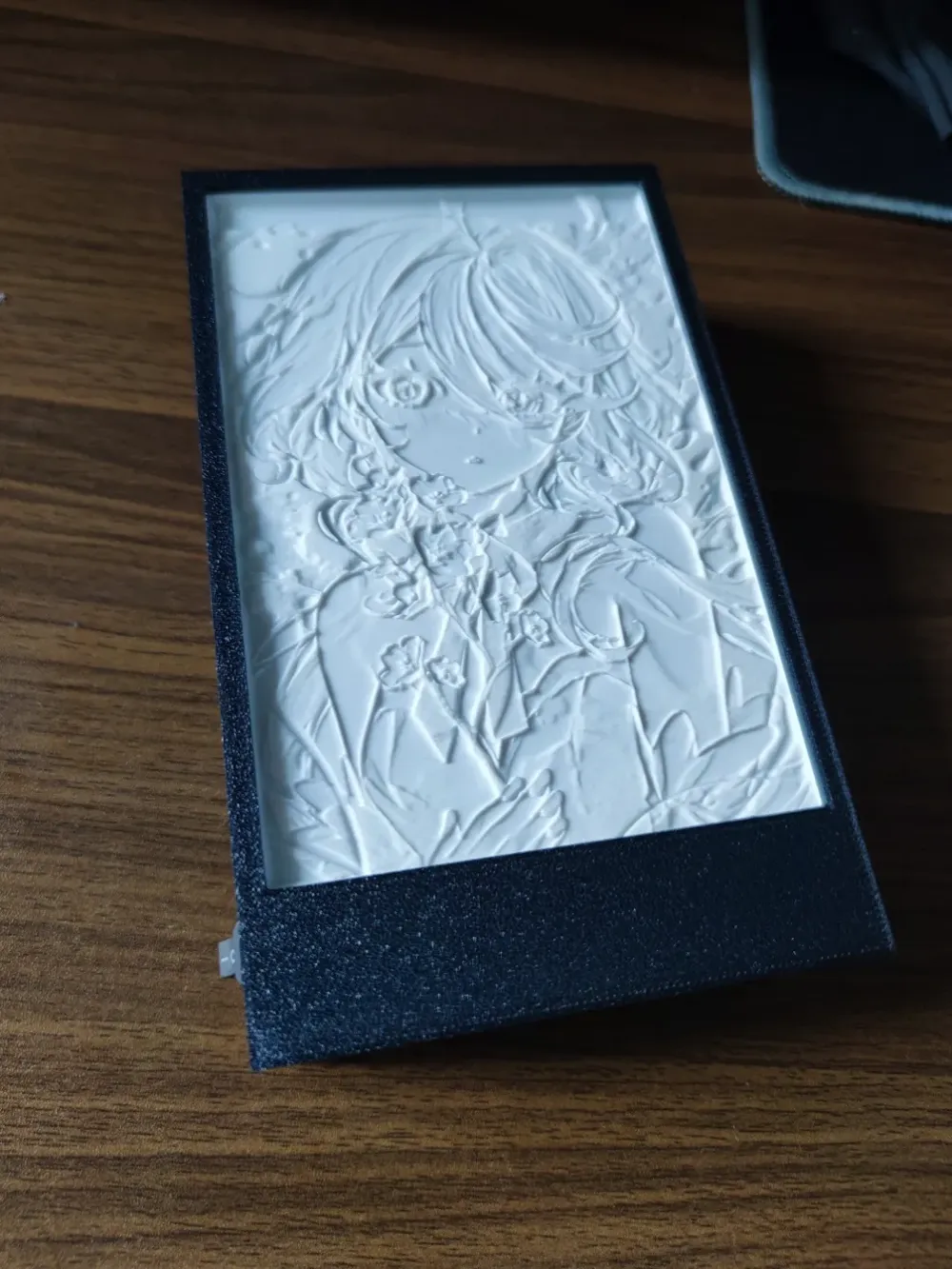

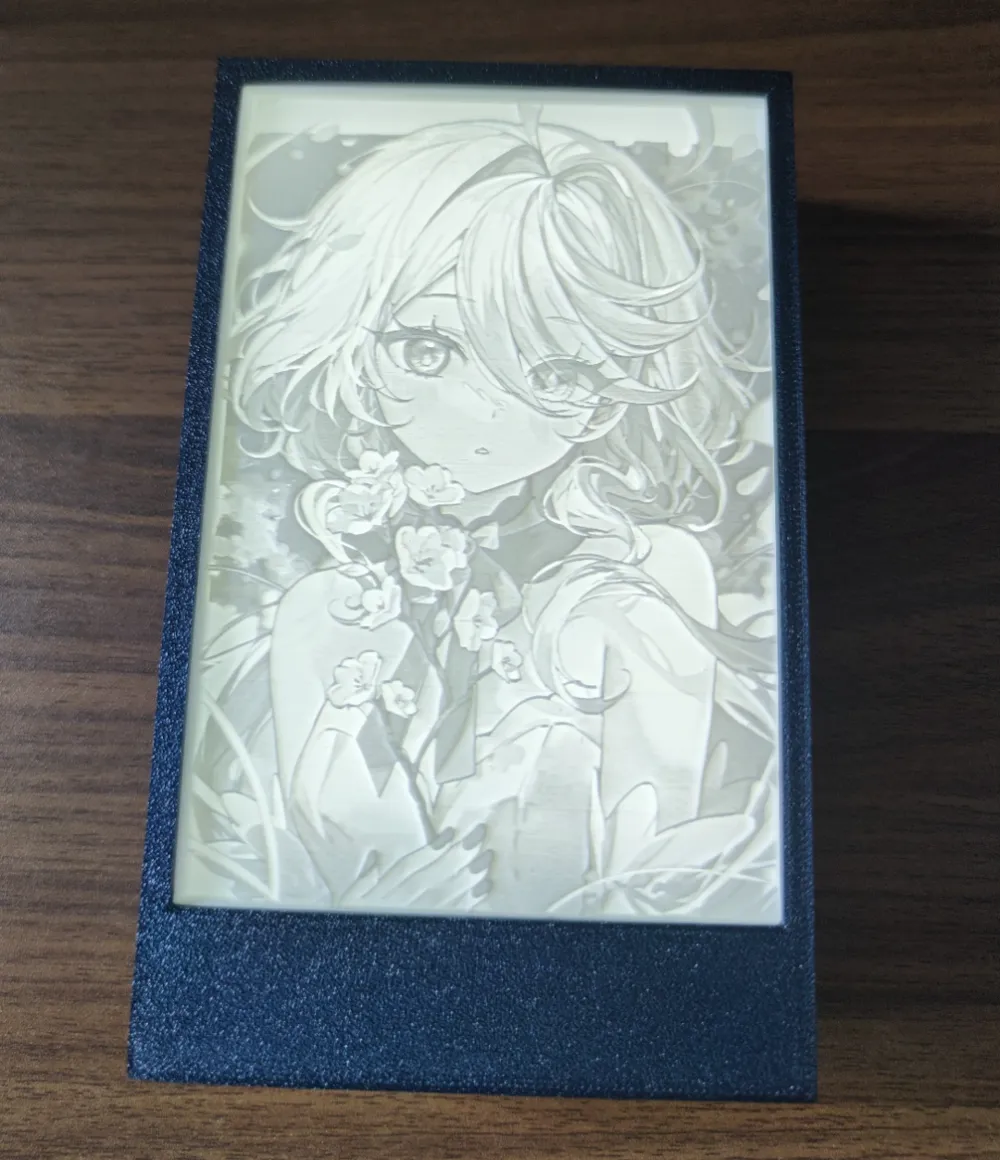

6-inch Relief Light Box

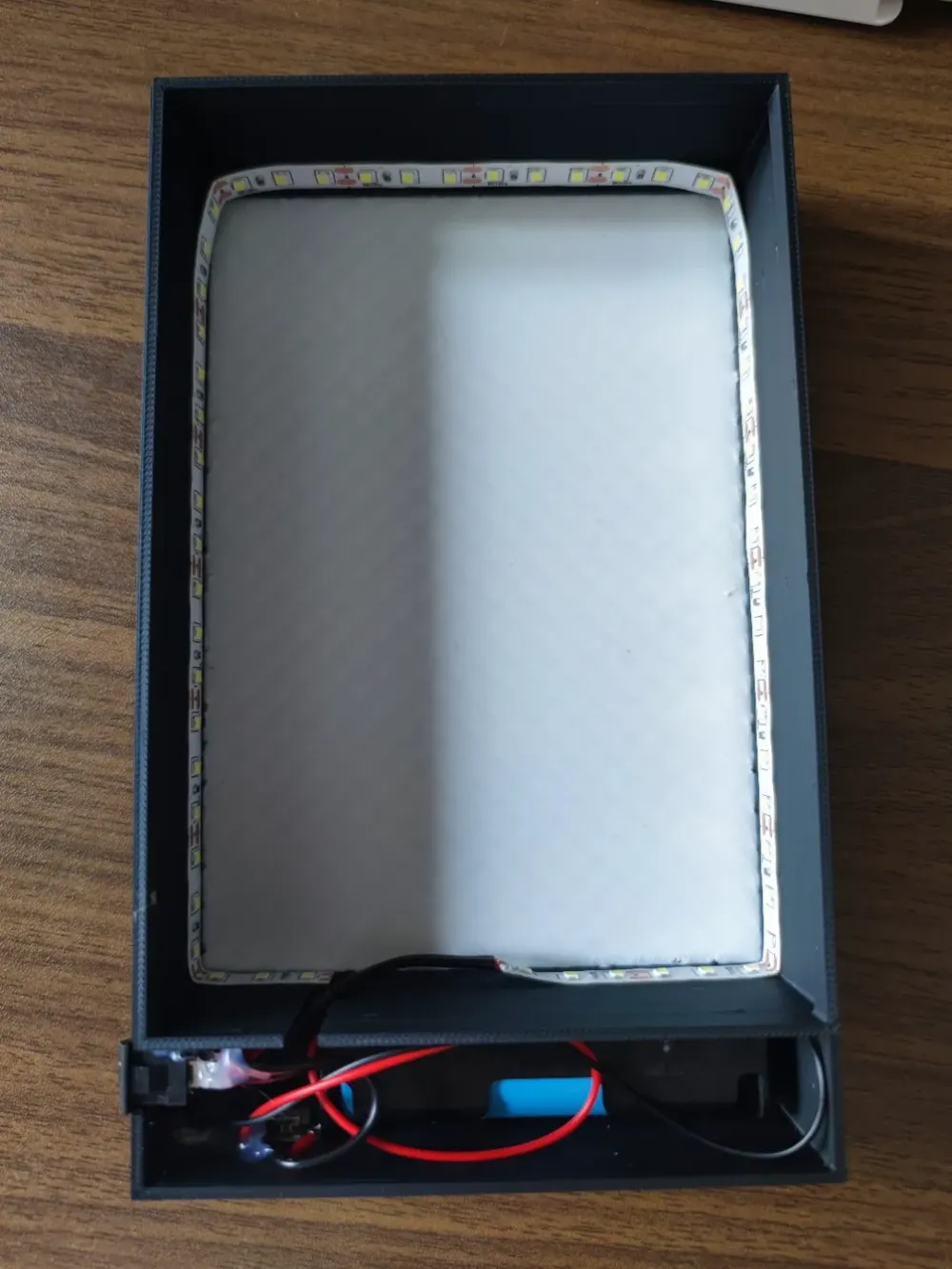

This 6-inch relief light box uses a 12V low-voltage LED strip; the base can accommodate batteries for power. Tray 1 is designed without a battery compartment for easier installation—you can choose to purchase a battery box or solder the batteries yourself. Tray 2 includes a battery compartment; you'll need to purchase 18650 battery tabs.

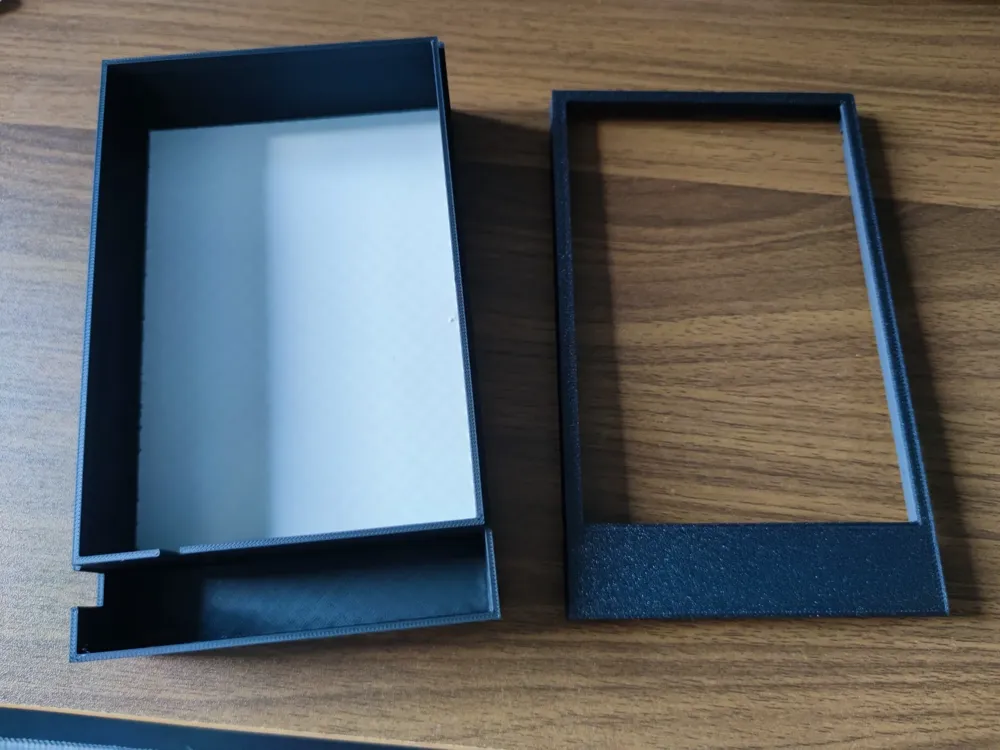

The model requires multi-color printing with AMS, or you can opt for single-color printing; simply attach the diffuser plate (Tray 3) to the bottom.

Materials Required (to be purchased separately):

Boat-shaped switch (dimensions: 15x10)

12V low-voltage LED strip

Wires

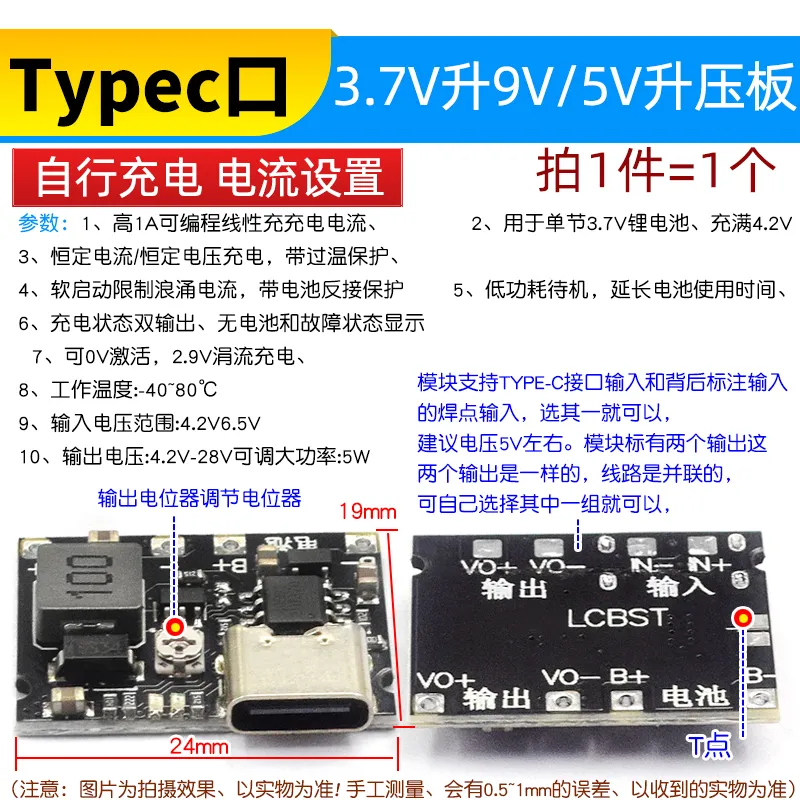

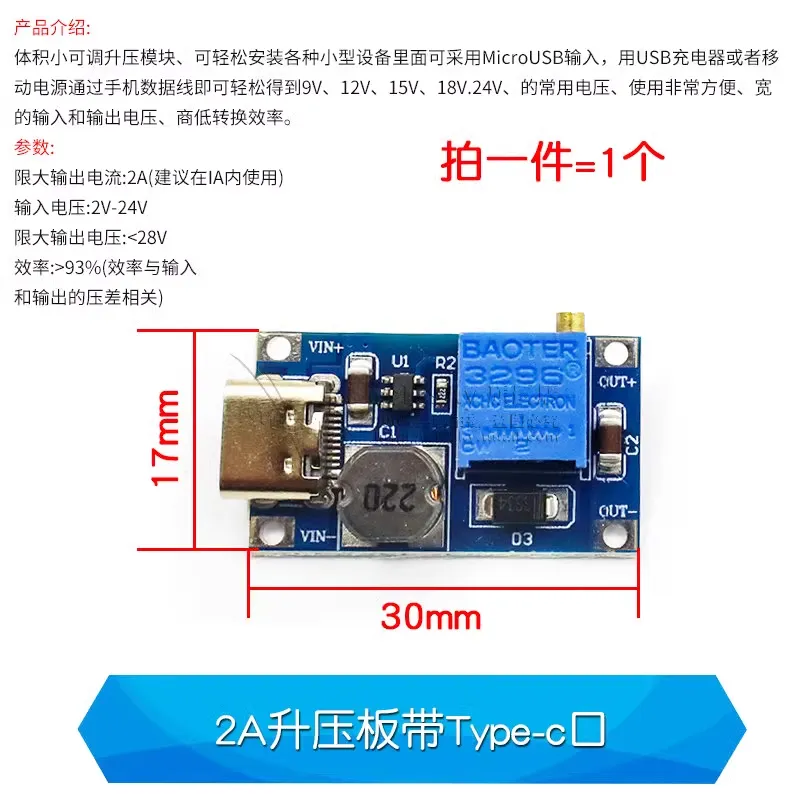

For direct power, purchase a DC-DC boost board with a Type-C interface.

If using batteries, purchase a lithium battery charging/discharging board and a wired 18650 battery box or 18650 battery spring contacts.

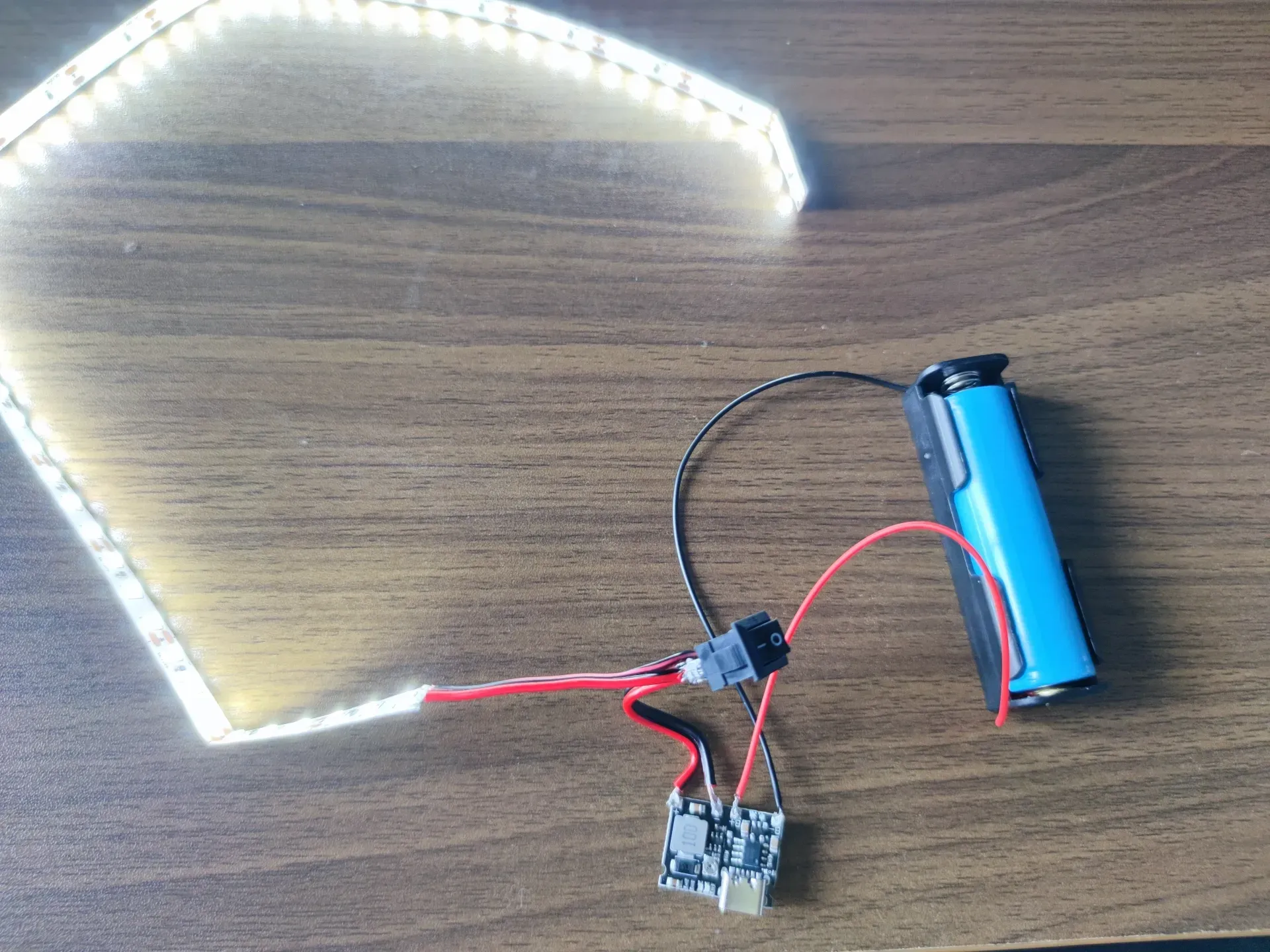

First, connect a Type-C charging cable to the boost/charging board and adjust the voltage to 9-10V (to ensure sufficient brightness and reasonable power consumption) before soldering.

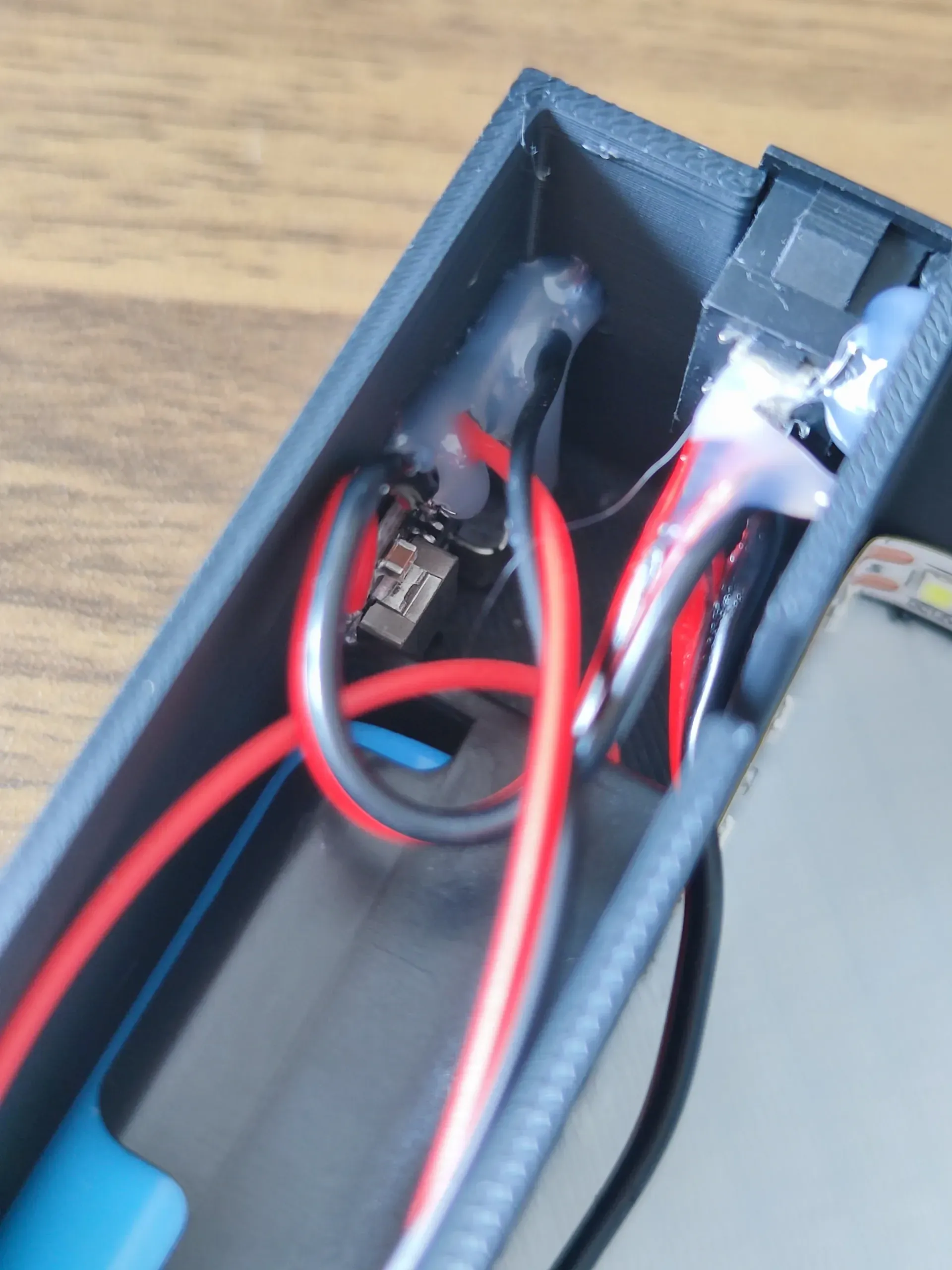

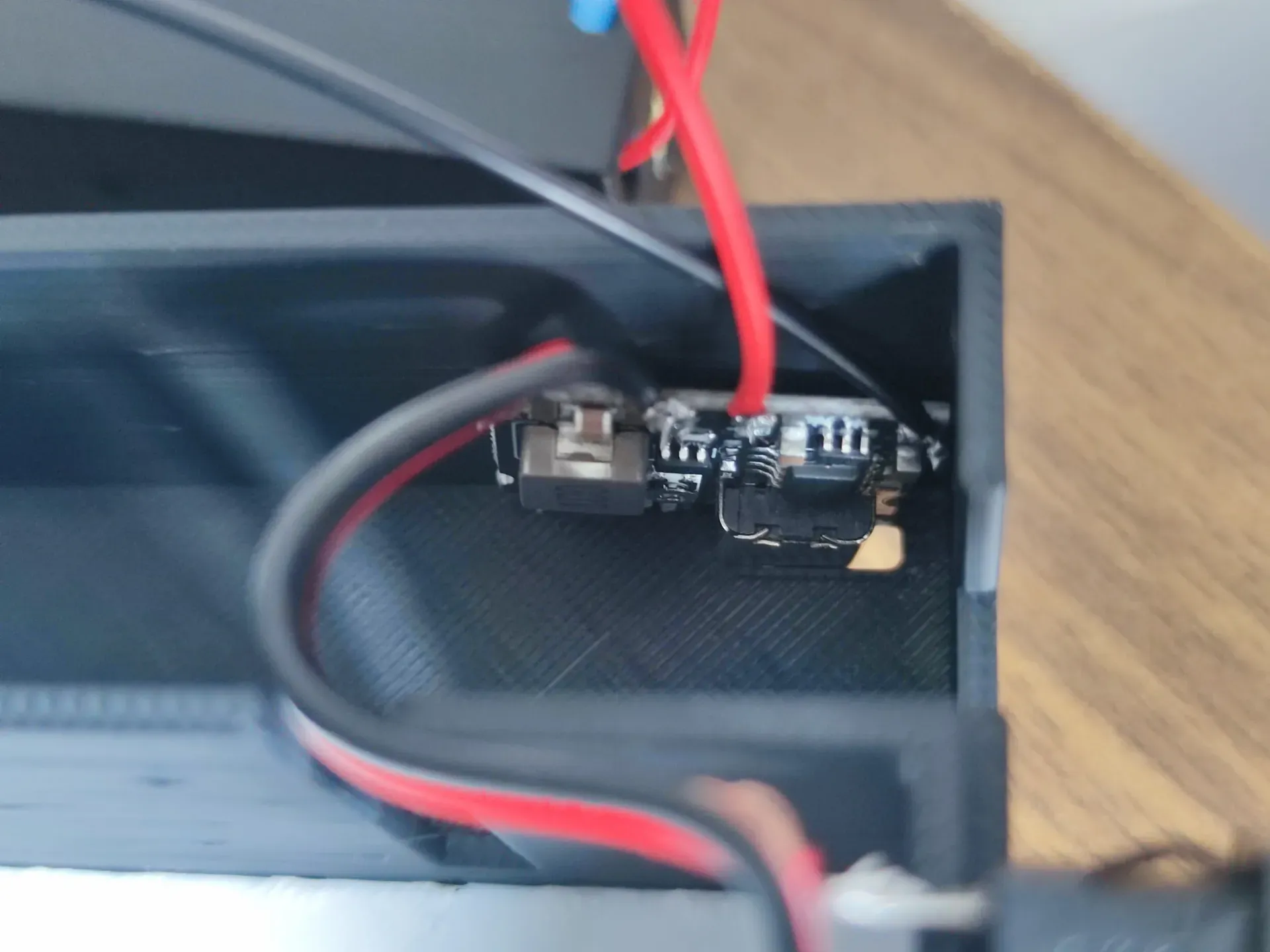

During installation, align with the holes and gently push in at an angle. After installation, use 1mm double-sided tape or hot melt adhesive to secure it.
