Wall Hook / Wall Hanger / Coat Rack / Double

Remixed by

Print Profile(1)

All
X1 Carbon
H2S
H2C
H2D Pro
A1
X1E
P1S
X1
H2D
P2S
P1P
X2D
A2L

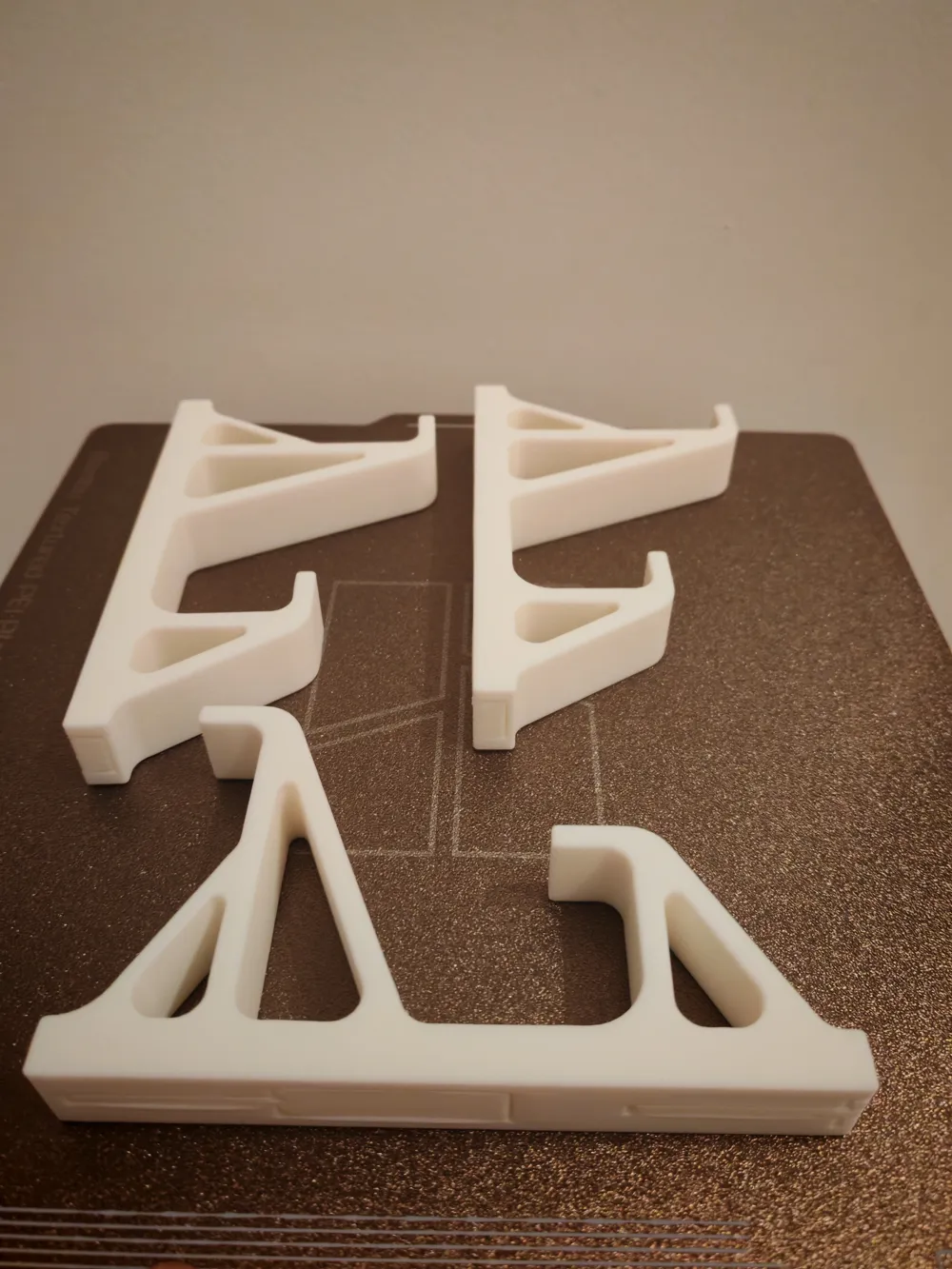

0.2mm layer, 4 walls, 15% infill, 3 double and 2 simple hook
0.2mm layer, 4 walls, 15% infill, 3 double and 2 simple hook
Designer
8.3 h
2 plates
4.7(9)

Open in Bambu Studio
Boost
47
136
19
5
177
88
Released

Description

Content has been automatically translated.
Show original

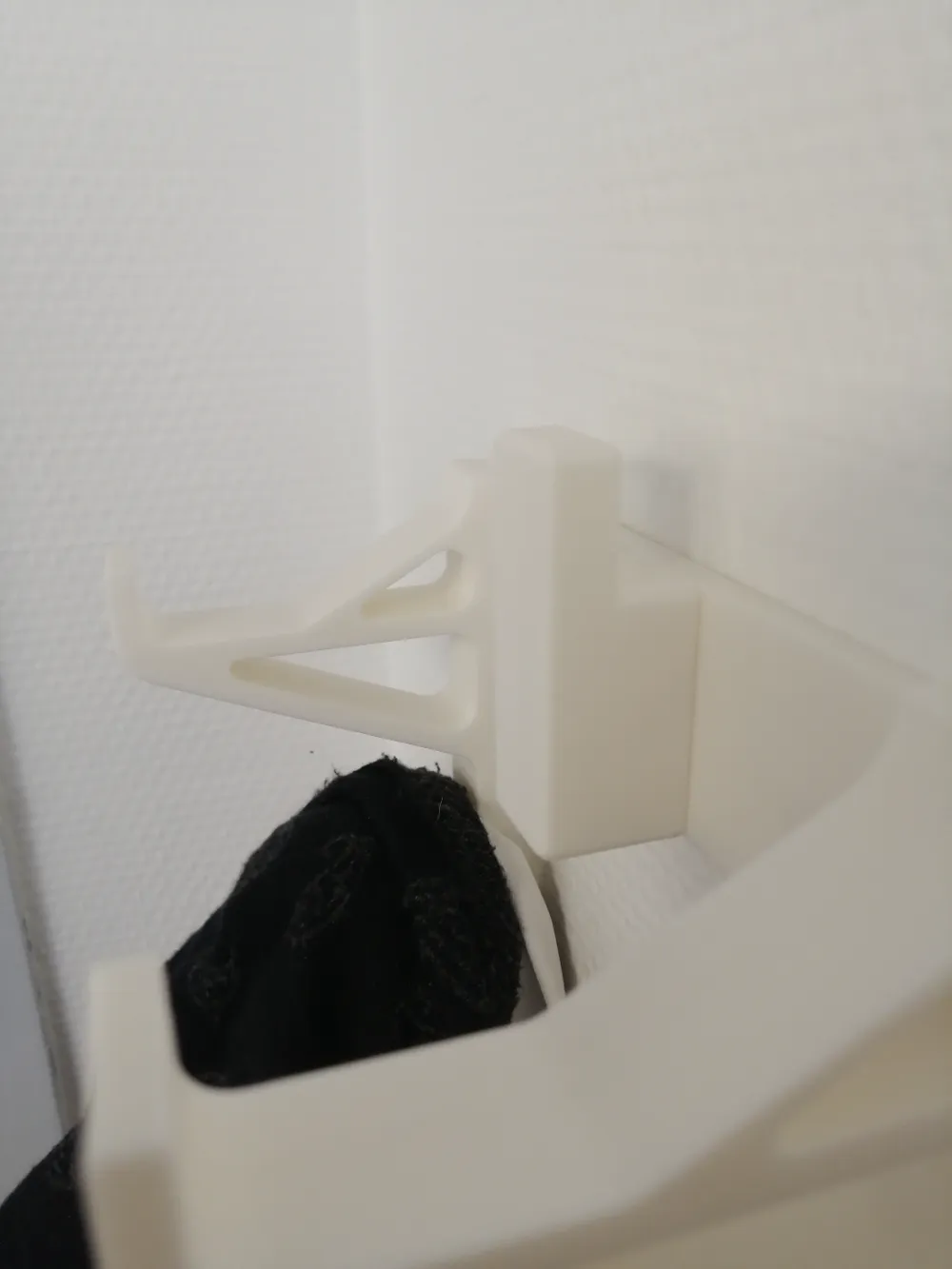

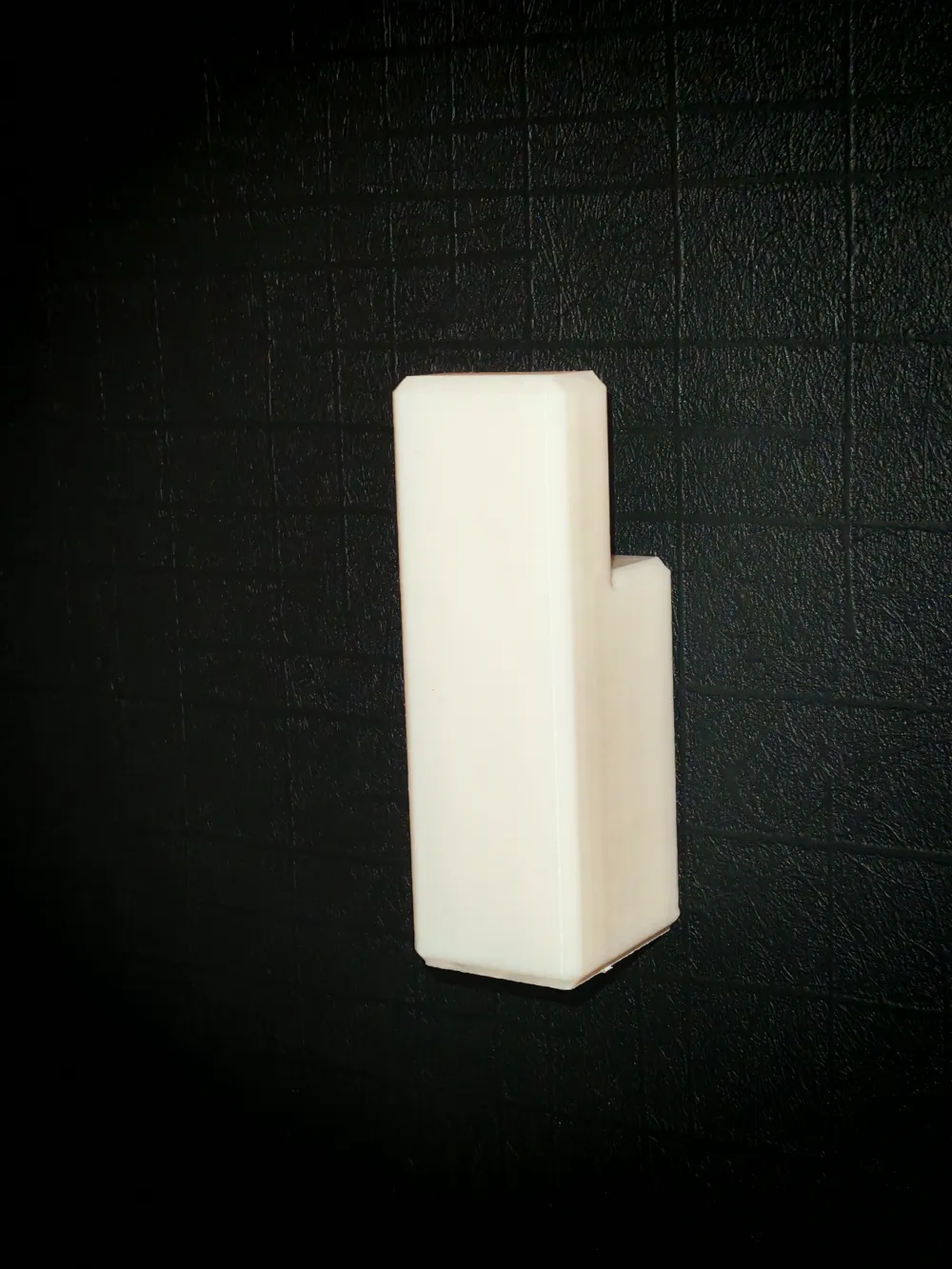

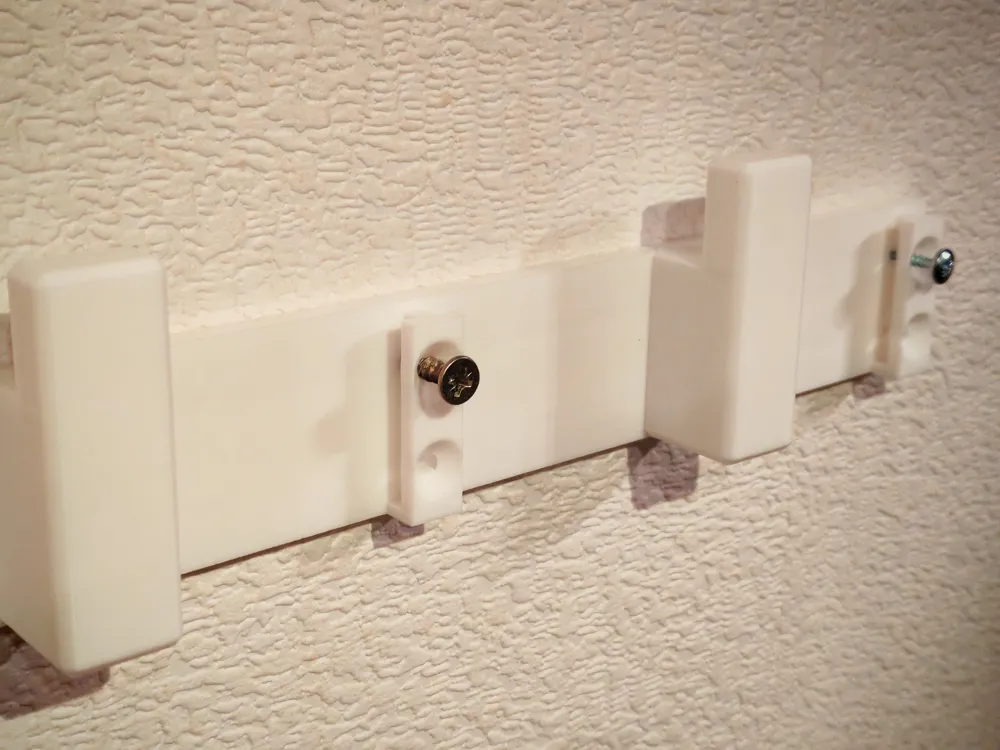

I needed a coat rack with **different hooks** (single and **double** hooks, for clothes, coats, scarves, bag hangers, etc) I wanted it to be **robust** but also **elegant** and **discreet** All this with **few holes to make in the wall**, while keeping the possibility to **add screws** if a **heavier load** needs to be supported Ideally with an **invisible mounting**

Having found these criteria in two different models, I decided to do a remix of these models

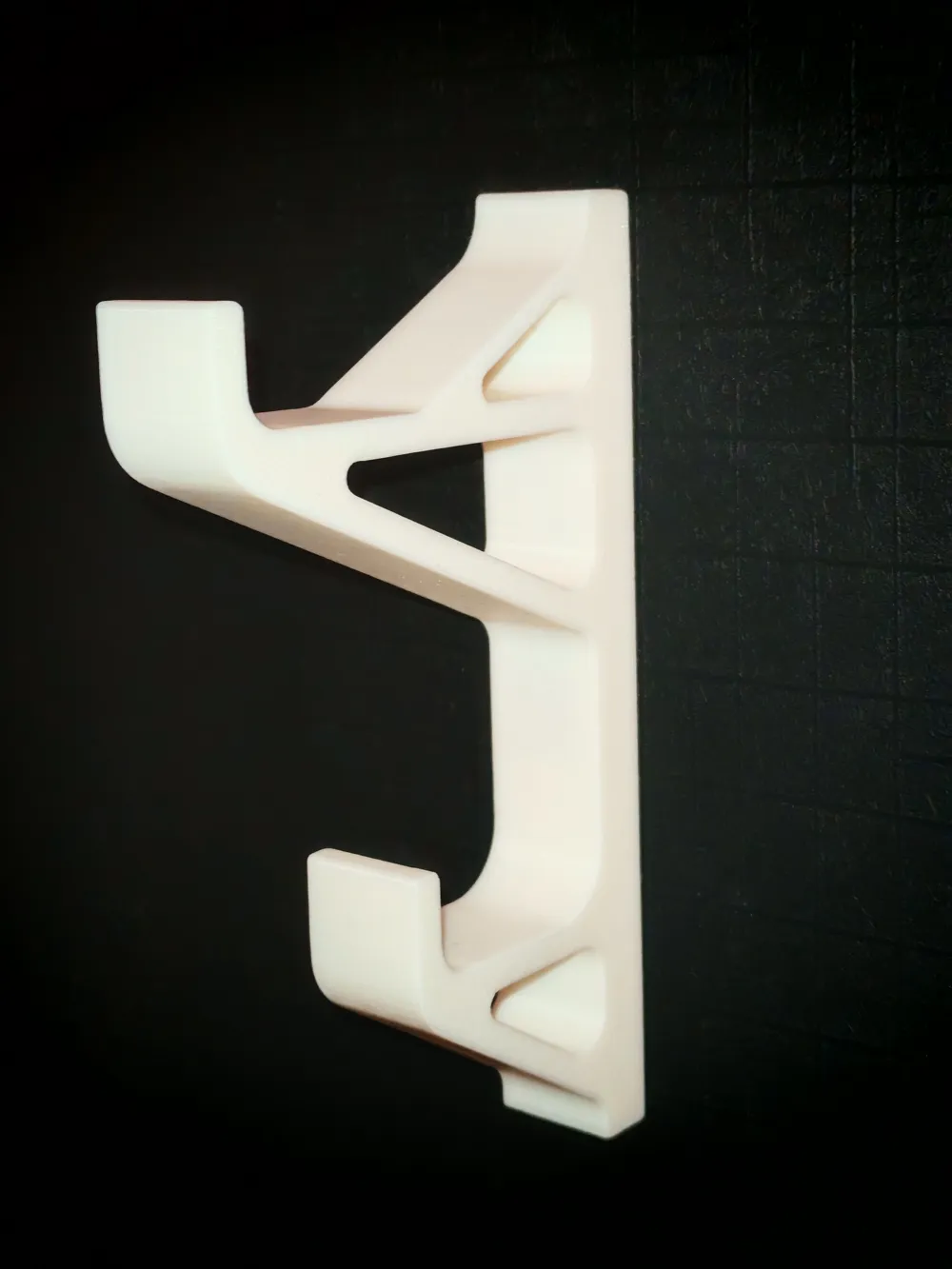

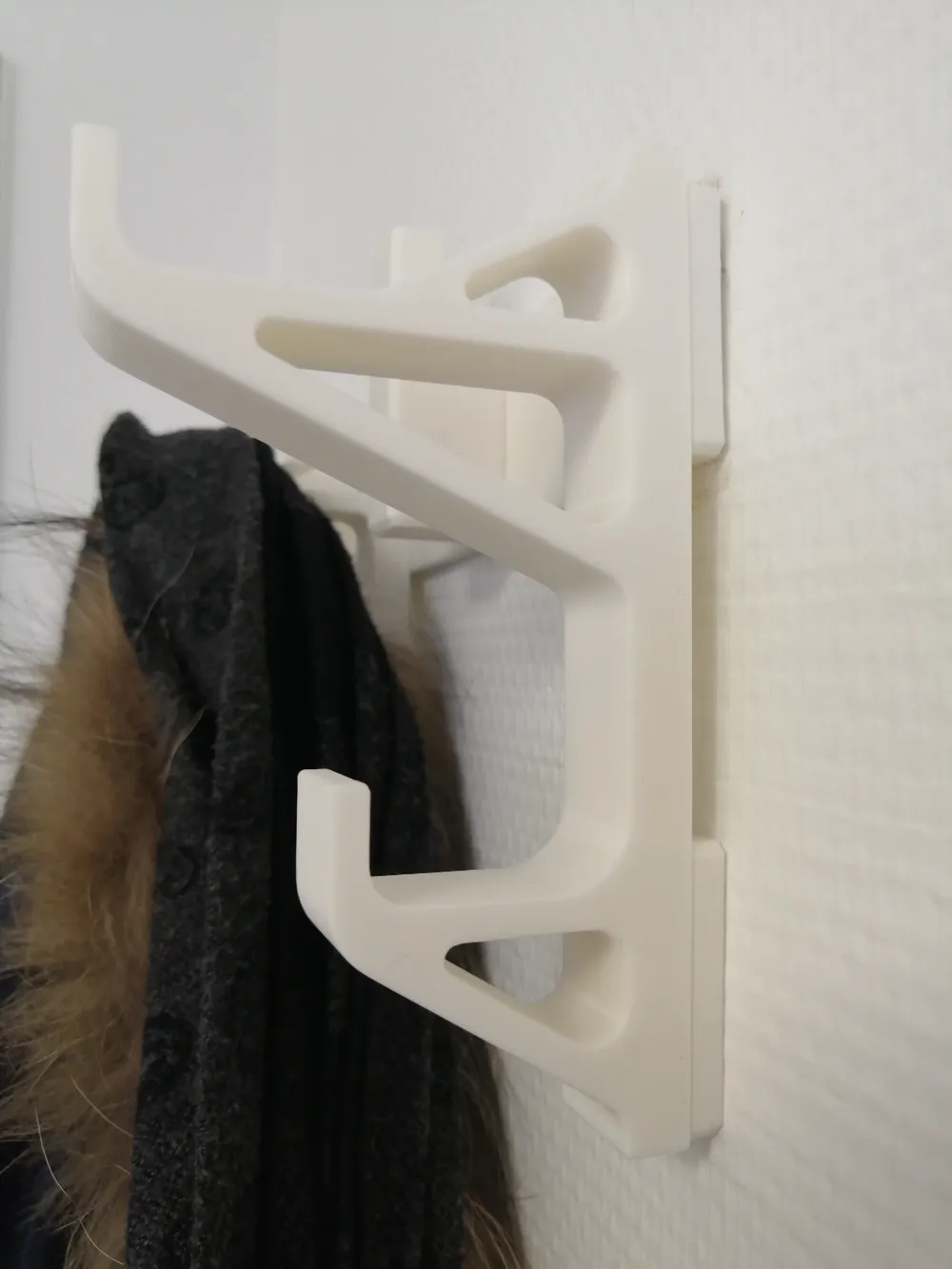

For the double hooks, you can either add the small shim (fixed to the wall or not), or add a second large fixing bar

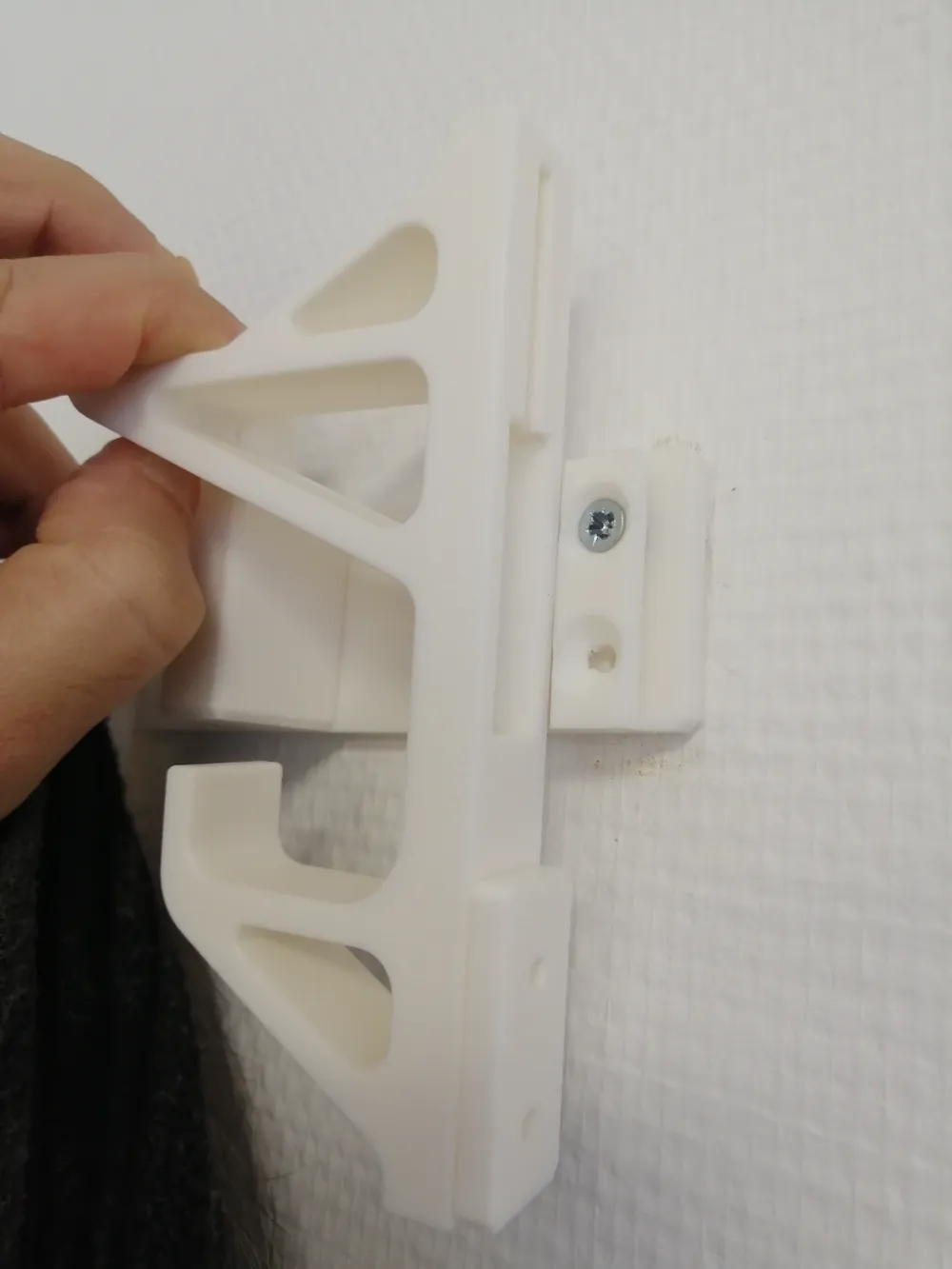

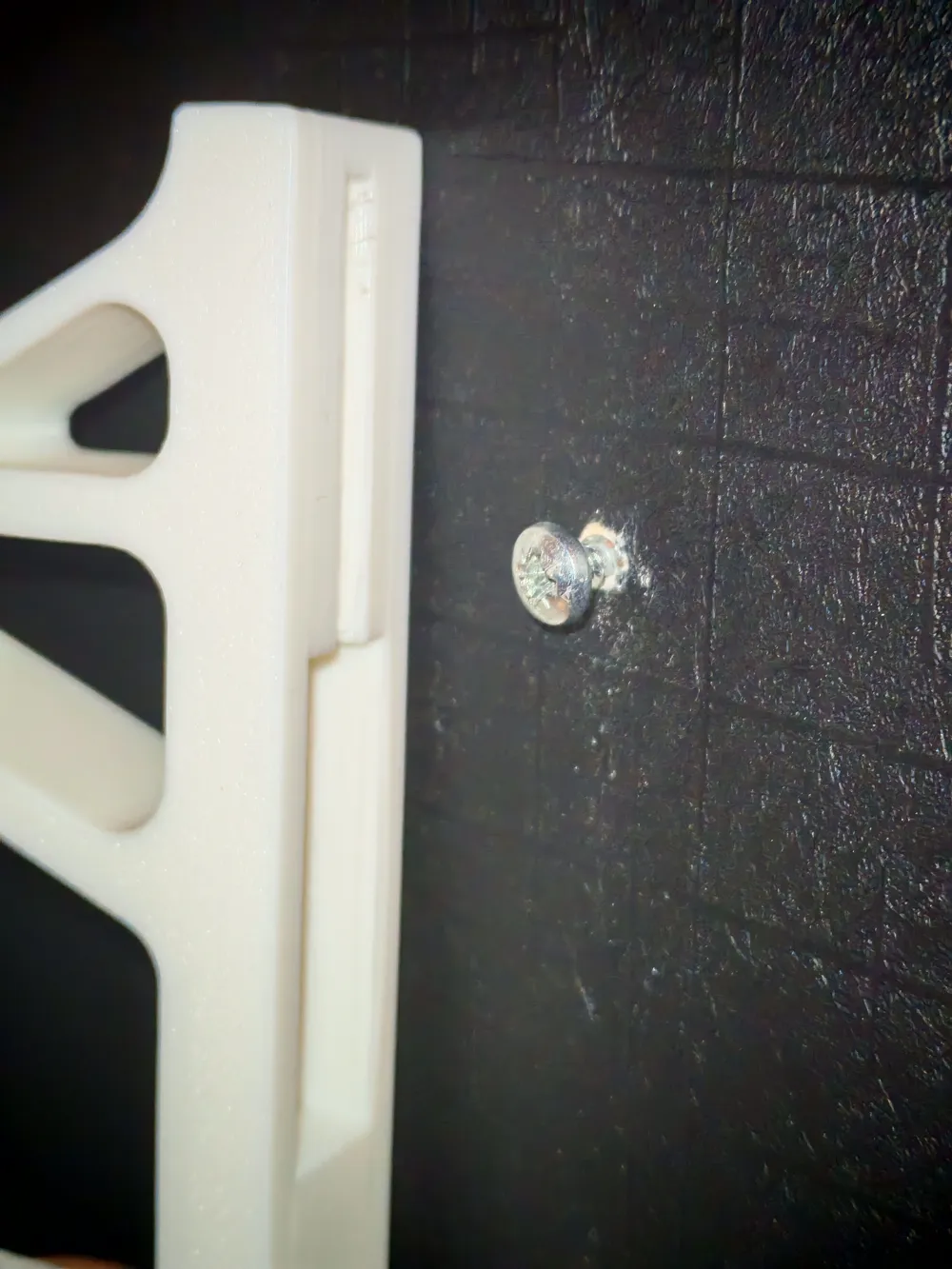

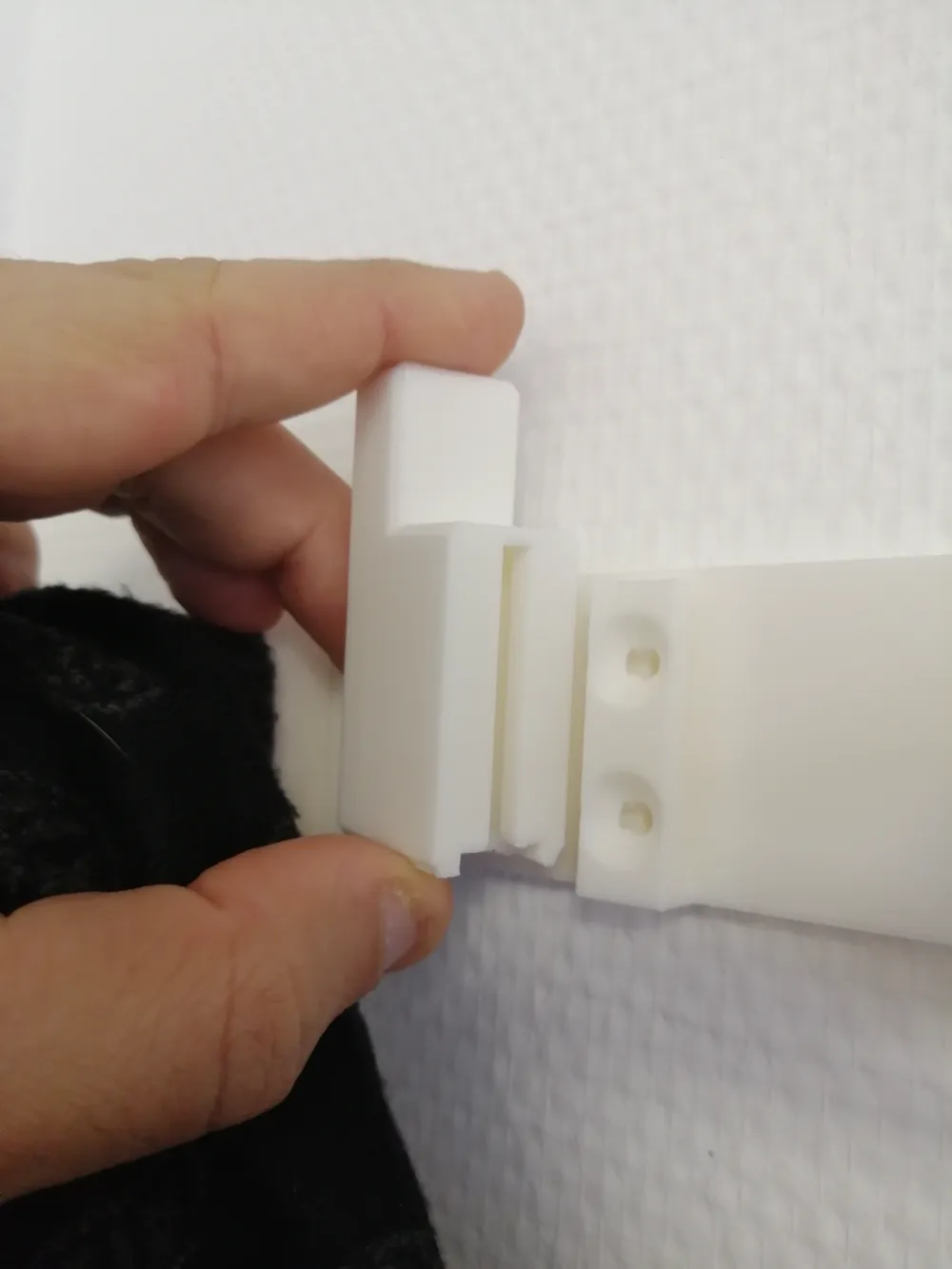

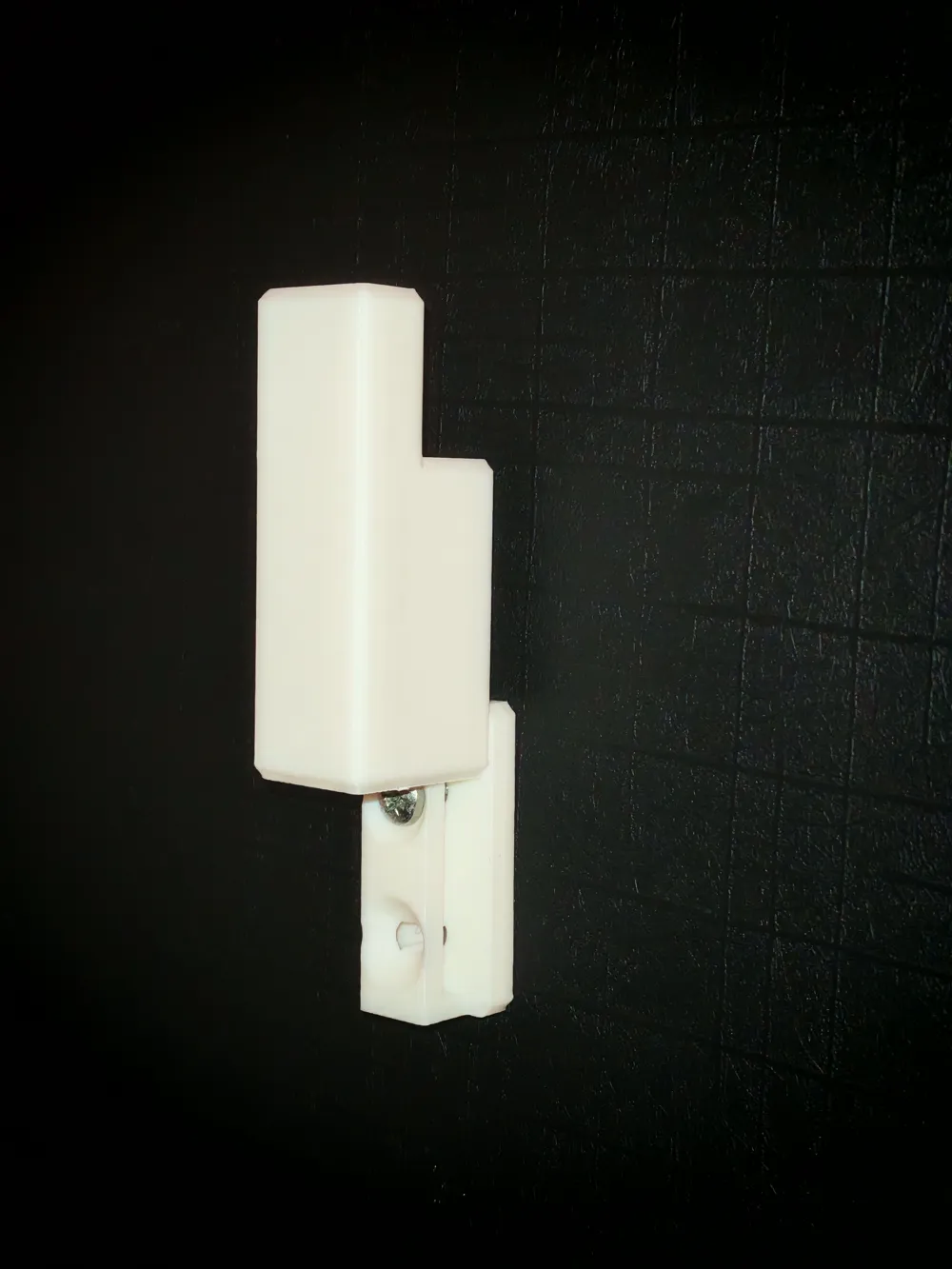

You can **fix the hooks directly to the wall** (without the plates) by sliding them onto your screws

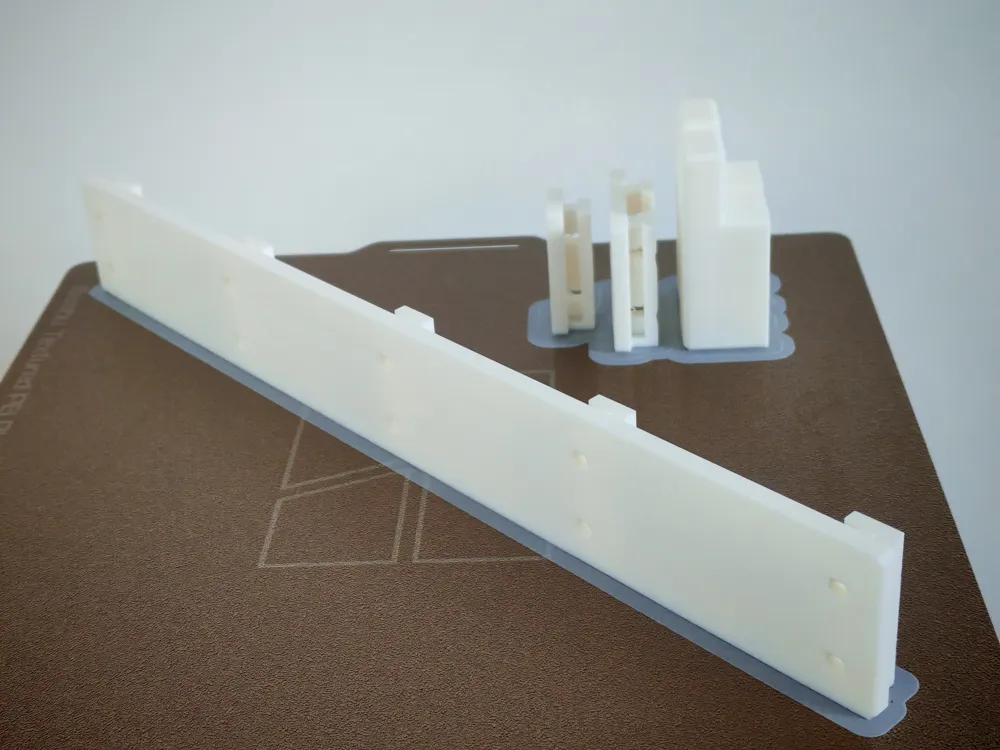

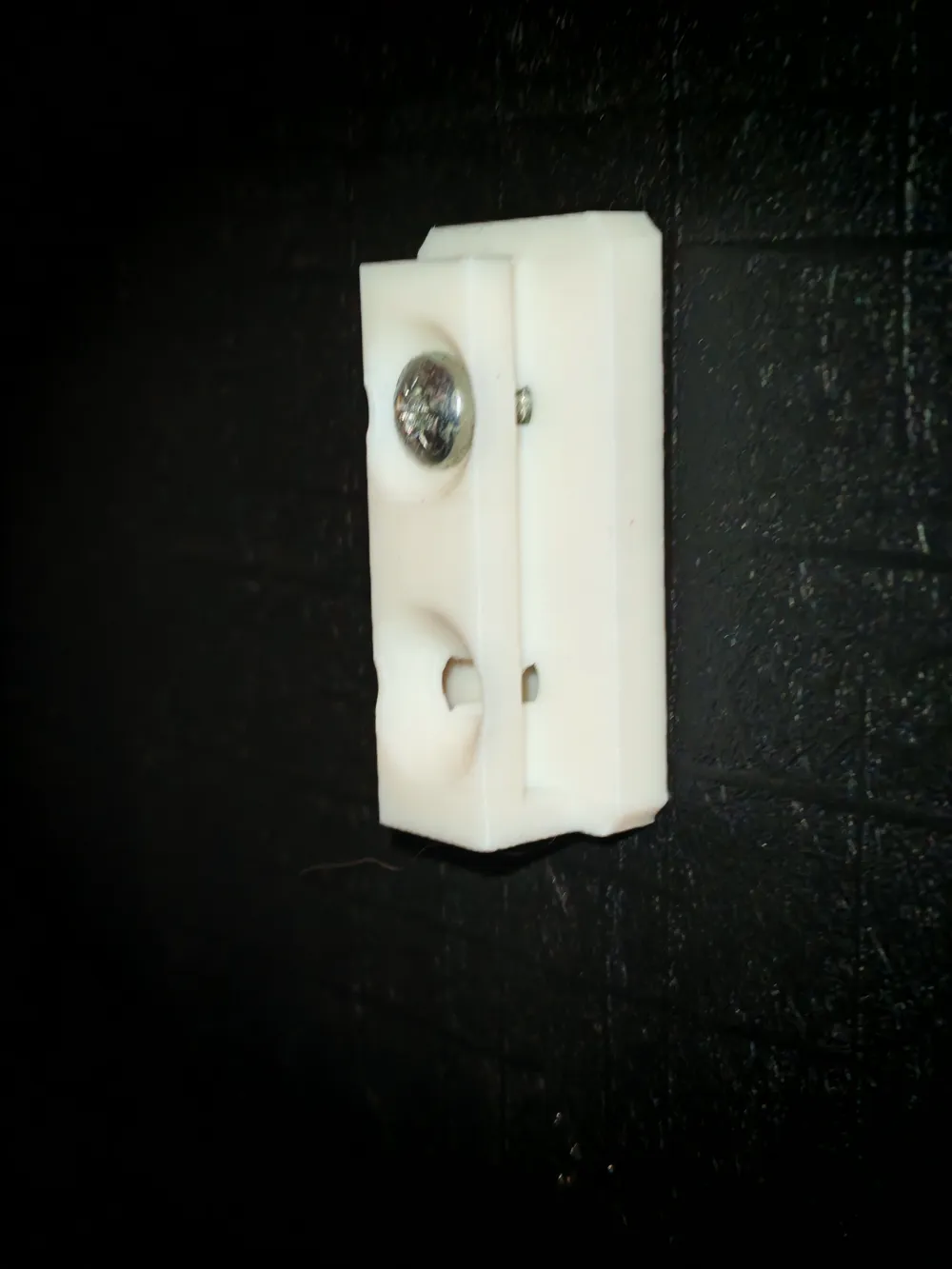

I refined the thickness of the wall mounts compared to the original model (too thick for me) It remains very robust

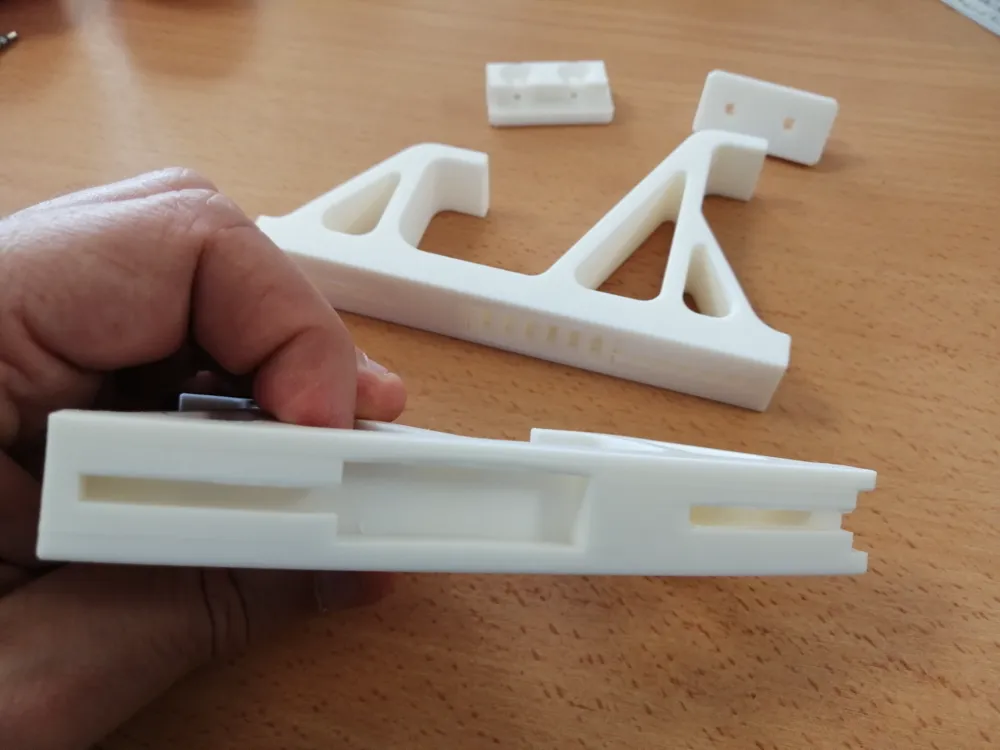

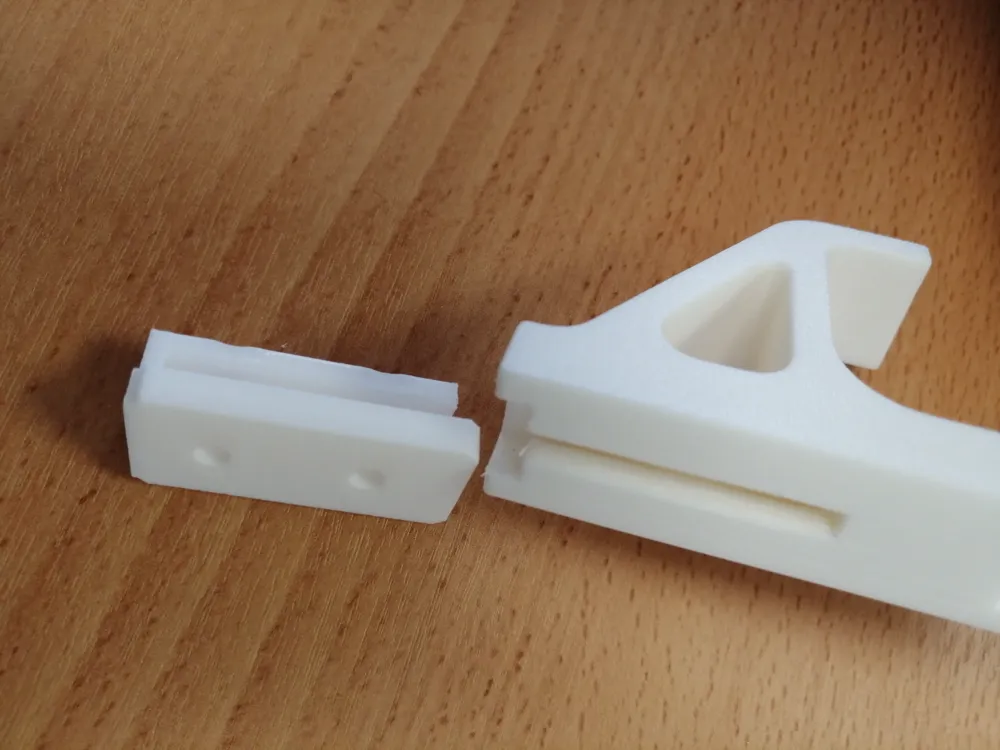

The **tolerance** between the parts is intentionally **tight** to make them difficult to separate If you want the parts to slide better, you can slightly reduce the size of the fastening parts in X and Y (Hook_base_1x and Hook_base_5x)

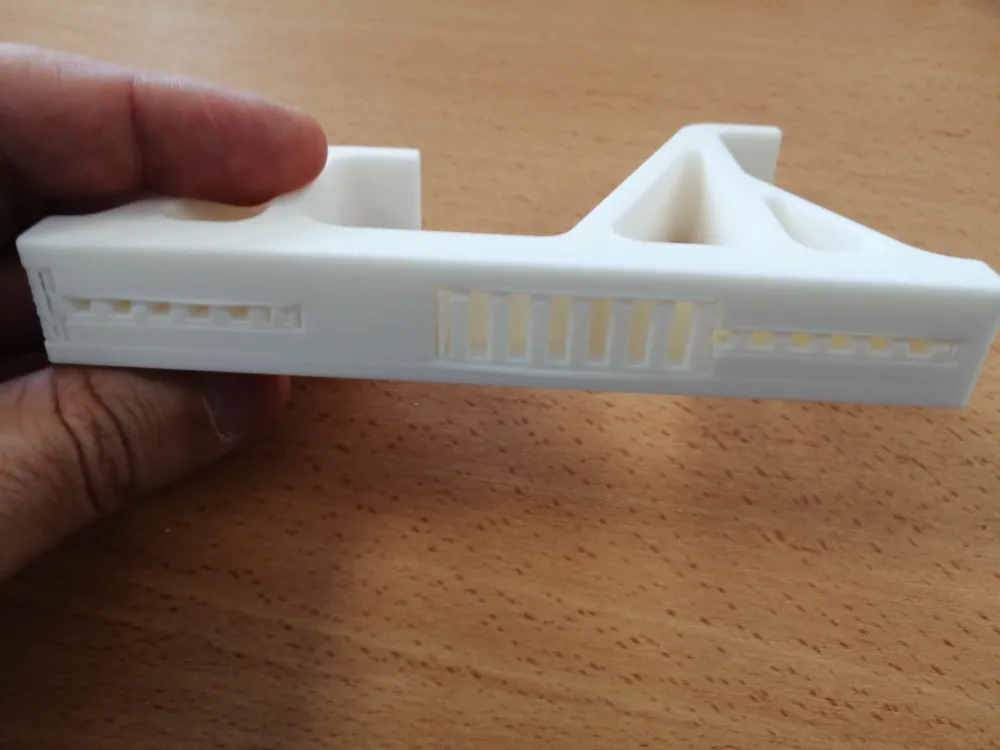

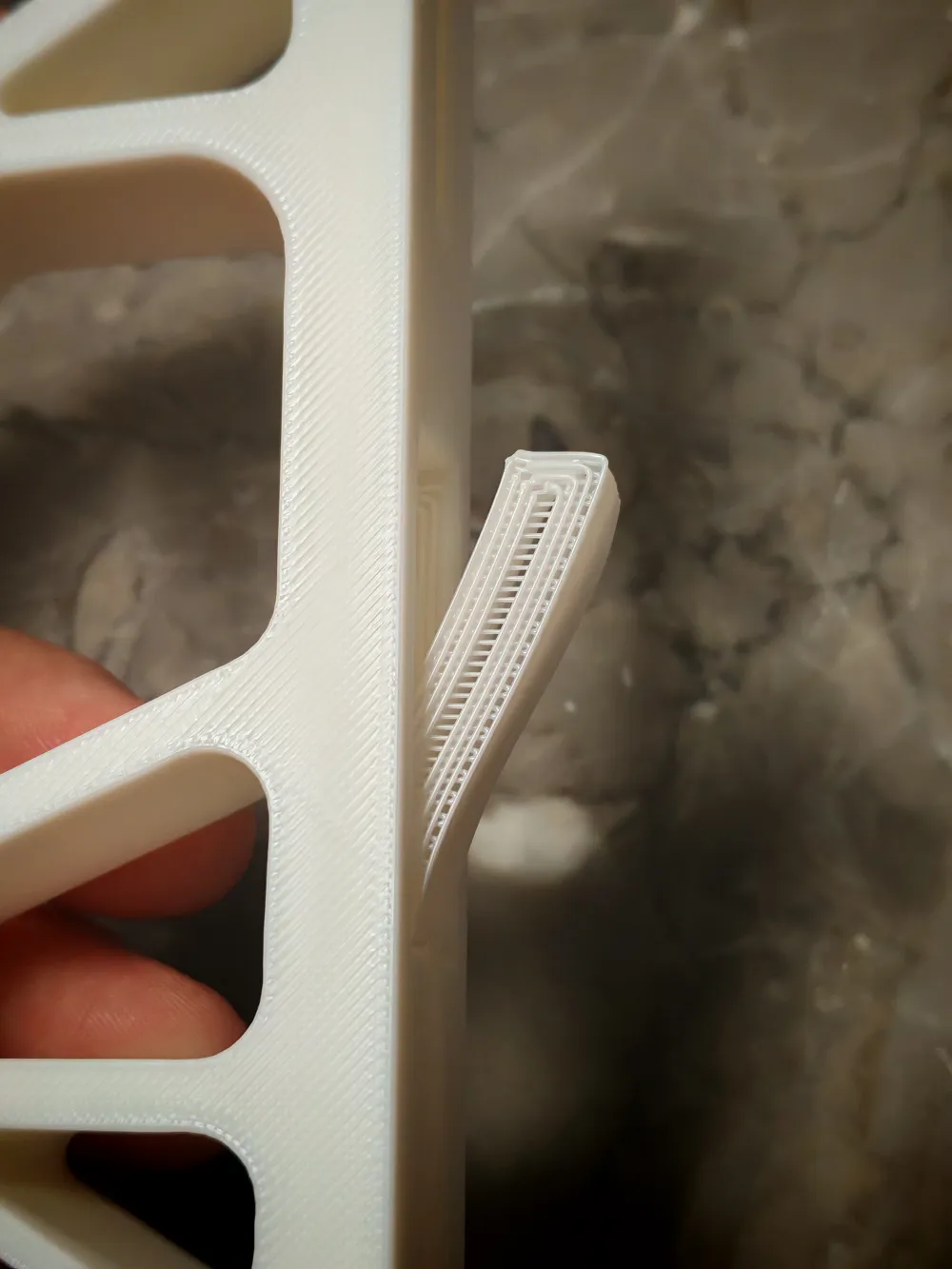

The supports can be easily removed by prying them with a small tool (screwdriver, fine pliers, etc)
