Multipurpose screw component storage box, no hardware needed

I often use small screws, so I designed this simple box.

Special Note: Please calibrate the flow rate before printing, otherwise the filament may not be able to pass through!

Base size: 130*230*18mm I don't have a MINI (If you have a MINI printer, you can cut off the two rows on the right in the slicer, the box can hold 10 pieces which is enough).

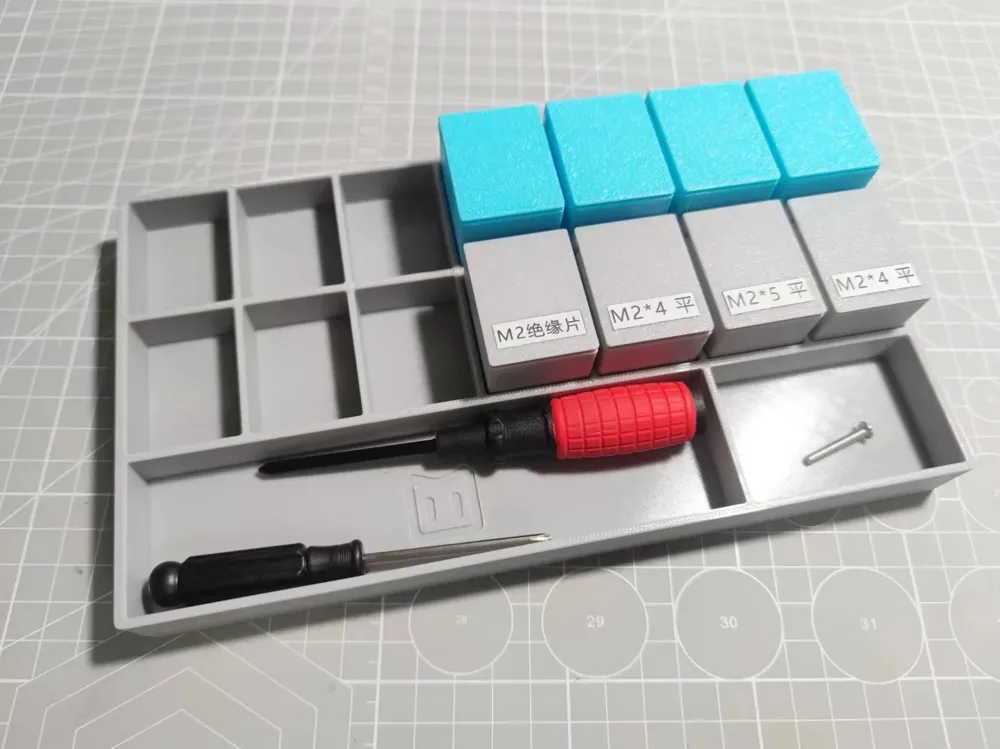

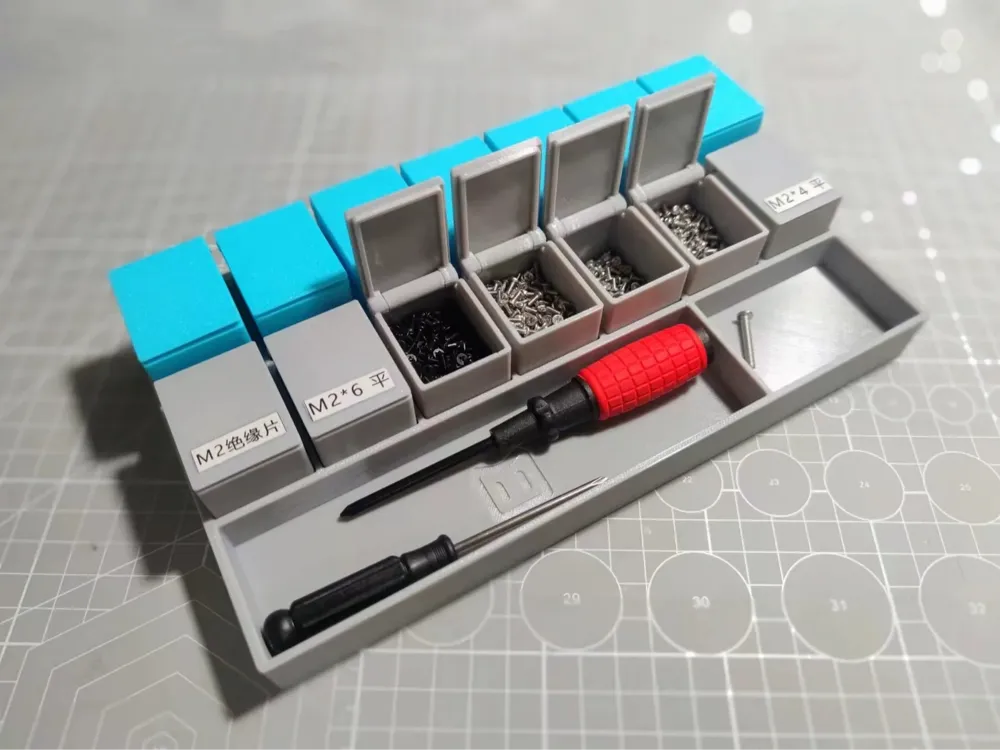

The box body has two heights (30mm, 35mm). Normally, it holds 14 small boxes in double rows, with taller boxes in the back row for easy opening.

Each box can be taken out separately. The inside of the box has a curved base for easy access to accessories.

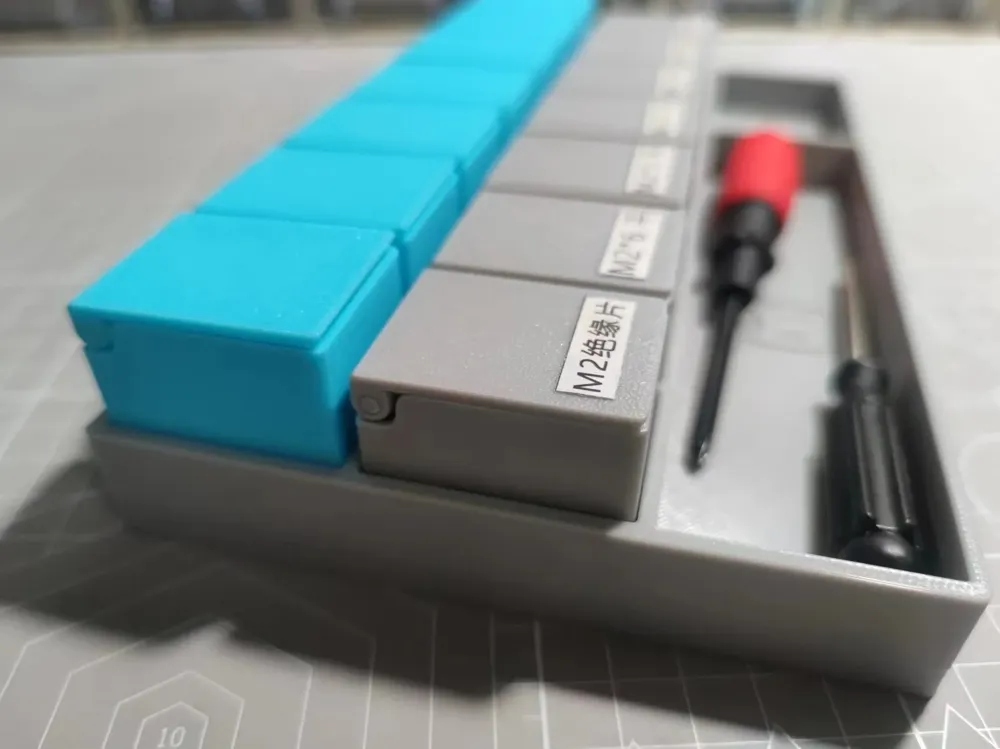

I used ordinary paper + double-sided tape for the labels on the box lid. If you have a multicolor system, you can consider printing the model numbers directly.

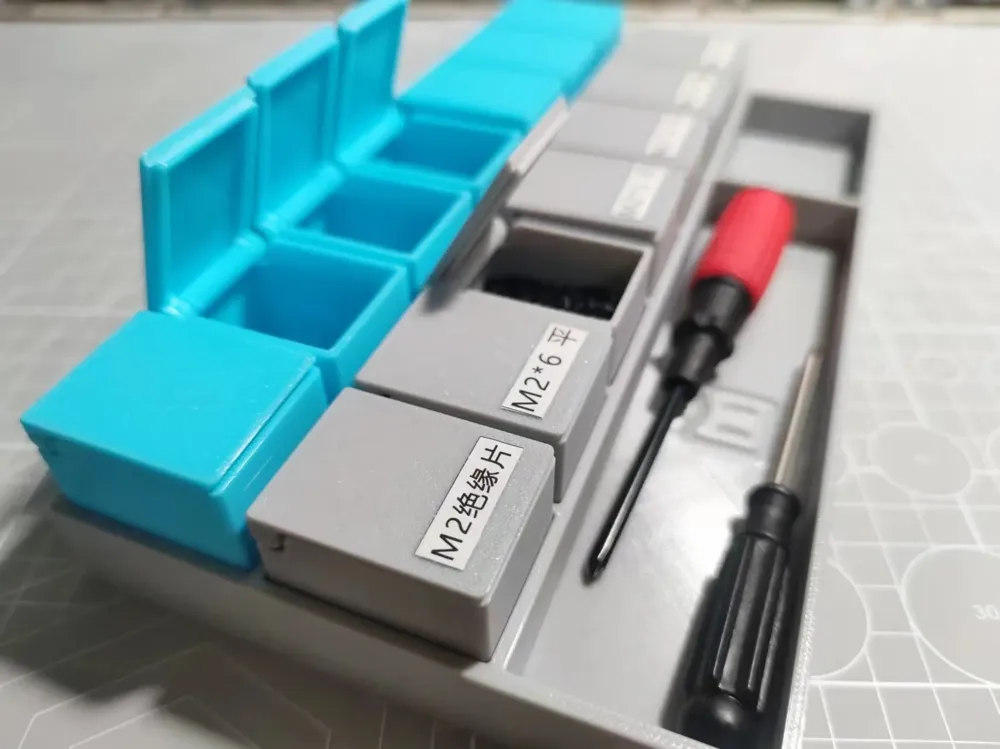

The box and lid are connected using filament. After closing, thread the filament through, burn both ends and press them together.

In the print settings, the box and base are separate plates. If you don't print the box, you can use the base as a grid box directly.
