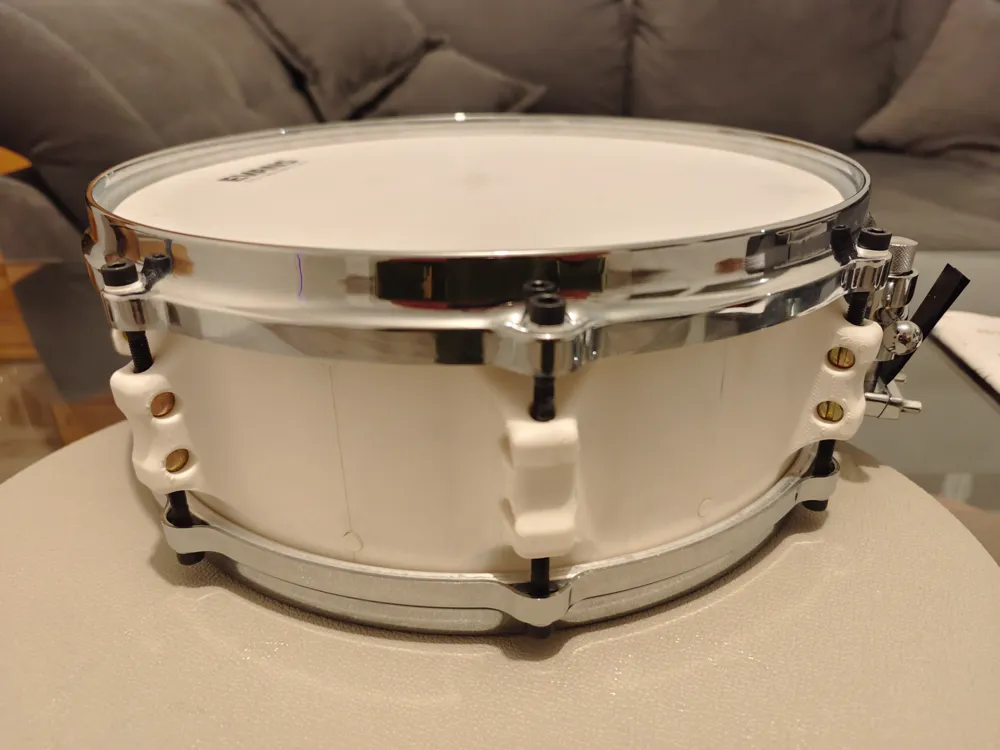

13 " Snare Drum Shell
Print Profile(1)
Bill of Materials
- M6 Barrel Nuts x 16: https://www.ebay.de/itm/223739538962?_skw=m6+barrel+nut&itmmeta=01JEC2F9G5AGZZ9G2J9JZTEDGT&hash=item3417ea6e12%3Ag%3AH5kAAOSwAxpdxC2l&itmprp=enc%3AAQAJAAAA0HoV3kP08IDx%2BKZ9MfhVJKlZlhecRSeb1t2gge%2FESQ5bGiVV6bl%2B9GL%2BZZToHcvS4DcIuAIYwHn2Vogdqu8kOhH2jyekwwMsf2Cu%2B2rPC7MQGRZdTfVEQN%2Fzntn%2FnmjTWFobOND1d%2BstDfjX%2BFOZxjfxQojaZxSnxiId24E44KcHMoGULopuklTQbR9S78uWbLr%2B5gXowBGk2W0KVUH%2BnDLbVdsinG8RMFMUiyQp3caOeWikADv7n8rVwROar55JdHX19OHgfycIAkTAM1Lhh8I%3D%7Ctkp%3ABk9SR6SYvYLzZA&var=522452479841
- Throw-off and Buttend x 1: https://www.ebay.de/itm/305601776652
- M5 x 25mm ISO 4762 Screws x 2:
- M4 x 25mm ISO 4762 Screws x 2:
- Drumhead 13" Top x 1:
- Drumhead 13" Bottom x 1:
- Snaredrum Hoop Top 8 Holes x 1:
- Snaredrum Hoop Bottom 8 Holes x 1:
- M6 x 45mm ISO 4762 Screws x 16:
- CA-Glue x 1:
- M5 Washer x 2:
- M4 Washer x 2:

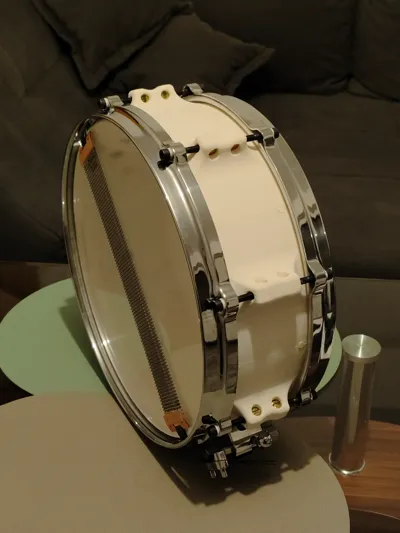

- 13" Snare Wires x 1:
Description
Assembly: Glue all 8 segments, making sure they are in the right order.

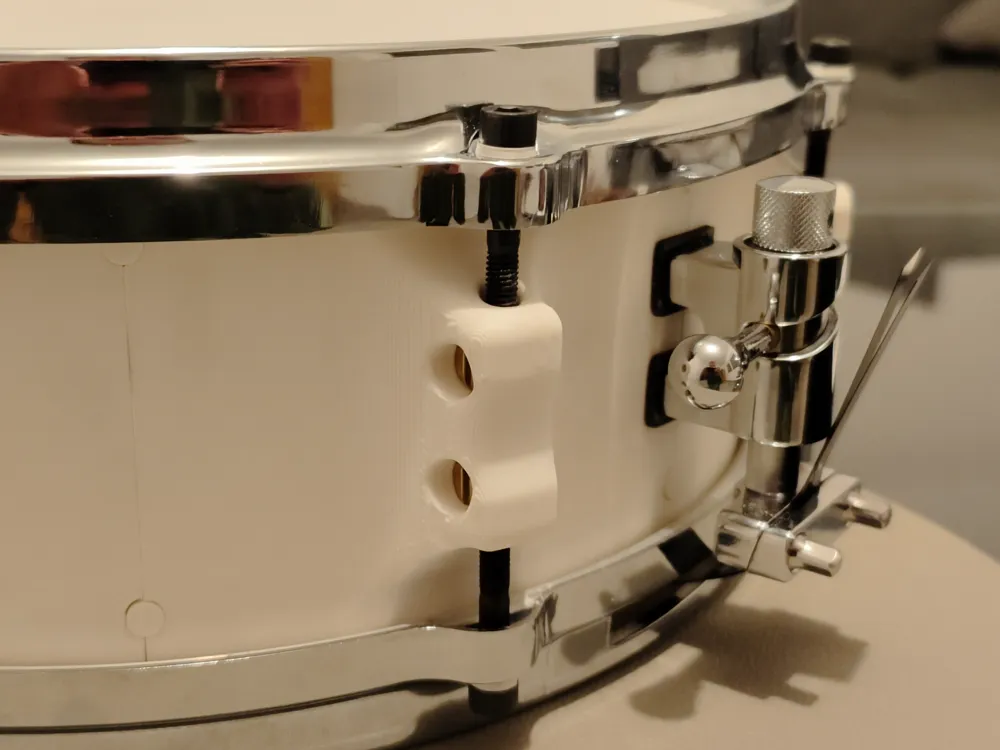

The holes for the strainer must be in the direction of the top head.
Before curing glue, press in the taper pins.
To close gaps, you can seal them with CA glue and baking soda.
Tipp: tighten both heads at the same time, so the shell gets even force on both sides.
