Stackable Storage Boxes - Multi-Size Version

Previously, I created an exceptionally large stackable, hollow storage box with handles, measuring 246*159*219mm.Stackable Storage Box, Hollow Version

This iteration refines the preceding design, modestly reducing its weight—a minor adjustment given the box's emphasis on robustness and reliability—while introducing several variations with differing heights for your convenience.

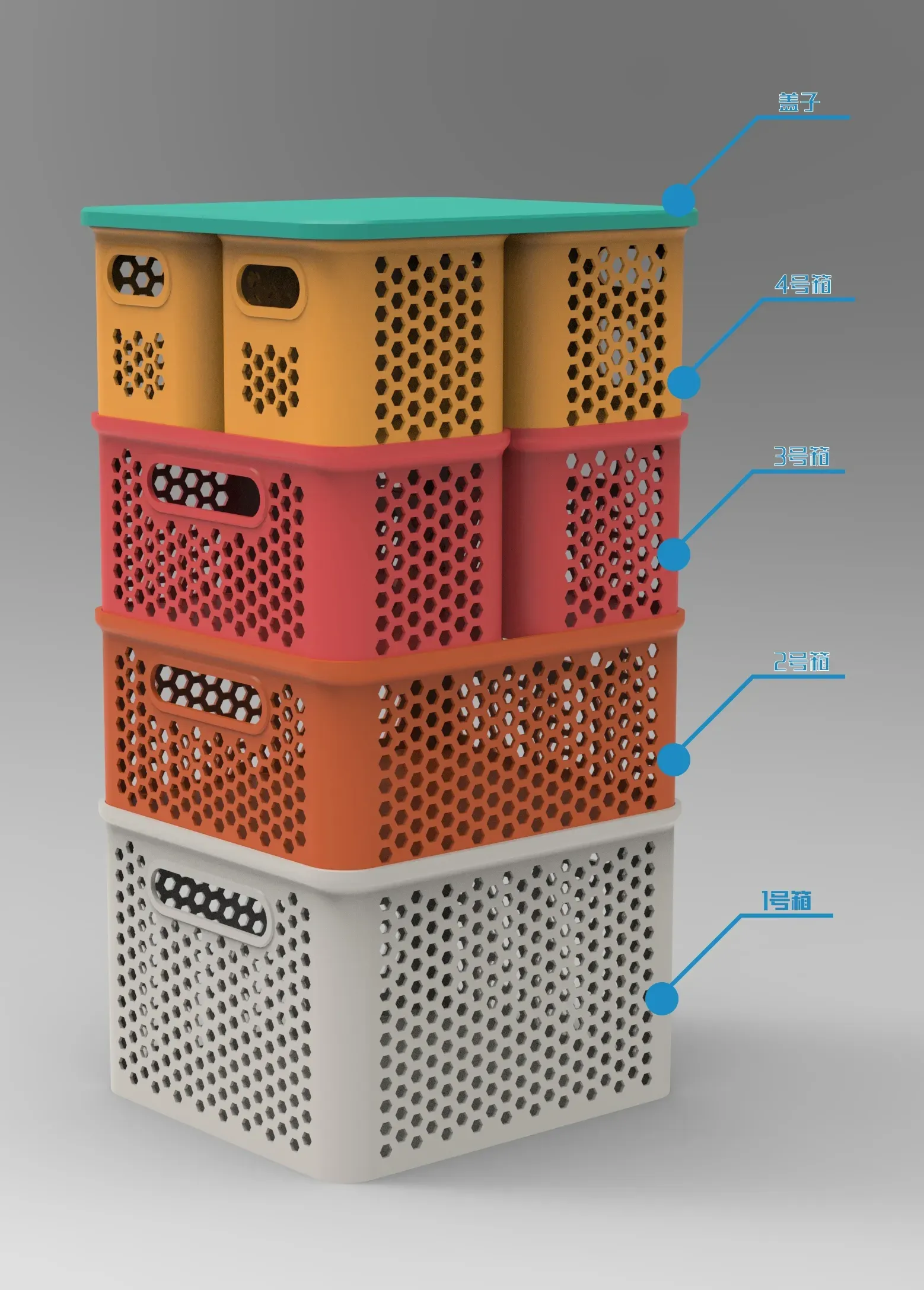

Storage Box Specifications and Stacking Guide

Box 1

External Dimensions: 246mm × 219mm × 159mm

Effective Internal Dimensions: 234.5mm × 207.5mm × 152mm

Features: Generous capacity, ideal for storing bulky or heavy items.

Stacking Capability: Functions as a standalone unit or as the base for Boxes 3 and 4 (indirect stacking via Box 2 or Box 3 is necessary).

Box 2

External Dimensions: 246mm × 219mm × 107mm

Effective Internal Dimensions: 234.5mm × 207.5mm × 100mm

Features: Moderate height, suitable for storing medium-sized items.

Stacking Capability: Utilizable independently, directly stackable atop Box 1, and serves as a base for Boxes 3 and 4 (indirect stacking via Box 3 required).

Box 3

External Dimensions: 219mm × 123mm × 107mm

Effective Internal Dimensions: 207.5mm × 111.4mm × 100mm

Features: Moderate width and height, appropriate for smaller or slender items.

Stacking Capability: Requires placement atop Box 1 or Box 2; also functions as a base for Box 4.

Box 4

External Dimensions: 123mm × 109mm × 107mm

Effective Internal Dimensions: 111.4mm × 98mm × 100mm

Features: Compact size, suitable for smaller items or as supplemental storage.

Stacking Capability: Must be placed atop Box 3; direct stacking on Boxes 1 or 2 is not feasible.

Usage Suggestions

Choose According to Needs: Select the appropriate storage box size based on the dimensions and weight of the items to be stored.

Proper Stacking: Adhere to the stacking guidelines to ensure stability and prevent collapse.

Printing Material: Utilize robust and dependable printing materials for enhanced durability and load-bearing capacity. PETG or ABS are recommended.

Labeling and Categorization: Label the storage boxes with item categories or intended uses for convenient identification and organization.

Note: Box 3 requires Box 1 or Box 2 as a stable base. Box 4 necessitates Box 3 as a base and cannot be directly stacked on Box 1 or Box 2.

=========================================================================================

Storage Box Specifications and Stacking Guide

Box 1

• External Dimensions: 246mm × 219mm × 159mm
• Effective Internal Dimensions: 234.5mm × 207.5mm × 152mm
• Features: Large volume, suitable for storing large or heavy items.
• Stacking Capability: Usable independently, also serves as the base for Boxes 3 and 4 (indirect stacking via Box 2 or Box 3 is required).

Box 2

• External Dimensions: 246mm × 219mm × 107mm
• Effective Internal Dimensions: 234.5mm × 207.5mm × 100mm
• Features: Moderate height, suitable for storing medium-sized items.
• Stacking Capability: Can be used independently, directly stackable on Box 1, and serves as the base for Boxes 3 and 4 (indirect stacking via Box 3 required).

Box 3

• External Dimensions: 219mm × 123mm × 107mm
• Effective Internal Dimensions: 207.5mm × 111.4mm × 100mm
• Features: Moderate width and height, suitable for storing small or slender items.
• Stacking Capability: Must be stacked on Box 1 or Box 2 and can serve as a base for Box 4.

Box 4

• External Dimensions: 123mm × 109mm × 107mm
• Effective Internal Dimensions: 111.4mm × 98mm × 100mm
• Features: Small volume, suitable for smaller items or as supplemental storage.
• Stacking Capability: Must be stacked on Box 3; direct stacking on Box 1 or Box 2 is impossible.

Usage Suggestions

1. Choose According to Needs: Select the appropriate storage box size based on the size and weight of the items to be stored.
2. Proper Stacking: Follow the stacking guide to ensure stability and prevent collapse.
3. Printing Material: Consider using sturdy and reliable printing materials to ensure durability and load-bearing capacity. PETG or ABS are recommended.
4. Labeling and Categorization: Label the storage boxes with item categories or intended uses for easy identification and organization.

Please note that Box 3 requires Box 1 or Box 2 as a base for stacking, and Box 4 requires Box 3 as a base. Box 4 cannot be directly stacked on Box 1 or Box 2.
