Support Box/Guide for Sunlu FC01
Print Profile(2)
Bill of Materials
Description
UPDATE!
Available in the folder (Download in STL), a version 2 of the lid, easier to open
I will update the print profile as soon as I have finished printing

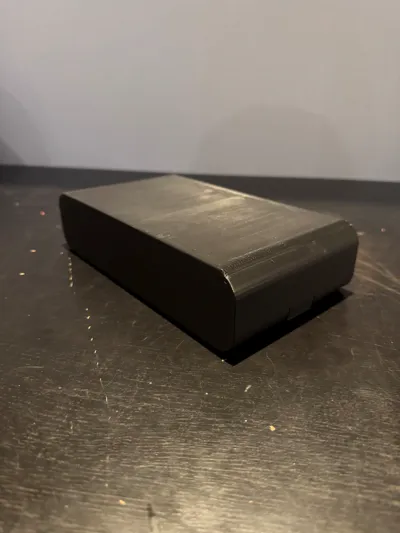

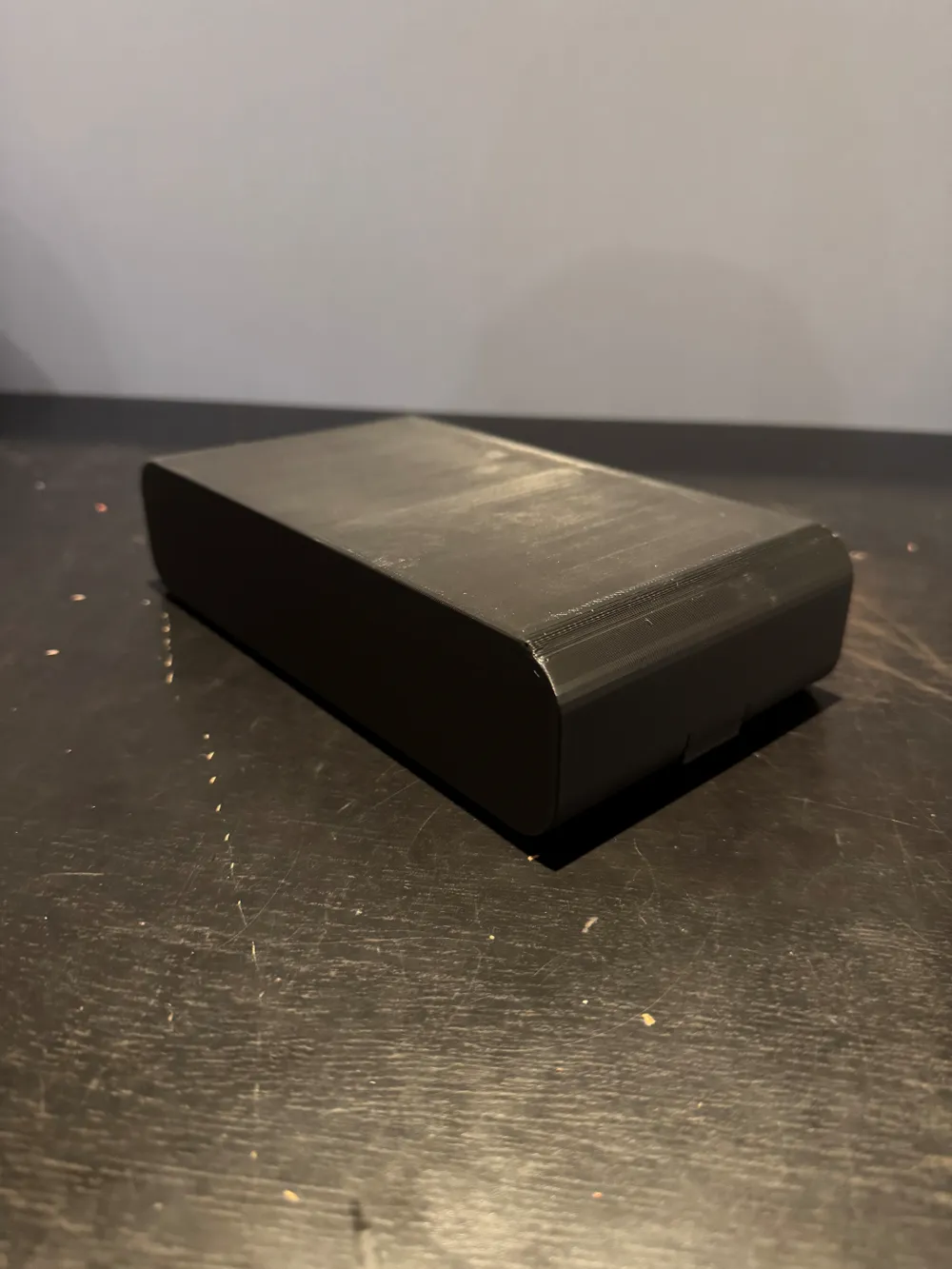

Here is my holder / guide for the Sunlu FC01 filament connector in box version!

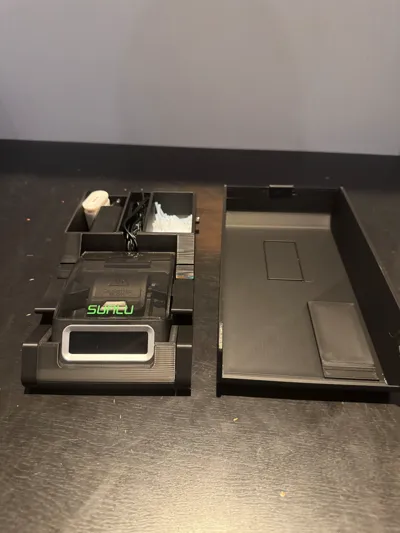

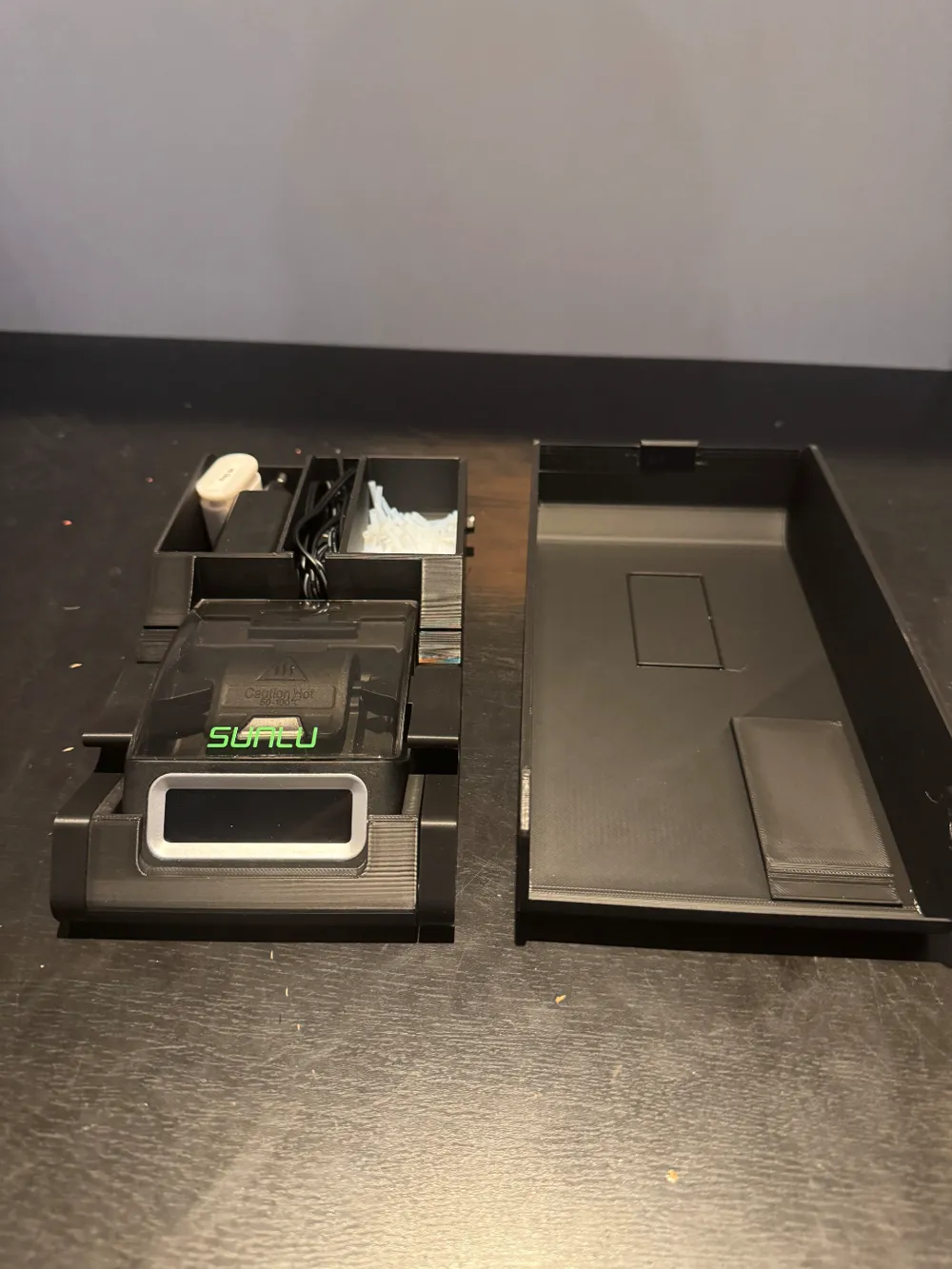

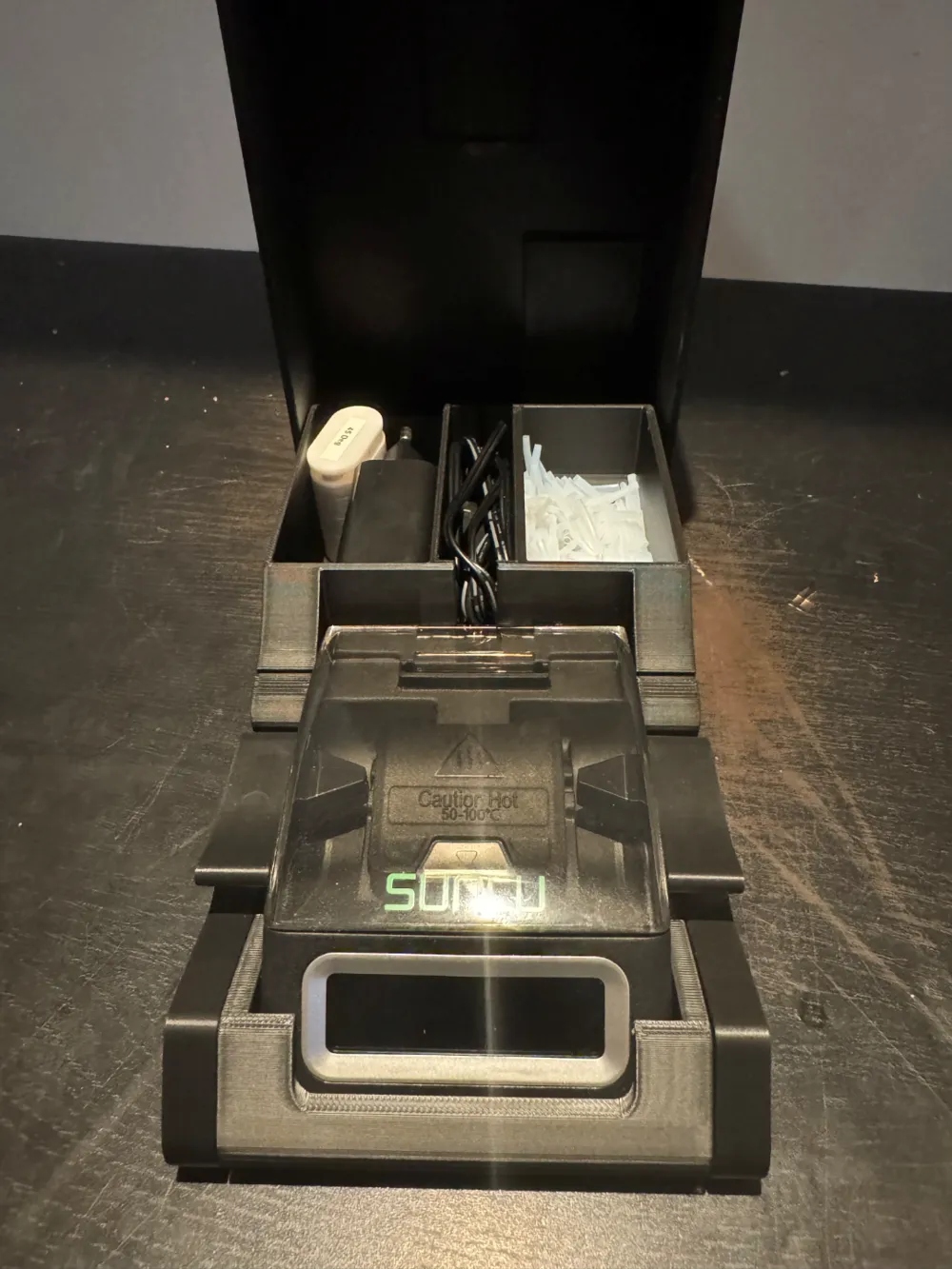

Incorporates the design and features of the Holder / Guide (see link below) and allows storage of the USB charger, power cable, and spare connectors and even the 45° filament cutter (link below)
an option (insert) is available to divide the space dedicated to connectors and store something else there

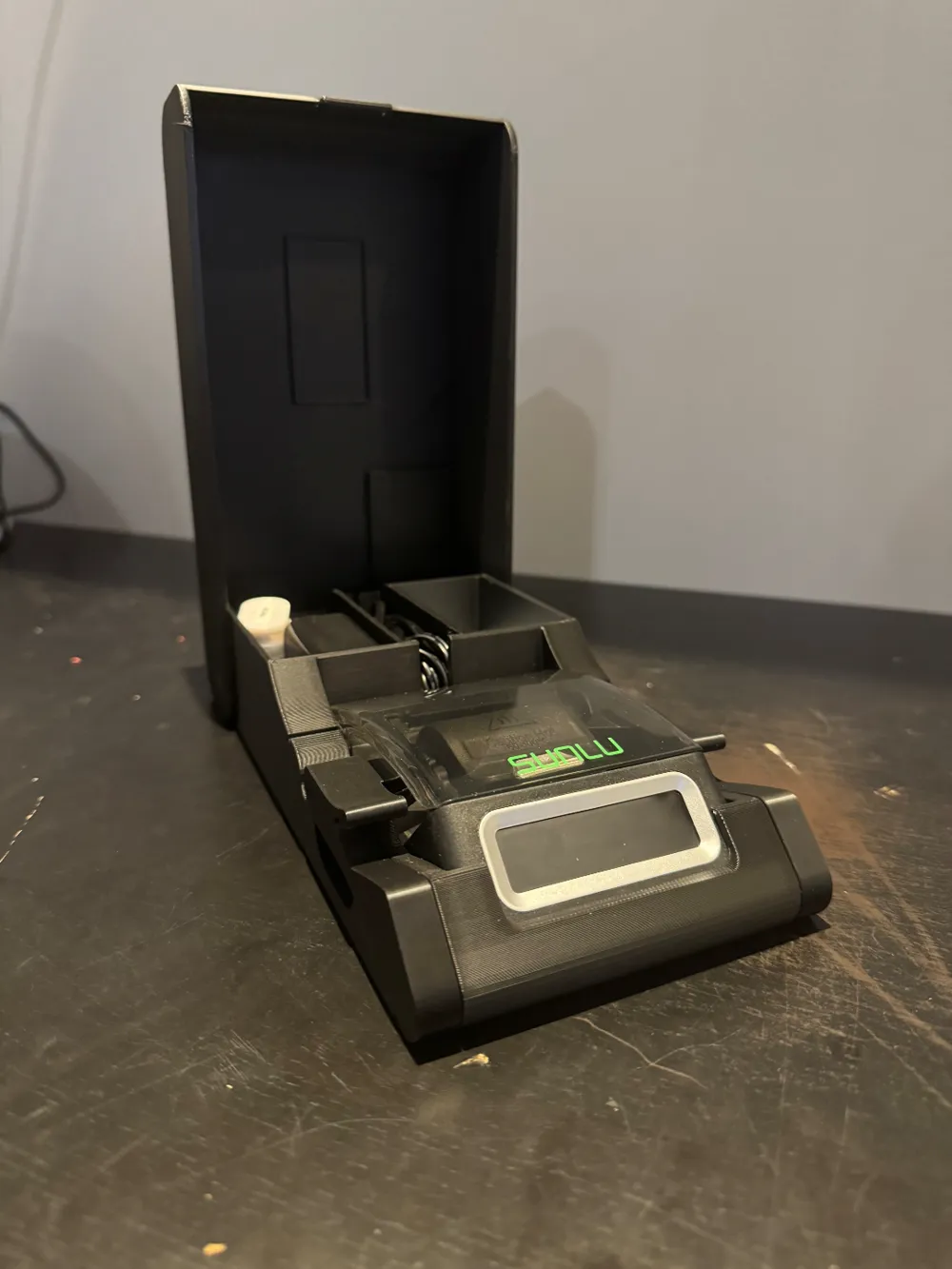

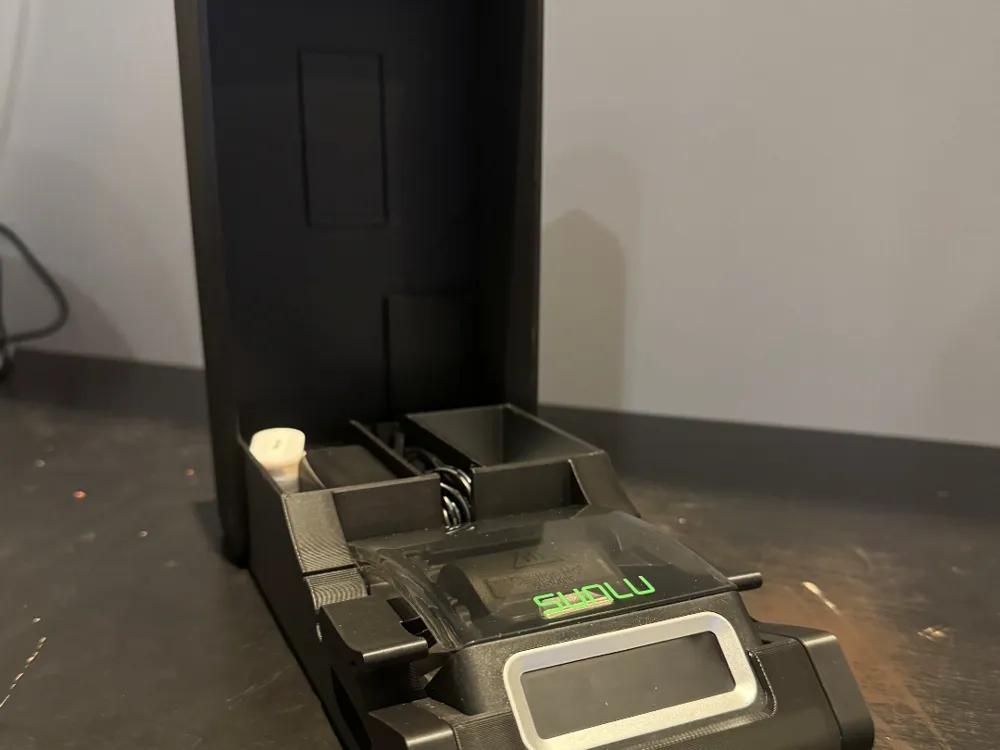

The lid fits by slightly spreading it at the hinges
It includes 2 protrusions ;
- One to insert the >TPU wedge to keep the filament connector in place during transport
- The other which serves as a cover for the storage area of PTFE connectors, if you store (like me) these connectors without the bag
It is removable, just slide it out of the housing as for assembly
Requires :
4 magnets 4 x 2mm to hold the levers
4 magnets 6 x 3mm to hold the filament clips
The positioning and holding of the filament is always easy and precise
After welding, the levers tilt forward to allow the filament to cool better
45° filament cutter : https://makerworld.com/fr/models/848825#profileId-796391
Holder / Guide for Sunlu FC01 filament connector (non-box version) : https://makerworld.com/fr/models/842973#profileId-796475
