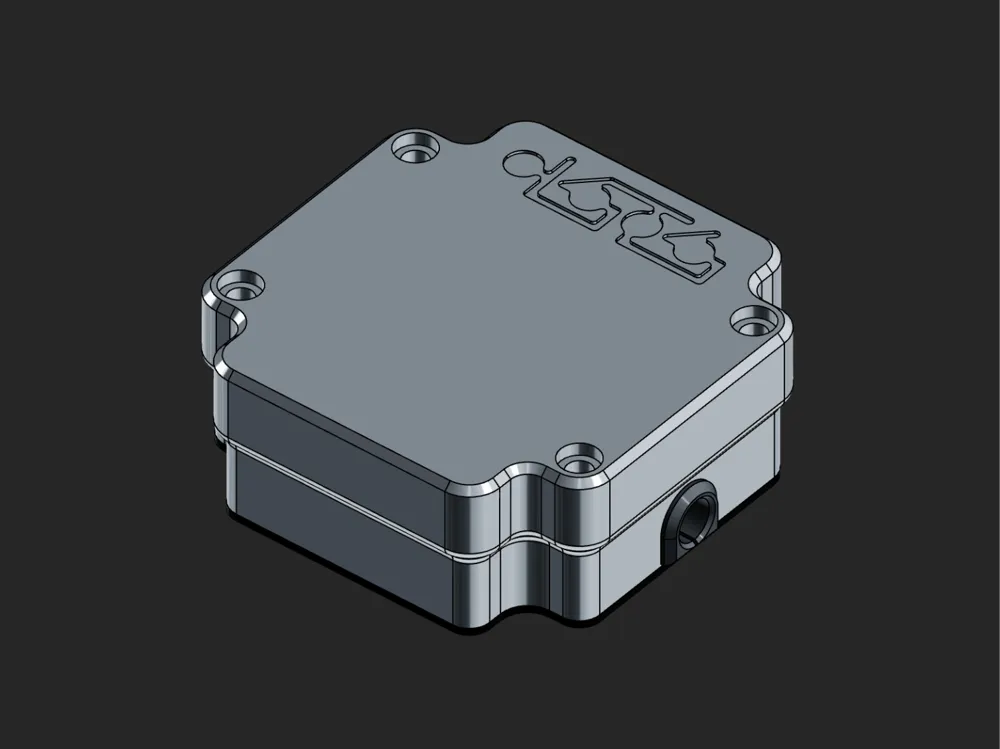

Waterproof Connection Box for NEMA 23 Motors
A compact, robust, and aesthetic solution for wiring NEMA 23 stepper motors, designed to seamlessly blend with the motor’s form. This connection box is ideal for CNC projects and ensures reliable protection in demanding environments.
Attaches to the back of the NEMA 23 motor with 4x M3x25 screws.
Equipped with a TPU gasket for a tight seal between the box and the motor.

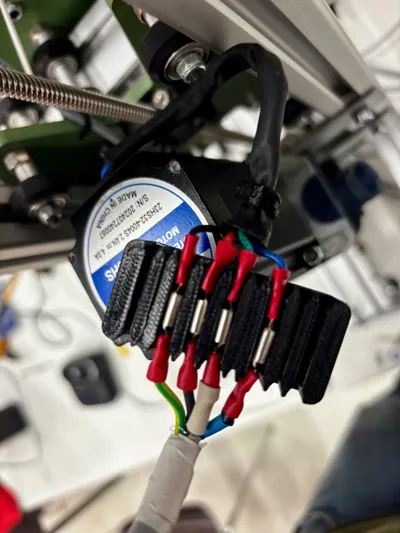

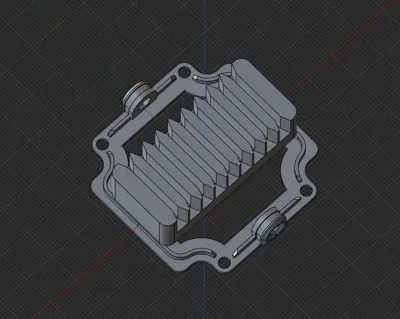

Flexible TPU Cable Manager: Clips onto connected cables with lugs, works with a various size of connectors.
Cable Clips: Ensures watertight in/out cable entry for cables with an outer diameter of 5.7mm.

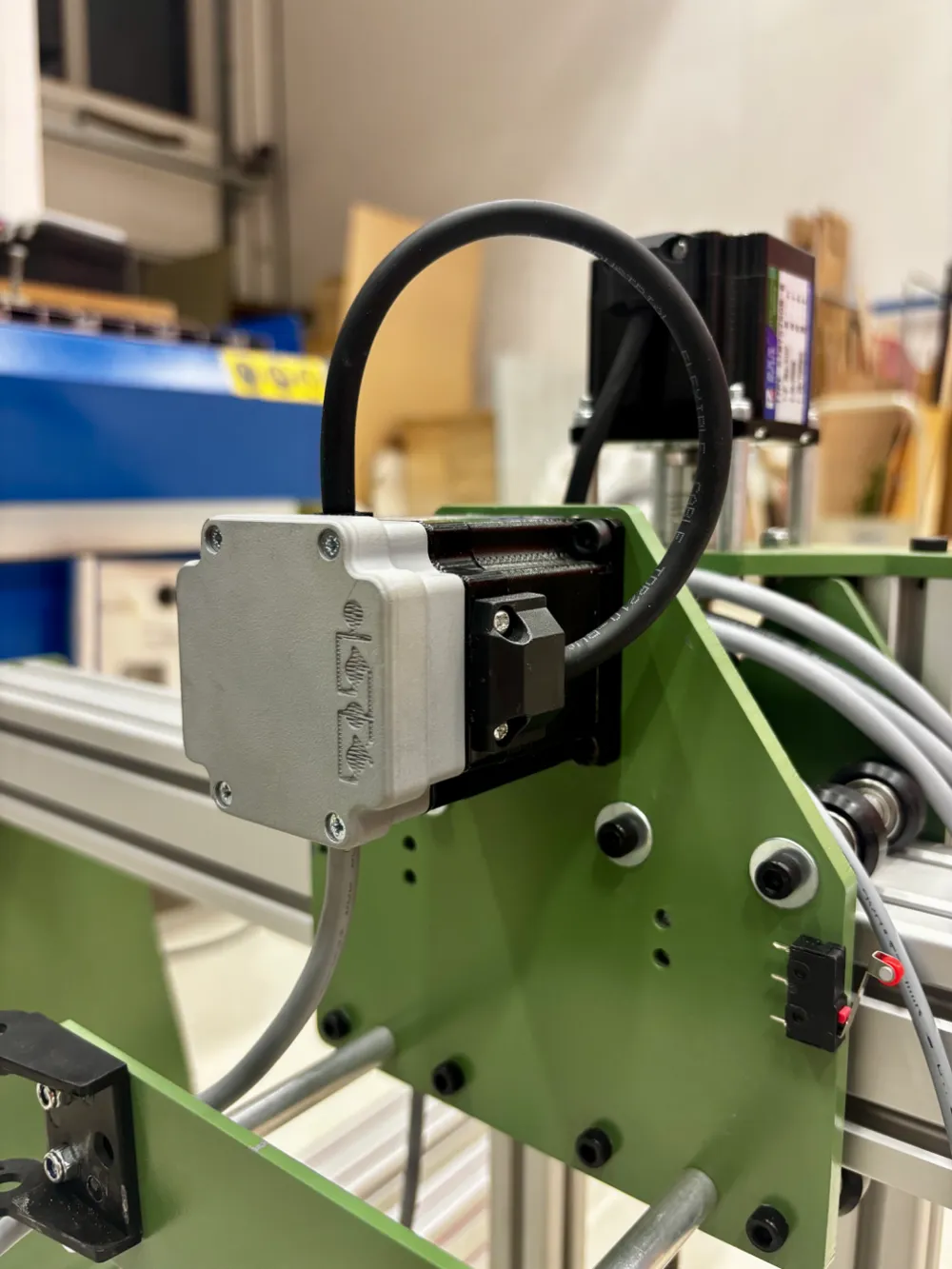

Perfect for clean, organized, and protected wiring – tested and used for my CNC Mekanika Evo L.
Design by AXPROPS:D4T4
