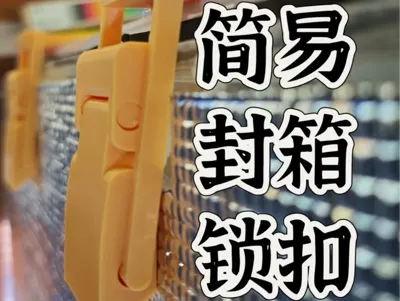

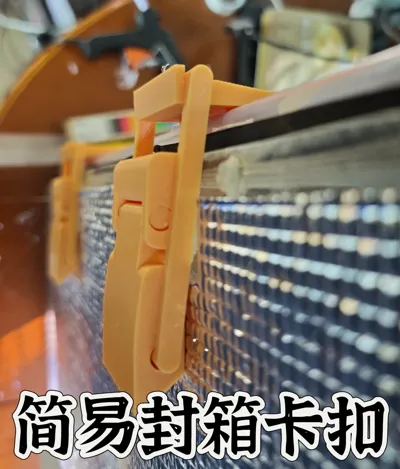

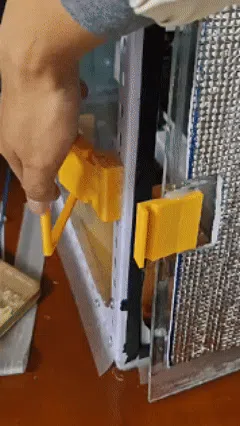

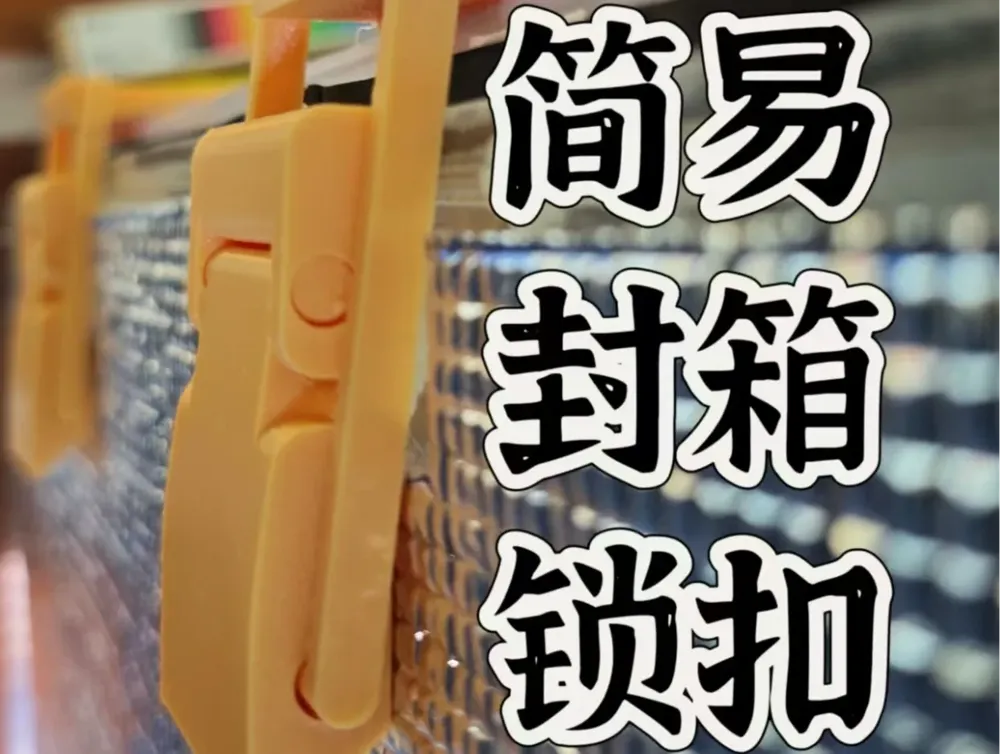

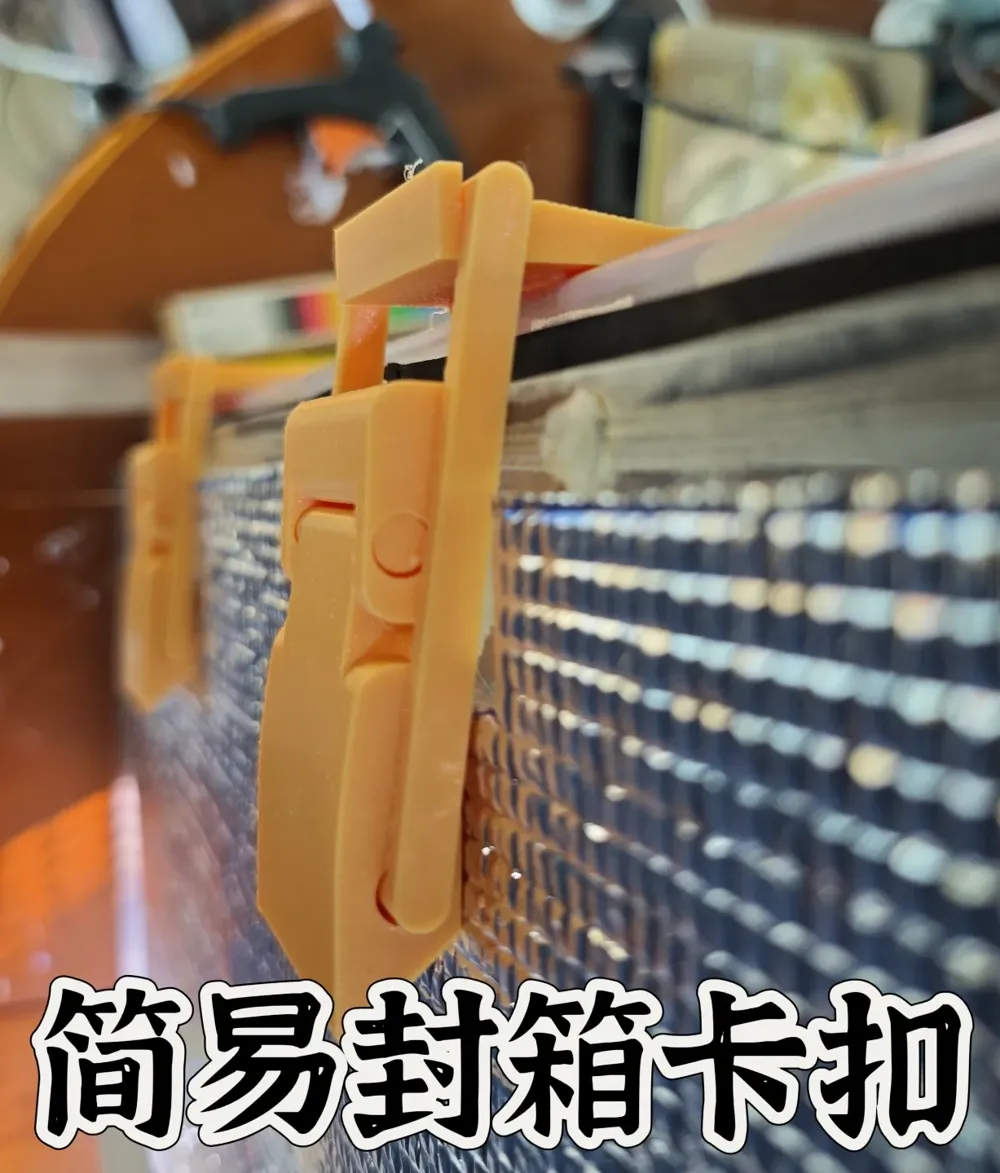

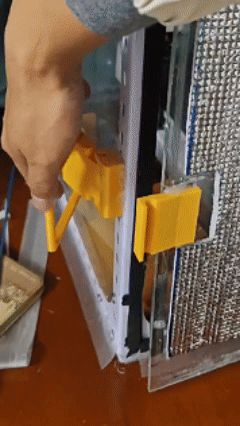

A simple snap-on/latch enclosure. A version without bolt holes has been omitted; hot glue adhesion is perfectly adequate.

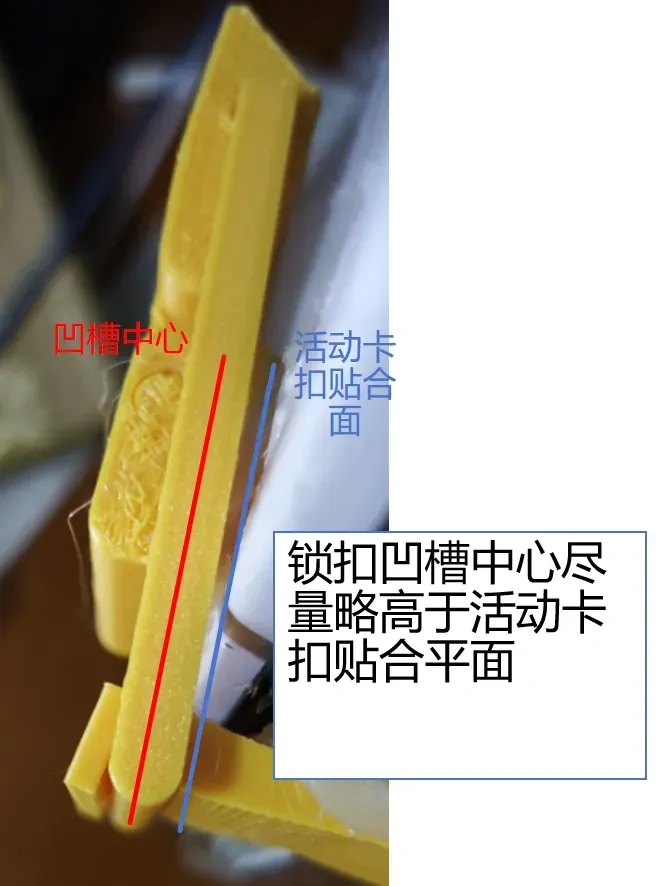

Note that when adhering, the center of the latch recess should be slightly higher than the mating surface of the active latch (see diagram).

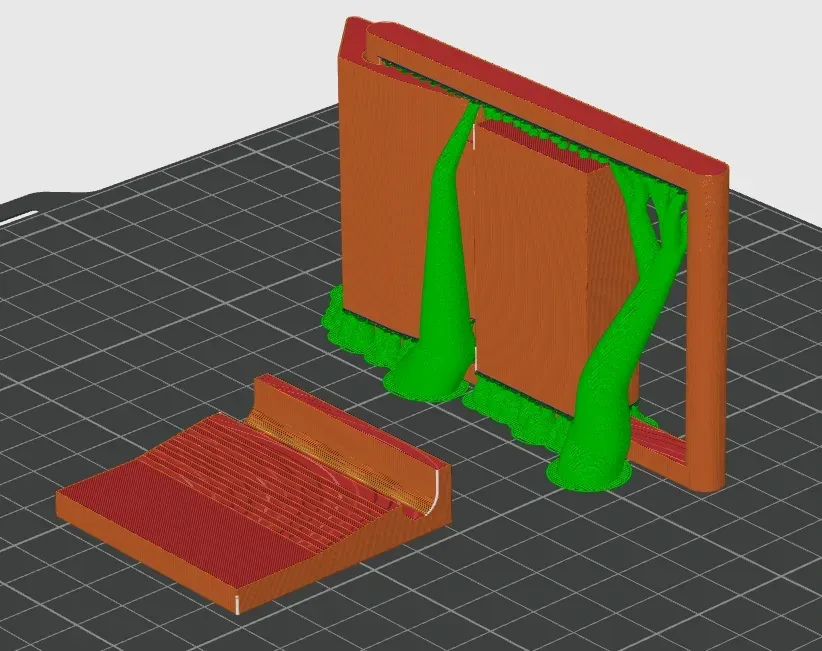

Printed using PETG; note that “kakou2” should ideally be printed upright as per the default file settings, with a 0.2mm layer height, 15% infill, 2 walls, and tree supports for easier removal.
