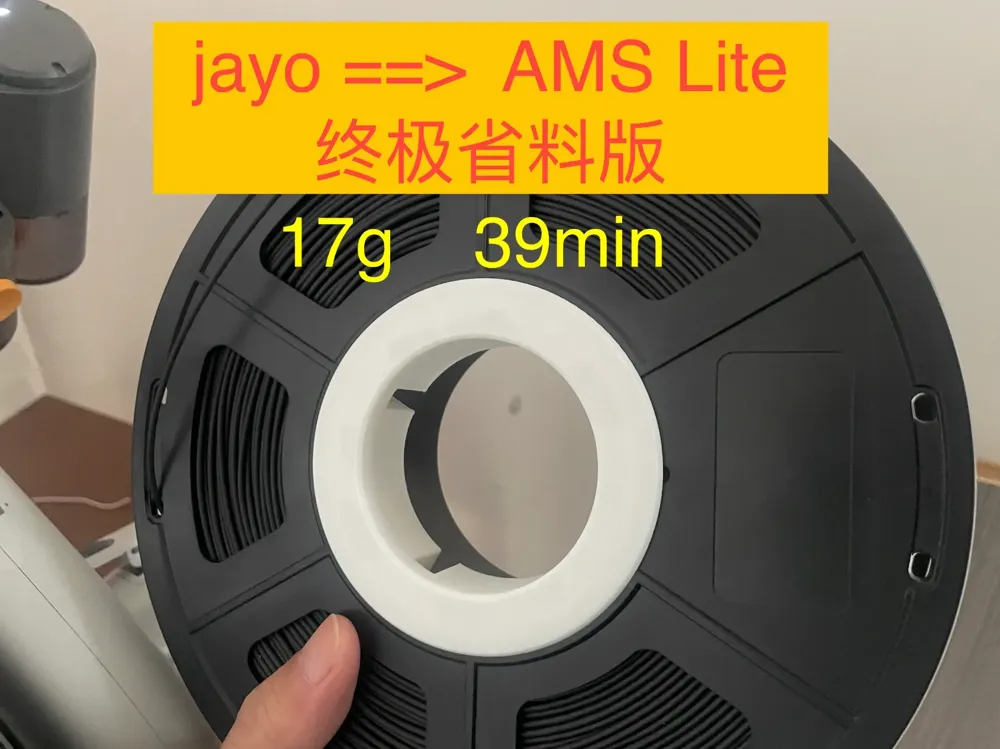

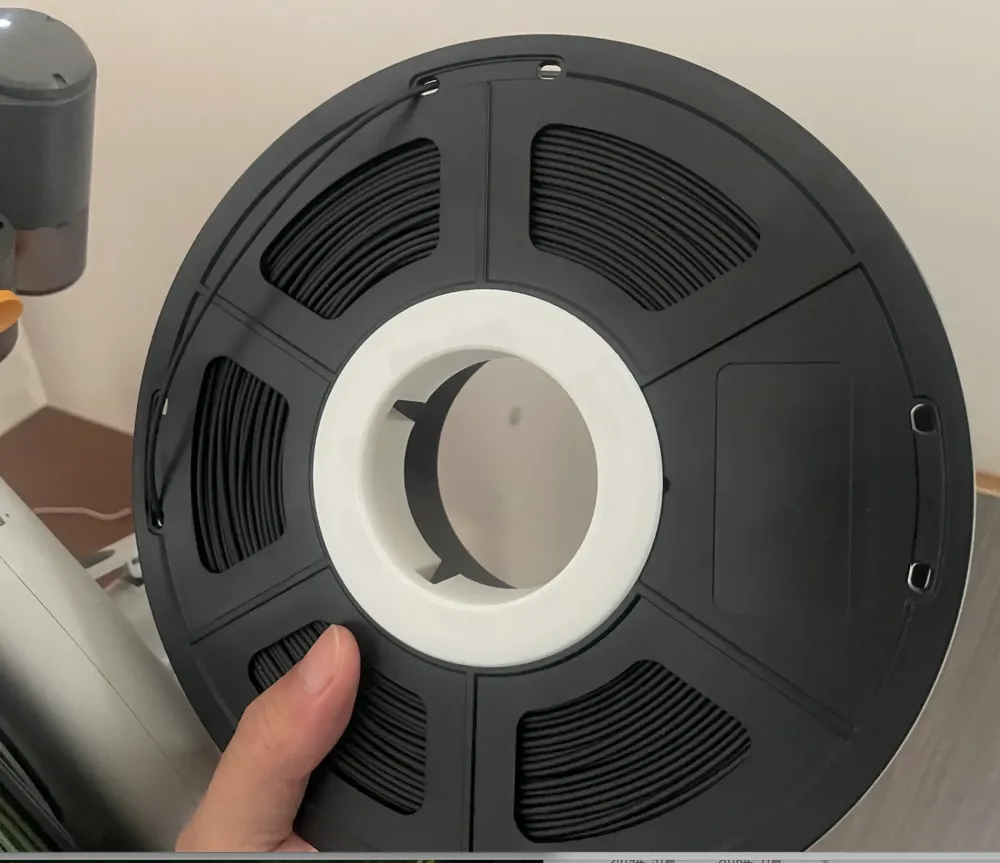

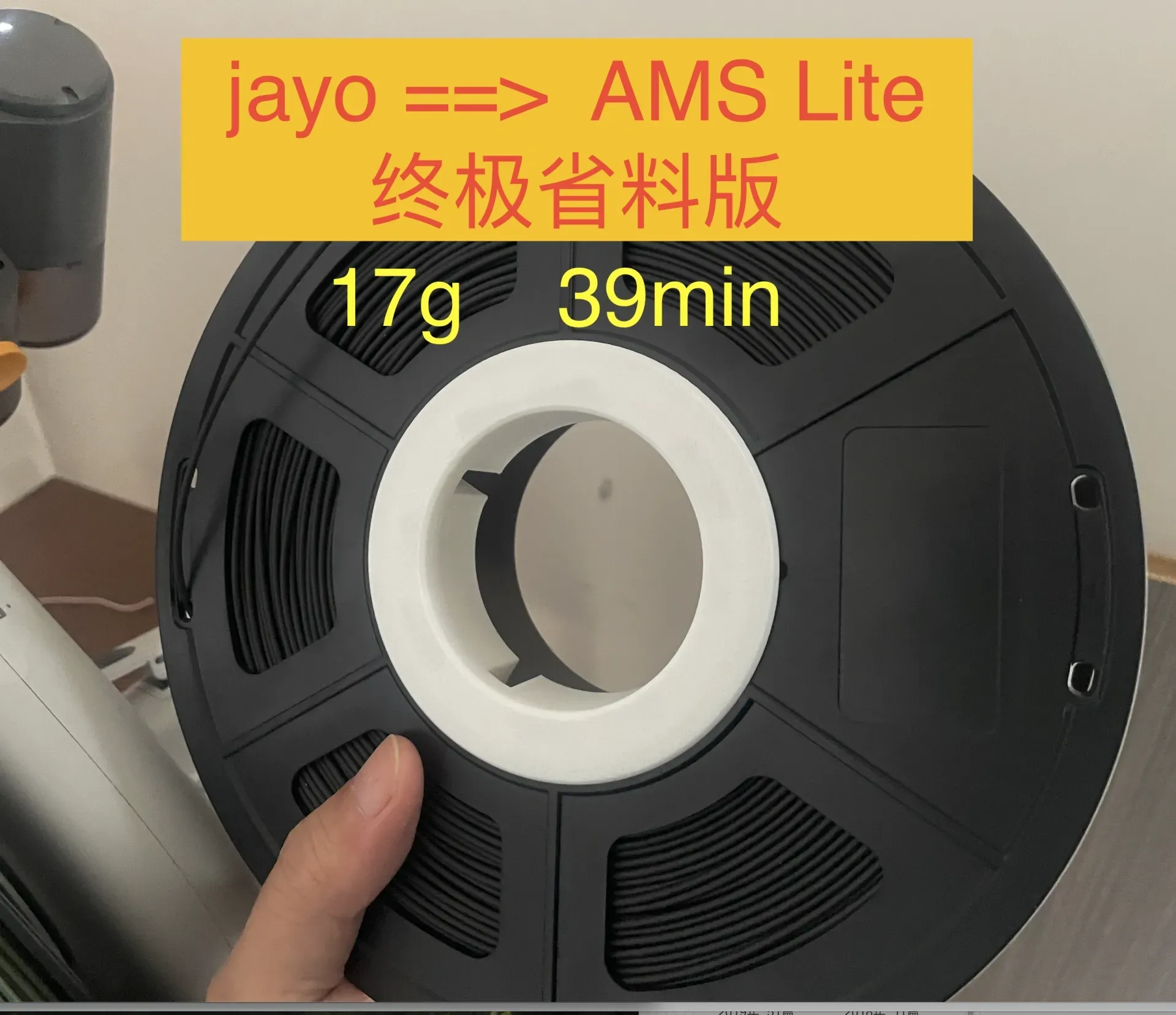

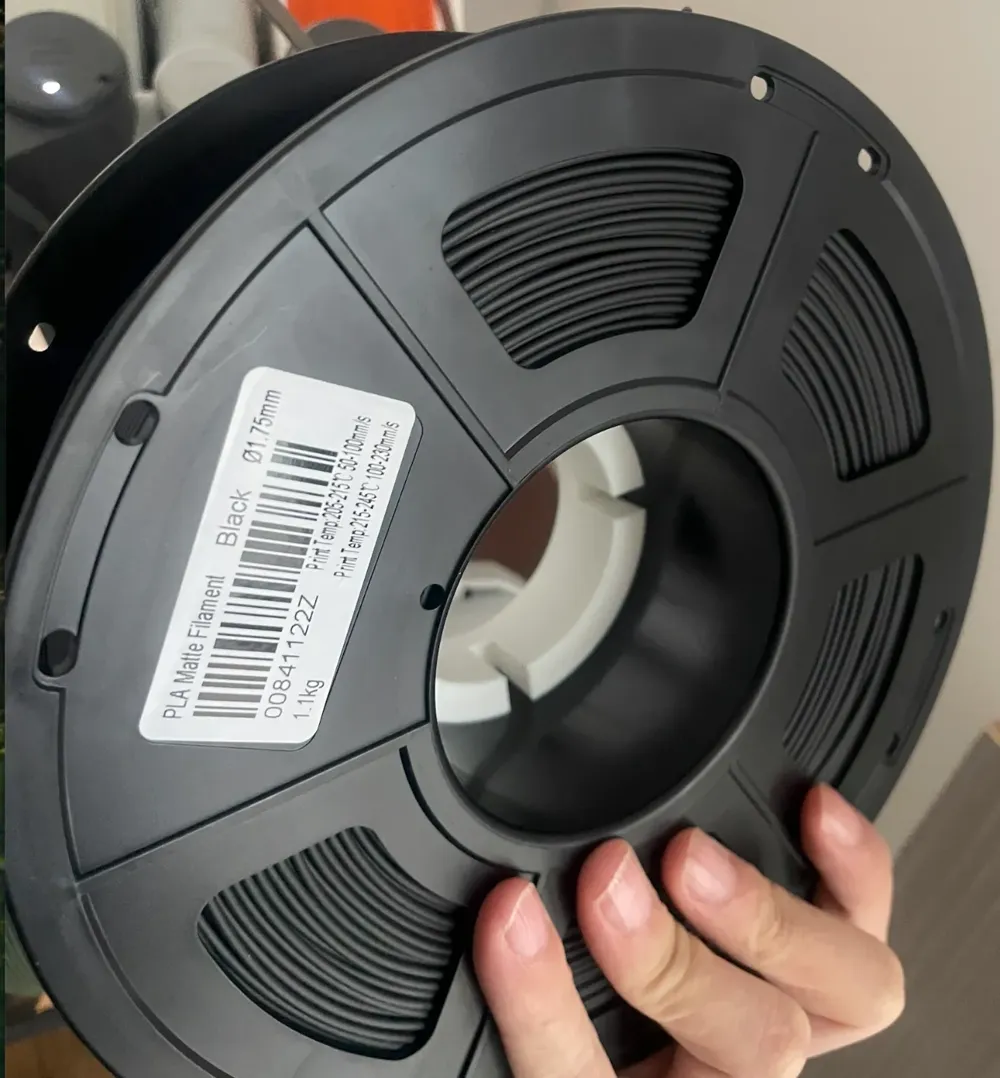

Jayo spool adapter for AMS lite ultimate material saving version, 17g filament, 39-minute print

When I found that the jayo filament was incompatible with the ams lite, I immediately searched mw

Sure enough, many masters have already shared many kinds of adaptable adapters,

But I saw that it often takes one or two hours to get started, I only have two spools of jayo filament to simply adapt, so I designed this ultimate filament-saving version.

The main difference from the existing adapter ring

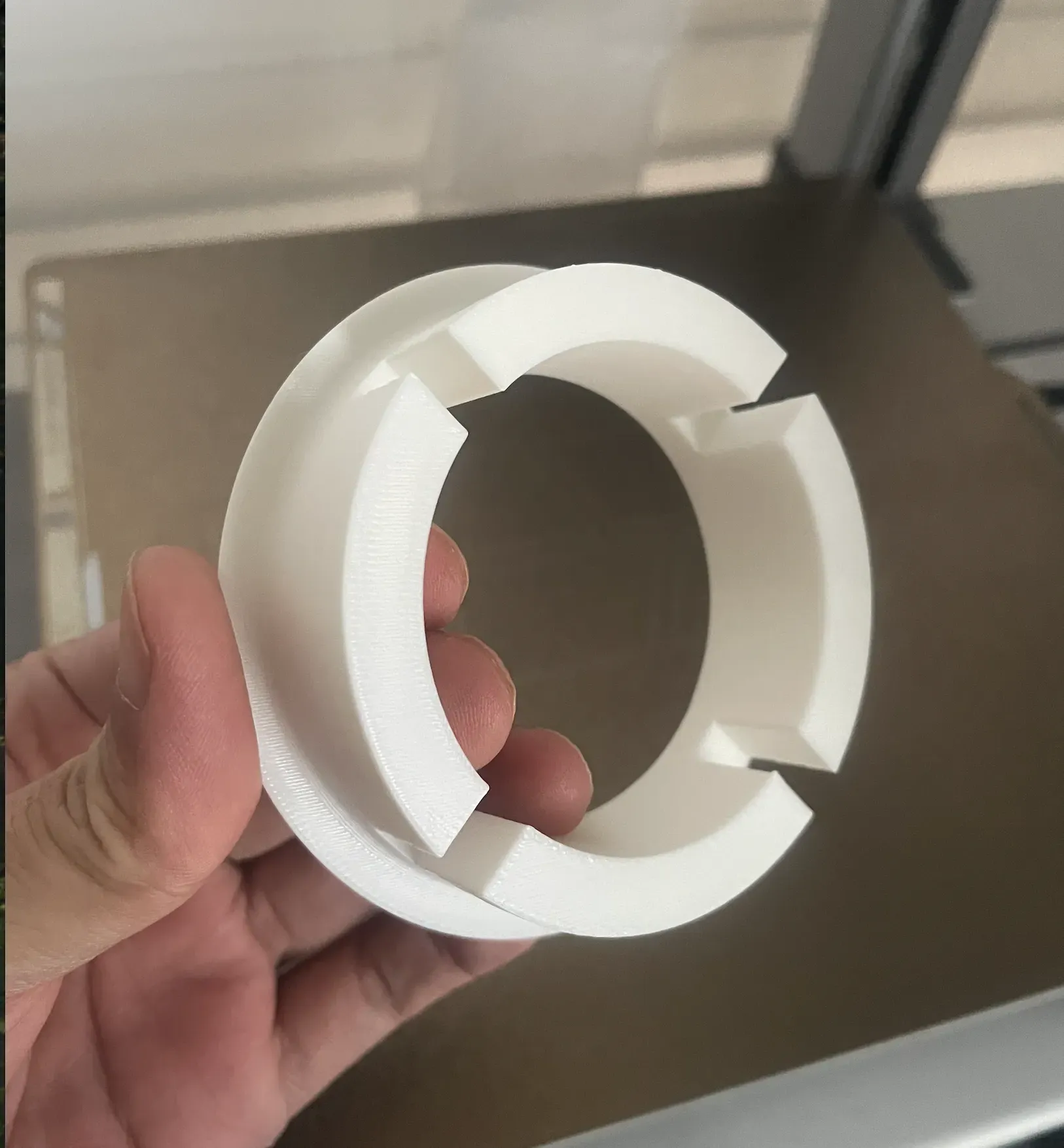

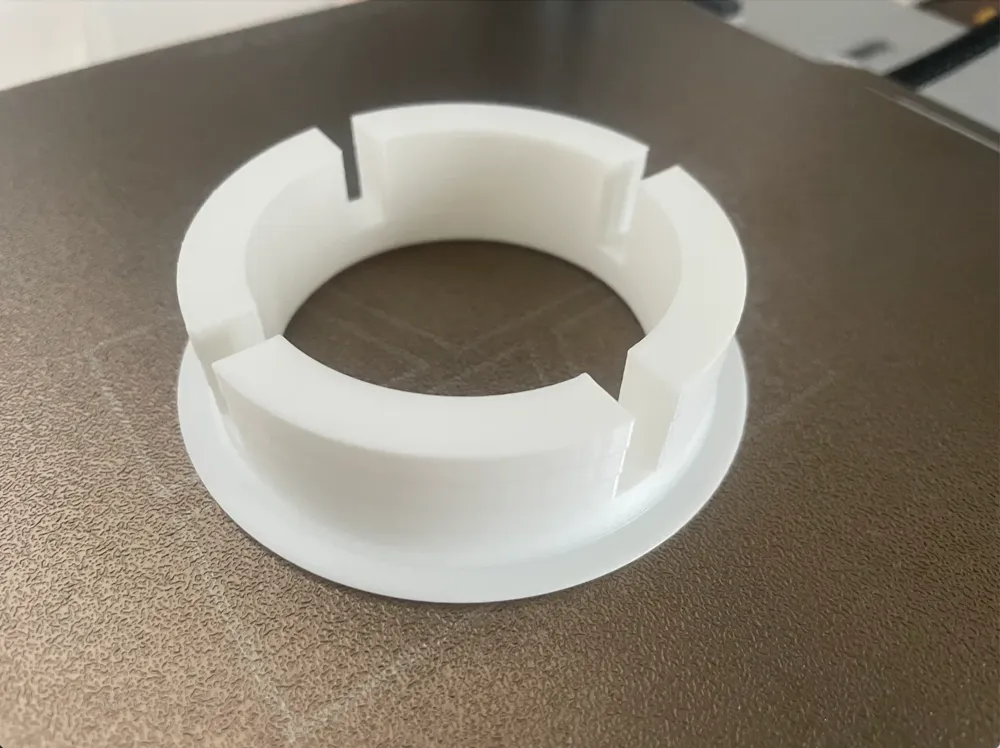

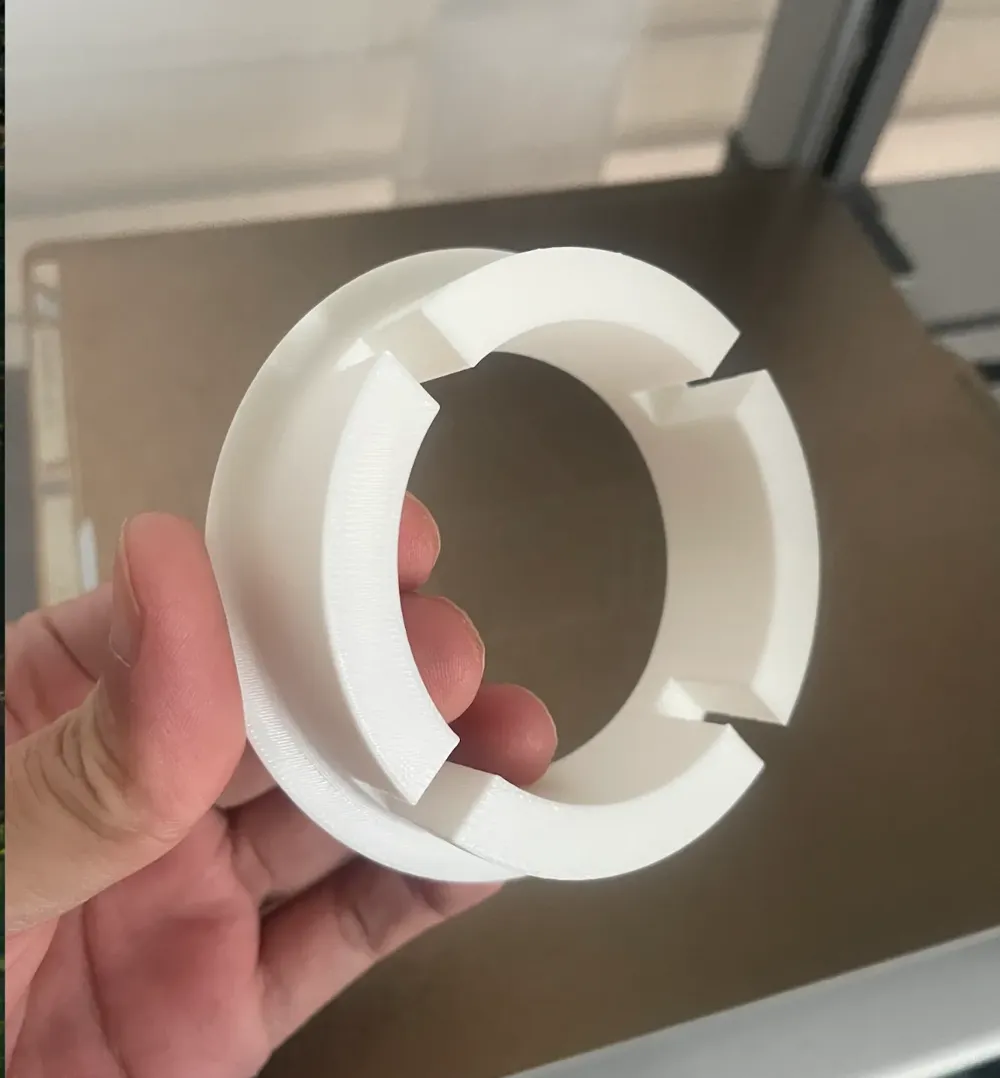

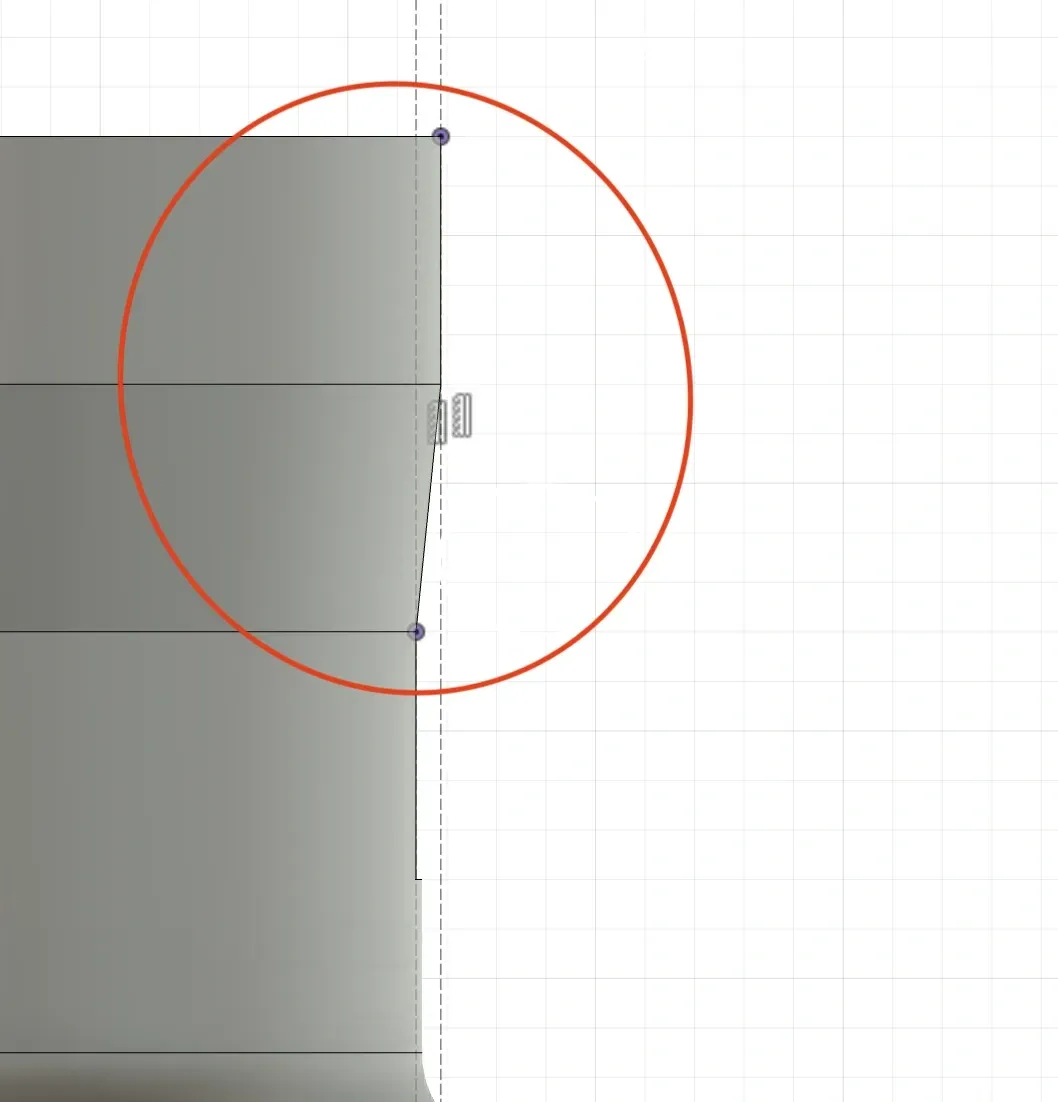

First, my version mainly uses friction to fix it, so it can be made very short and does not need to be fixed at both ends, thus achieving filament saving. Correspondingly, this scheme is slightly inferior in terms of safety and anti-drop compared to the snap-on or double-end locking scheme, but it can still work normally under normal circumstances. No need to worry too much.

==》

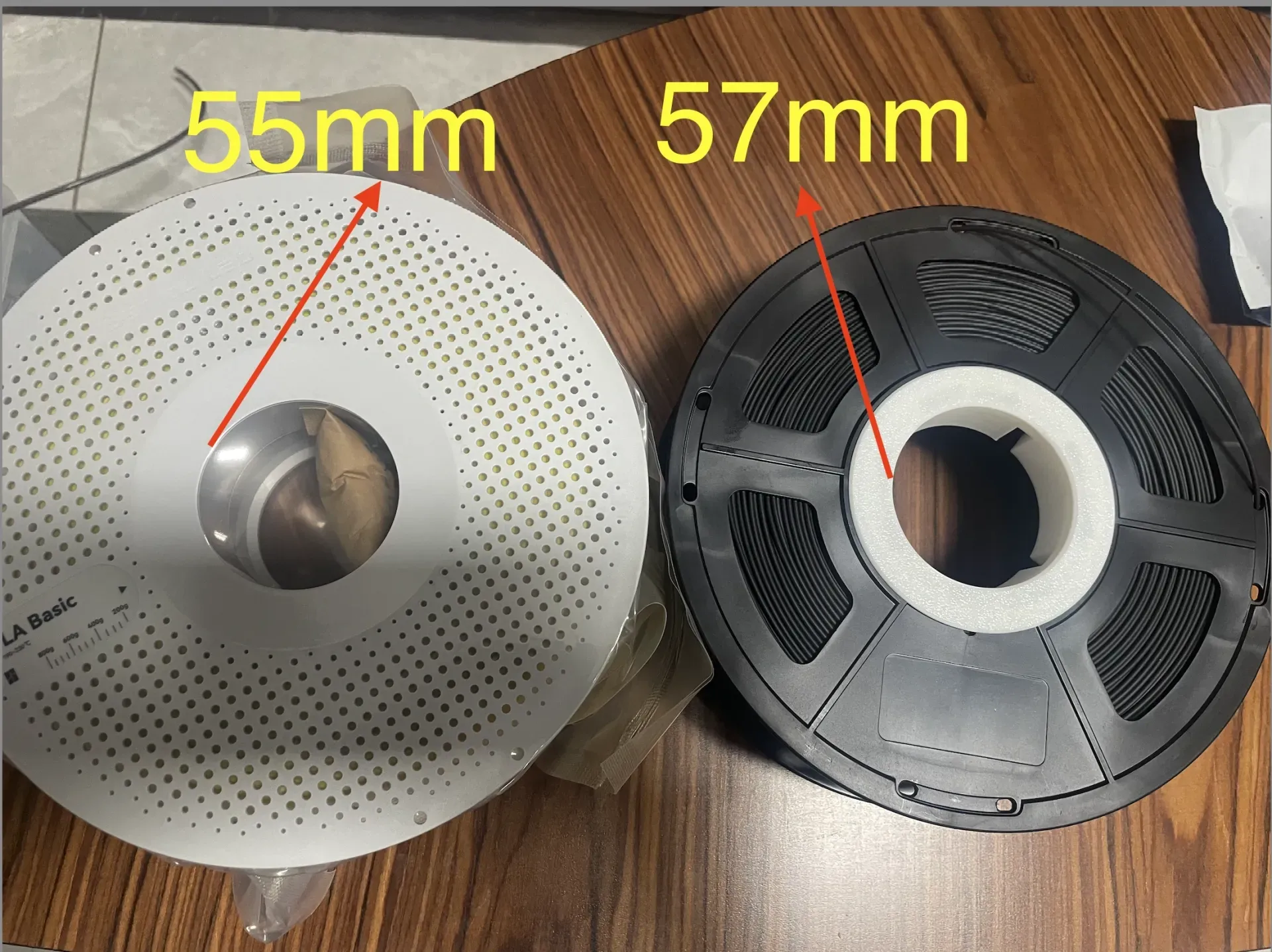

Second, the inner diameter of most adapter rings refers to the inner diameter of the original Bambu Lab filament spool, which is 55, but in actual use, I feel that the original Bambu Lab filament spool is not very convenient to remove on the ams lite, it is a little too tight, so the inner diameter of this adapter ring I designed is slightly enlarged to 57, making it easier to change spools, and the stability is not a big problem.

If you like this solution, please give me a thumbs up! Thank you very much!

A newbie, without much artistic talent, so I mainly design some "practical" gadgets. Follow me, so that next time I design something broken, you can see it. Learn together, play with 3D printing together!
