Photosensitive Stamp 10*10 Nine-Grid - Cat Ear Version

Introducing the Nine-Grid Cat Ear Edition!

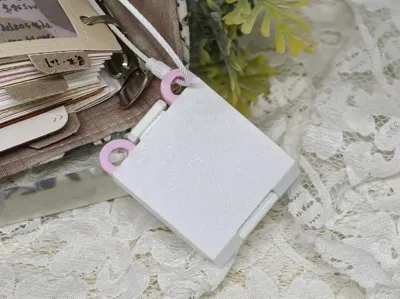

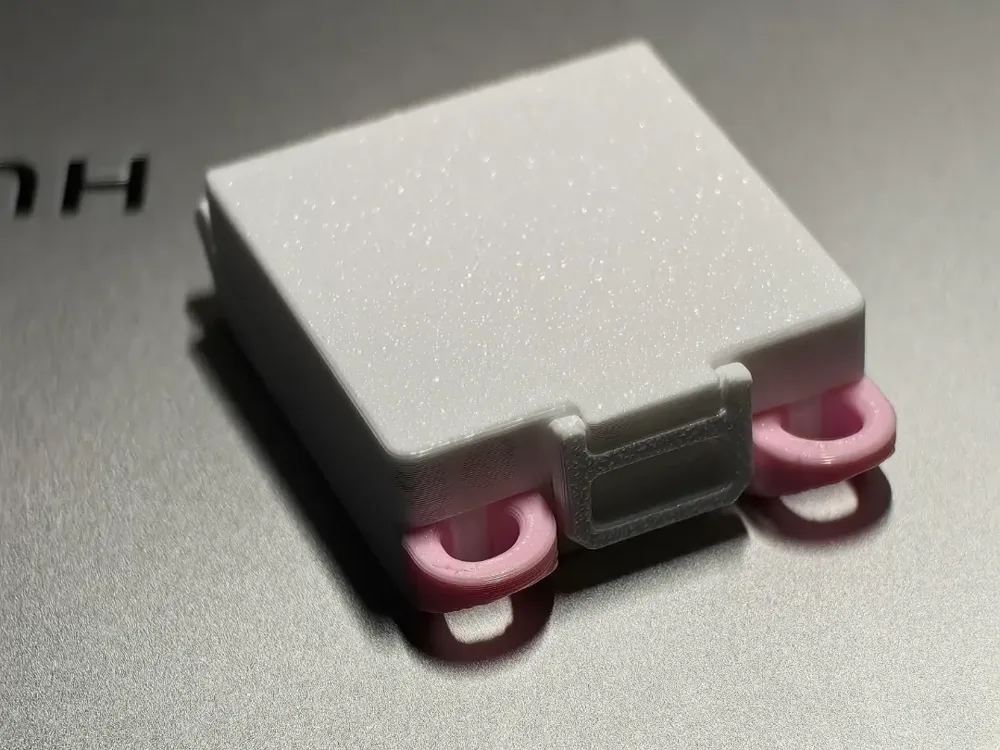

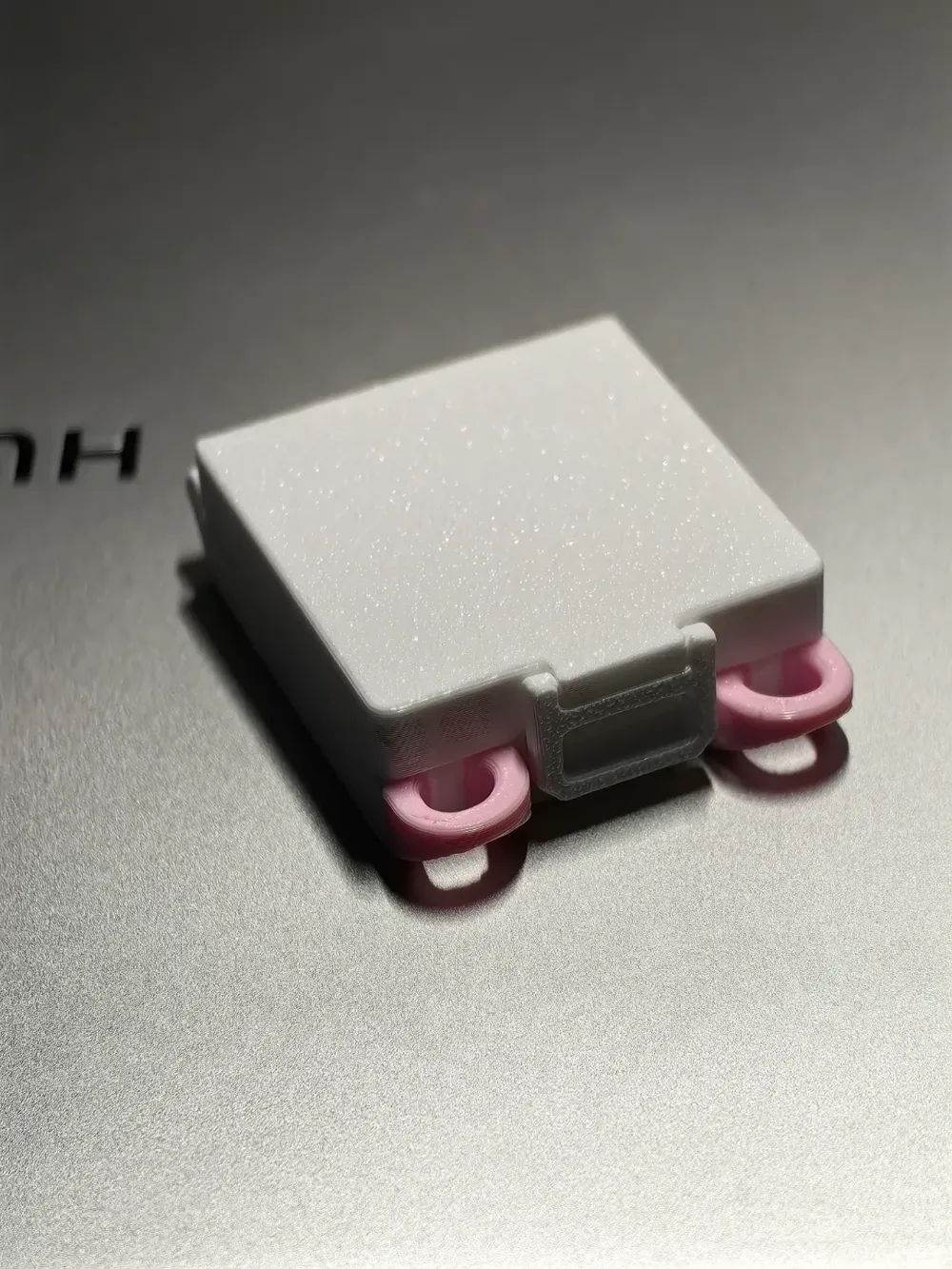

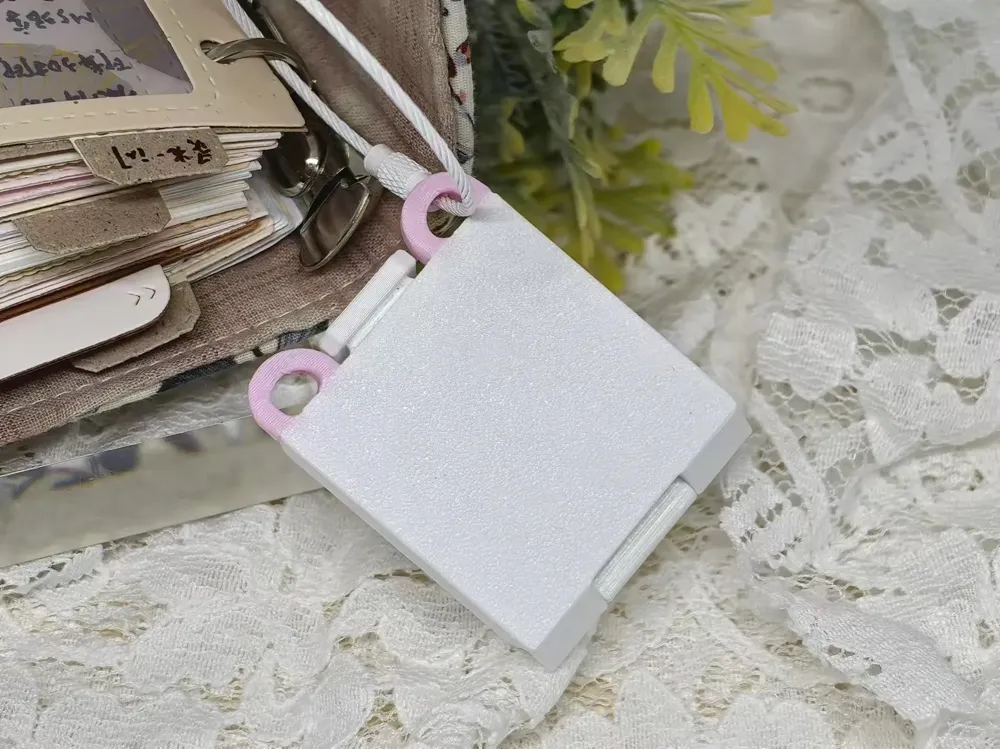

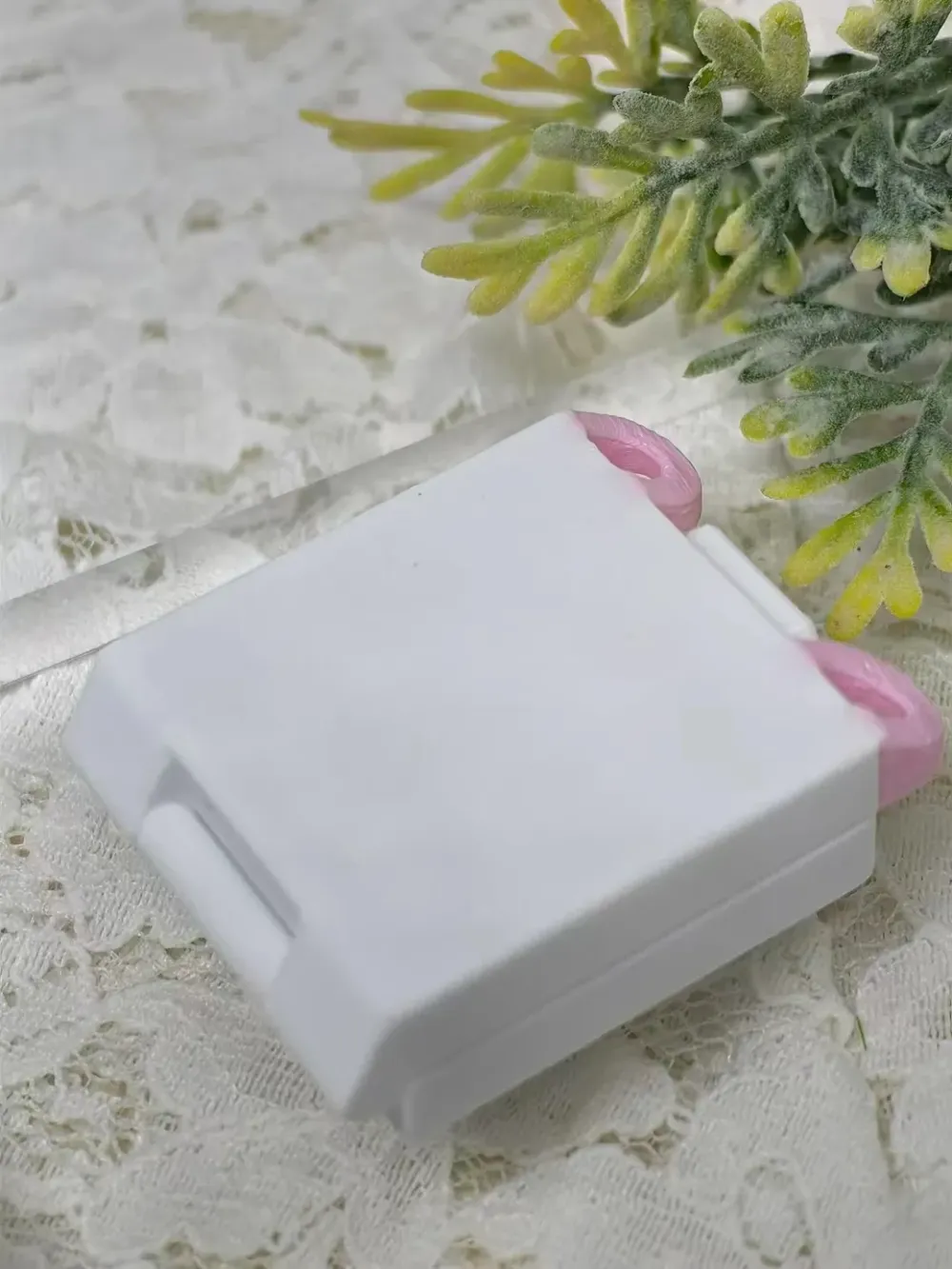

This model is a nine-grid storage case for 10x10 mini stamps, designed for photopolymer stamp machines. This version retains the hinged opening of the suitcase edition while adding two hanging loops (cat ears). These side loops further protect the clasp, preventing accidental opening in bags.

After this adjustment, the uploaded configuration files still consist of four parts: the base, the lid, and the clasp are grouped (disassembling is not recommended) and can be printed as a single unit.

The uploaded configuration files include one for monochrome printing and another for a version with colored cat ears. Please download as needed.

The model's usage is consistent with the suitcase edition:

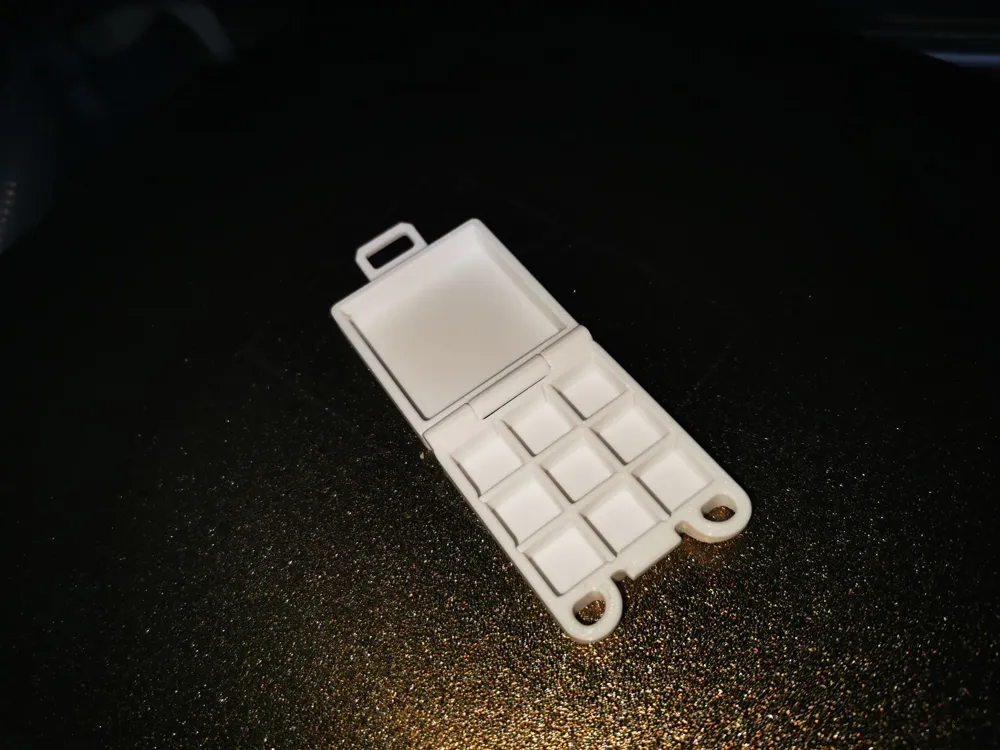

The model, printed using the configuration files, comprises two parts: the case and the dividers.

After printing the model, it is recommended to allow it to cool slightly before inverting the connecting parts of the case.

For use, cut a 35x35mm sheet of tracing paper and place it on the side of the case with the slots to prevent ink smudging. Then insert the dividers and press them against the tracing paper.

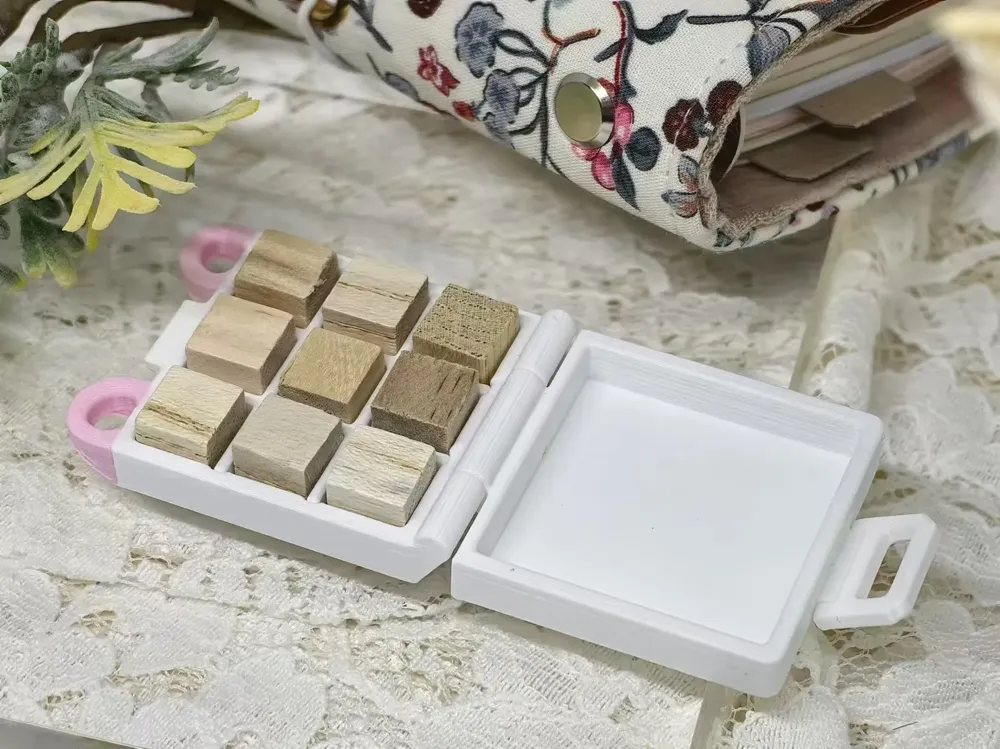

The small stamp handle shown in the image is a 10x10x10mm small wooden block. You can also add a 10mm cube directly in your slicing software; the handle is not included in the model files.

2024/12/11 Update:

The clasp length of the cat ear version of the nine-grid has been adjusted, and chamfers have been added to the clasp for easier opening and closing. Both configuration files have been updated; we apologize for any inconvenience.
