Handheld Lithophane Frame (Can be used as an emergency light)

The frame accommodates lithophanes (backlit images) measuring 125±0.5mm x 161±0.5mm with a thickness of 3.2 ± 0.2mm
The showcased image references 《Luce 同人》 https://makerworld.com.cn/zh/models/718363#profileId-673610

Due to the integrated light panel, this model requires precise tolerances. Pre-print calibration of filament shrinkage is strongly recommended.
Refer to the model《Filament Shrinkage Calibration Model》 https://makerworld.com.cn/zh/models/698657#profileId-648905

Required Accessories:

• Bambulab Backlight 1.75mm: Quantity 1
• M3 x 5mm Screws: Quantity 4 ~ 6

Important Considerations

1. As the frame is highly susceptible to warping, enclosure printing is recommended

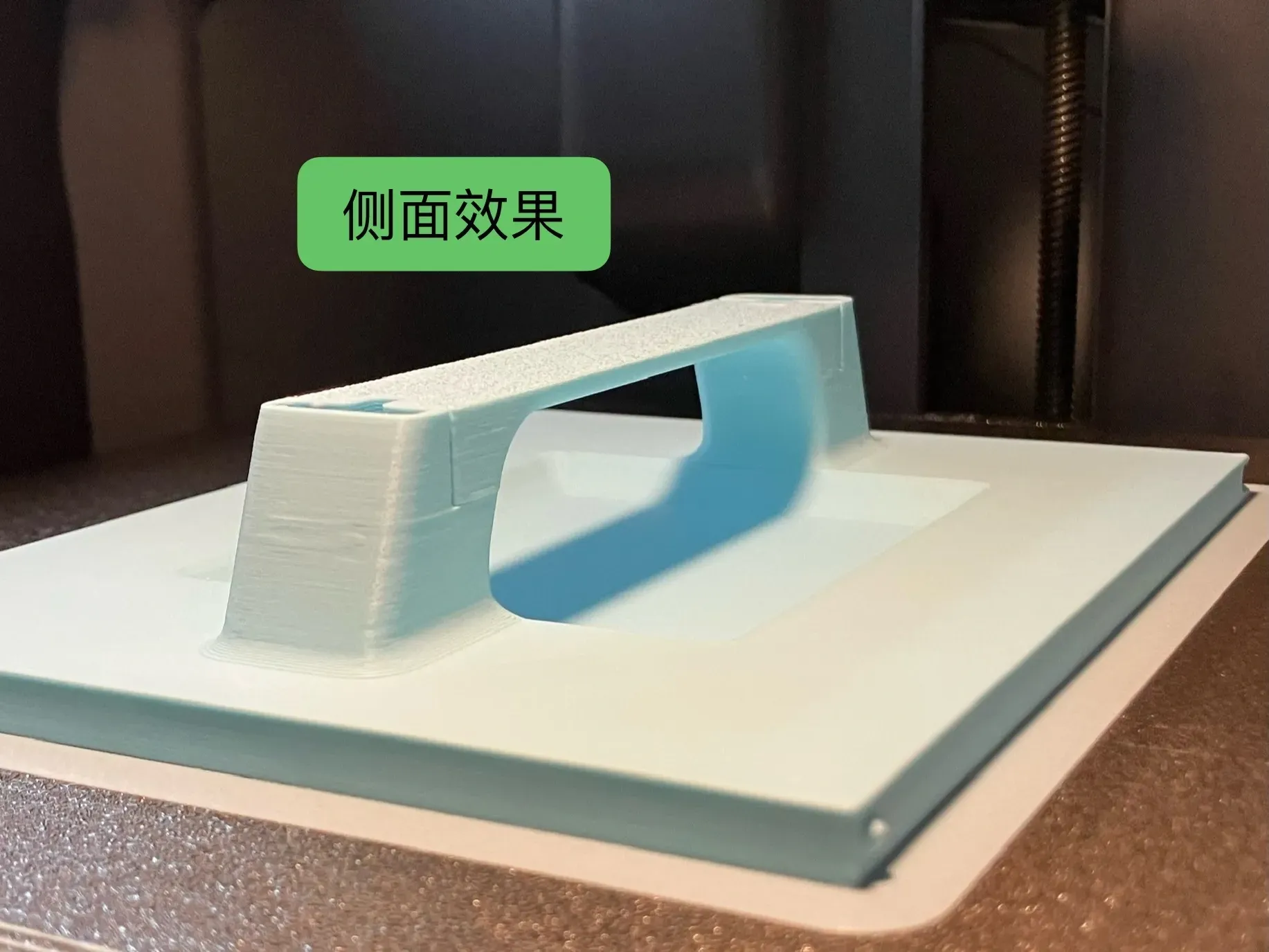

2. Print the handle (first plate) before the back plate
3. The back plate offers selectable USB port orientations: top opening and bottom opening versions

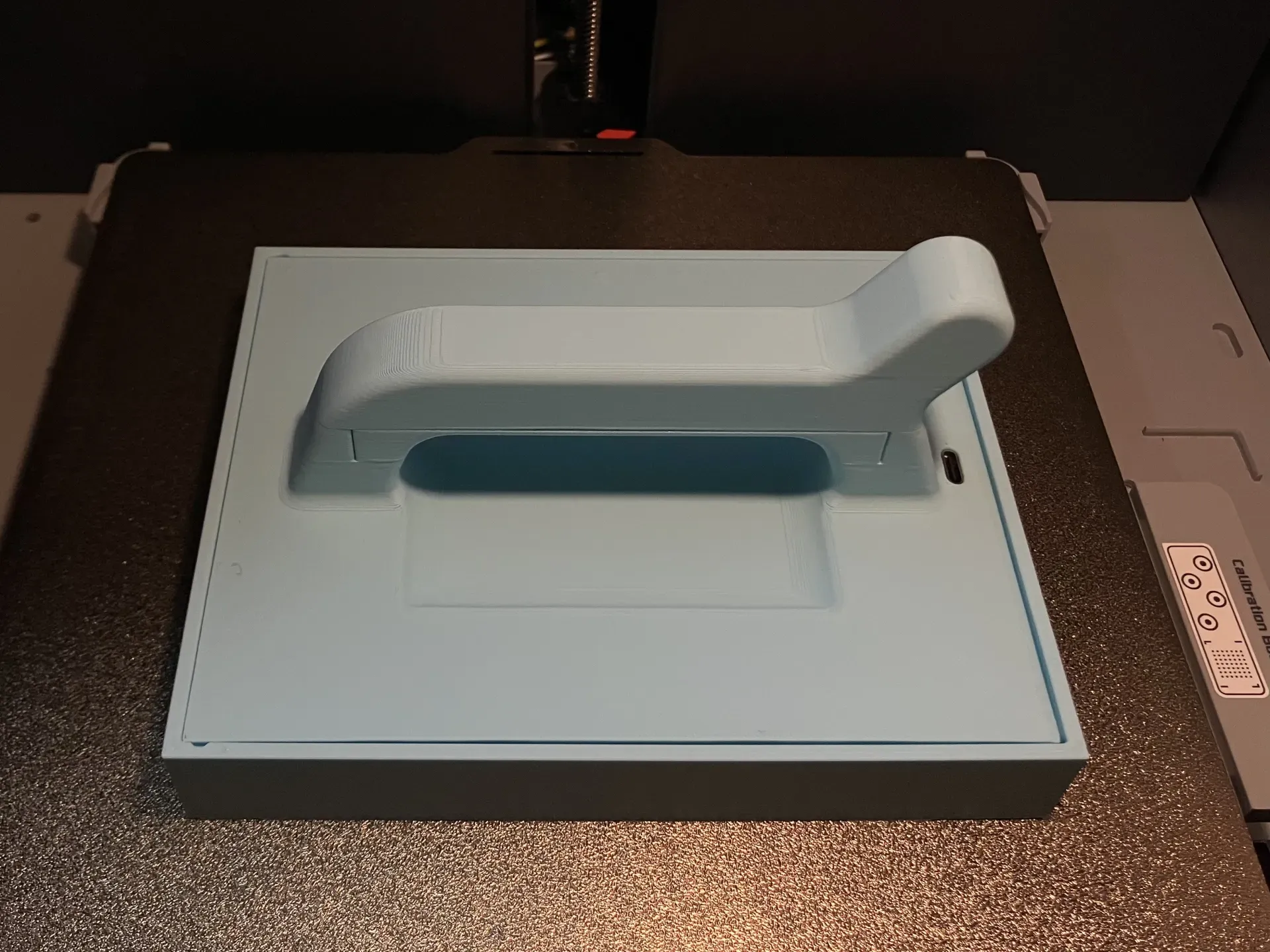

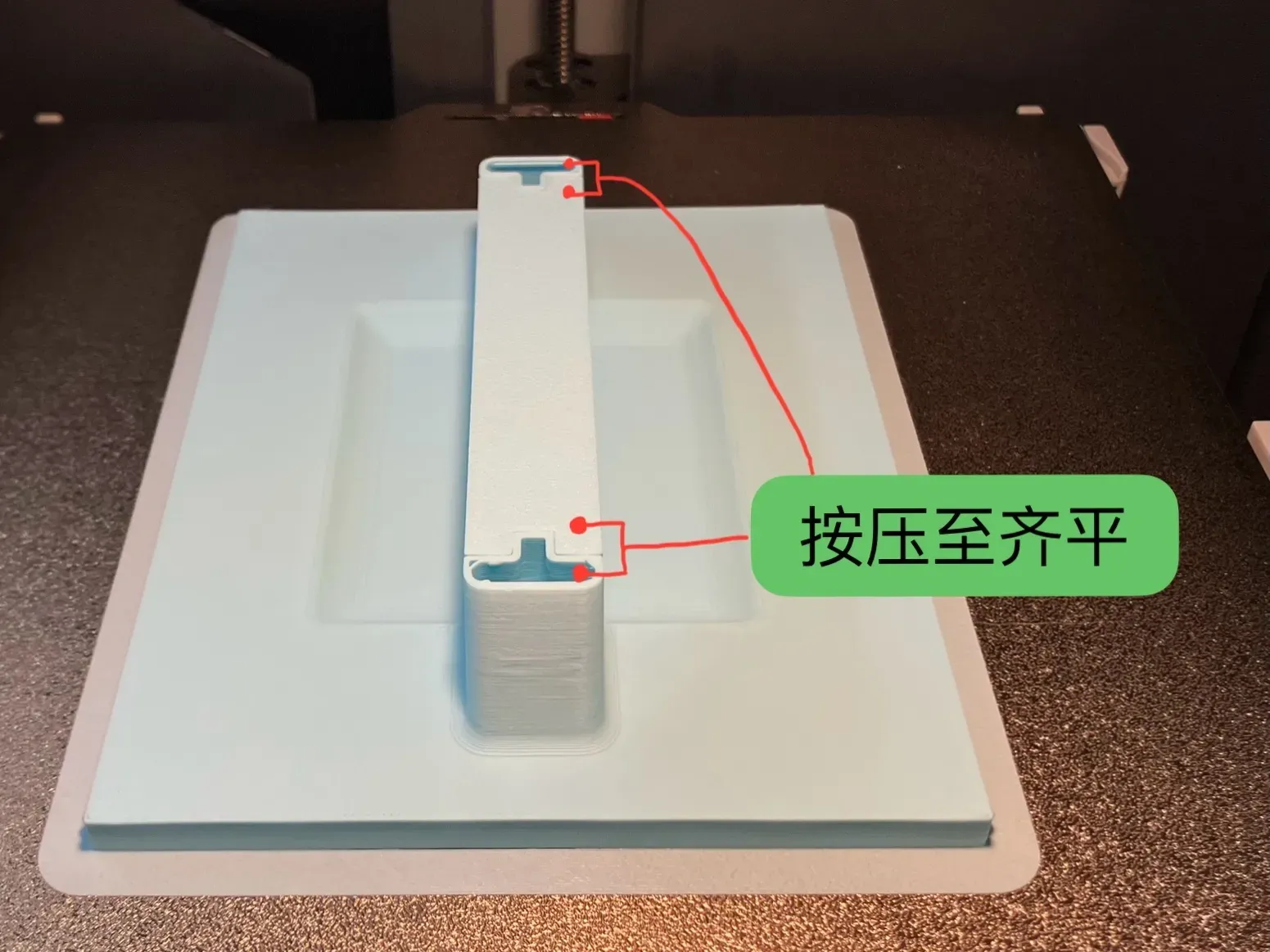

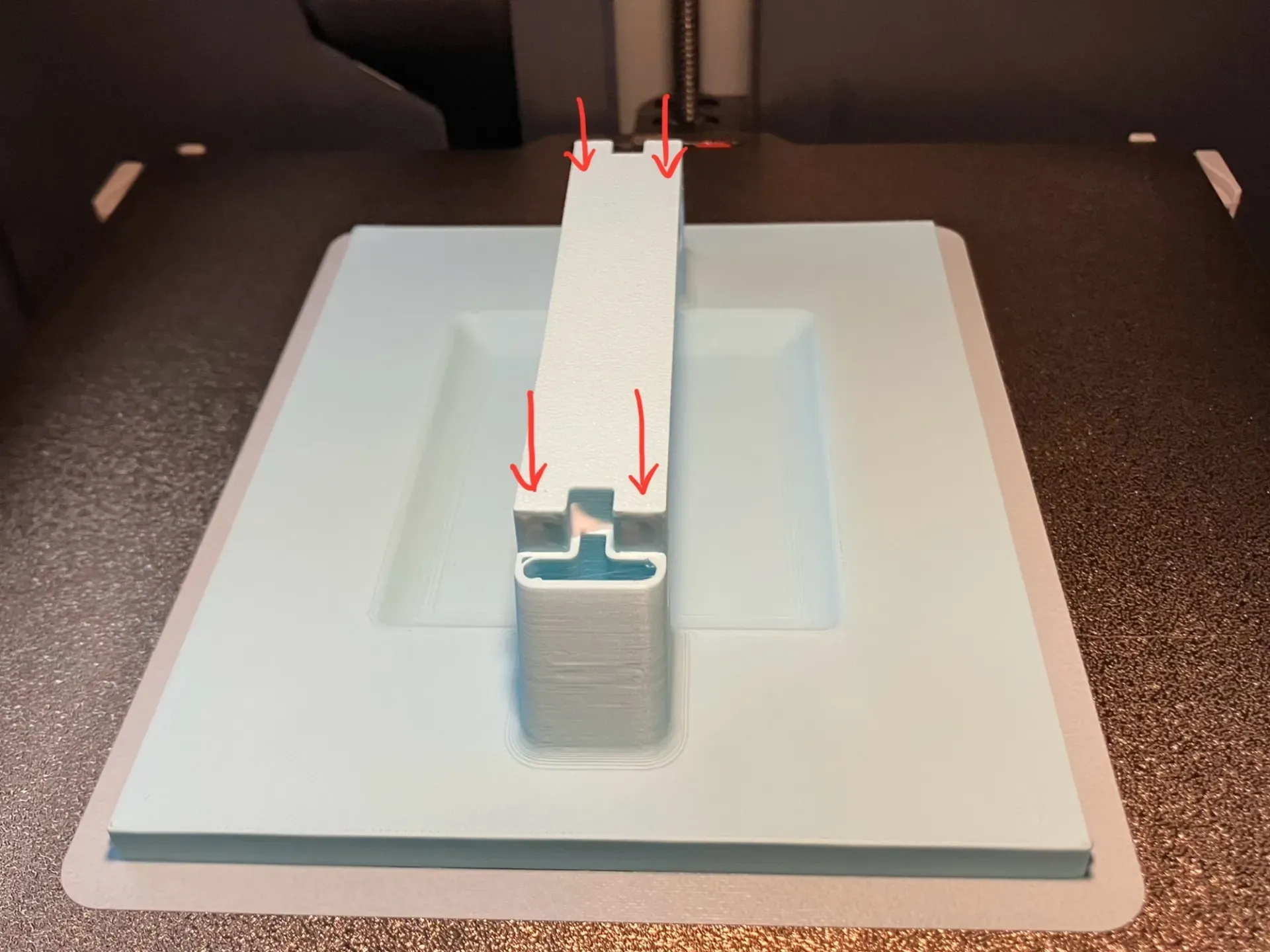

When printing the back plate, after the automatic pause, install the handle as shown below and securely fasten

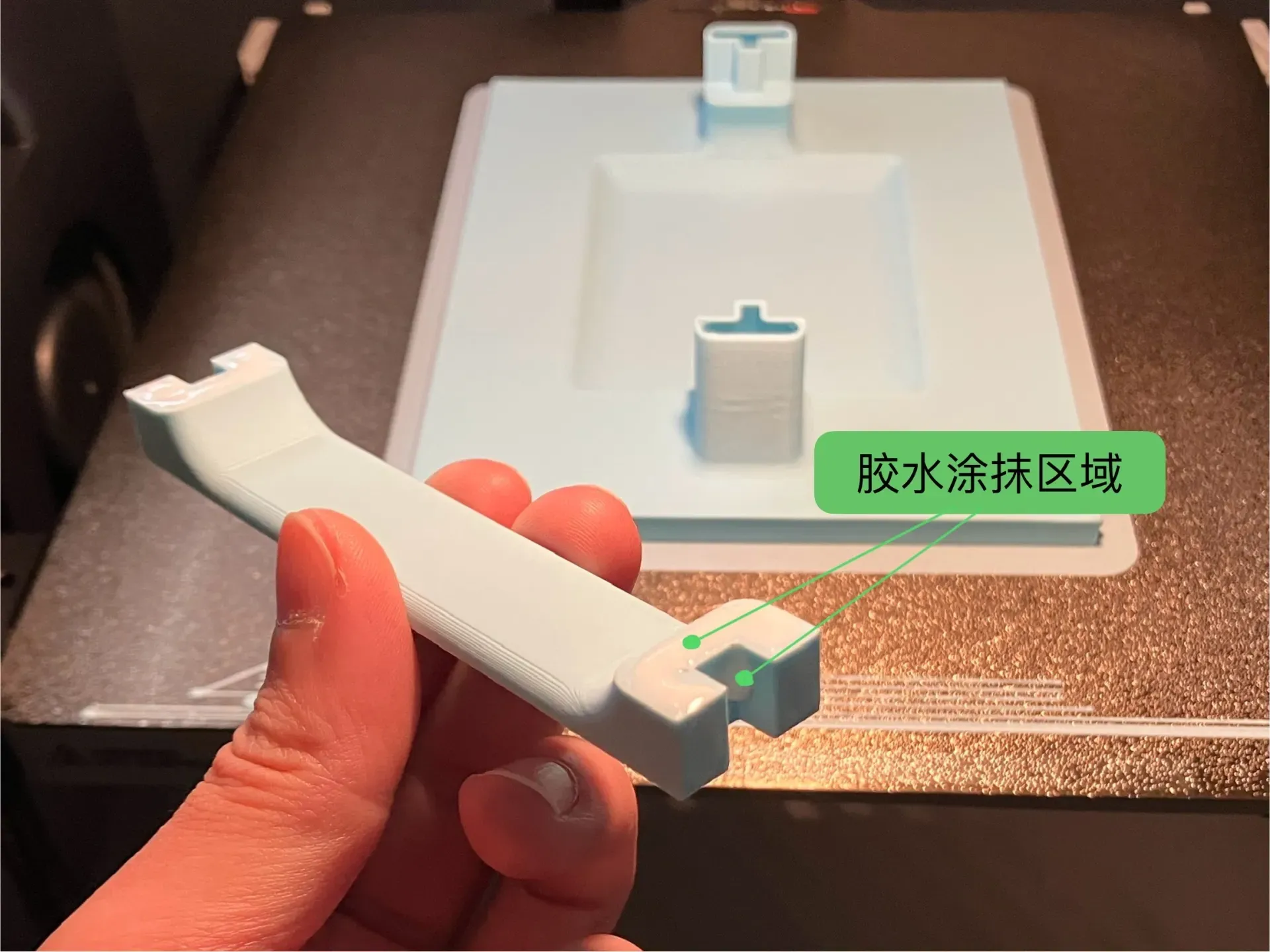

For enhanced strength, apply adhesive to the indicated areas

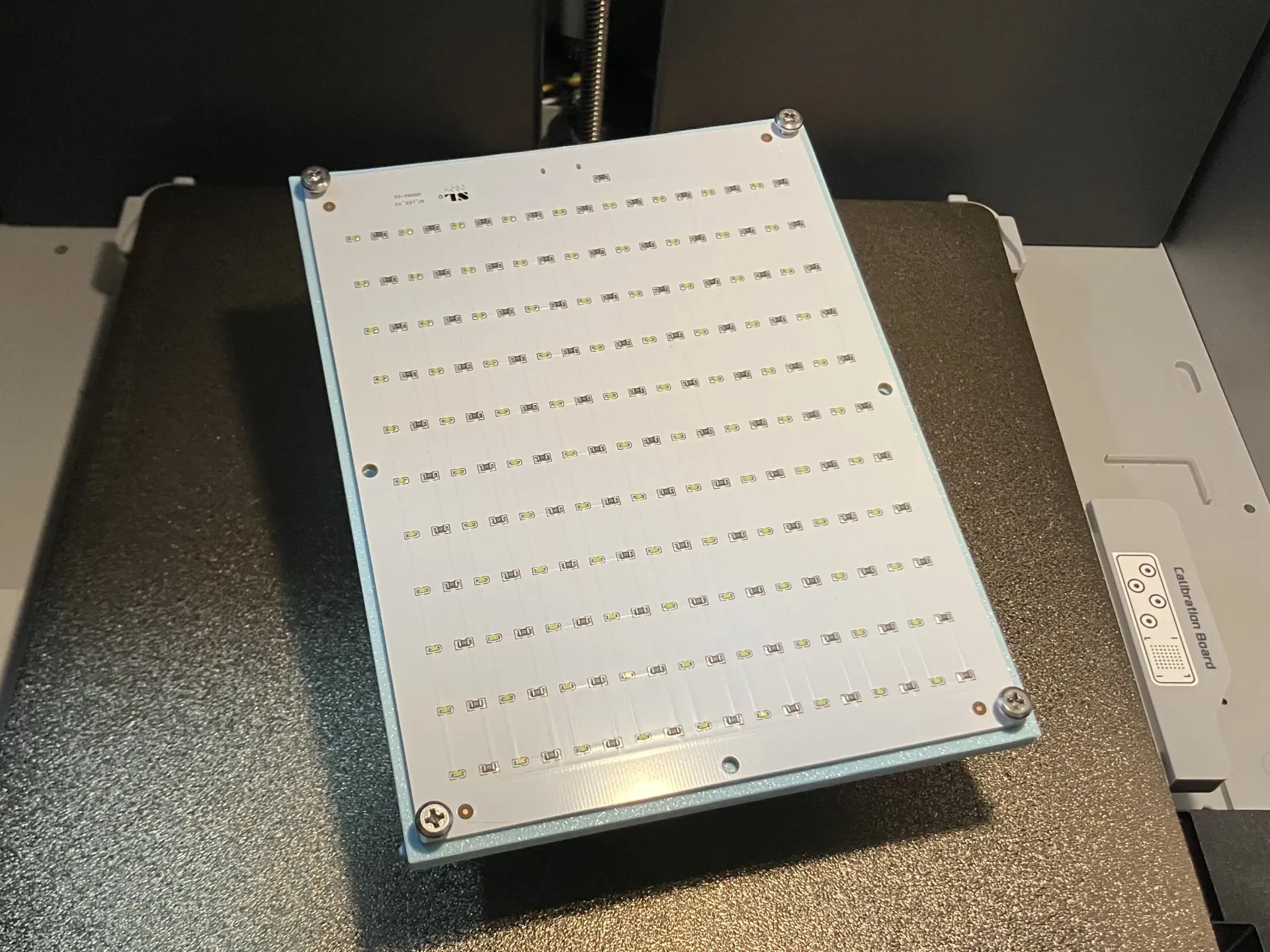

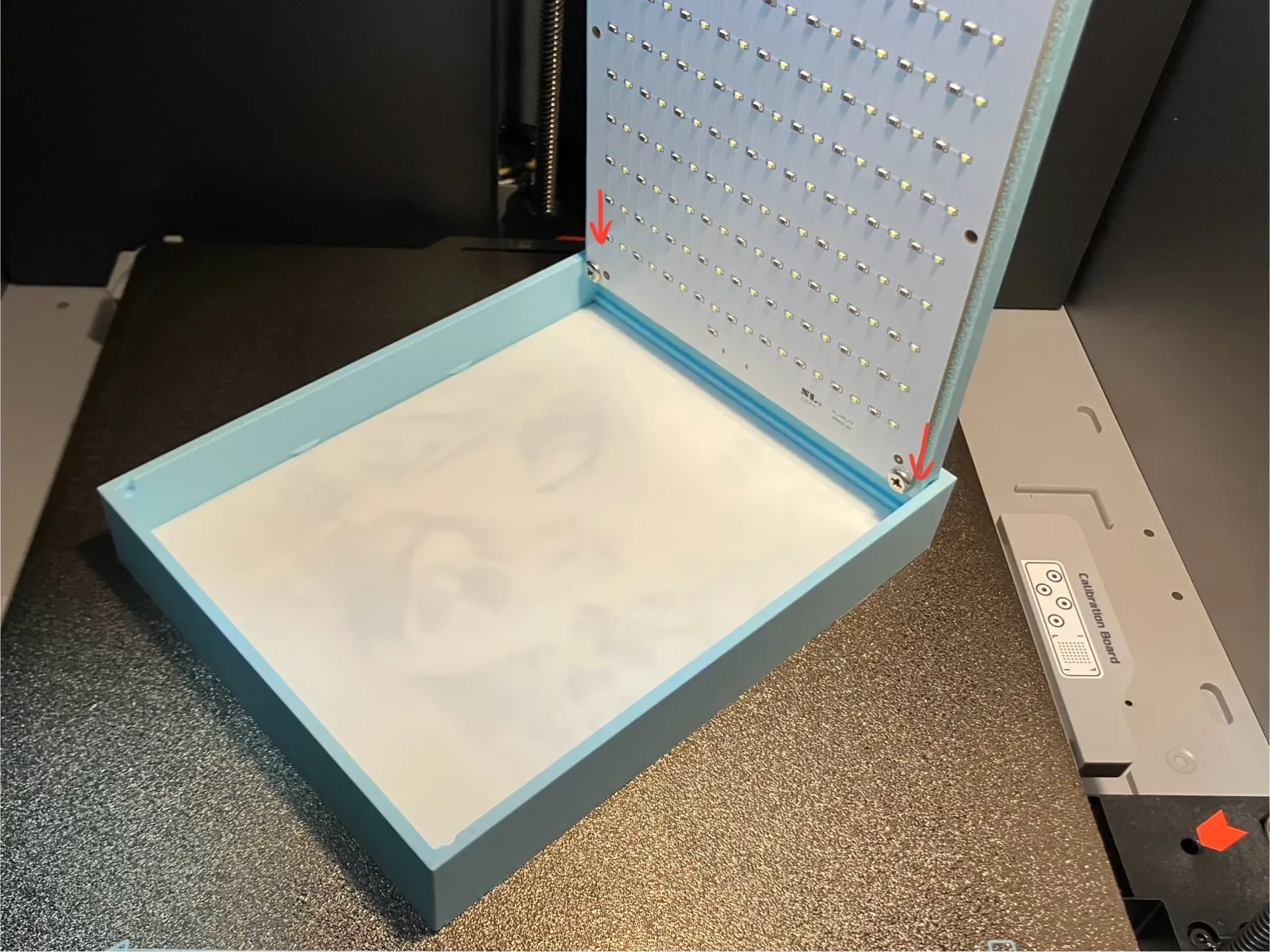

Assembly showcase, light panel installation

Attaching the back plate to the frame clips

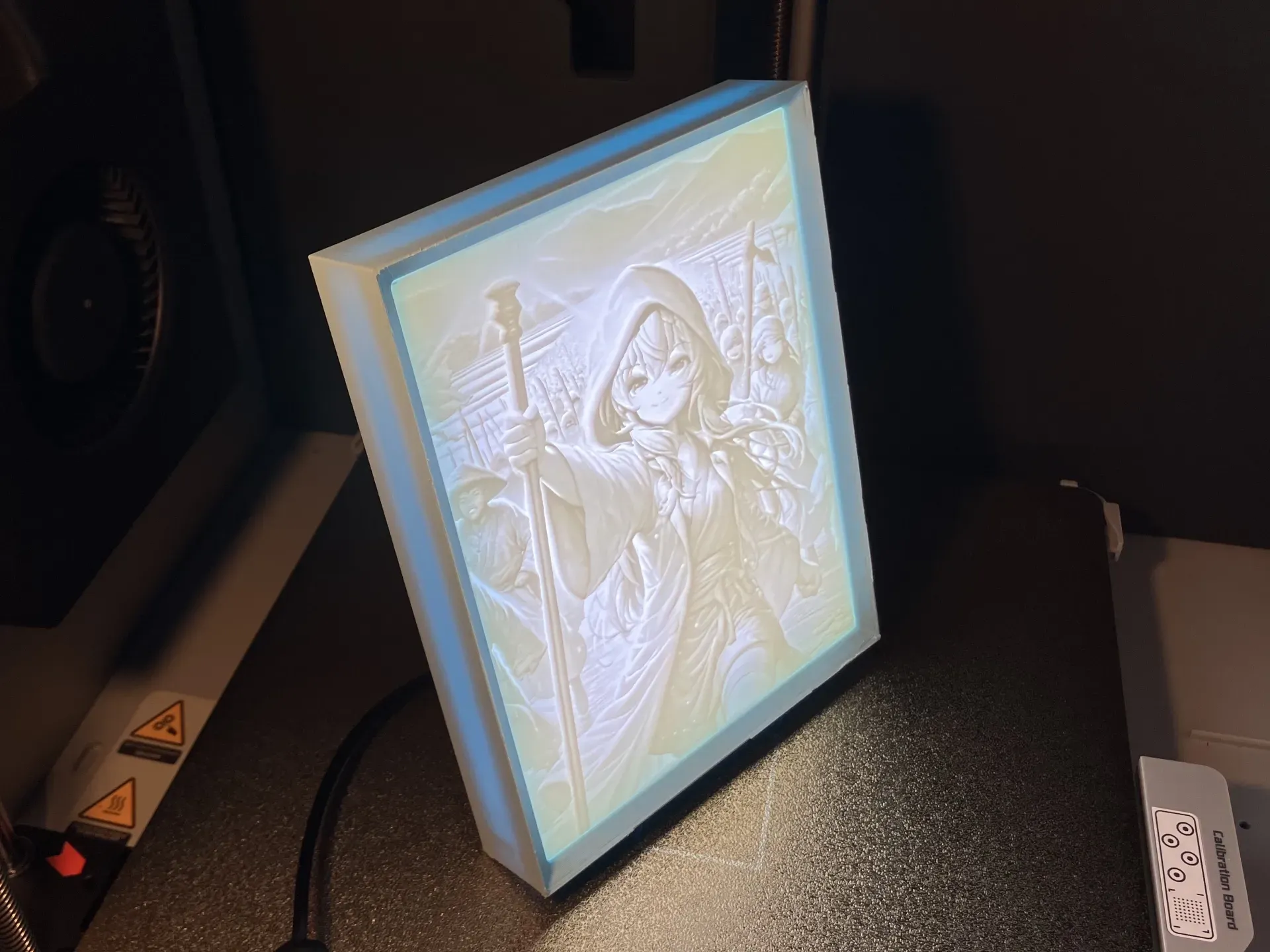

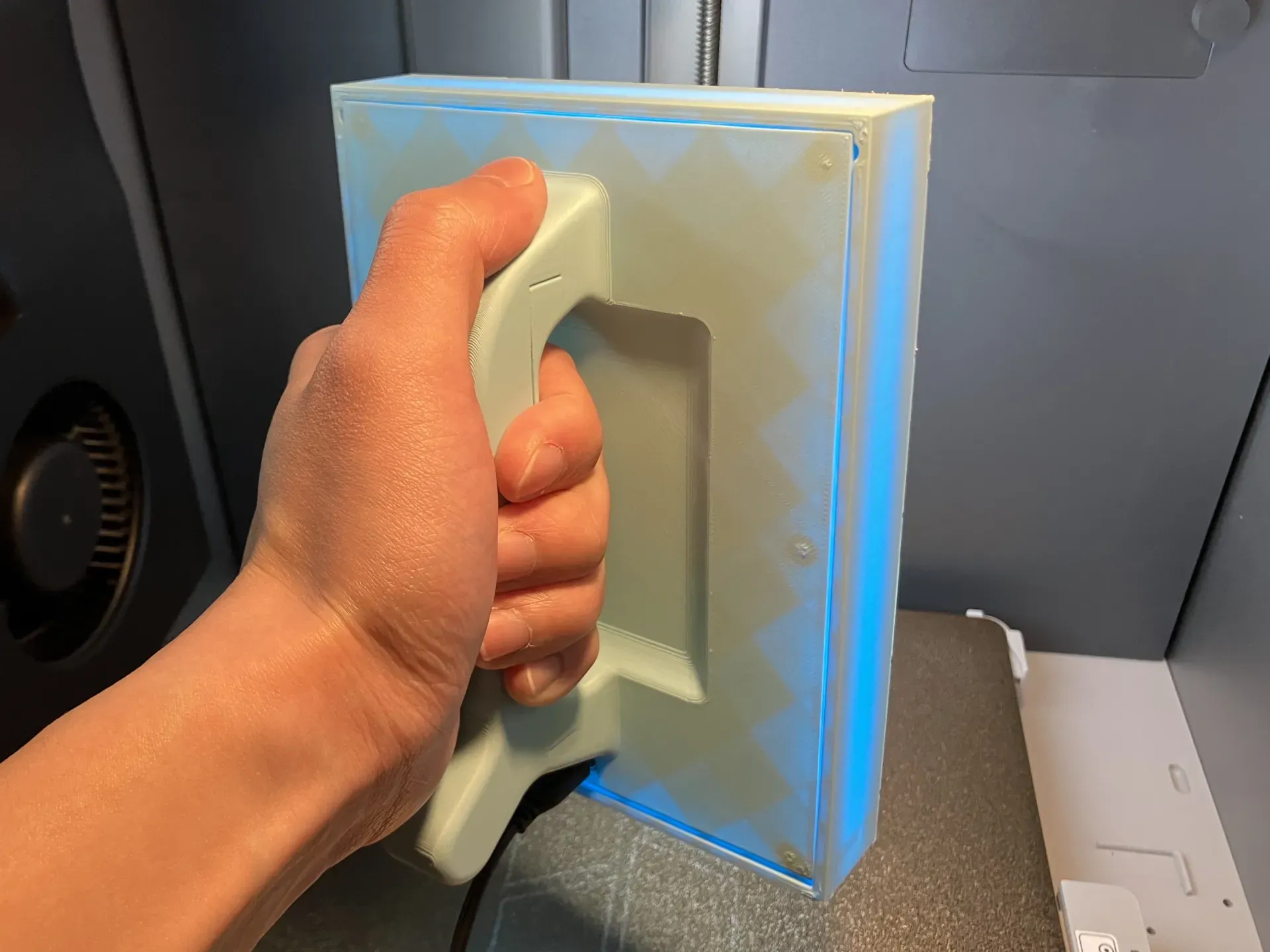

Closed back plate, finished product

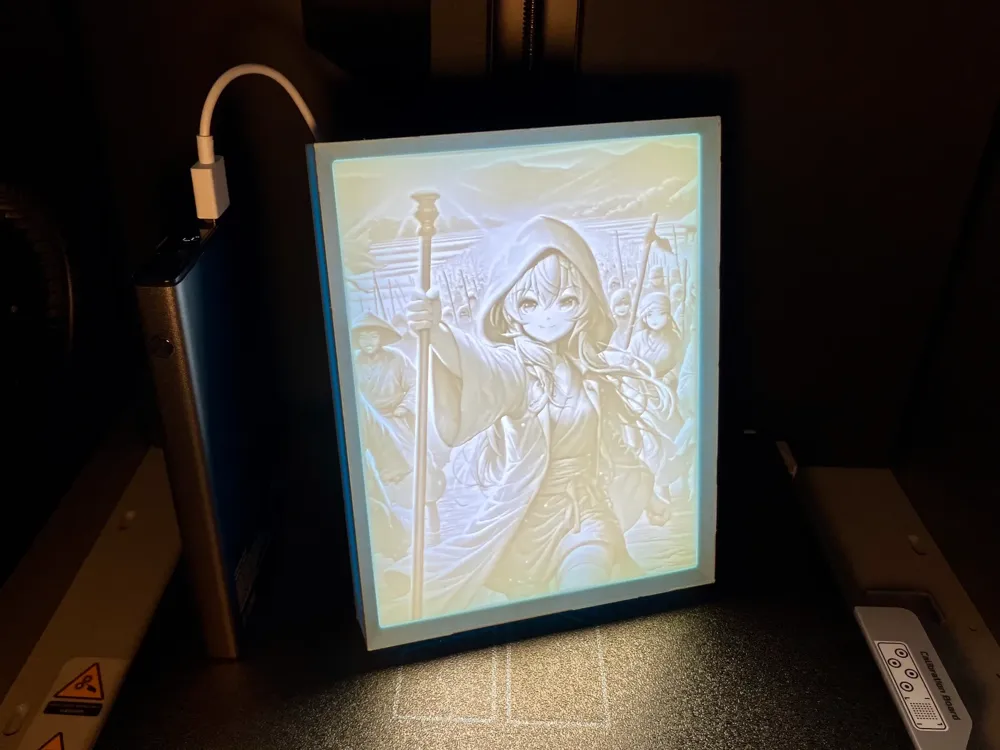

Lights on!! Luce's sacred light protects
