FR7 7-inch Cinewhoop Frame V2

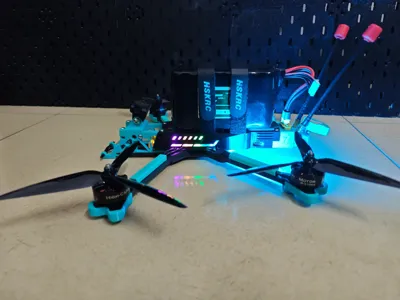

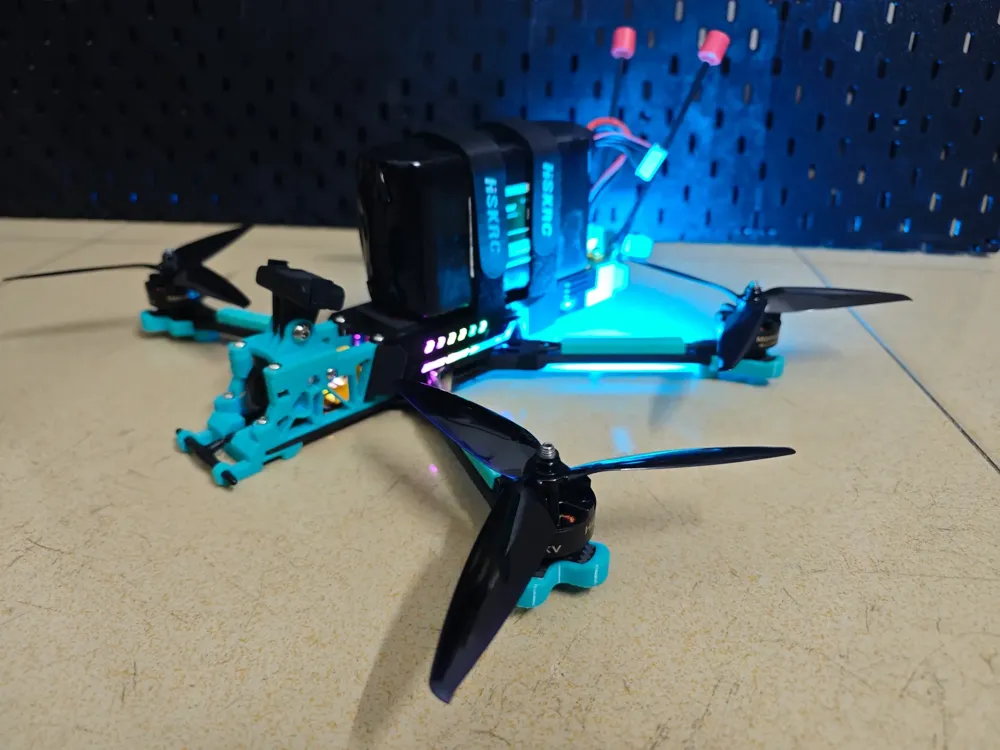

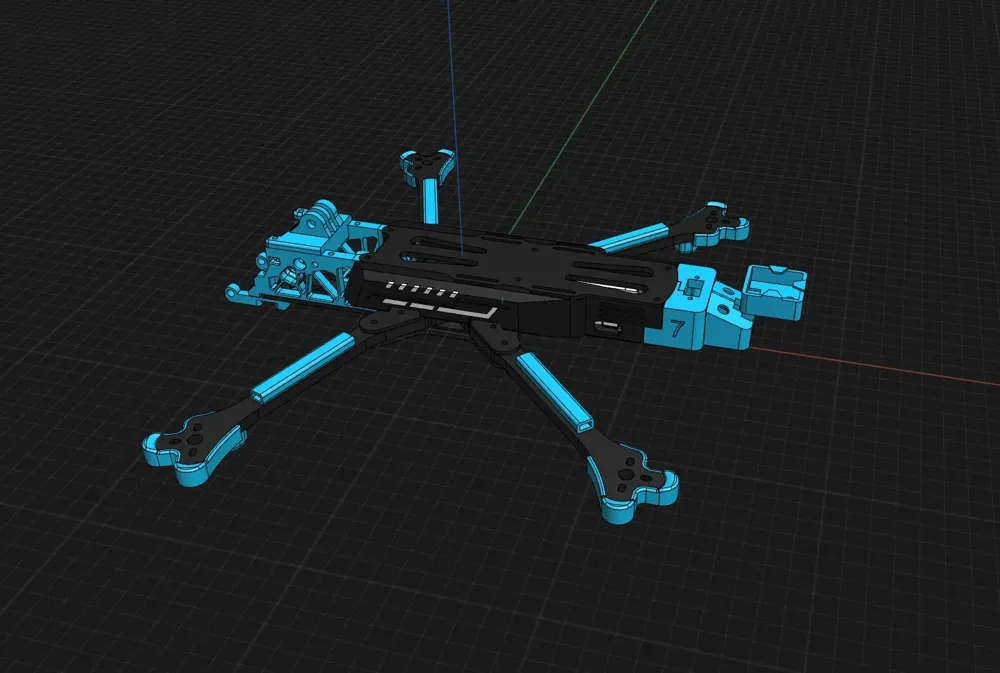

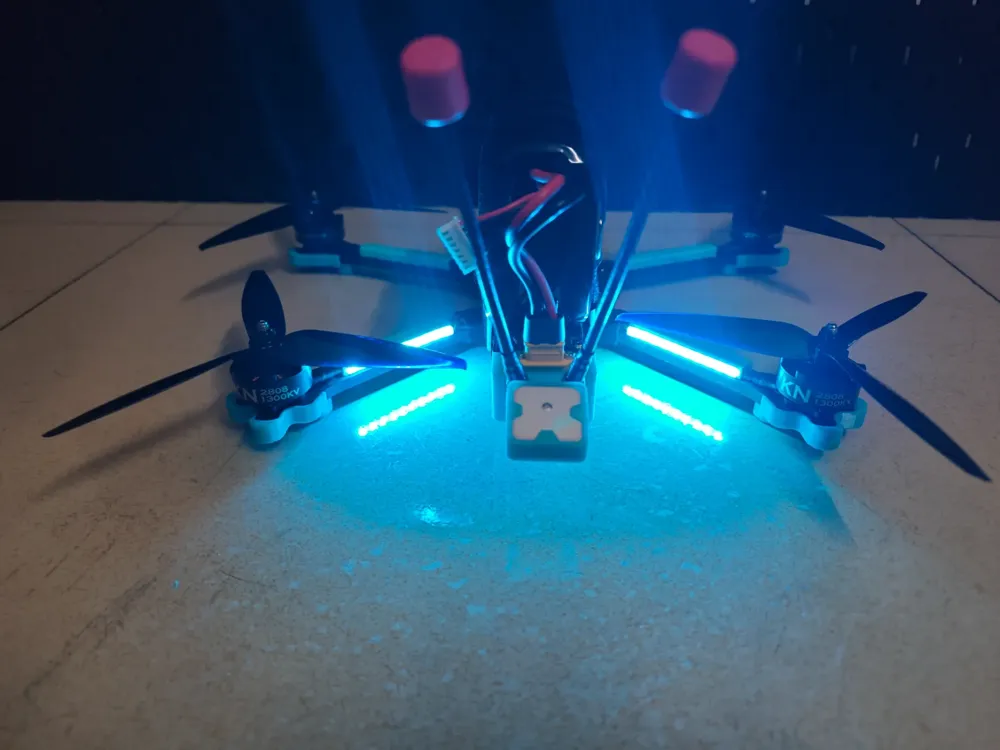

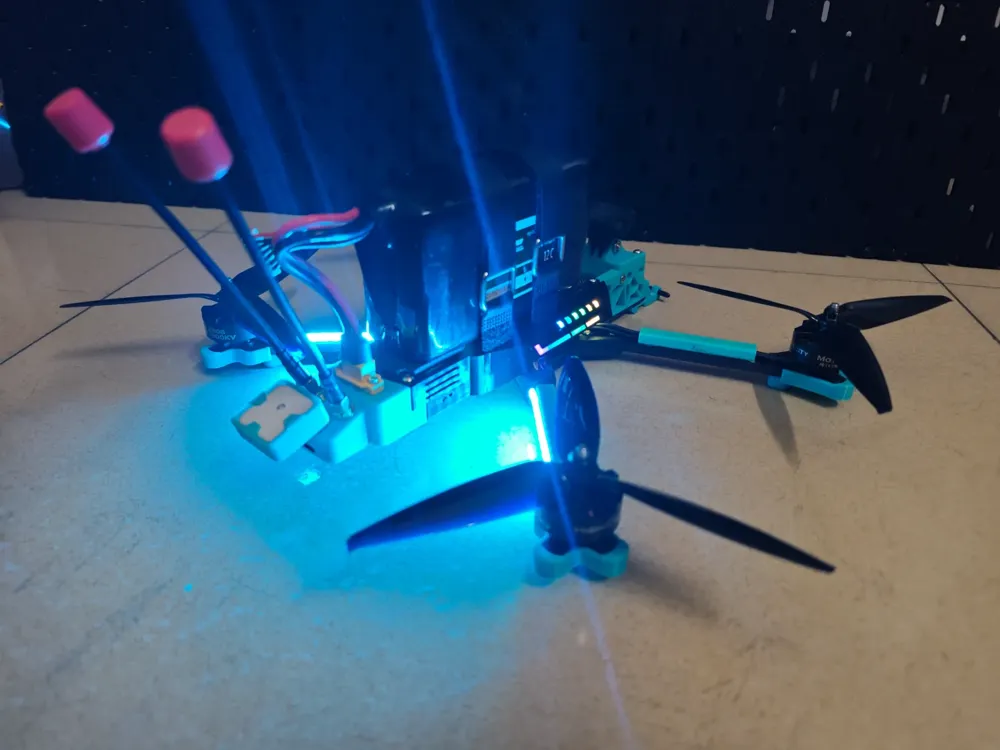

The side panel light strips have been redesigned with added transparent printed parts for more uniform and gentle light diffusion; the rear arm light strip is directly adhered and lacks a printed part design. The printed parts are redesigned based on the original FR7 v5, primarily using O3 transmission, but adaptable to various transmission systems. Camera mounting spacing requires customization. Side panels have been added, accommodating 5mm-wide light strips. A Type-C tuning port and a fixed XT60E-M connector have been incorporated at the rear. Step files are included for convenient modification.

1、M3 x 10mm aluminum standoffs (5mm outer diameter) x 2

2、M3 x 20mm aluminum standoffs (5mm outer diameter) x 4

3、M3 x 28mm aluminum standoffs (5mm outer diameter) x 3

4、M3 embedded step nuts x 9

5、Various lengths of M3 screws
