Button Cell Battery Multicolor LED Light
Print Profile(1)
Description
Multicolor LED Button Cell Light
Dimensions: 15*14*7mm

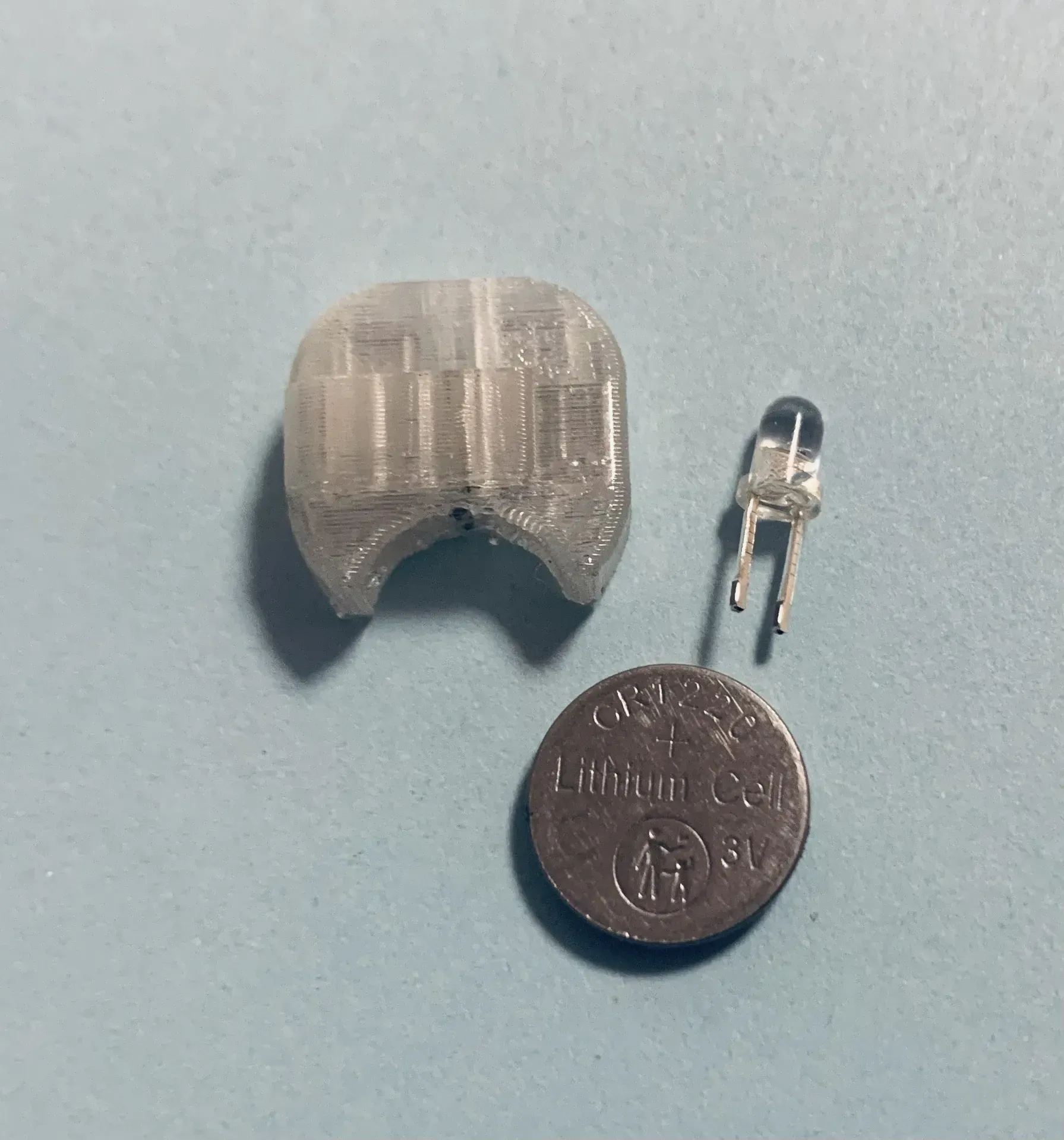

Components: CR1220 button cell battery (2 yuan for 10, including shipping), 3MM multicolor LED (1 yuan for 10, including shipping).

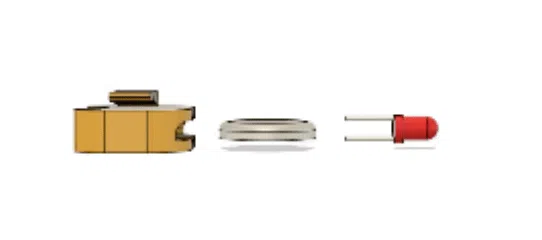

Assembly Instructions: First insert the button cell battery, negative terminal facing the clasp. Trim the LED leads to approximately 6mm in length; the lead with the notch is the negative terminal, insert it with the notch facing the clasp. A secure press-fit assembly is employed due to the absence of screws.

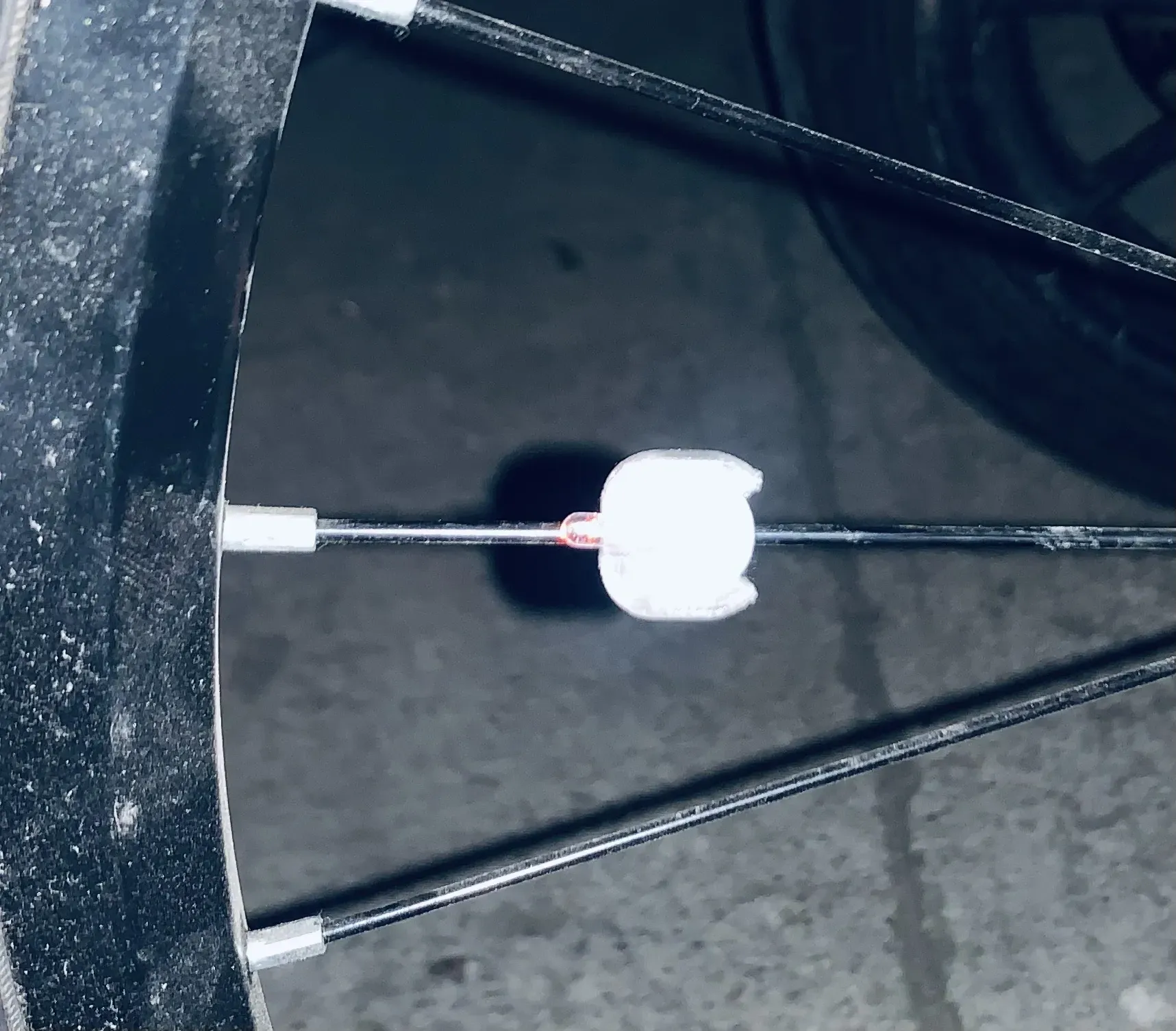

Applications: Once powered, the multicolor LED button cell light automatically flashes, cycling through red, green, blue, and other colors. Testing shows it can operate continuously for over 12 hours. An opening at the rear facilitates easy battery removal. Side clasps allow for convenient attachment to bicycle spokes, kite strings, or kites, making you the most dazzling presence at night.
