Launchable Mortar Model Plus (Full Print Assembly)
IP Report
Print Profile(3)
Suitable for all series, increased skirt for single-plate printing, printable on mini (updated December 31st)
Designer
5.3 h
1 plate
Better suited for A1 and A1 mini printers, 2 trays, tall parts with larger skirts in a separate tray, updated December 31
Designer
5.8 h
2 plates
Six shells, for replenishment
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
133
266
50
17
306
144
Released
Description
⚠️Handy Users - please expand the model description for important information.
Membership
Subscribe to a commercial license here. Thank you.
Join
Membership
Join
I don't know English, the following is generated by translation software, there may be errors, please understand

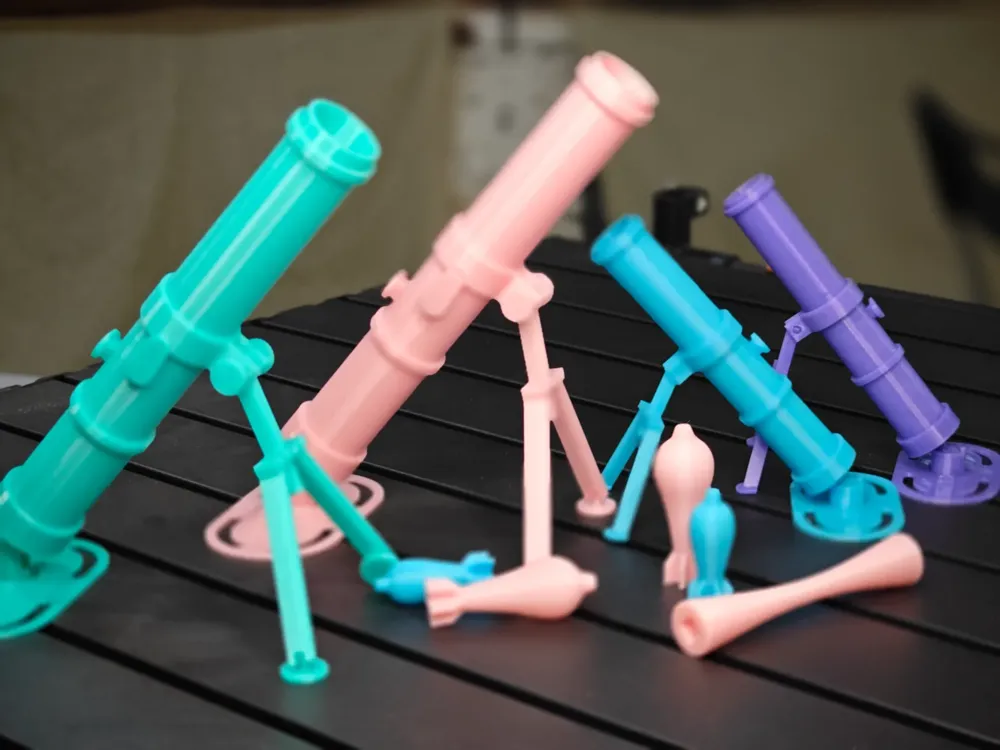

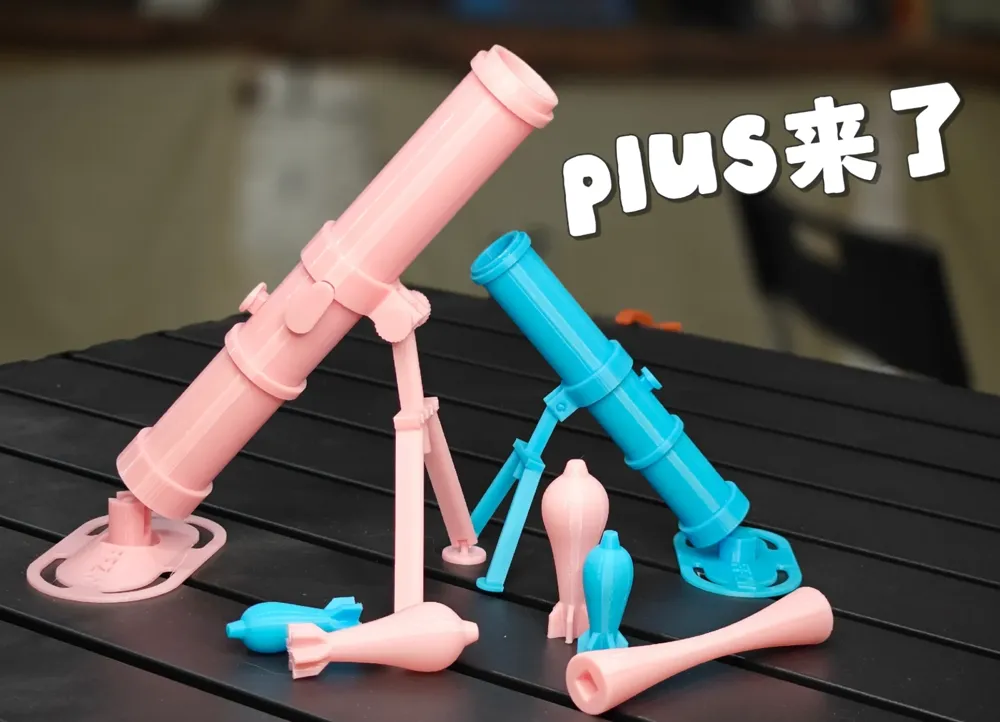

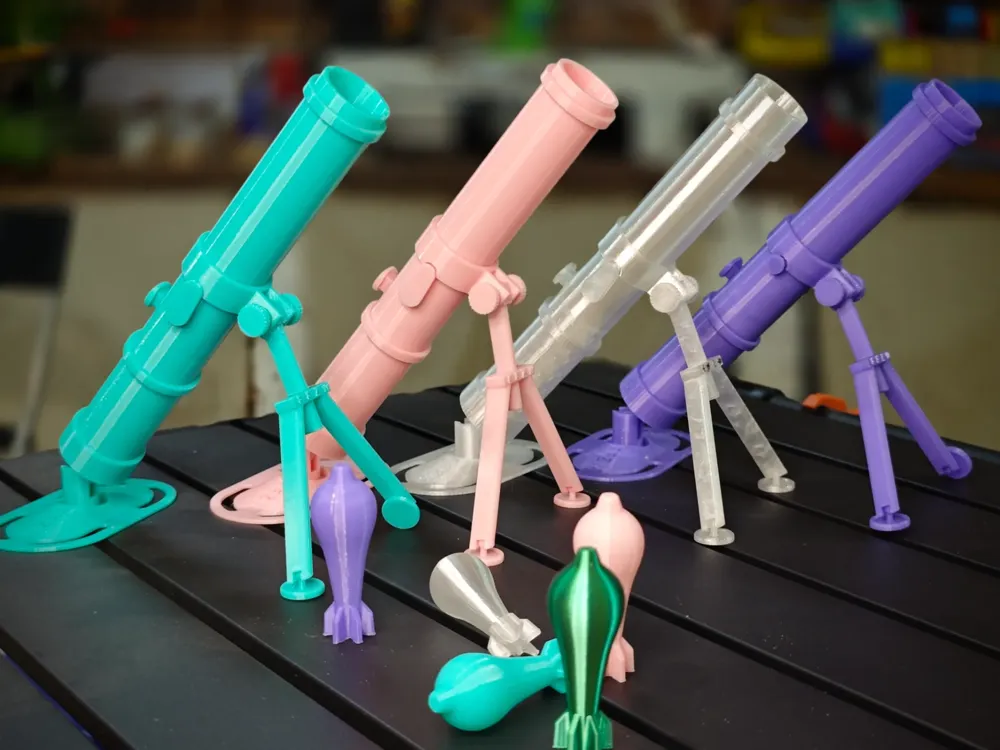

This is the plus version of my last mortar model, not a simple enlargement, in fact I redesigned and modeled all the parts。
Boost Me (for free)
Thank you for liking it, and please give me a boost if you find it interesting

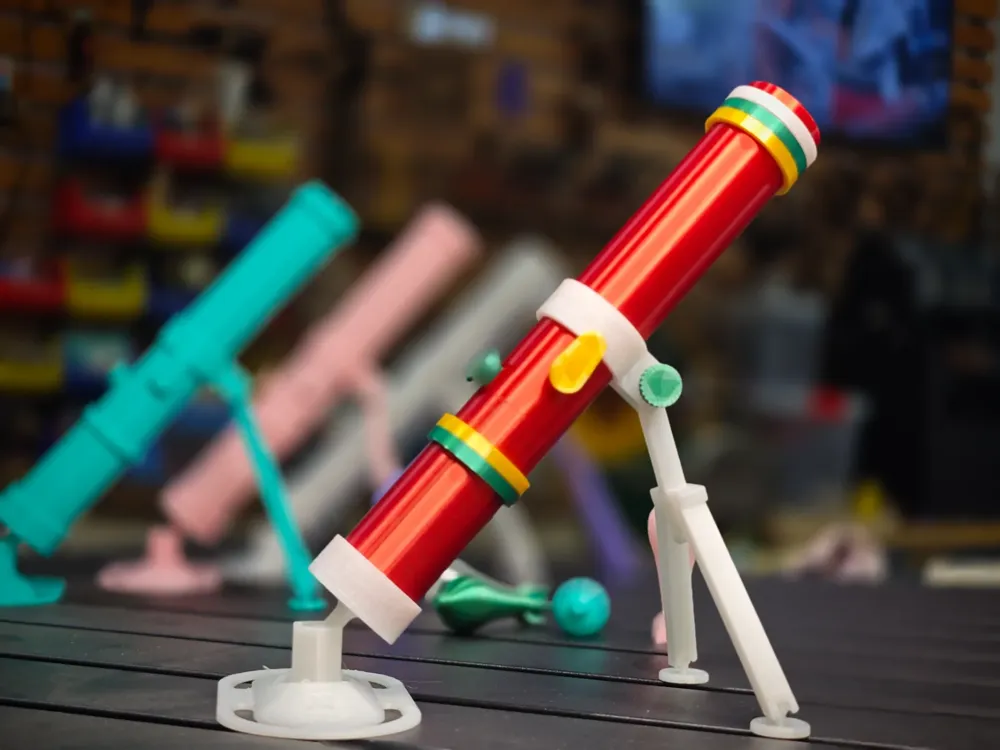

This time the mortar was larger, had a longer range, and was more refined and flexible.
All parts of the model are printed, and this time the design allows you to easily disassemble and replace damaged parts.
The overall model adopts the assembly mode, and about 85g of filaments are used, so please be sure to use PETG for printing.
The model has reserved tolerances and has been tested many times on P1S and A1mini, due to the different performance and parameters of each consumables and each printer, if you encounter tightness problems, you can fine-tune the printing parameters by yourself.
The launch distance of the actual test model is about 3-4 meters, and children need to pay attention to safety when playing.
The barrel height is 18cm and can be printed on the A1mini.
The print configuration, plating, and printing parameters I uploaded have been adjusted and tested many times, and since the model has large height parts, it is important to ensure that the print plate is clean before printing.
The assembly of the model requires the use of a few centimeters of filament, no glue and hardware, please see the video or assembly instructions for the specific assembly process.
For more mortar models, please click the link or image below to visit directly.
https://makerworld.com/zh/collections/19482494-mortar-model-collection
For more music box-related models, please click the image below
More clicker-related models, click the link below to view directly
For more mortar models, please click the link below to visit directly
Documentation (1)
Assembly Guide (1)
非凡造物迫击炮plus组装说明 (1).pdf
