Radio Control Racing Boat - Aerotrooper

Please read before printing:

This is a work in progress. I'm currently fine tuning the boat, so I've decided to release the current design now in a “beta” state and keep working to upload updated files. Please understand that there is some room for improvement here. I welcome your feedback to help make this design the best it can be.

Want a smaller one? Click here to print the little brother.

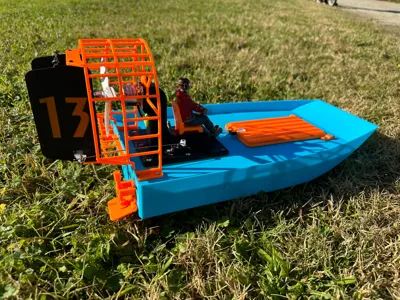

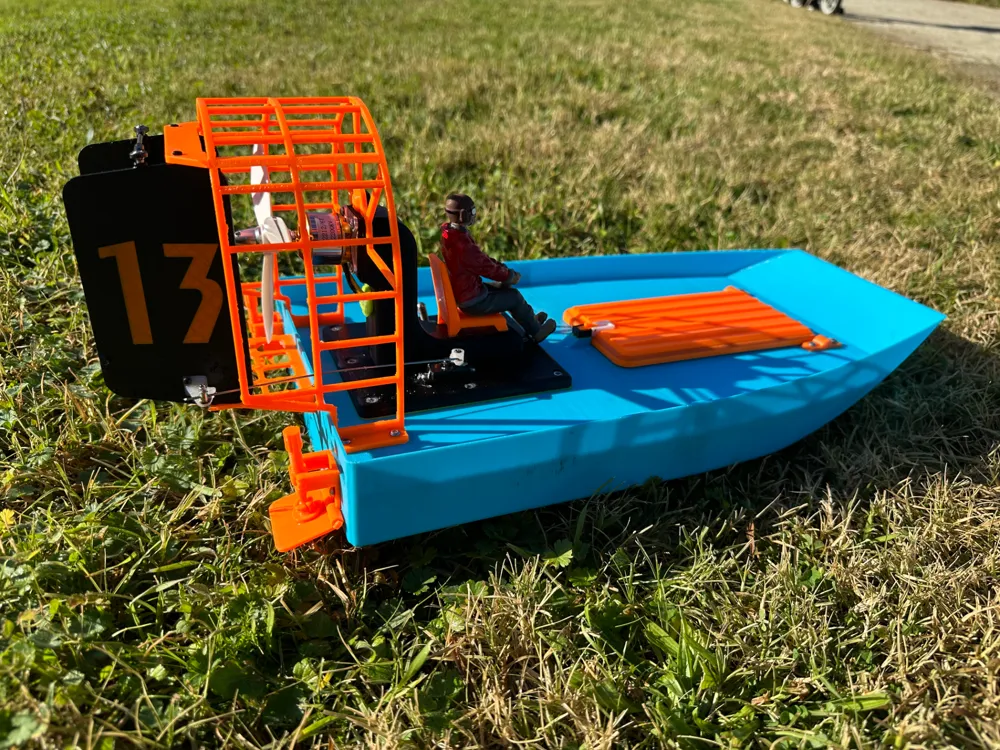

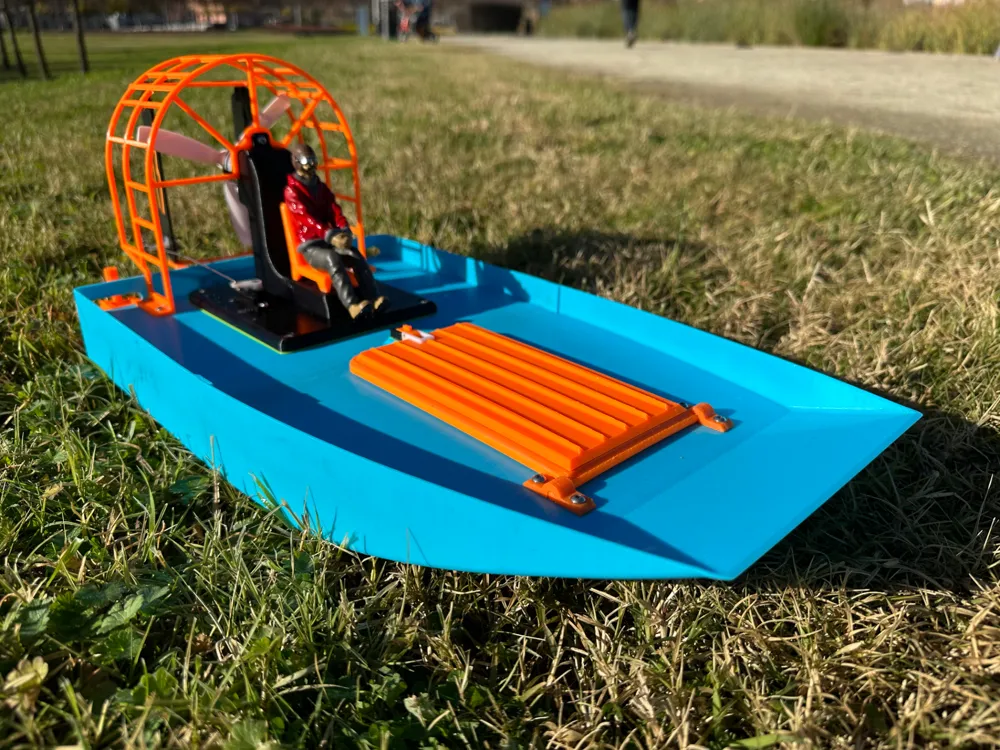

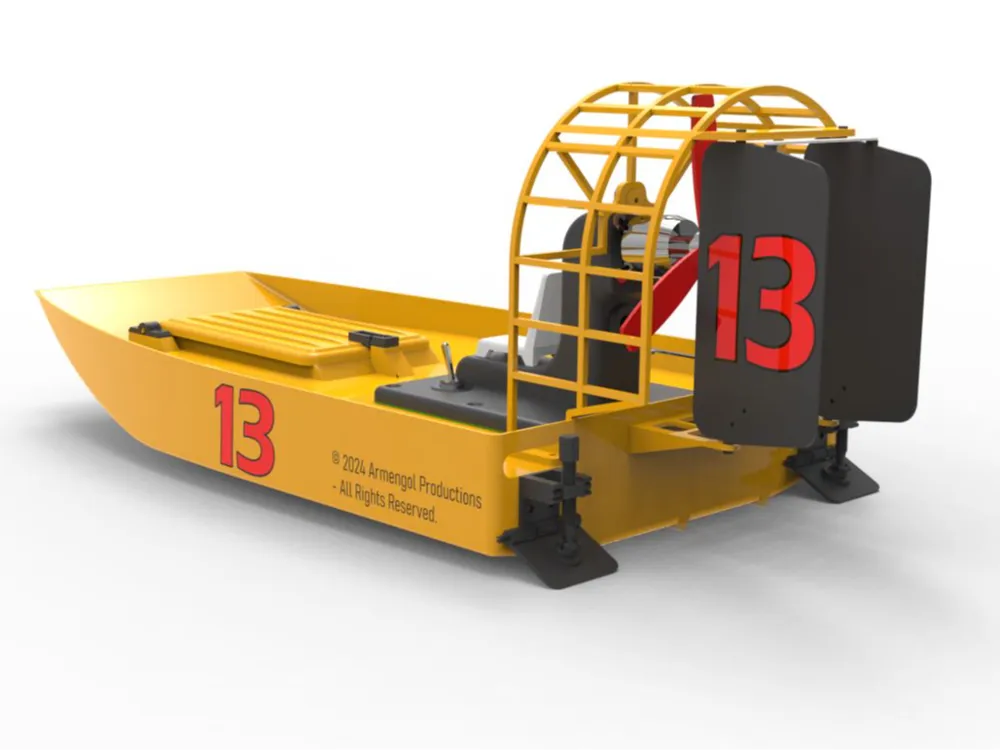

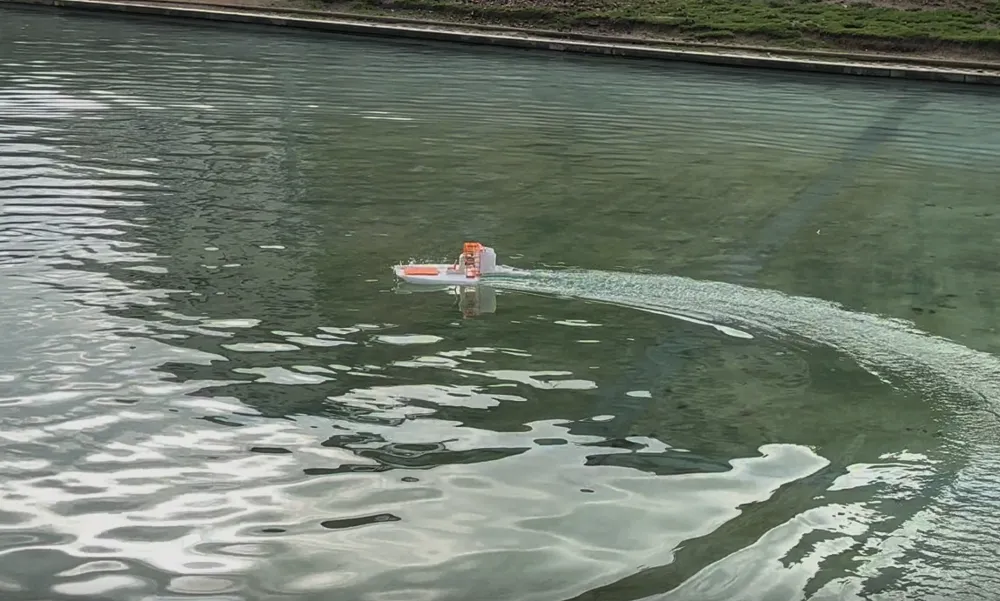

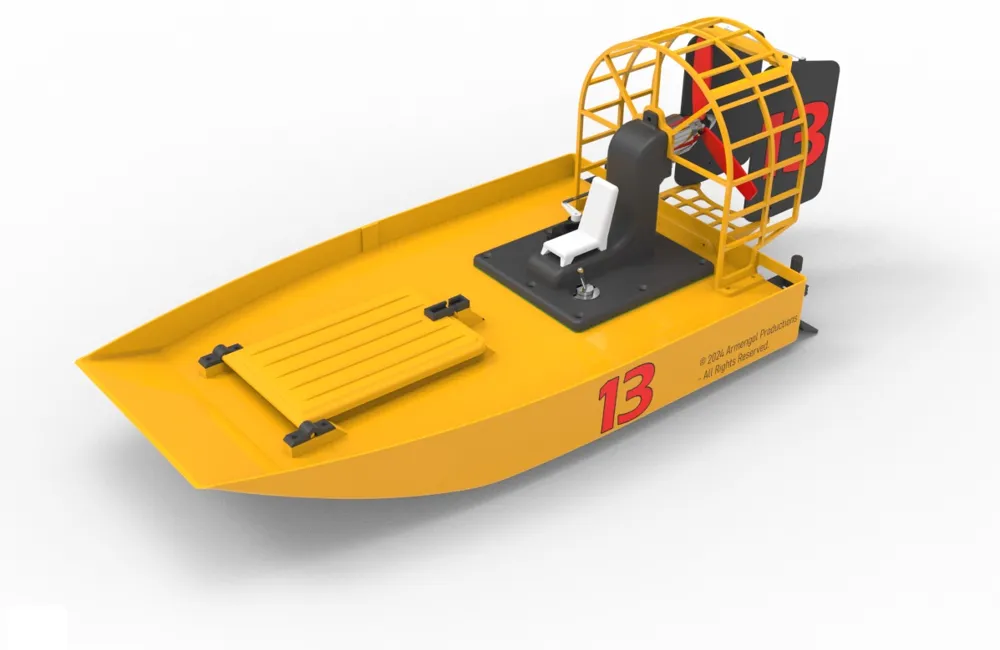

Introducing the Radio Control Racing Boat!

Needed parts:

Transmitter: https://amzn.to/3ZEqISv

Servo: https://amzn.to/3ZCsmnL

High amperage ON/OFF switch: https://amzn.to/3VEGeNc

30A ESC: https://amzn.to/3ZT7fyO

2200kv Motor: https://amzn.to/4geUmF5

3s 2200mAh Battery: https://amzn.to/3ZYbvMD

Propeller 5030~5045: https://amzn.to/49GJUDT / https://amzn.to/3OWmzo7

Printing:

Boat dimensions: 560x240x195mm

Printing hours: 23,5h

PLA is not recommended for the boat parts (it works, but ABS, ASA, or PETG would be better).

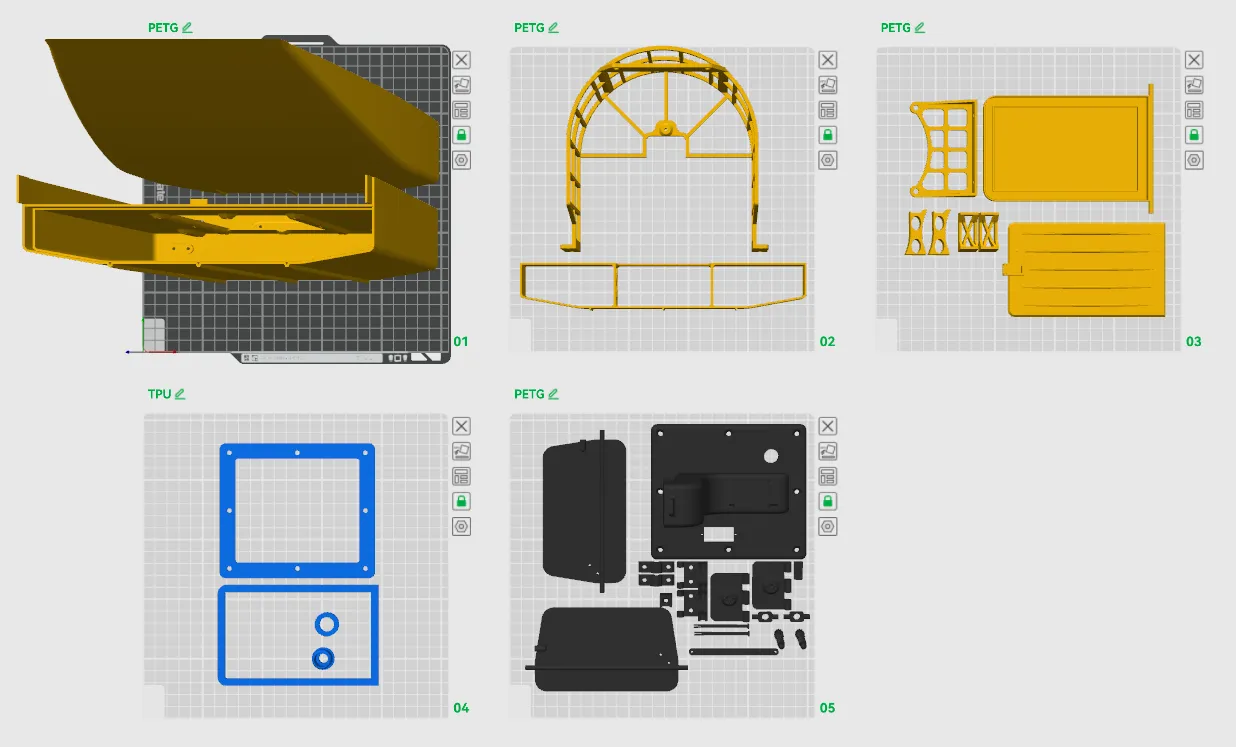

You can use the included 3MF files with pre-plated parts, or arrange the individual parts yourself.

Recommended print settings (100% scale, 0.4mm nozzle):

Use PETG or similar material with 15% infill.

Print the blue parts in soft material like TPU.

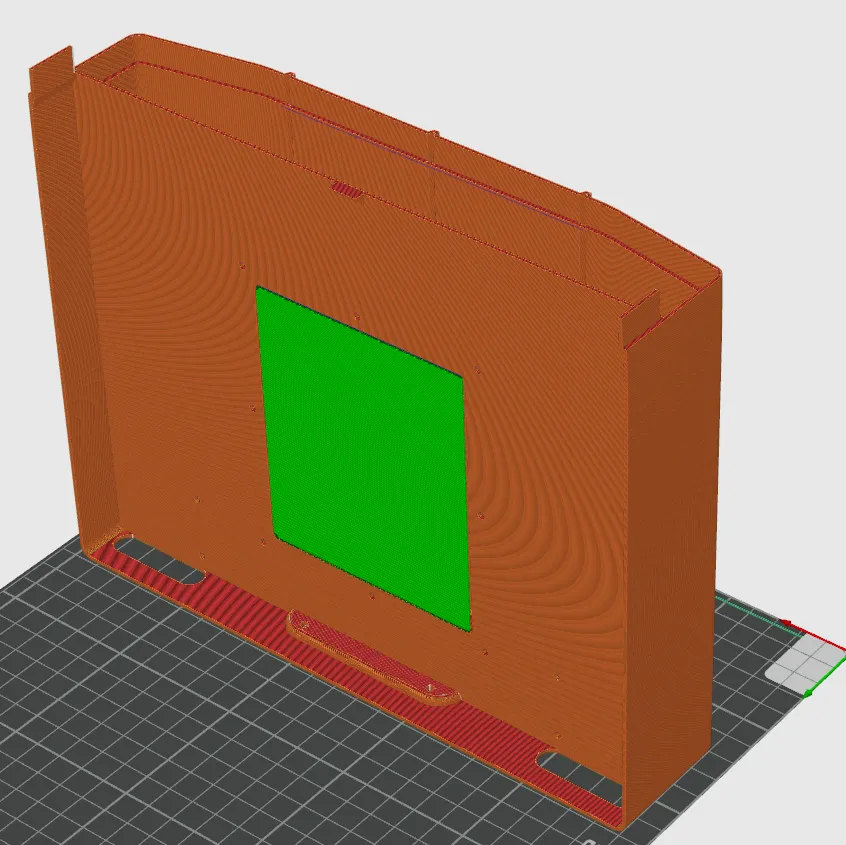

Apply normal (manual) support with snug style to Casco Trasero.STEP

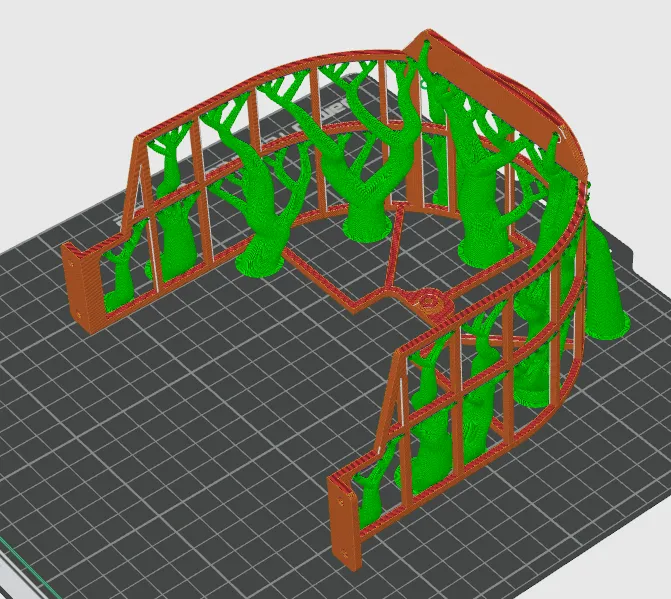

Apply tree (auto) supports to Gavia.STEP:

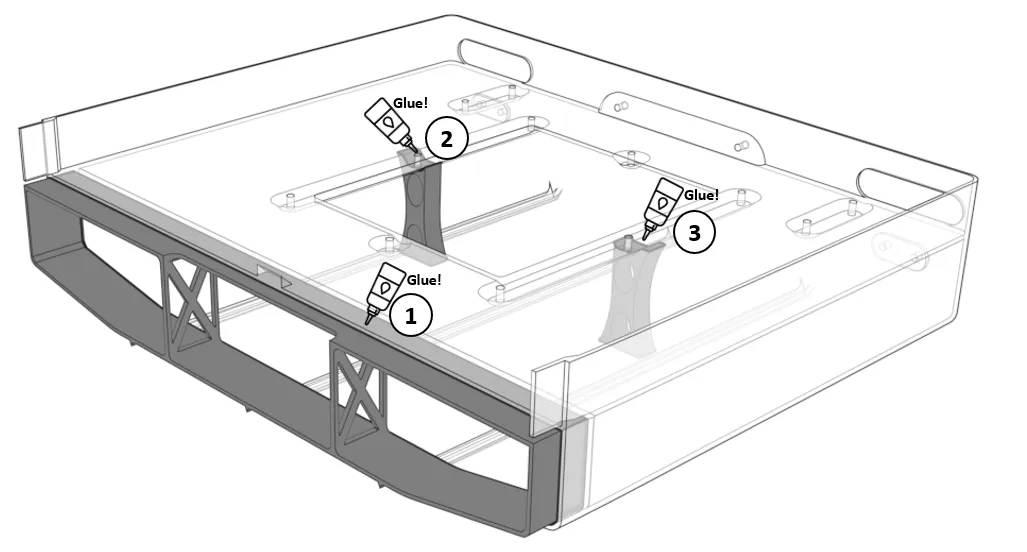

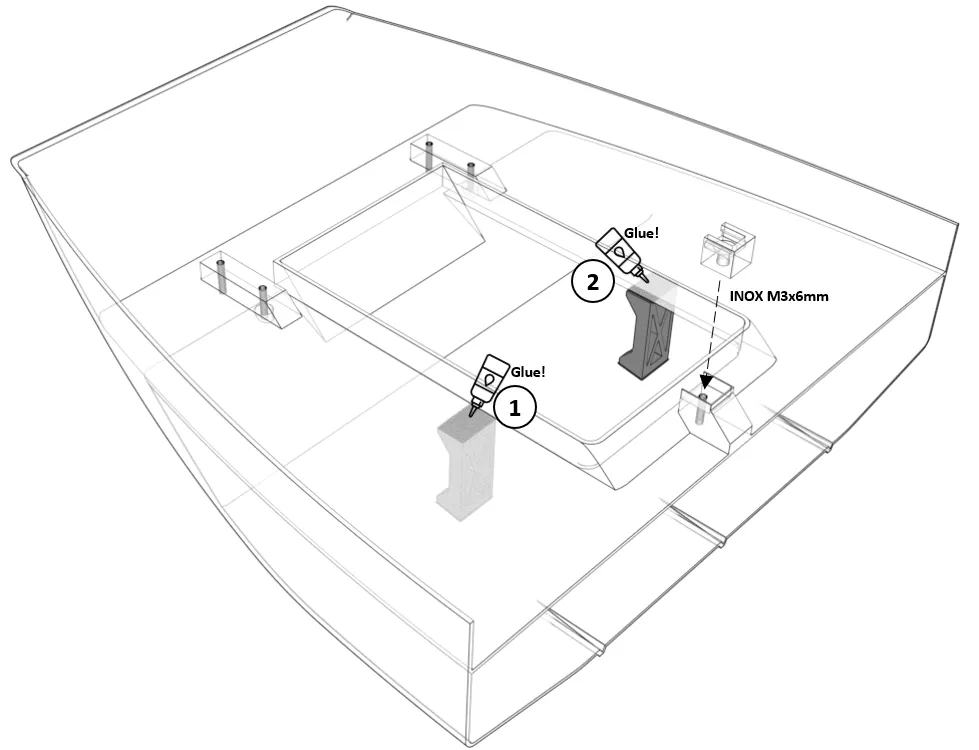

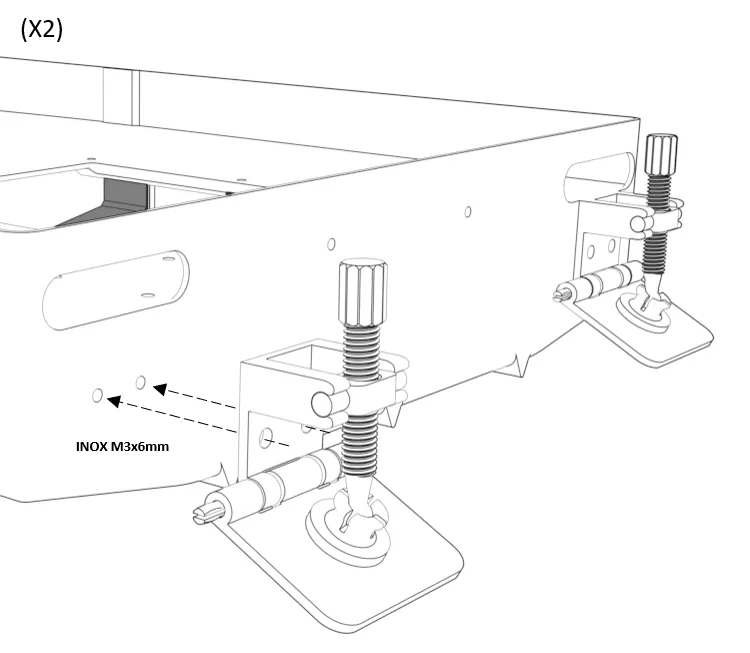

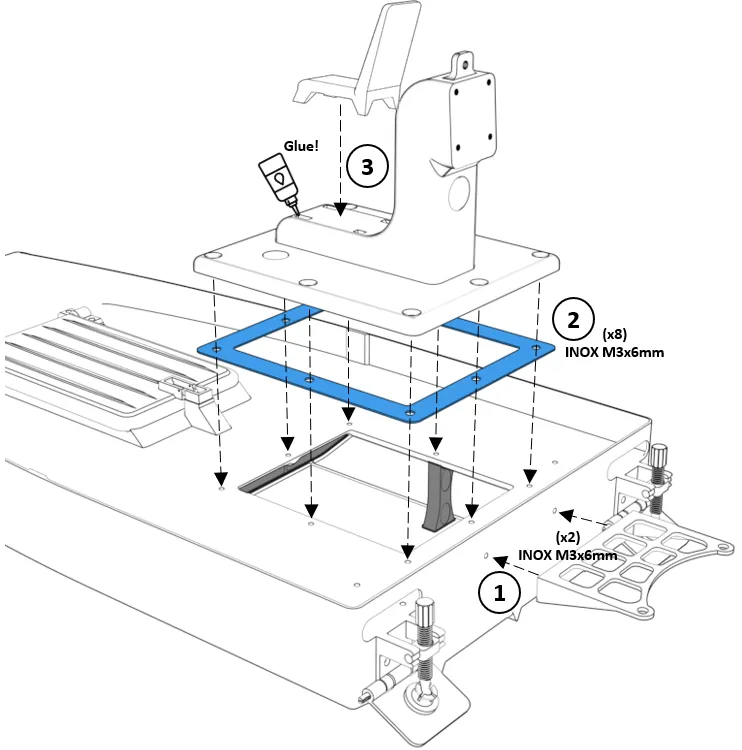

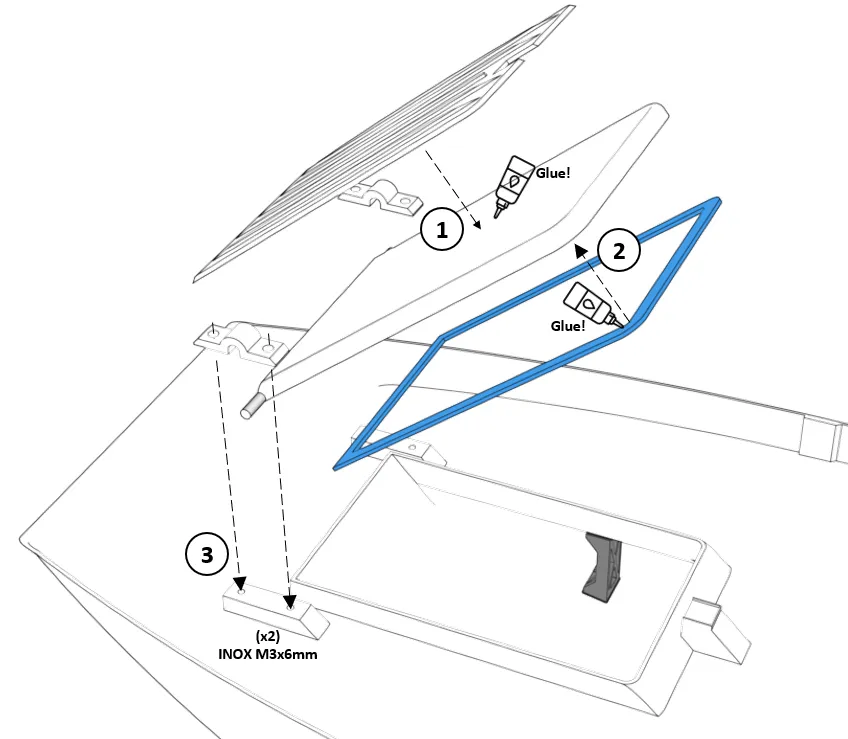

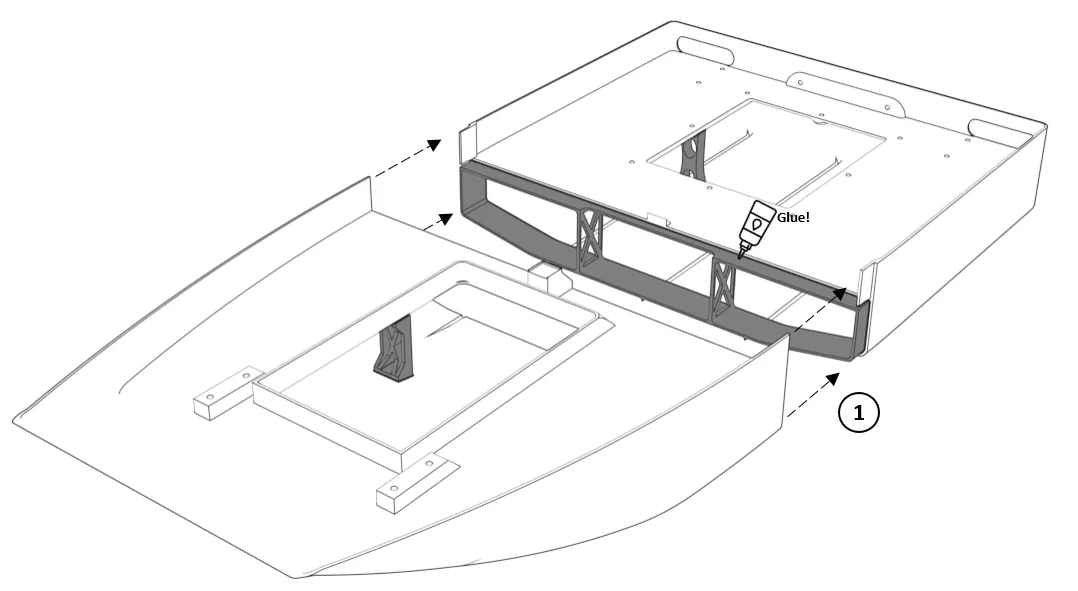

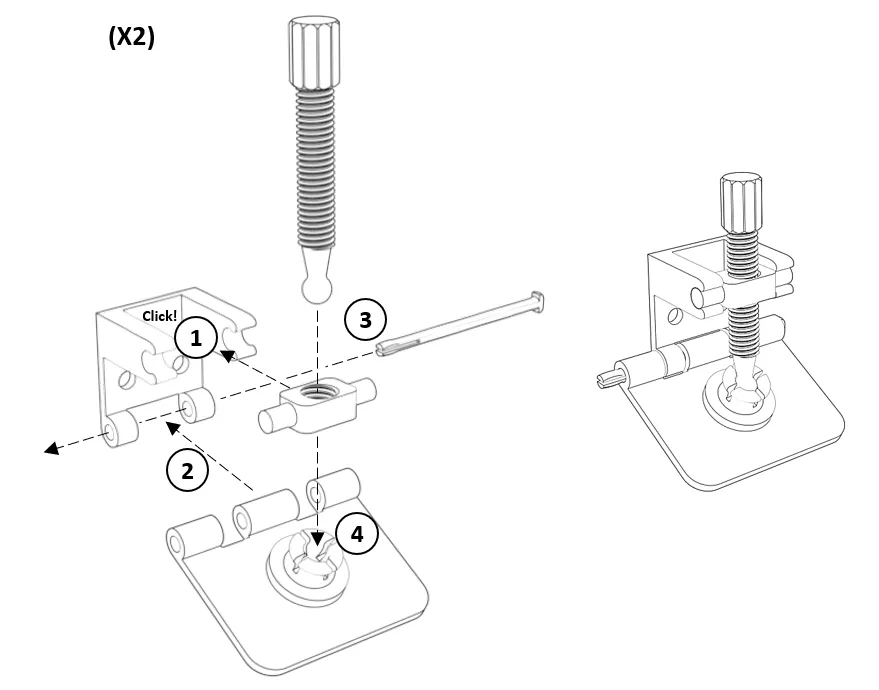

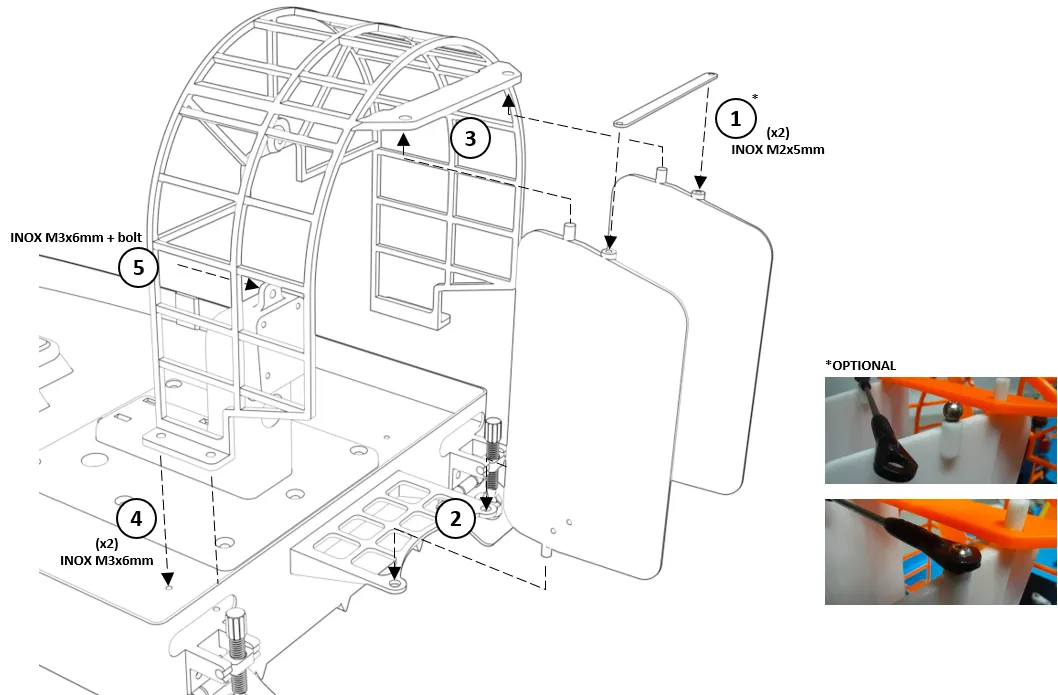

Assembly Manual: ‘Think twice print once’:

If you want to guarantee the watertightness of the hull, I recommend applying one or two coats of clear varnish.

⚠️ Personal use only.
Selling prints requires a Commercial License.
