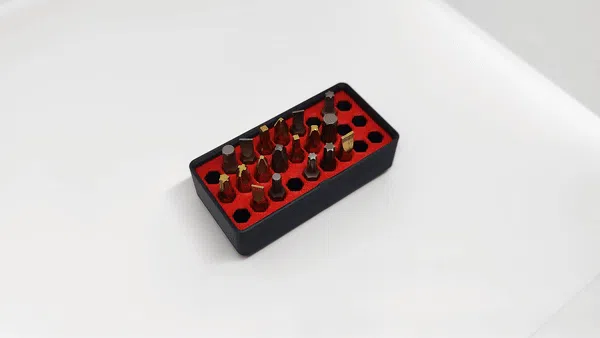

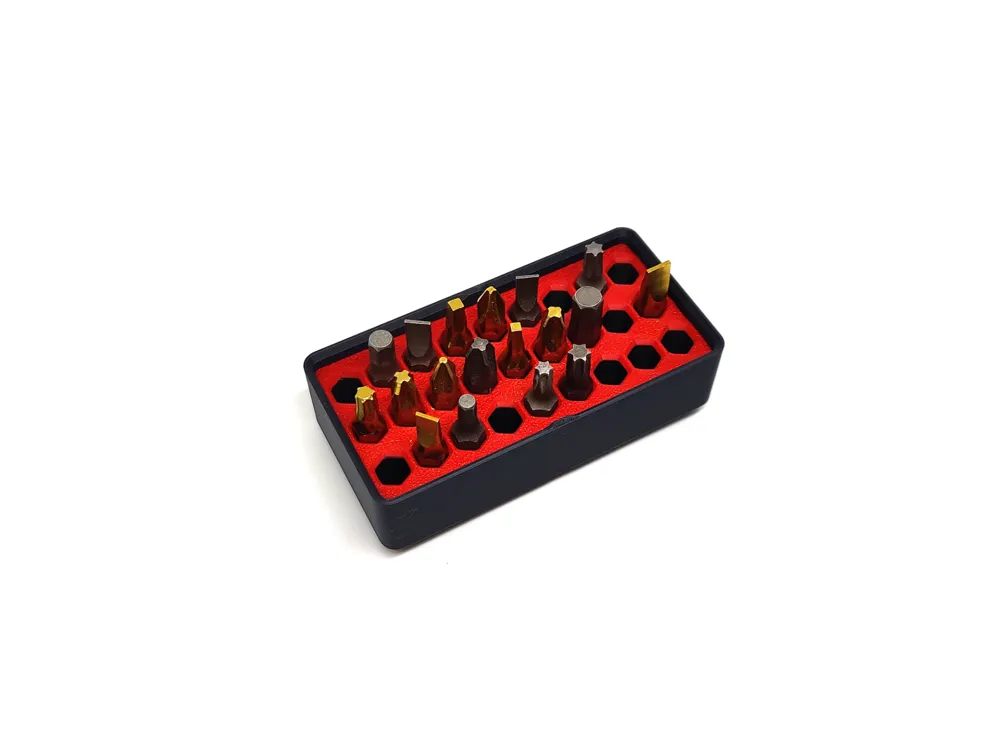

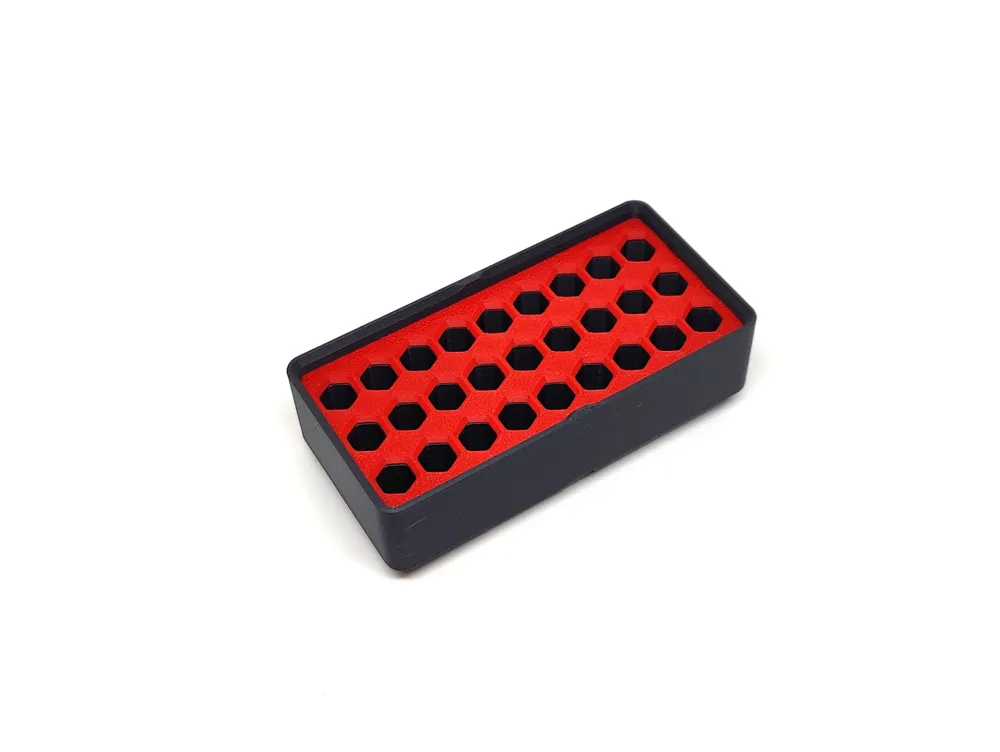

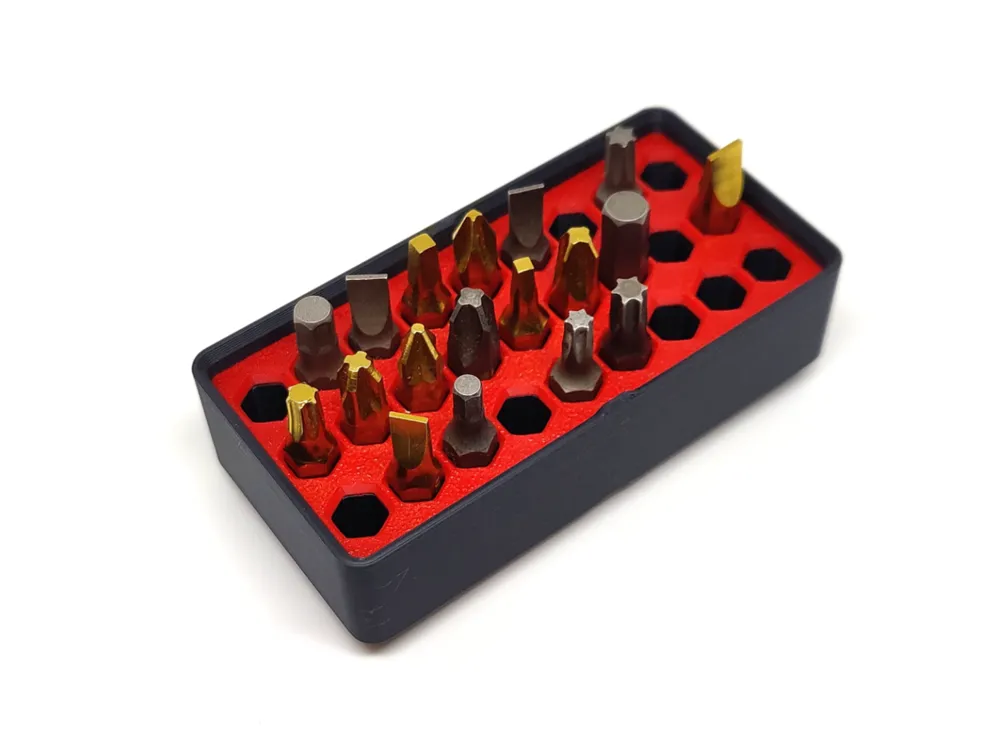

Gridfinity 1x2x3u Hex Bit Holder for 27 bits

-This model has been redesigned to allow for two-color printing without requiring an AMS unit.

-It's stackable when empty.

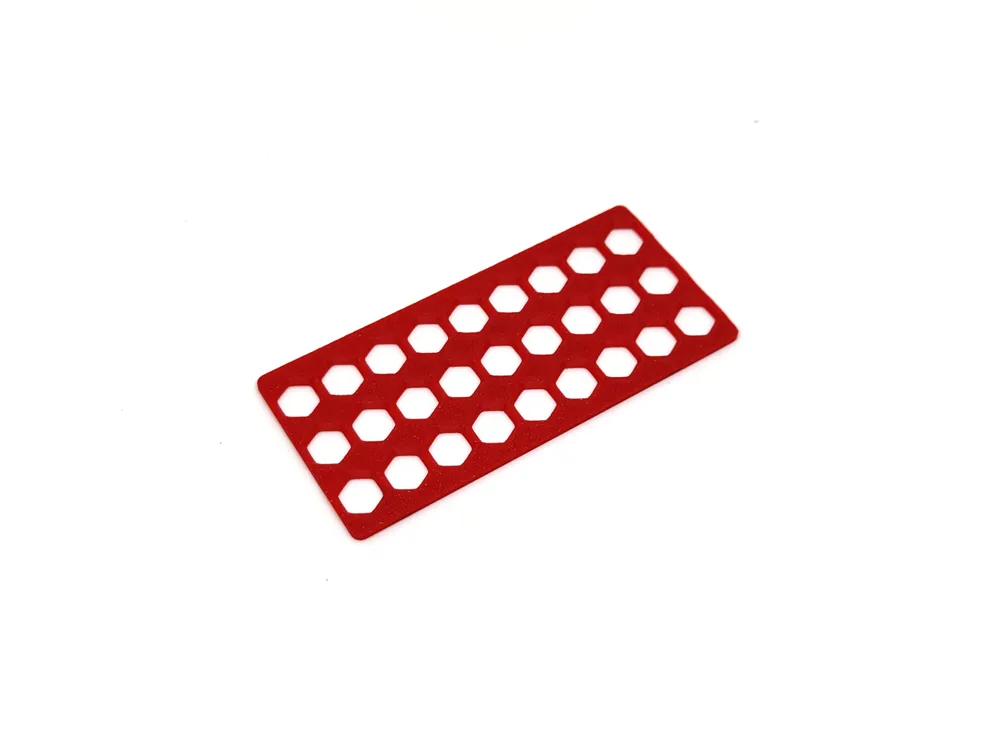

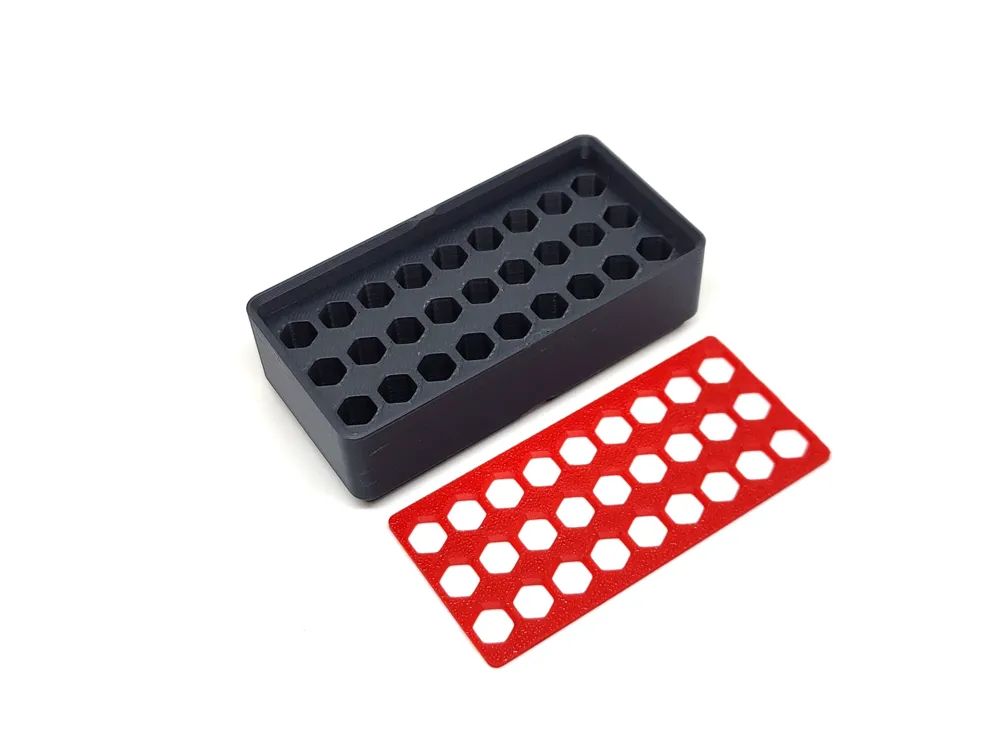

The colored lip is printed face down for the nice textured plate finish and it's then glued in place with a drop of superglue

The color lip is not needed but makes the box nicer.

The holes are spaced allowing for easier access to bits.

You can use different colored lips to do groups of the same styles of bits. (red for Allen, white for Torx, etc.)

Fits 1/4 inch or 6.35mm bits

Dimensions:

1x2x3u

41.5mmx83.5mmx24.8mm

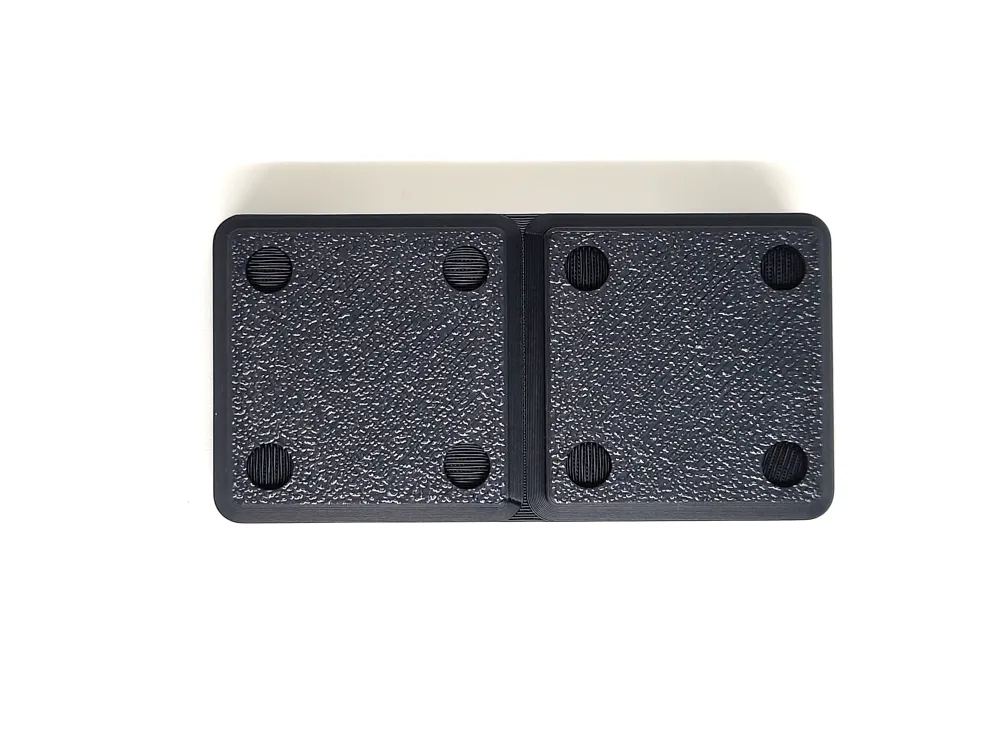

-Each holder is also designed with cutouts on the bottom for 6x2 magnets. (it's for snug fit 6.2mm tolerance)
