DJI RC-N3 Controller Phone mount
Print Profile(1)
Description

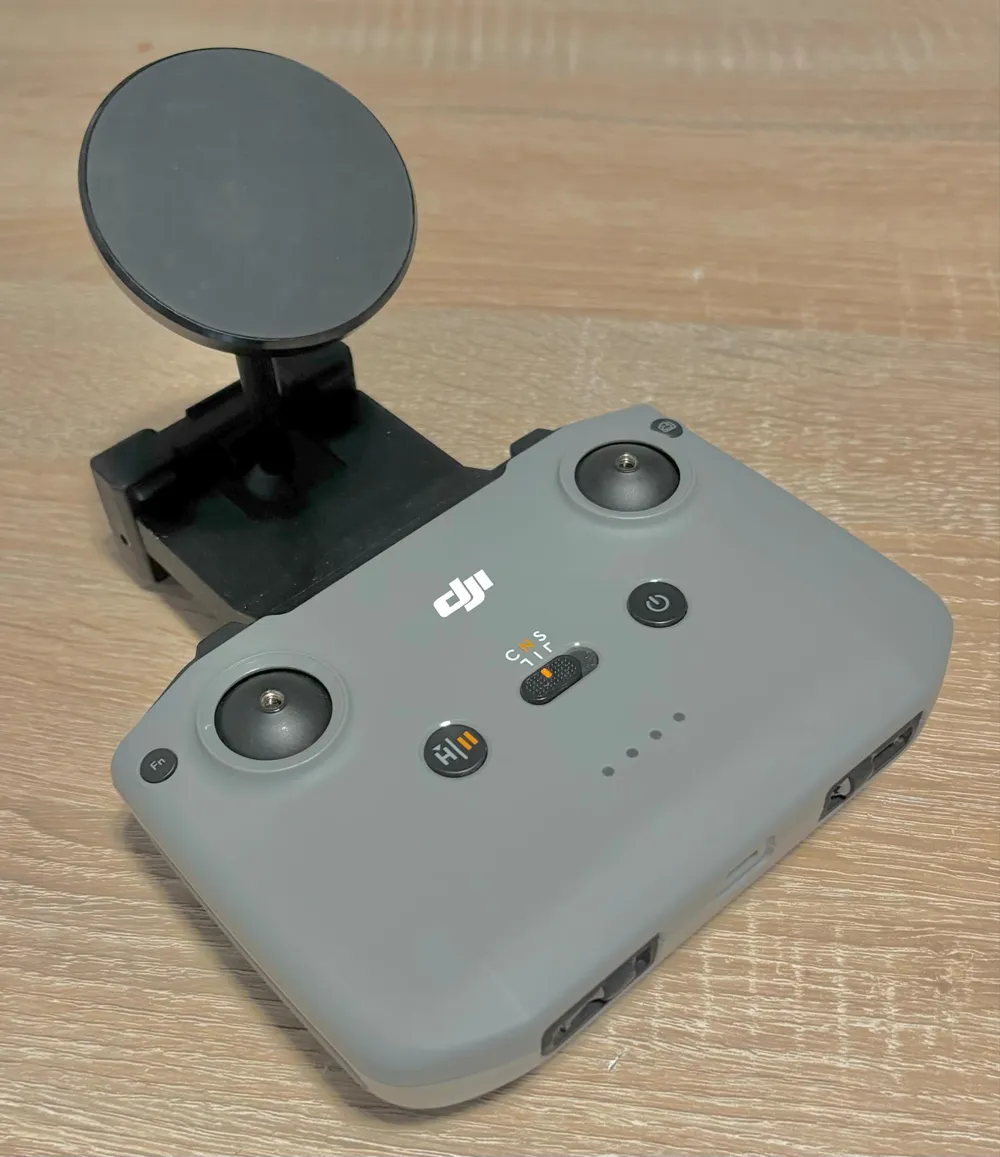

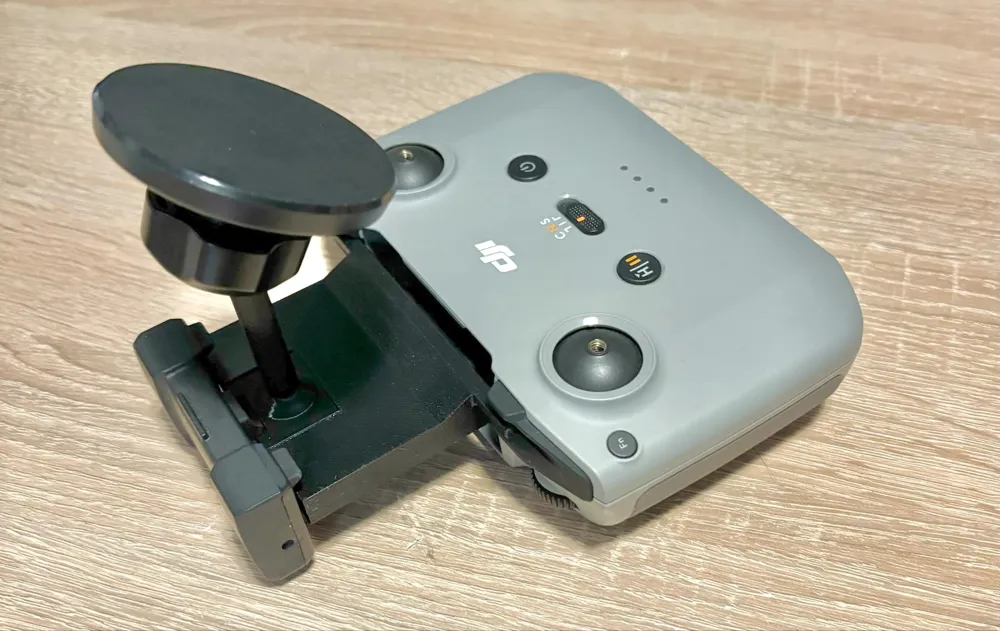

Compact and quick to assembly mount for mobile phone on DJI RC-N3 Controller for better viewing angles.
This mobile stand is designed for easy assembly and disassembly, offering improved viewing angles and compatibility with a variety of mobile phones through its replaceable mobile connector. The 17mm (⅔") diameter ball mount makes it compatible with a wide range of mounting options.
Each component was printed with a 0.12mm layer height, and the stick was reinforced with 4 perimeters (2 perimeters might suffice, but I opted for added durability). The models are uploaded in the same orientation as they were printed. The stick requires support structures to ensure it prints in the optimal direction for strength.
For the phone mount, parts from the “Choetech Magsafe Car Mount” were attached to the 3D-printed pieces, making this stand compatible with most phone holders that use a ball mount.
Update: You can download different lengths of the phone arm (-5mm, -10mm, -15mm, -20mm, -25mm)
Boost Me (for free)
You can support me with boost to make more things like this.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
