A1 enclosure (side panel, back panel, top panel)
Print Profile(4)
Description

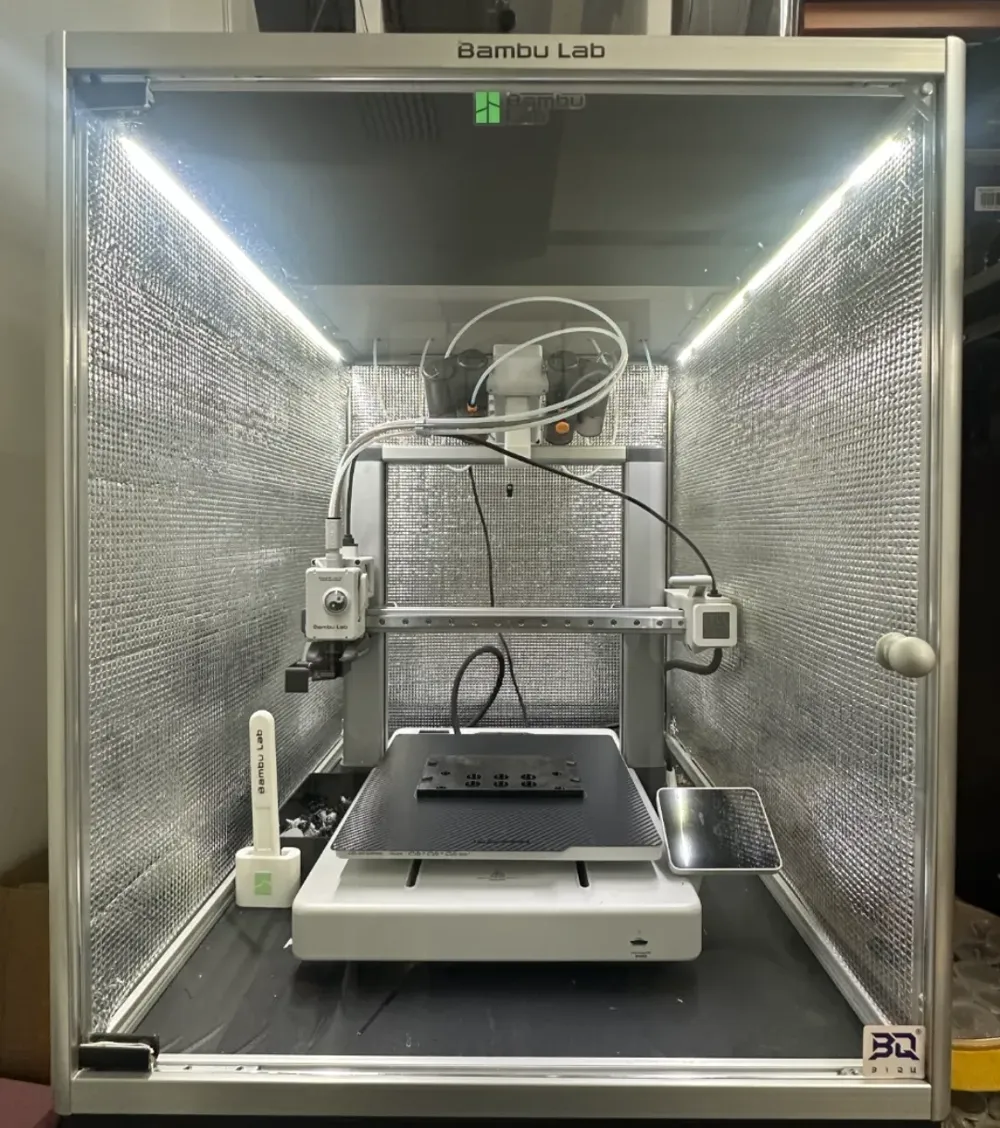

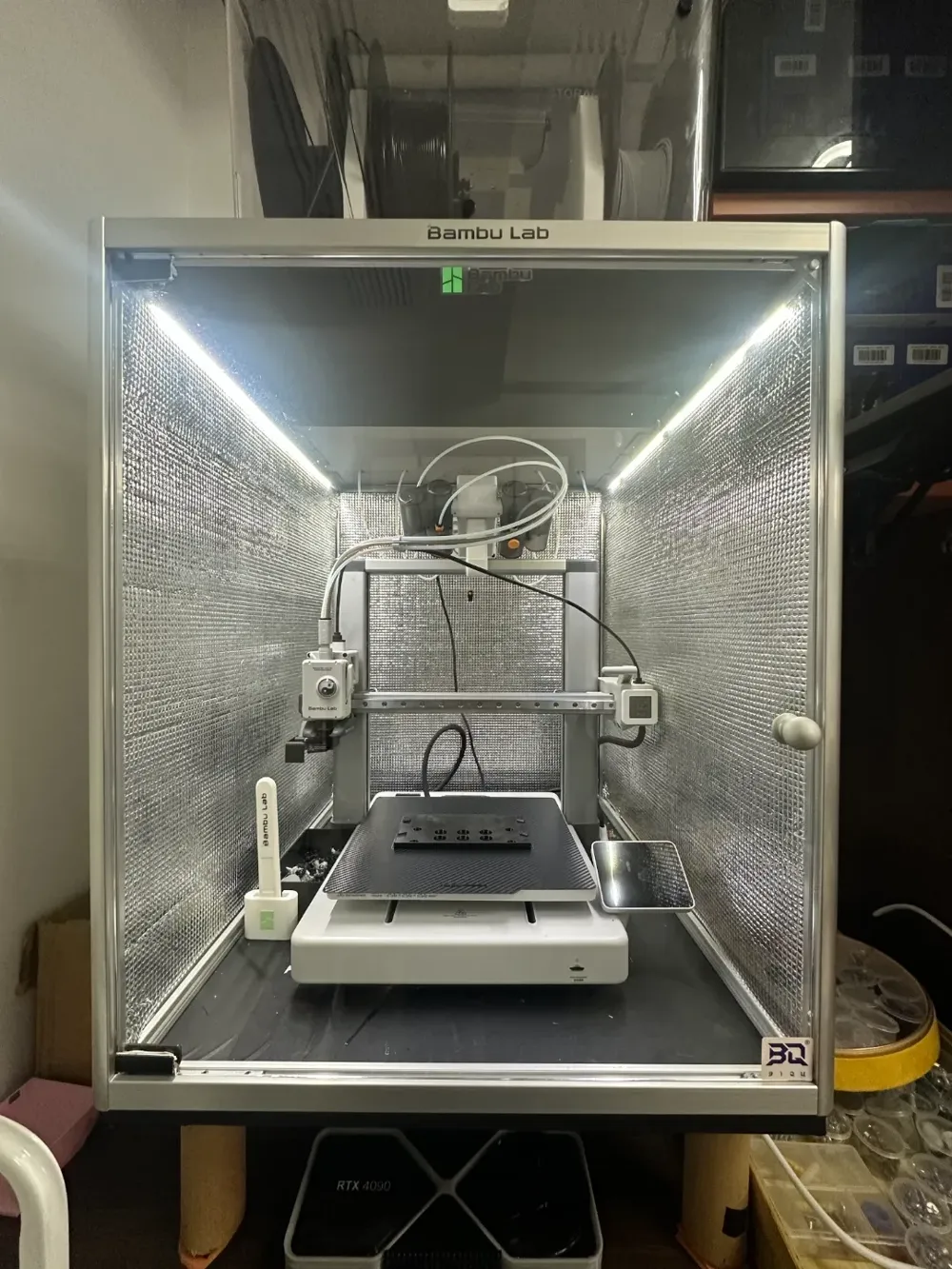

Enclosure Introduction
There are four print configurations in total: top plate, back plate, side plates, and mortise and tenon joints.
Since the side plates have two sides, left and right, two copies need to be printed.
I haven't carefully counted the mortise and tenon joints, print more if needed.
Refer to the end of the video for other material lists

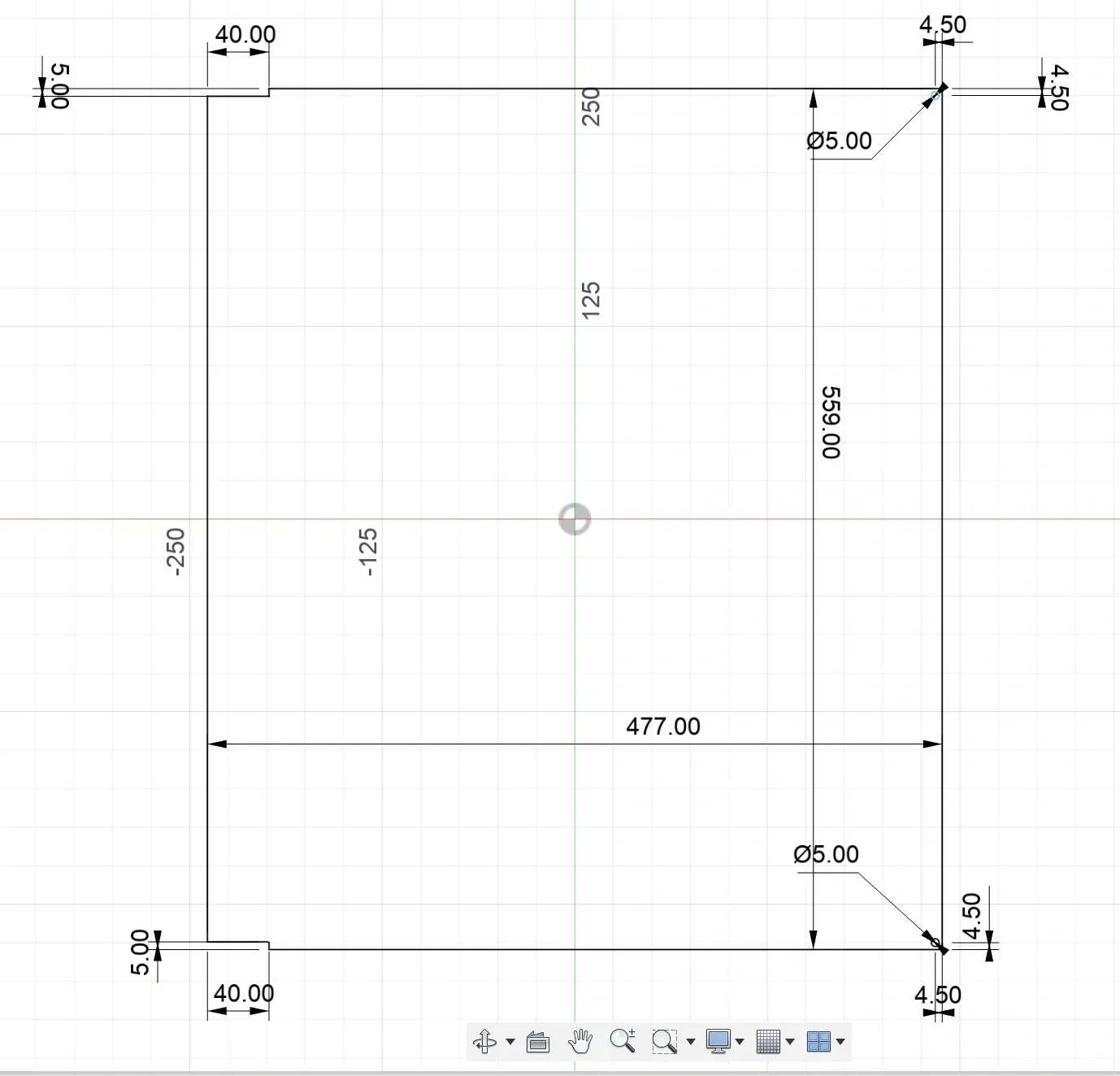

The dimensions of the frame's vertical members and acrylic door panel, which were omitted from the video, are provided below:
Enclosure Dimensions
External Dimensions:
Width: 52
Length: 62
Height: 60
Internal Dimensions: Subtract 4 from each dimension
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
