Simple Drawer Organizer Boxes

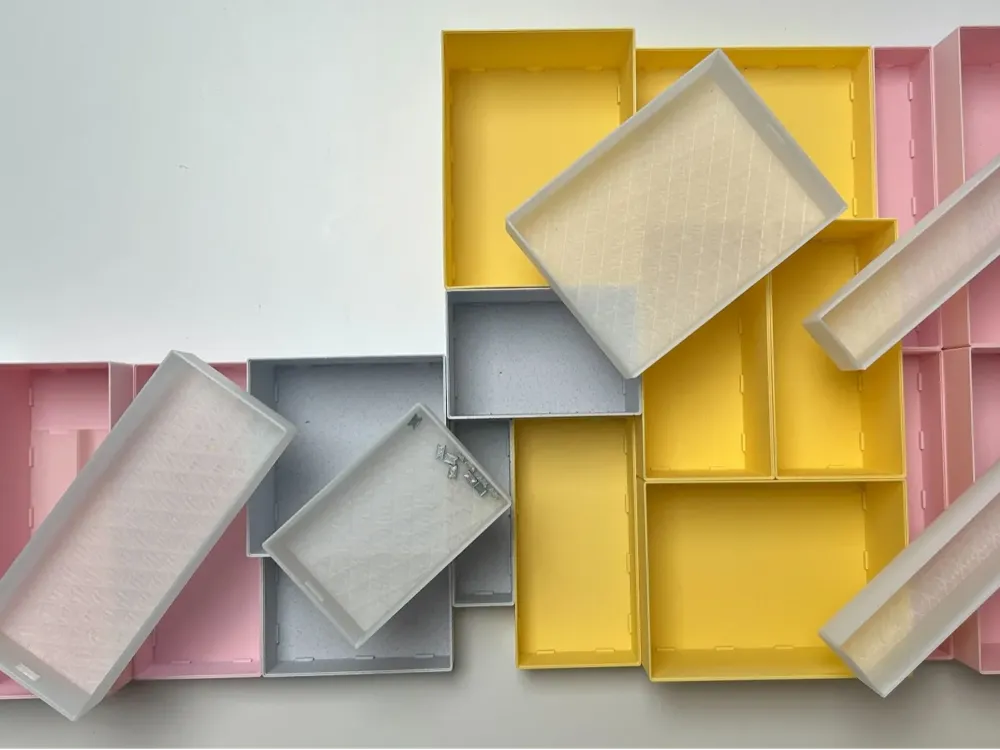

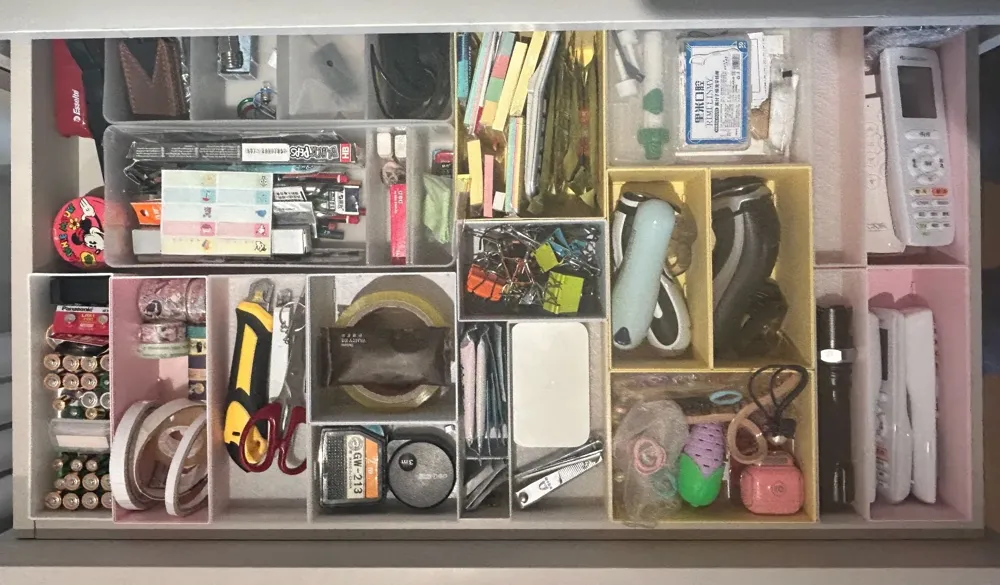

A set of drawer organizer boxes to help keep small items neatly organized in your drawers.

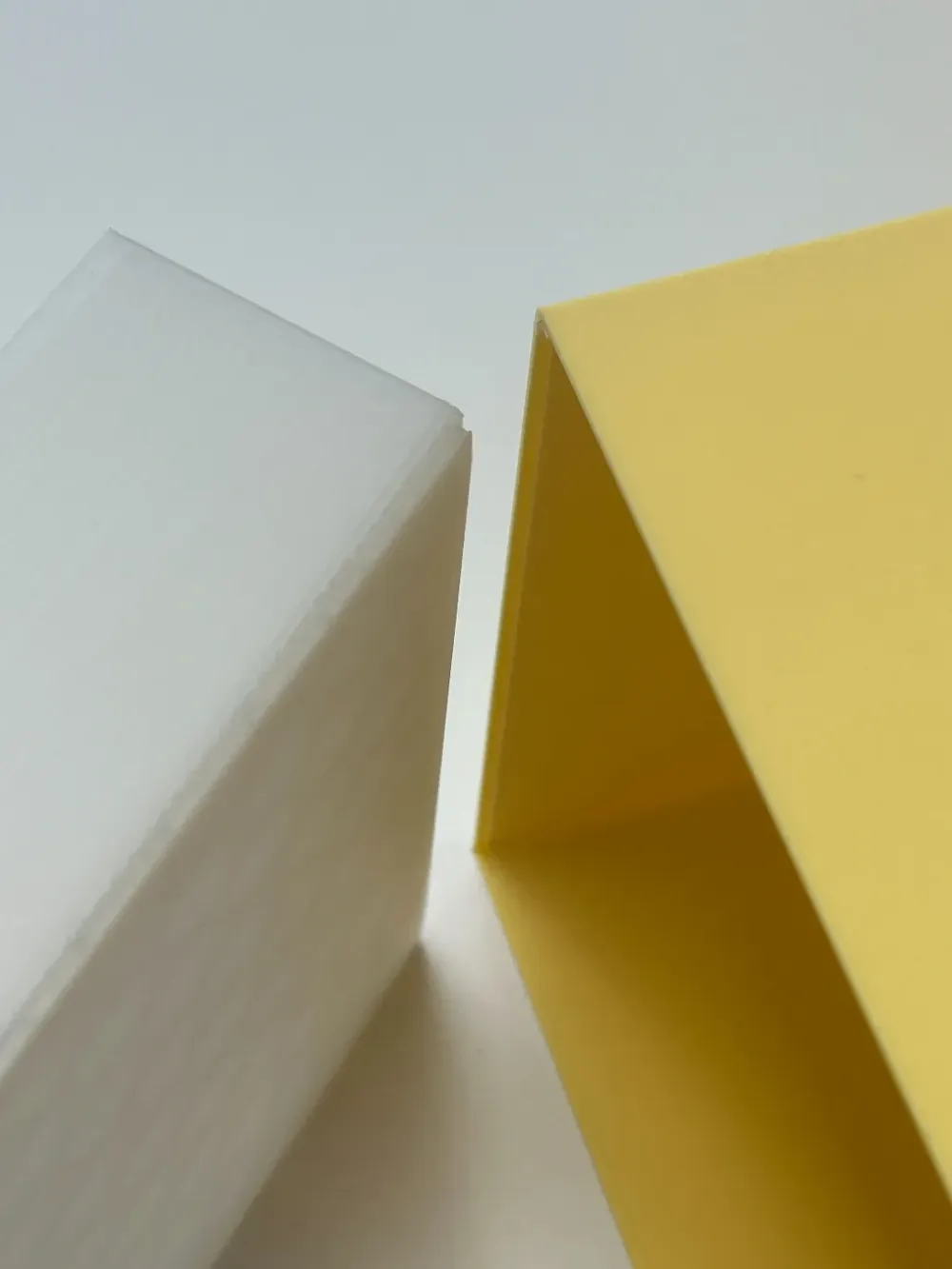

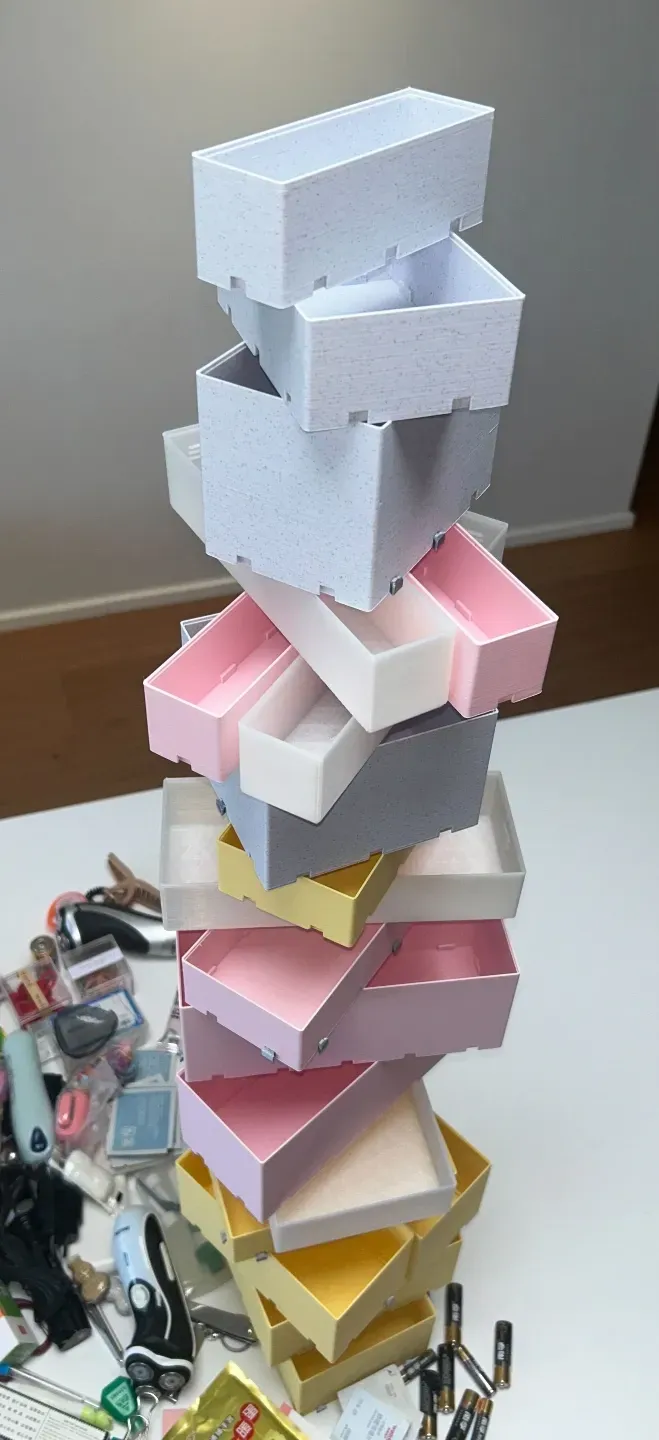

- Thin-walled, double-stackable design, ideal for drawer space optimization without waste.

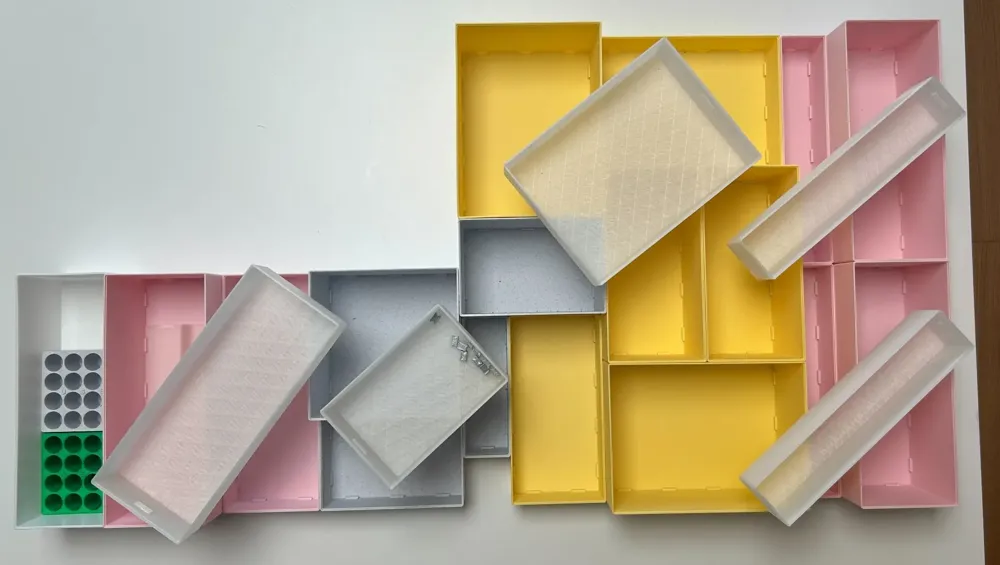

- Dimensions are based on 4cm units, ensuring that boxes of various sizes can be neatly arranged together.

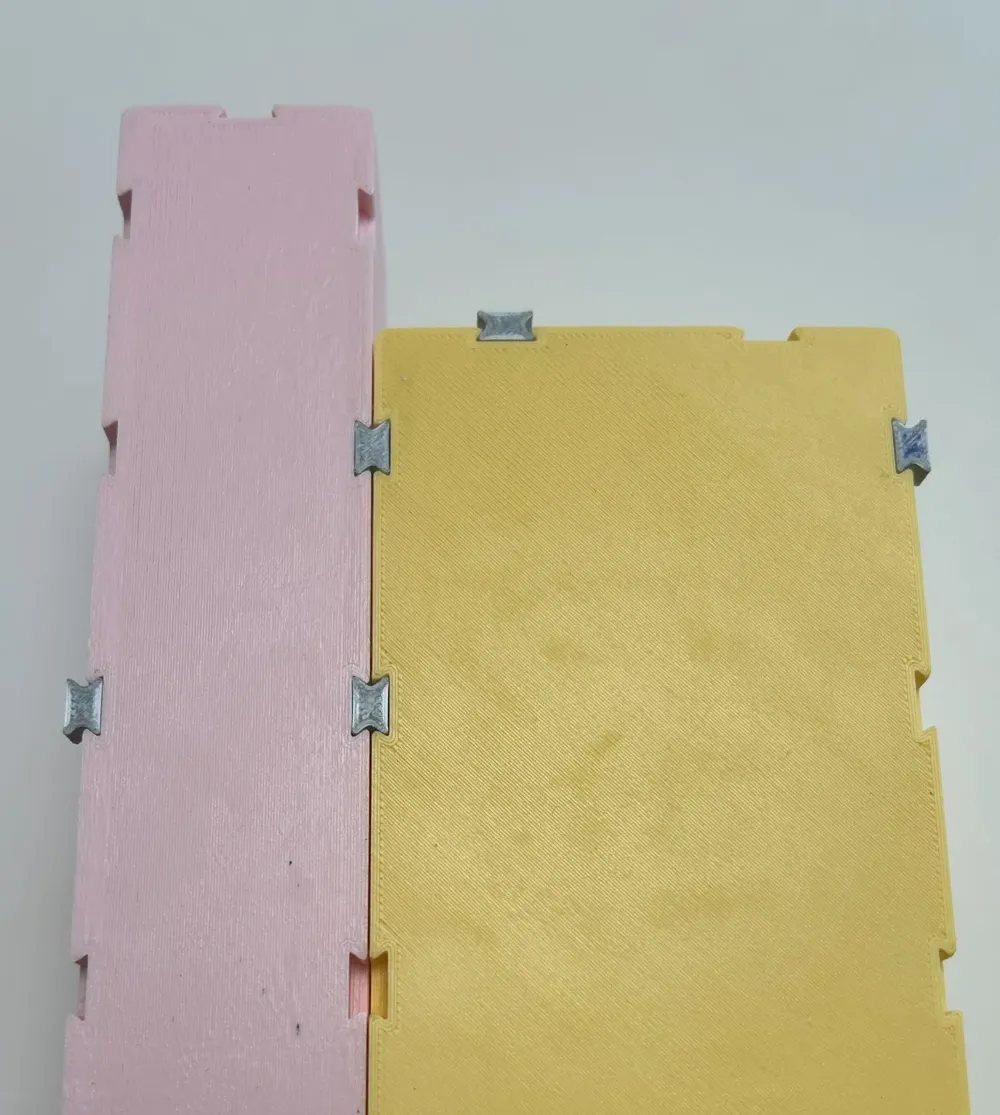

- Bottom snap-fit design ensures a stable connection between boxes.
- Bottom snap connectors come in four tolerance options (0.25mm, 0.28mm, 0.30mm, 0.35mm) to accommodate variations in slot sizes due to differences in printing materials.
Naming Convention
- Lxx: Length xx cm
- Wyy: Width yy cm
- Hzz: Height zz cm

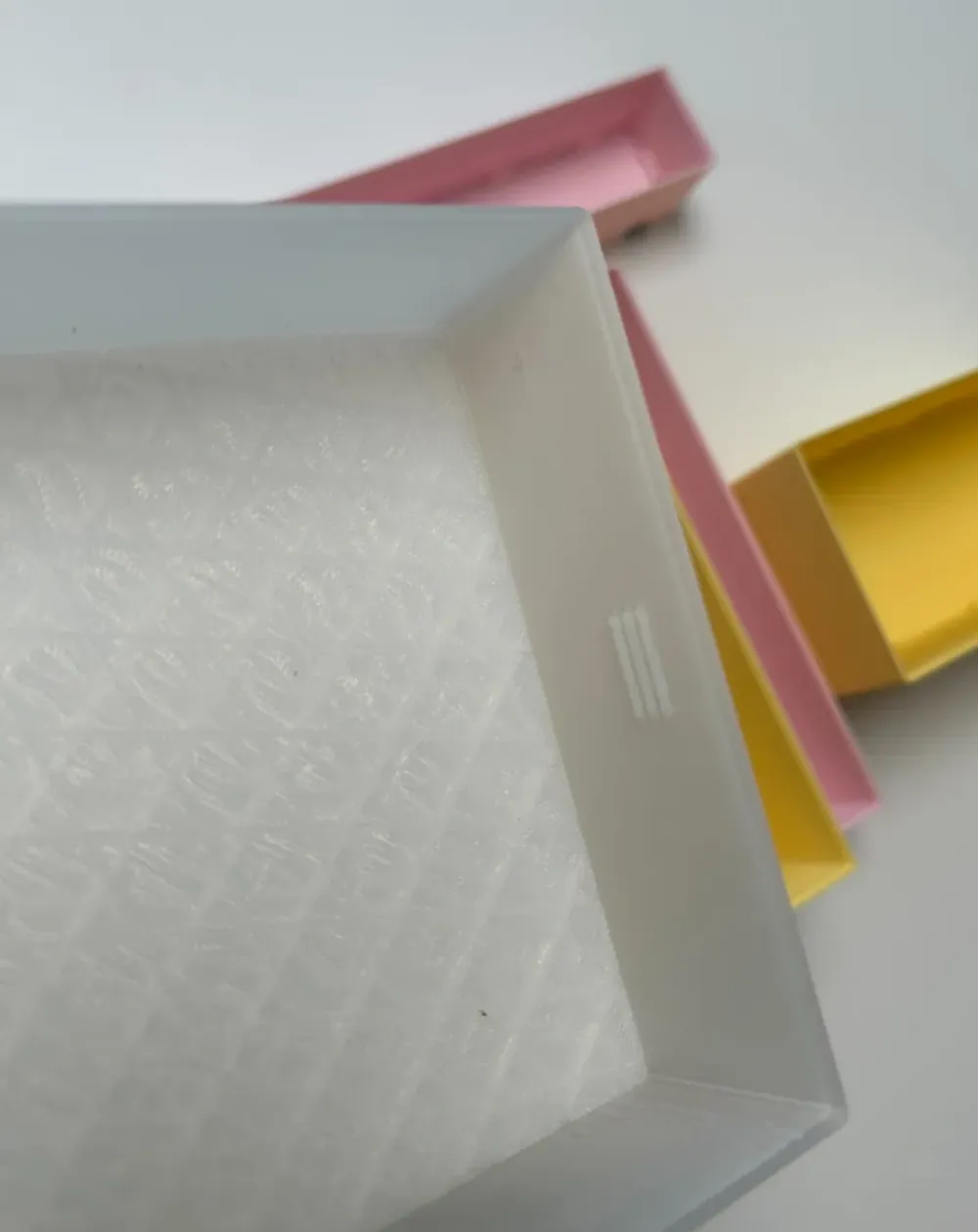

- TopCut1.5: Internal and top surface cut down by 1.5mm for stacking other boxes.
- BotFlat: Bottom layer box with snap slots.
- BotExt1.4: The box above the bottom layer with a 1.4mm protrusion for stacking on top of the lower boxes.
- Plug Offset0.28: Bottom connector plug with a 0.28mm (or other) tolerance.
The Fusion 360 design file is provided; I have preserved the design history and used parameters to facilitate easy customization according to your needs.
Happy printing and organizing!
