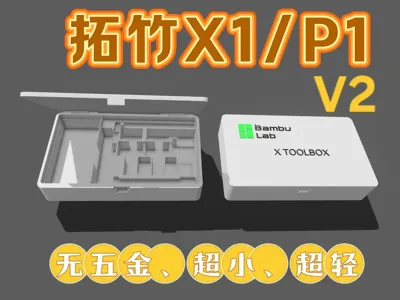

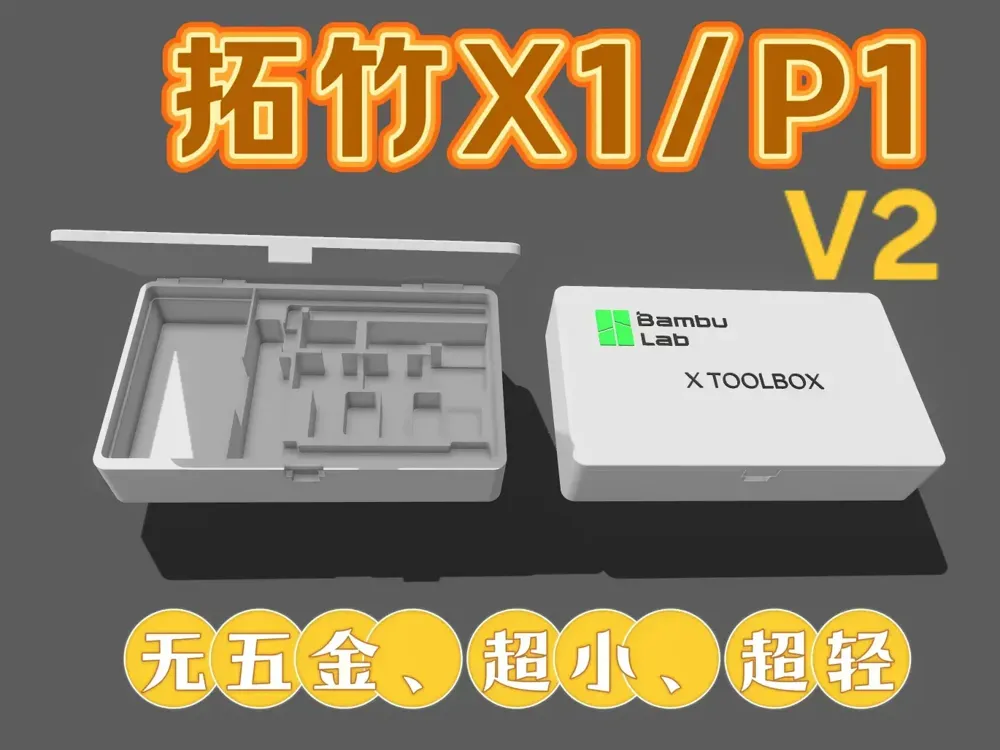

Bambu X1/P1 Tool Box V2 (No Supports, No Hardware, Hinged, with Latch, 150g)

Description

Name: Bambu X1 series, P1 series tool box

Special Note:

This box is designed for extreme material and space saving, primarily for storing tools. Due to the box size, the hot end fits well, but retrieval may not be as smooth (since the hot end is not frequently changed). There are trade-offs. Please carefully read the description before purchasing. This creation was not easy, please create your own design if you are inclined to give negative reviews!

The hinge pin for the box is 2.0mm, the lid pin is 2.2mm, and the pin design is 1.8mm (two 1.8mm, two 1.75mm, test them individually to see which pair fits best). There are generally no issues under standard printing conditions. I've printed several versions and found this to be the most suitable. The pins might be slightly thicker at both ends due to retraction during printing, making installation slightly tighter. Please gently adjust and install them. Once installed, the pins will not fall out. The lid will open and close smoothly. (You can also use a 4cm long filament or toothpick).

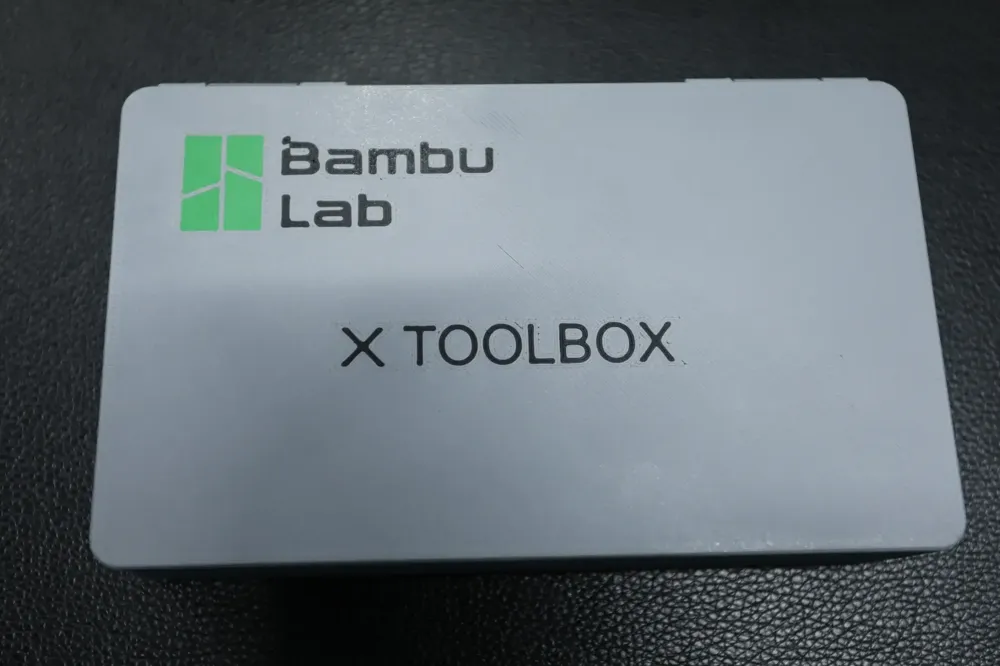

Printing: Multi-color printing is possible. The preset uses concentric infill to minimize warping. Single-color printing is also possible, but the single-color logo is not visible. The V2 version addresses the placement of the AMS large screwdriver and reduces one hot-end space (can still hold a hot-end or other items).

Printing Notes

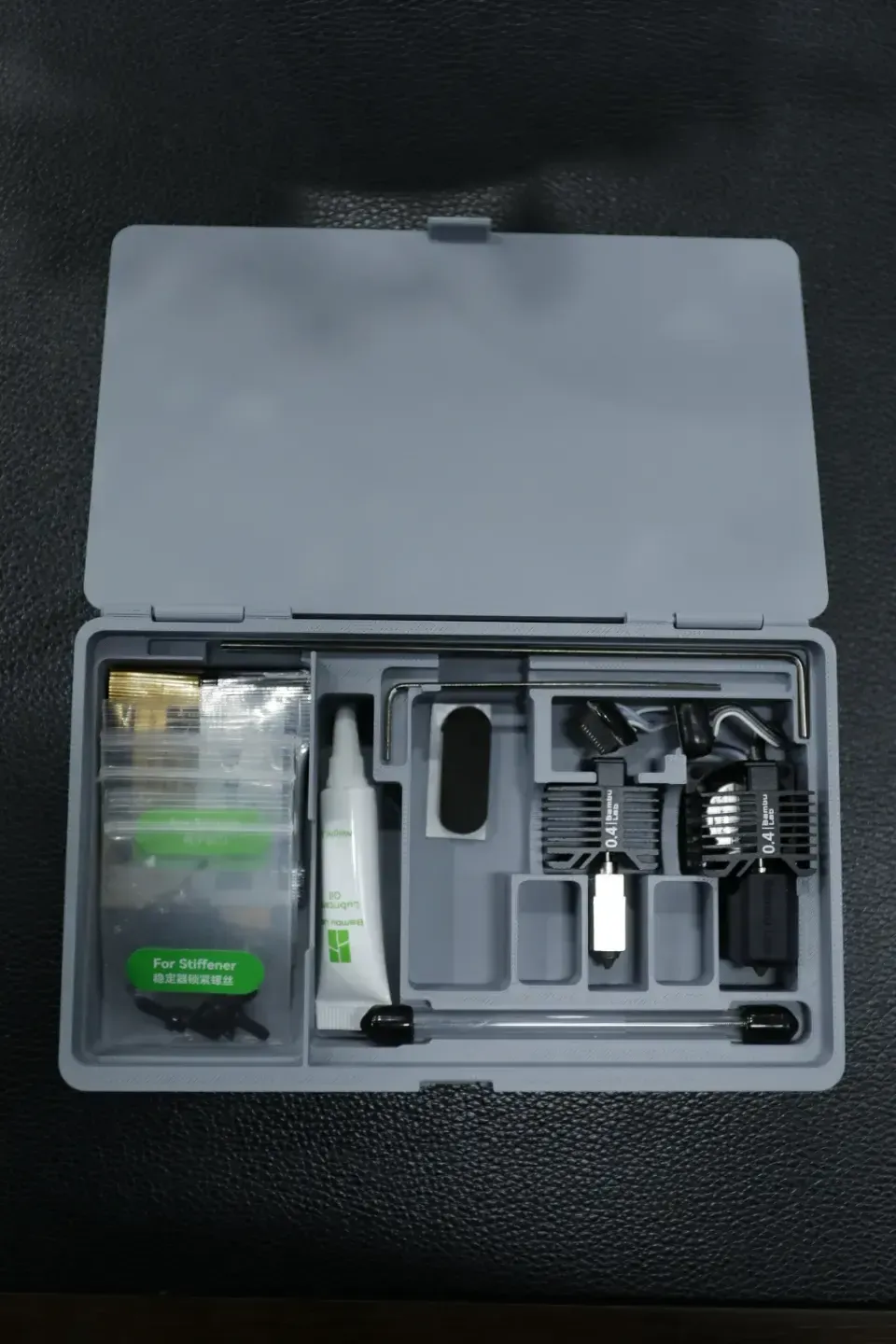

Function: Holds all original printer tools, plus a hot end kit and one or twonozzles, preventing tools from rusting due to moisture, simple storage.

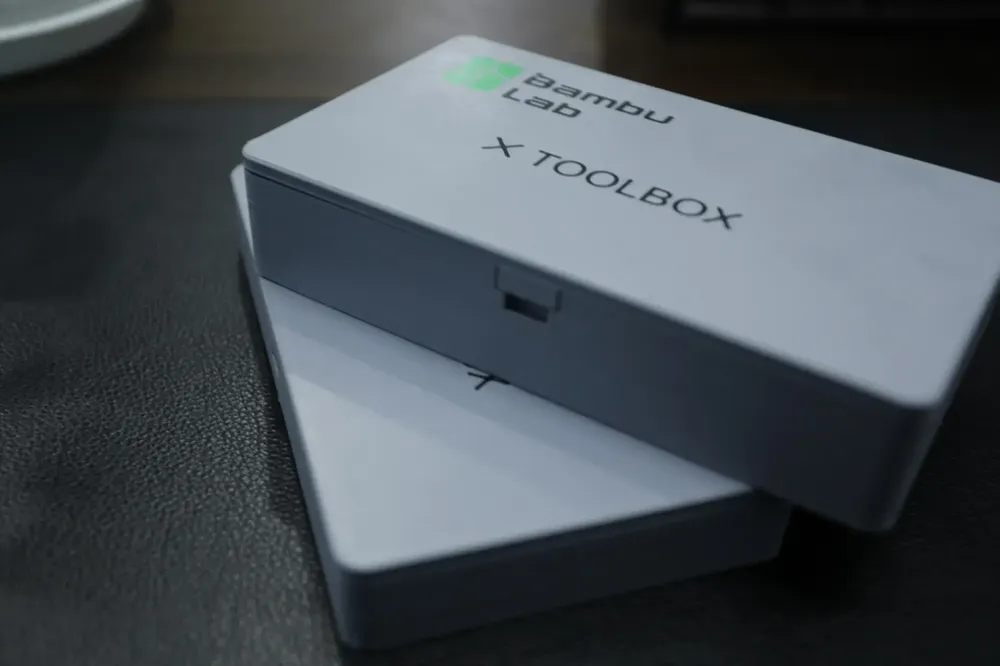

Assembly: Simply insert two printing pins through the box and lid. The enlarged lid pin design ensures easy fixing and smooth opening and closing, requiring no metal parts or magnets. The box has a latch design.

Acknowledgements: This creation was not easy, please support, follow and like this project. Your support is my motivation. I'm deeply grateful for any support (clicking the rocket).
