0.08层高有树型支撑单色pla先外后内悬垂40 （10%，25%）其他默认

0.08mm layer heightTree supportsMonochromatic PLAOutside-in printing40° overhang (10%, 25%)Other settings default

0.08mm layer, 2 walls, 15% infill





增加了整个支架尺寸，更坚固，改变了螺纹零件方便打印调试。使用的A1-0.4嘴默认配置，只是螺栓零件补偿-0.2，螺纹使用公制M6*1和M8*1.25。

The overall bracket dimensions have been increased for enhanced robustness, and the threaded components have been redesigned for easier printing and debugging. The default A1-0.4 nozzle configuration was used, with only a -0.2mm compensation for the bolt components. The threads utilize metric M6*1 and M8*1.25.

0.2mm layer, 2 walls, 15% infill




还是双螺丝补偿0.2，螺纹不变。这版增加了卡环防移位，增加了立柱。

Still double screw compensation 0.2, threads unchanged. This version adds a retaining ring to prevent displacement, and adds a column.

15th Edition Revision 0.16mm layer, 2 walls, 15% infill

一个简单的万向支架，可进行扩展，螺纹使用iSO公制4MM*0.7，有需要请根据自己机器加强零件强度

A simple, expandable universal mount utilizing ISO metric 4MM*0.7 threads. Reinforce components as needed to suit your specific machine

Print Profile(3)

Description

Comment & Rating (0)

License

Related Models

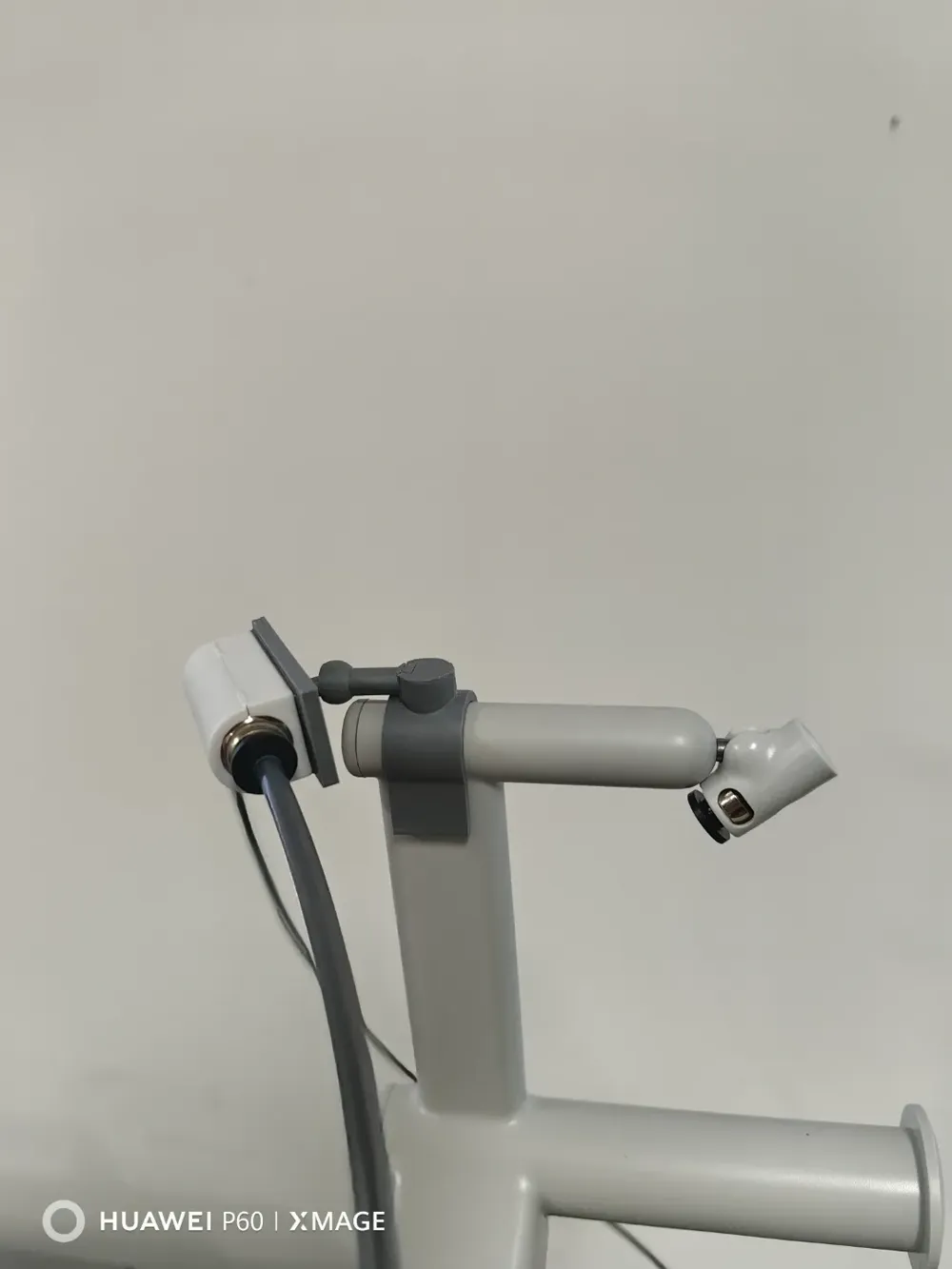

A1 Universal Self-Made Universal Extension Feed Bracket
