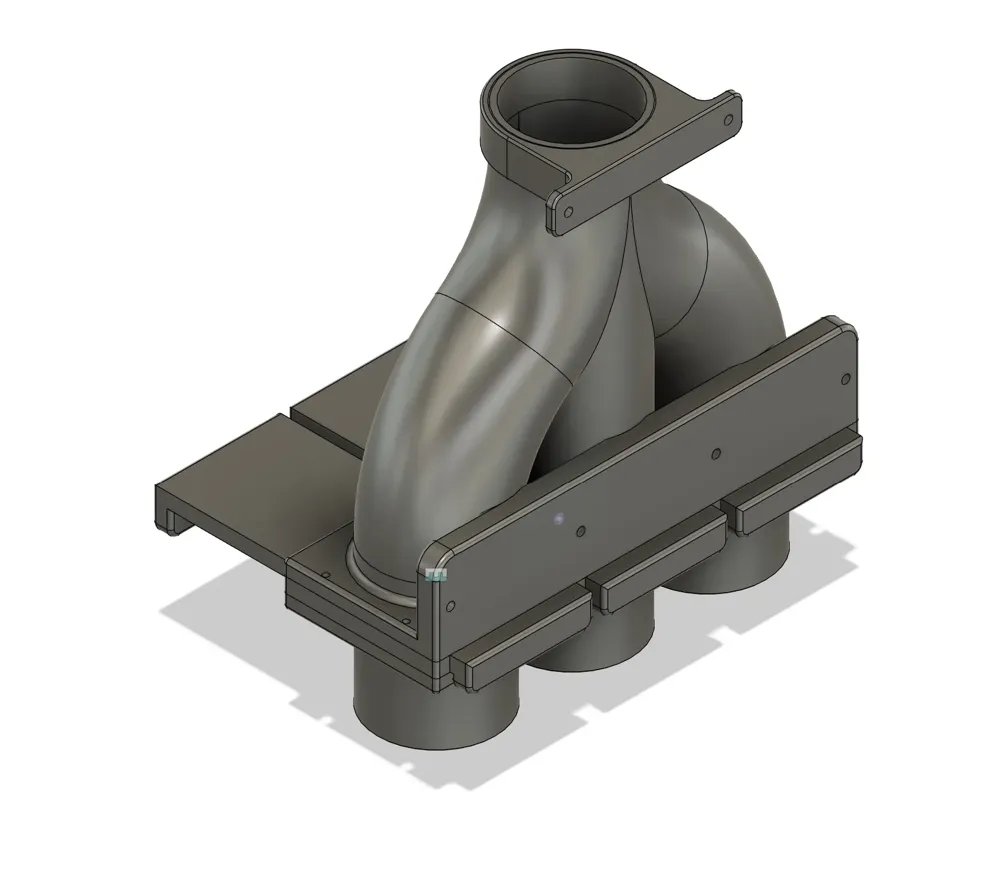

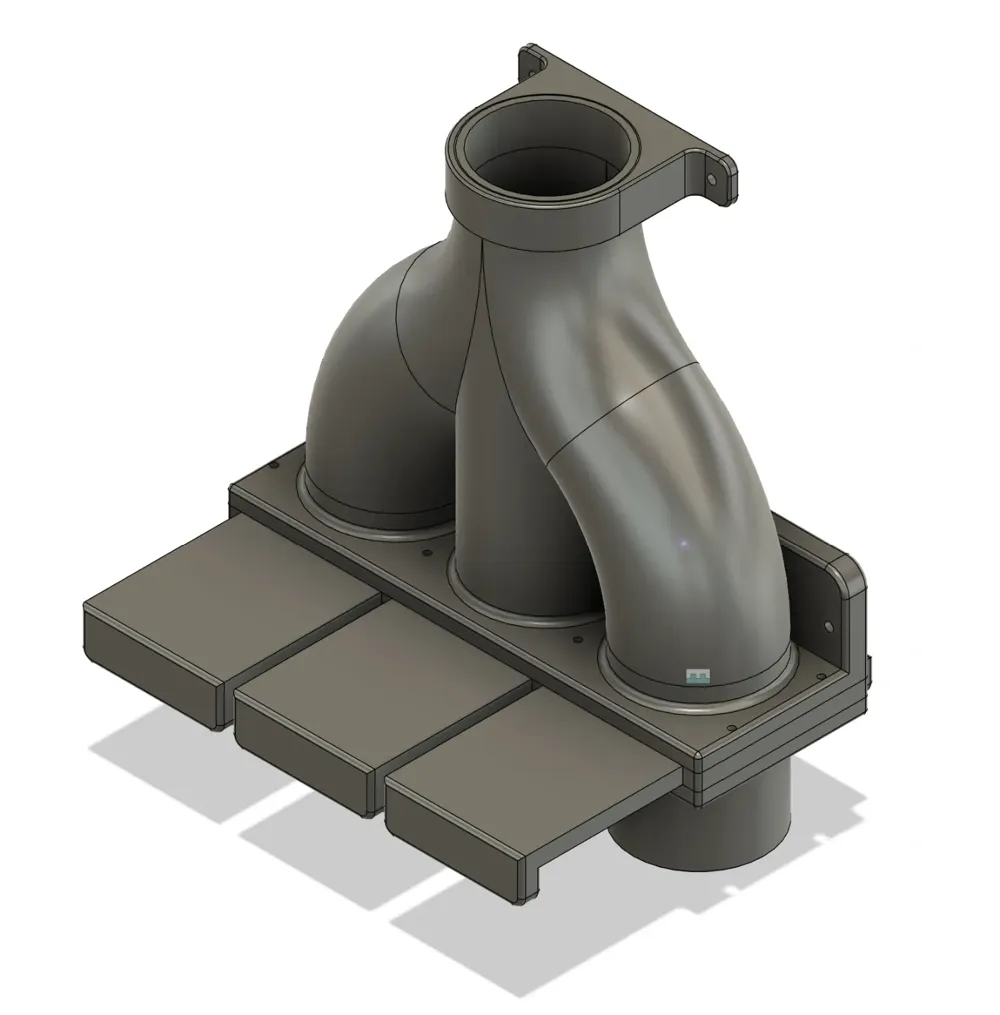

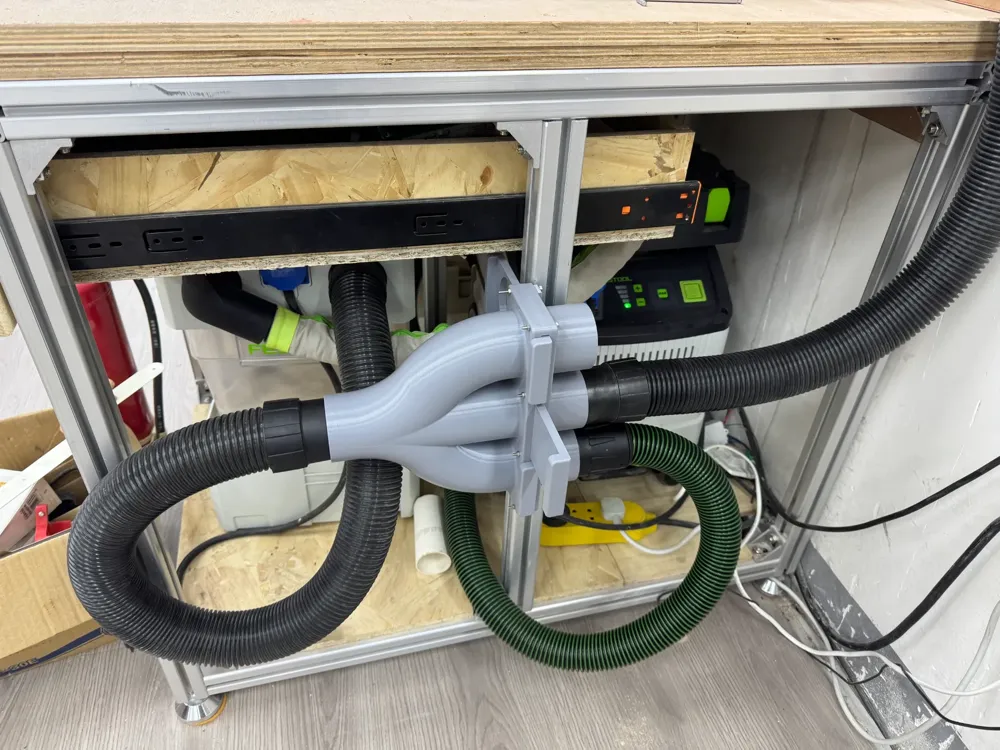

Festo Dust Collector Four-Way Valve
Print Profile(1)
Description
1. Inlet and outlet pipelines are designed according to the Festo 58mm pipe standard.
2. For Bambu X1/P1/A series platforms, it can be printed directly without cutting and gluing (maximum size within 256mm).
3. Installation requires 8 sets of M3*30 screws.
4. I deliberately thickened the four separators by 0.1mm to facilitate smooth sliding of the valve (different machines, different consumables, shrinkage rate will have subtle differences, if it is too tight or too loose, just reprint those four separators).
5. I have reinforced the main installation position to improve stability.
6. It is recommended to use PETG or PLA+ for printing.
