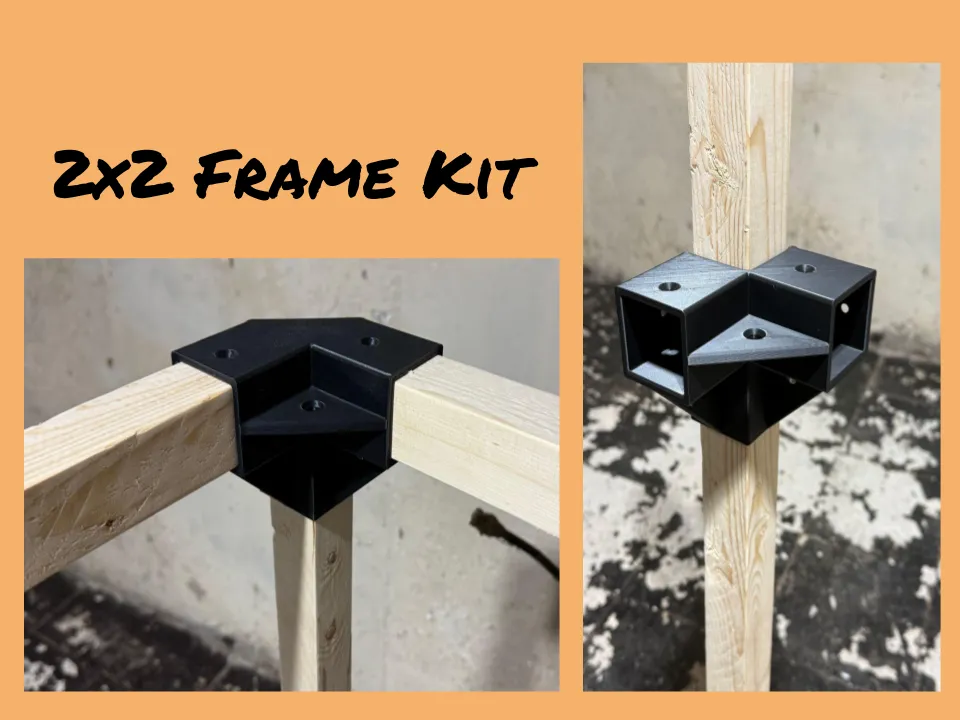

2x2 and Metric Frame Kit Connectors
Print Profile(2)
Description
Update 2024-12-26: I have added metric versions that should accommodate two 24x48mm furring strips, which are standard in metric countries (thanks, @Smirnoff1983). I don't have access to those pieces of lumber so I can't test them myself. Please let me know if they work!

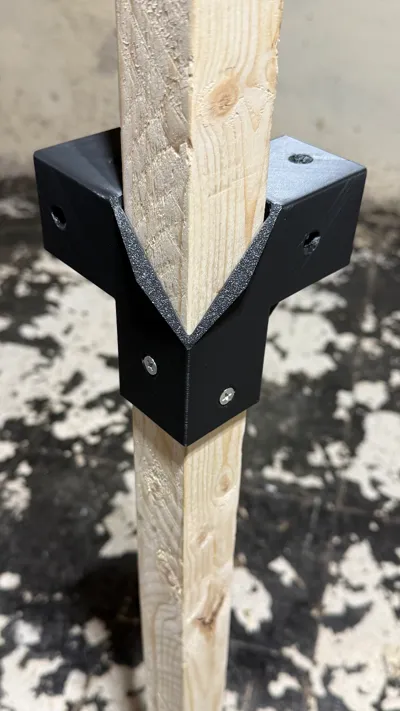

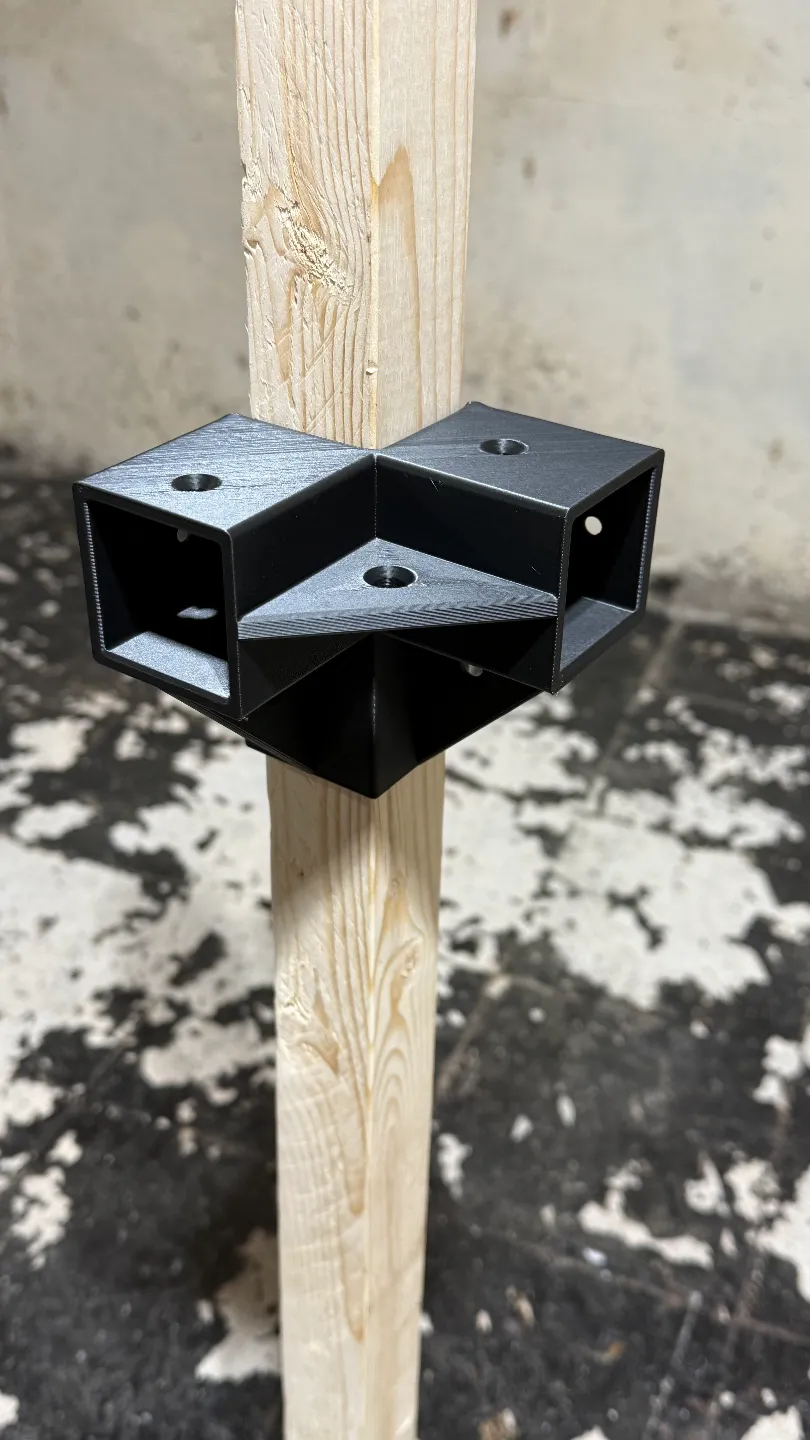

Update 2024-12-23: Added thru-hole connector so you can add shelving or segment your frame. This is the first version, so please feel free to provide feedback and don't trust it with your grandma's urn! The fit is supposed to be loose to better accommodate funky pieces of wood. The surface on which it prints is very small, so make sure that your build plate is clean. I didn't, but you may need a brim.

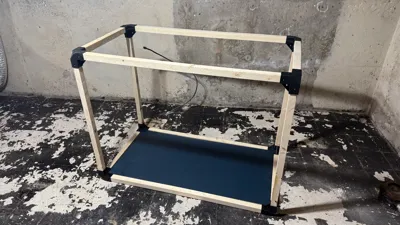

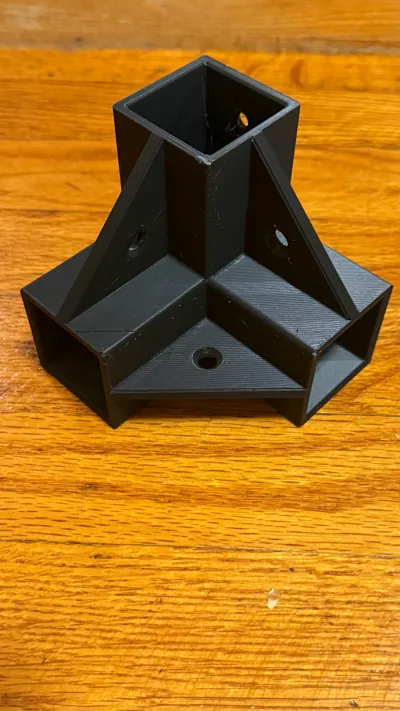

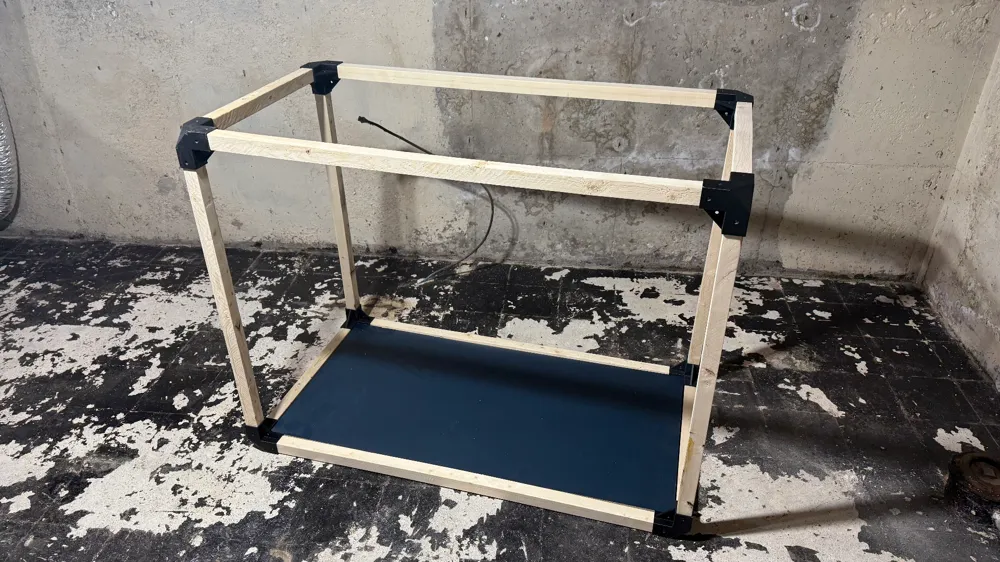

An easy way to join three 2x2 furring strips together into a corner. Perfect for making enclosures and other DIY assemblies.
No supports needed!
Note: 2x2 furring strips are actually about 1.5x1.5 inches. This is made for those pieces of lumber. There may be larger/smaller furring strips that are either tight or loose. A rubber mallet and sandpaper should help for those thicker pieces :)
I make no claim to the integrity of your prints. Use at your own risk.
