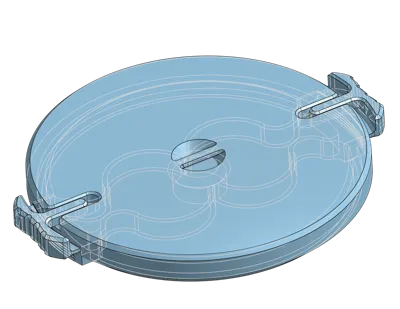

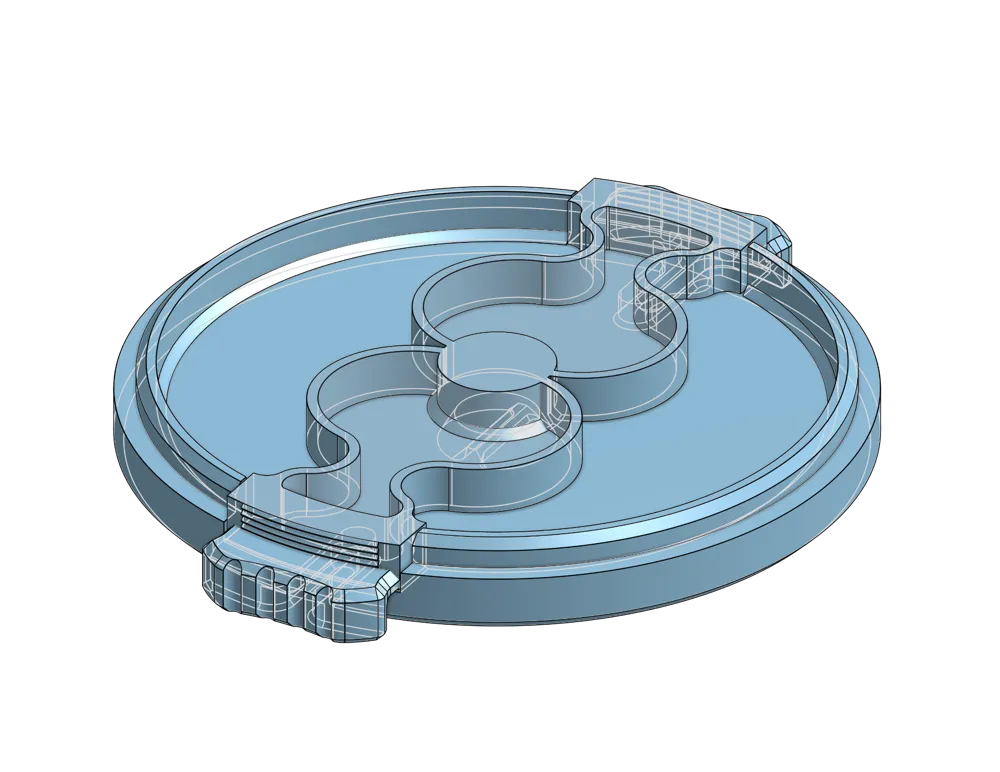

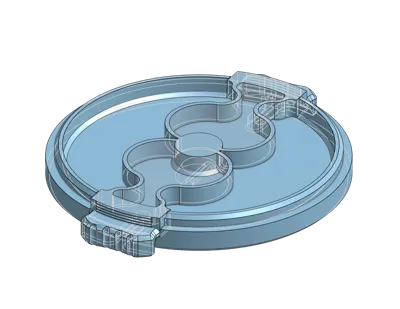

Make sure you print with no support! If you have to scale the model to fit your lens, make sure you never scale down or the clearances will not work out.&nbsp;&nbsp;This basically works by printing the springs on top of the cap like they're supports with a 0.2mm offset. Once this guy is printed you'll need to work the springs and release tabs a little to break them free of the model, just like supports. I flex the corner of each release tab and squeeze the springs around a little until they're free. Once you have a gap everywhere, it'll still be locked up. Press in both tabs hard and you'll get a satisfying click! when the parts are free. From there, just press the tabs in and set it in your lens! Enjoy!

0.2mm layer, 3 walls, 8% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

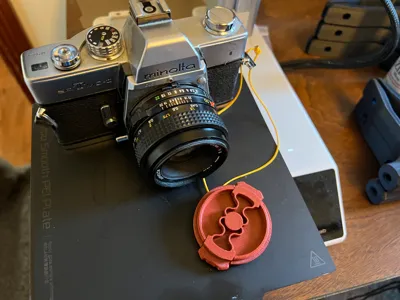

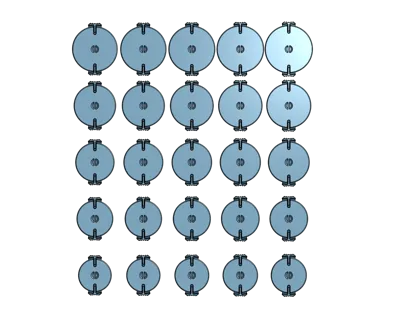

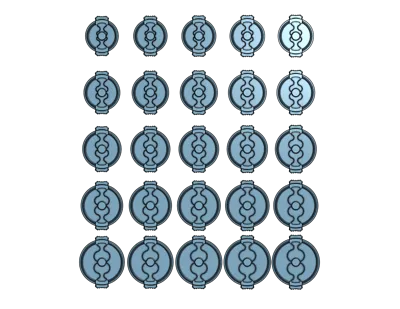

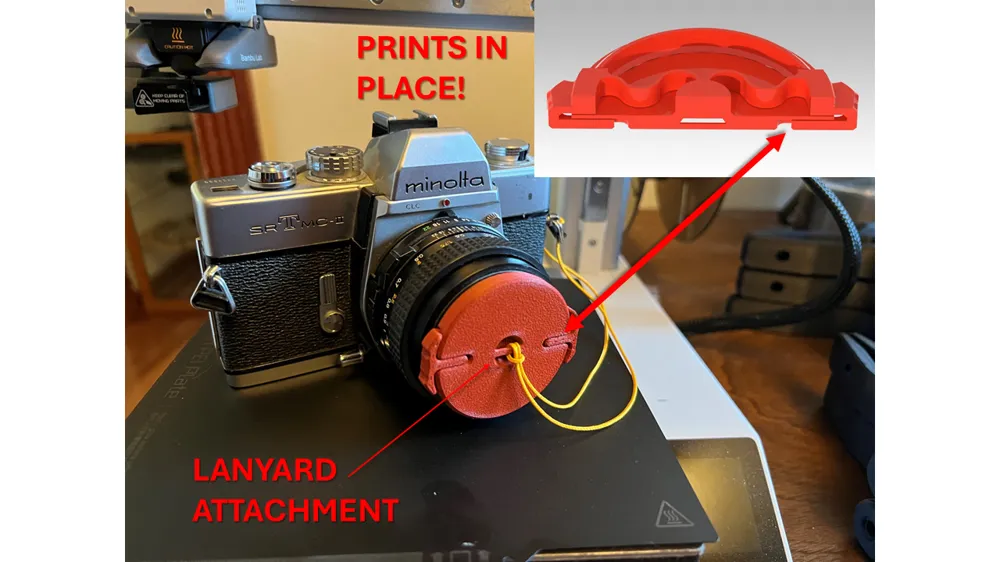

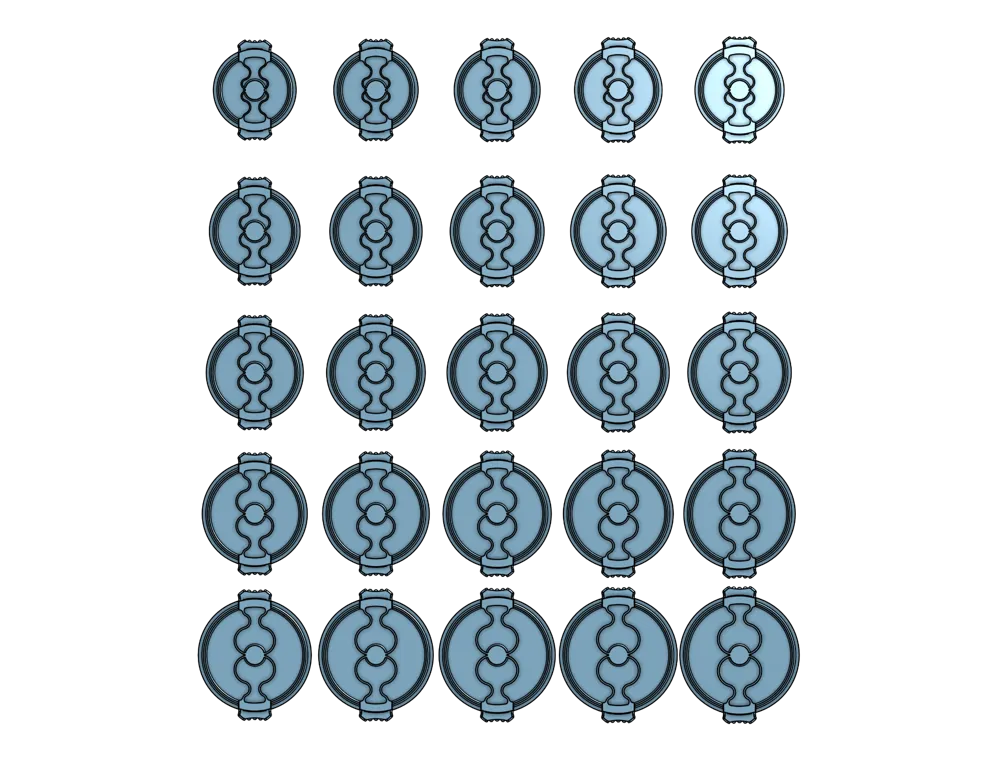

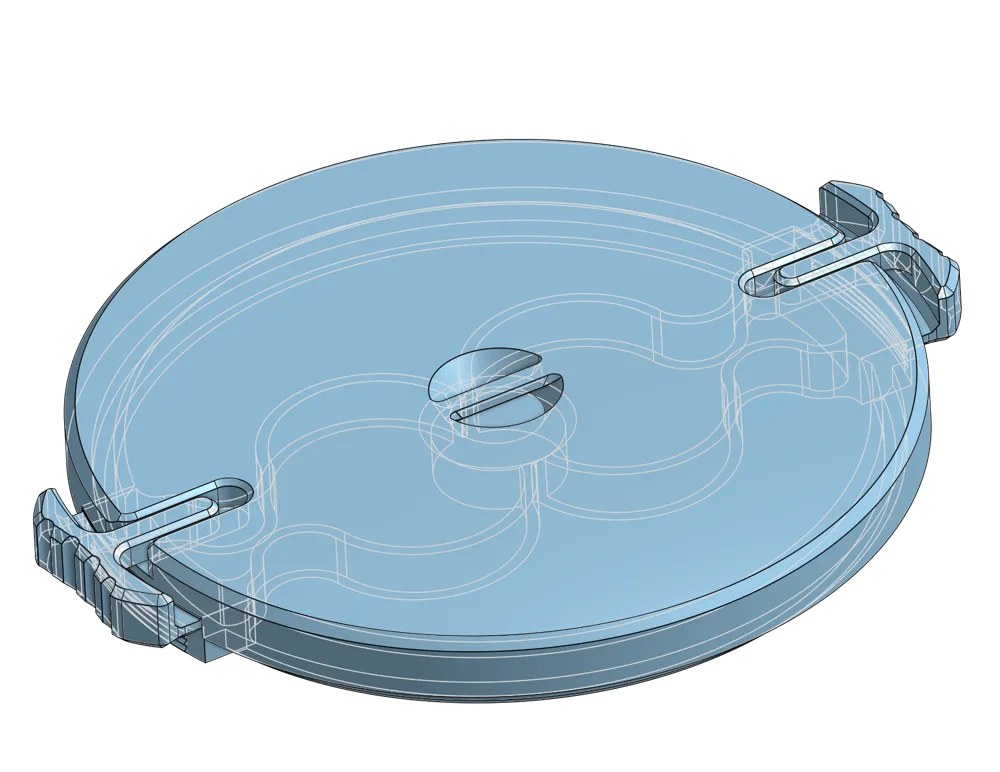

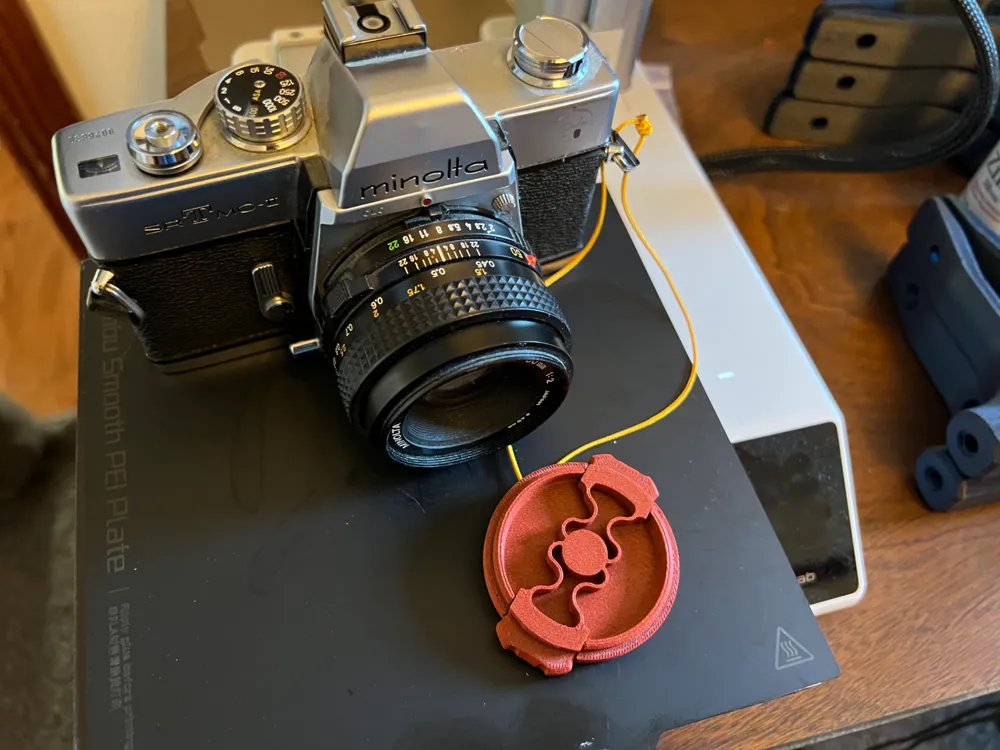

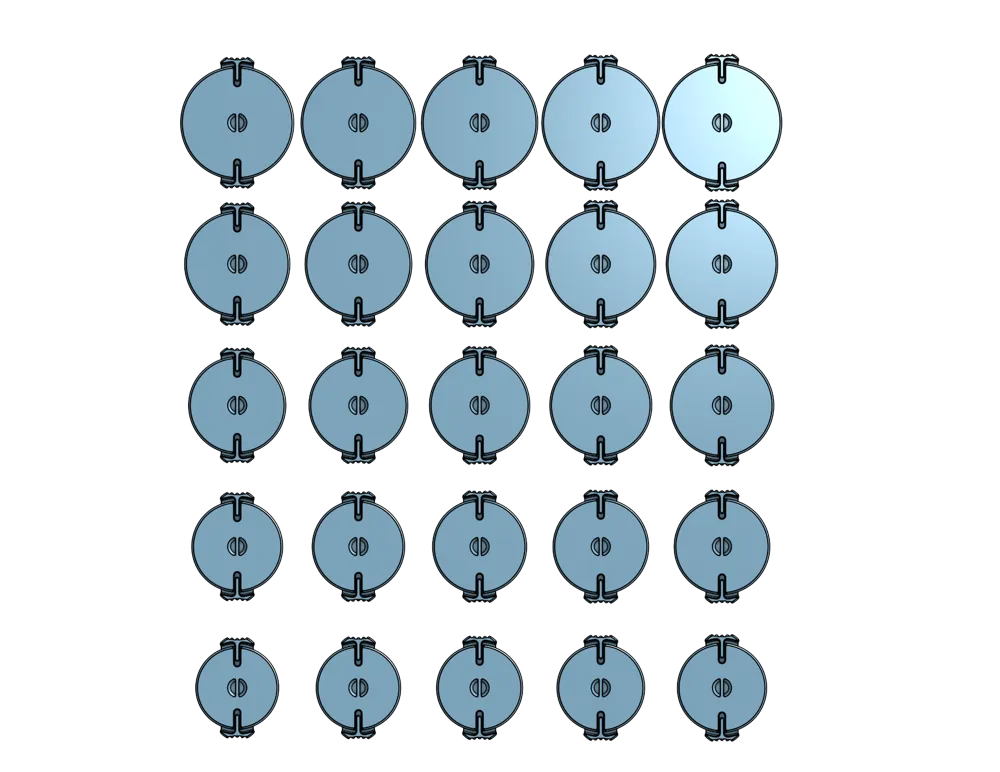

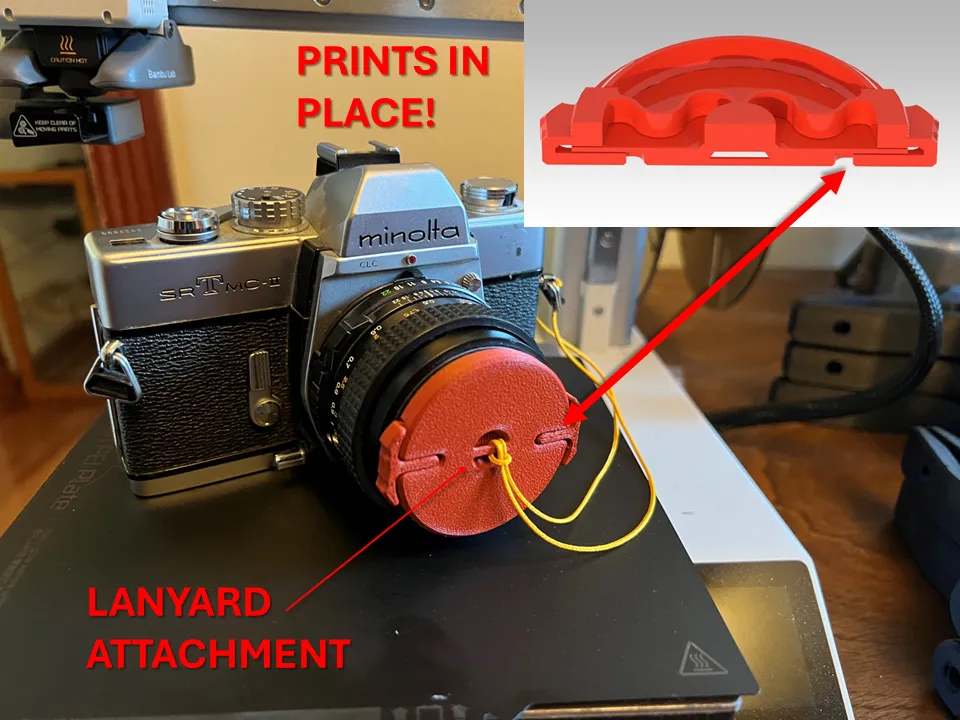

This model is a print in place lens cap for most lens sizes. There is a model for every mm increment from 50 mm to 75 mm. If you have a half millimeter size lens I recommend rounding down and trying that. This model has a built in lanyard mounting hole so you don&#39;t lose this one ;) <boostme><boosttitle>Boost Me</boosttitle><boostcontent>If you like this model and your lens will forever be scratch free, please consider boosting!</boostcontent></boostme>

Print in Place Camera Lens Cap 50 mm - 75 mm Sizes
