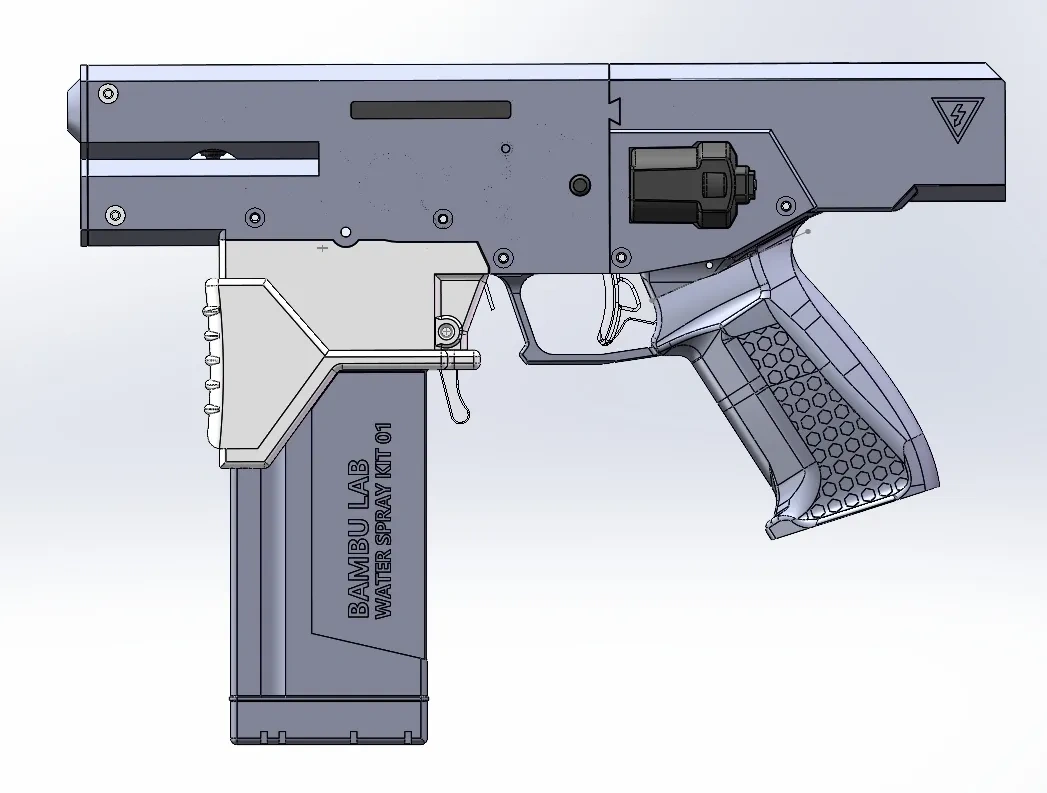

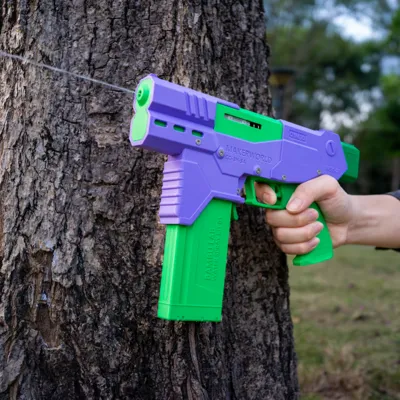

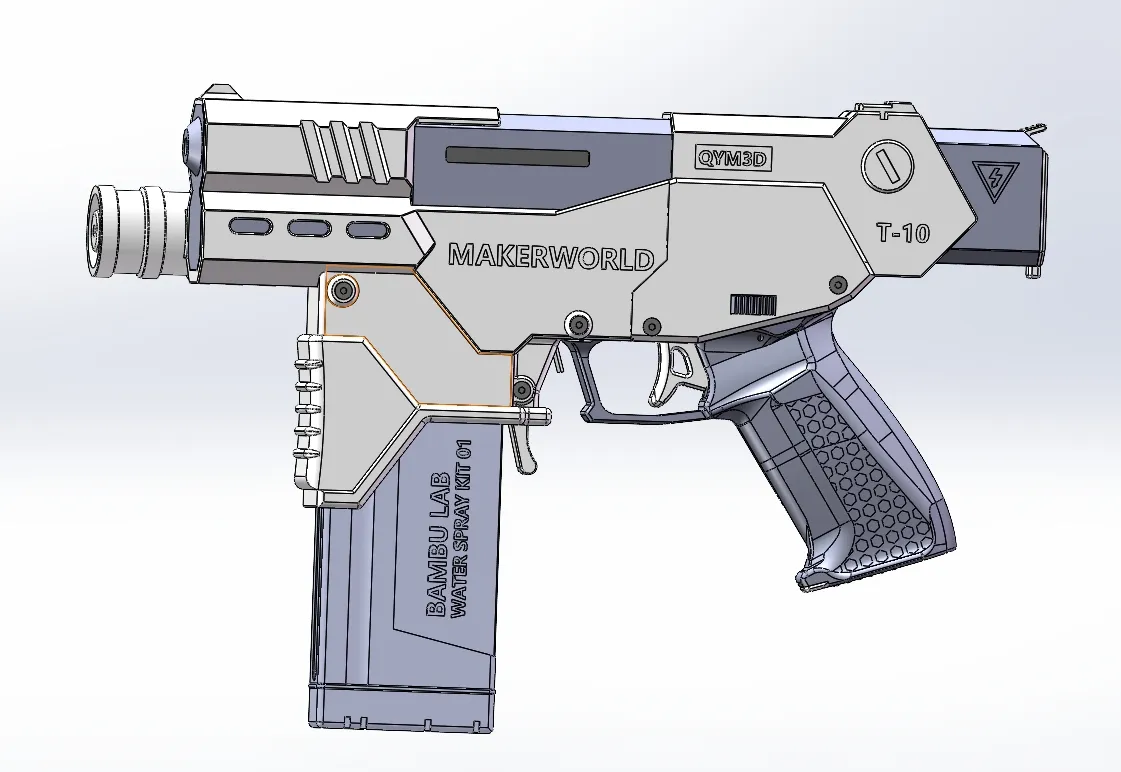

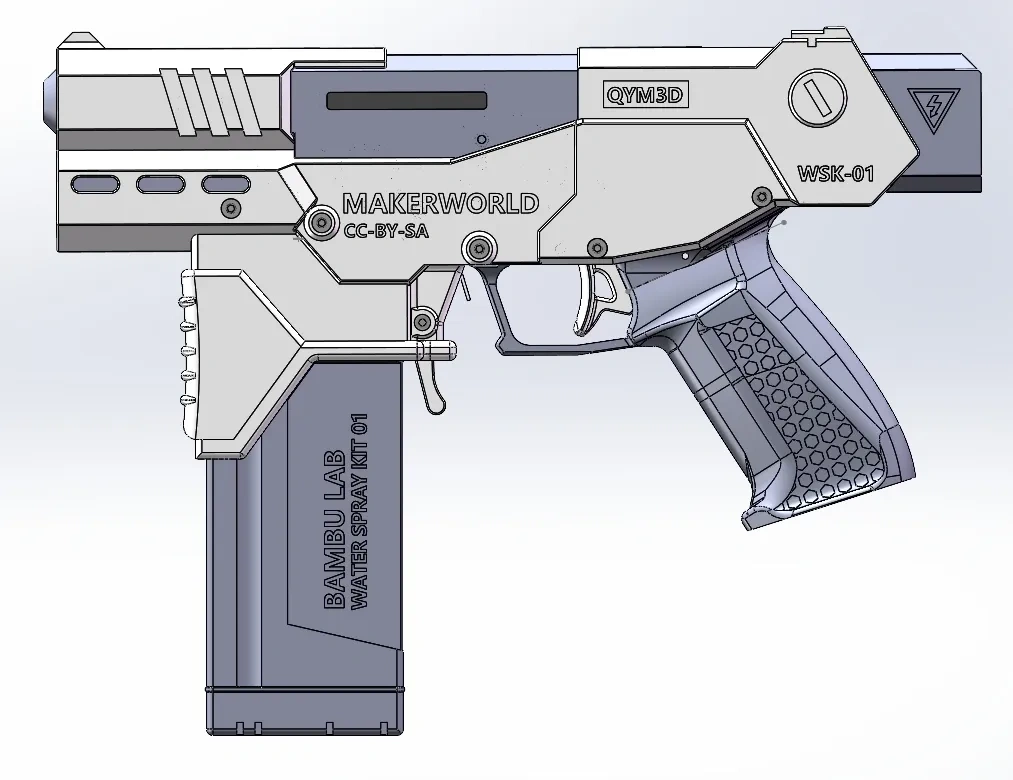

T-10 Water Toy Gun

Designer

18.8 h

3 plates

4.8(103)

T-10 for A1M

Designer

21.2 h

4 plates

5.0(11)

T-10 Water Toy Gun Lite

Designer

18 h

4 plates

4.9(330)

Magazine coupler

Designer

6.2 h

2 plates

5.0(62)

Click to see more

Open in Bambu Studio

Boost

2543

5197

787

809

5.7 k

2.8 k

Released

Bill of Materials

Maker's Supply Kits and Parts

Select all

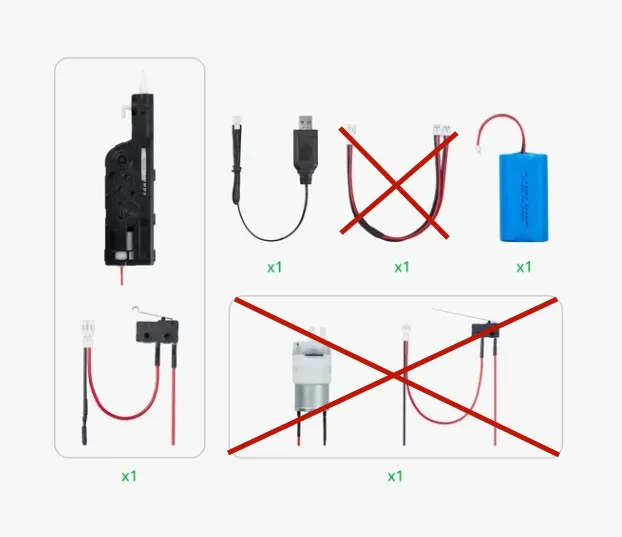

Electric Water Spray Kit 01

Electric Water Spray Kit 02

Description

Membership

Subscribe as a member and start offline sales

Join

Boost Me (for free)

Motivate authors to create more high-quality models

中文站：https://makerworld.com.cn/zh/@QYM3D

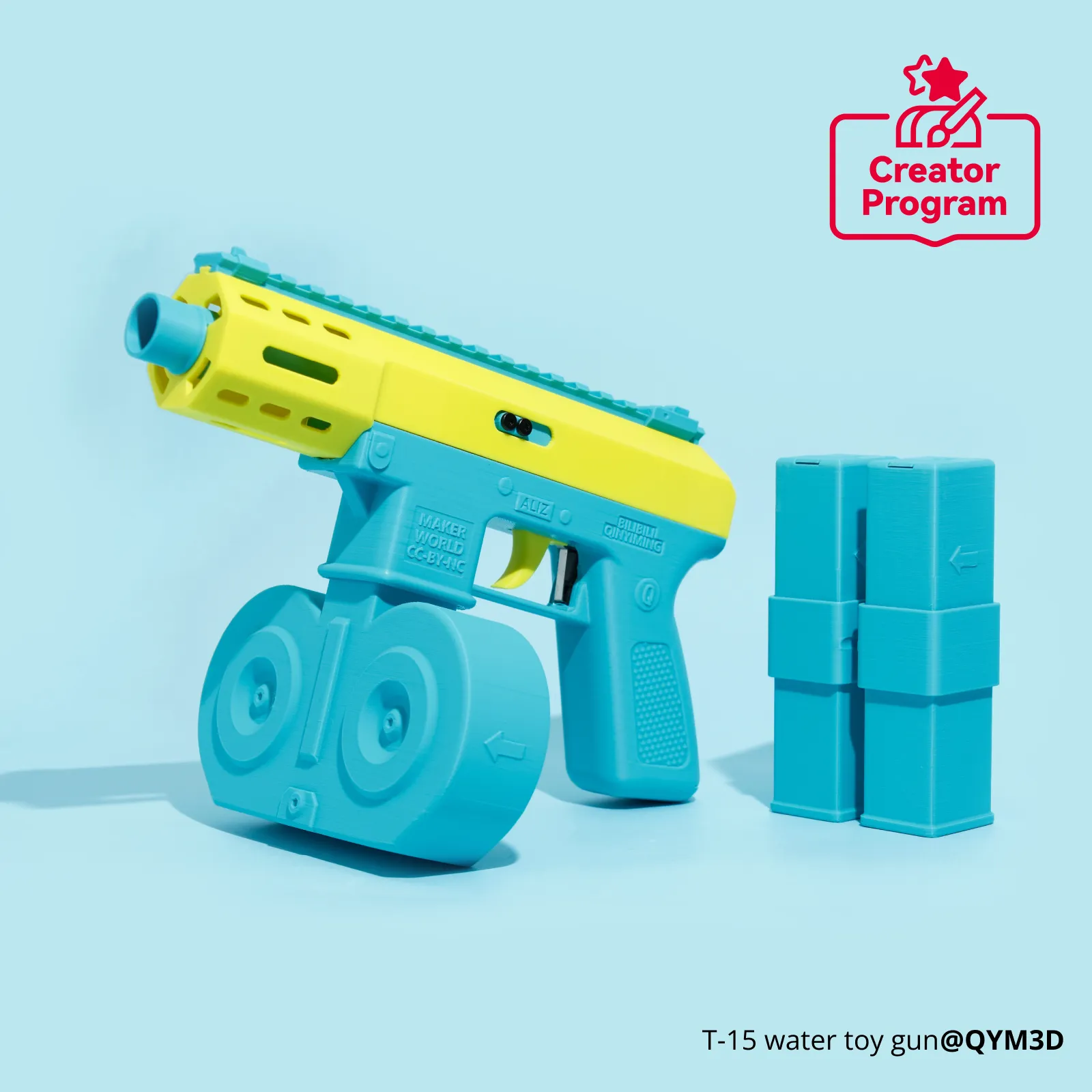

【T-15 Water Gun】：https://makerworld.com/zh/models/689632

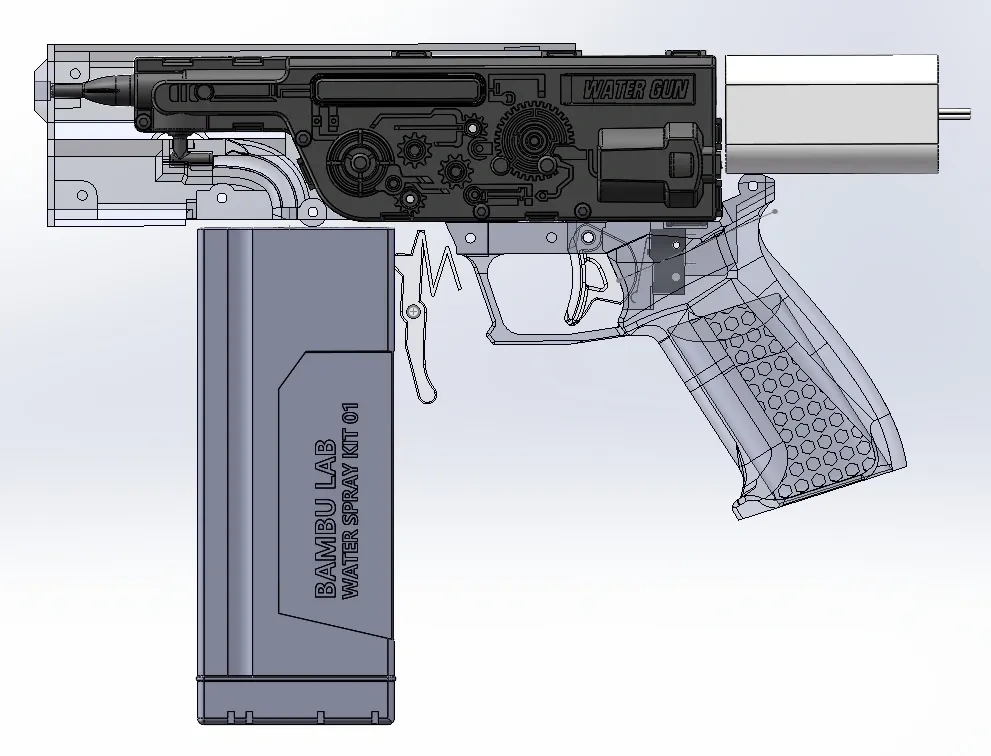

T-10 use the 7.4V water gun kit ，quickly replace the magazine to ensure better fire sustainability

Filament: BambuLab PETG HF

2025.7.18 Update:

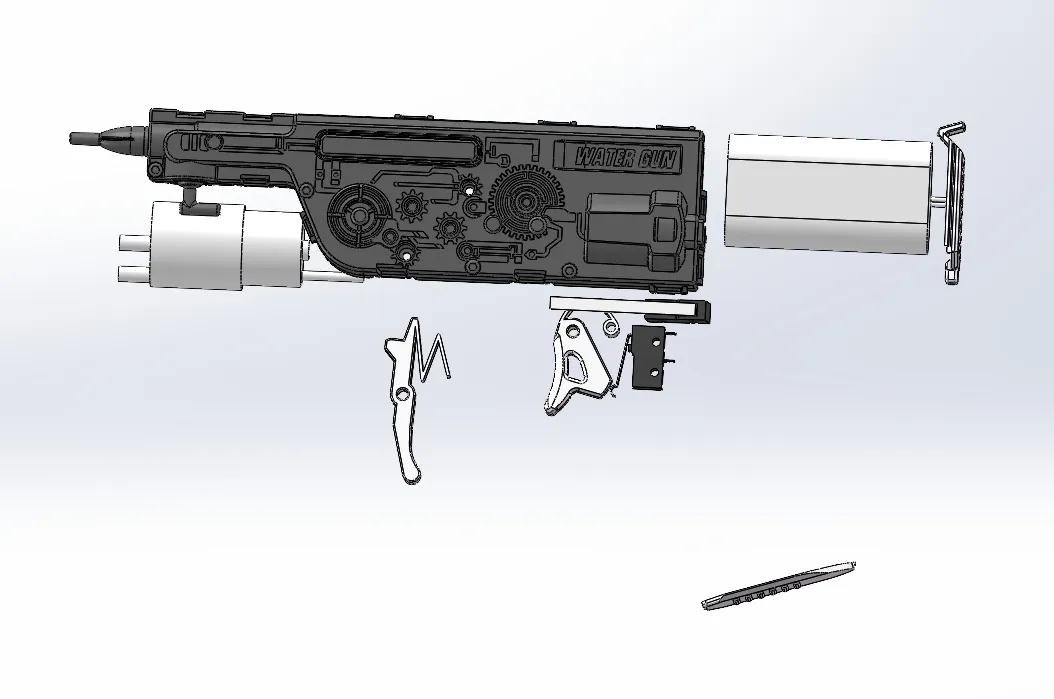

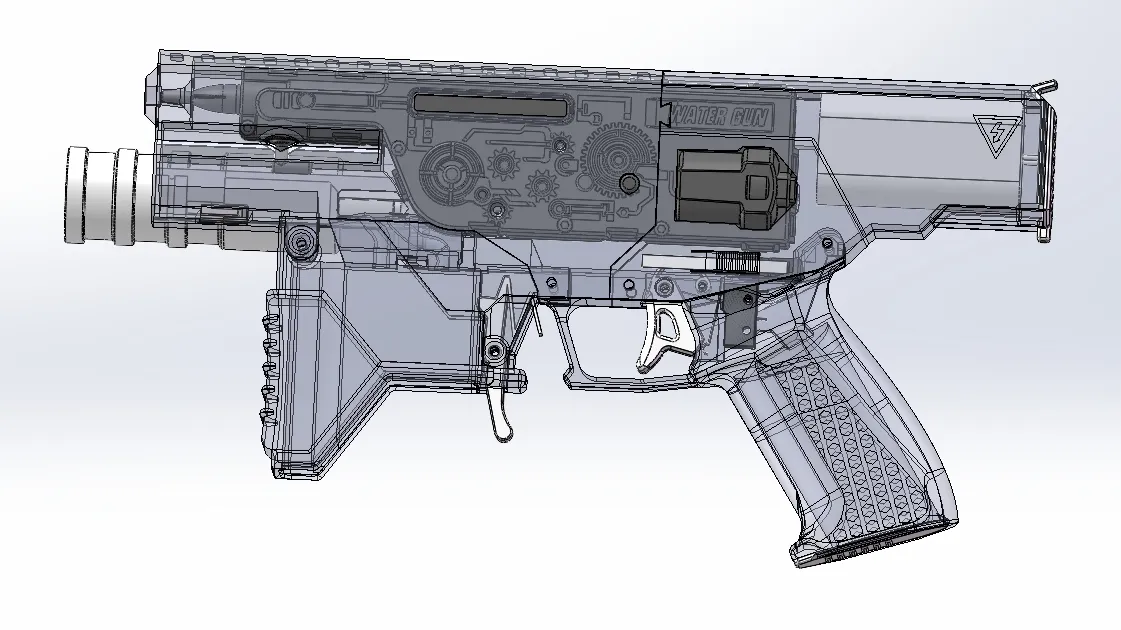

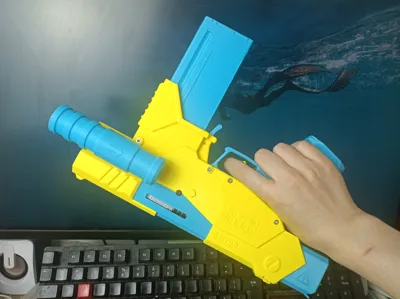

1. Add a water pump module, now you can automatically pump water
2. Trigger optimization, softer force
3. The battery compartment is enlarged for easier installation
4. Structural optimization for simpler assembly

Assembly tutorial：

Tips:

1. Default 15 ° tree support
2. The magazine uses 6 layers of walls and 30% cube filling to effectively prevent water leakage
3. If the battery cannot be fully inserted into the battery compartment, please pay attention to organizing the wires.
4. It is best to use PETG to enhance the durability of the trigger.

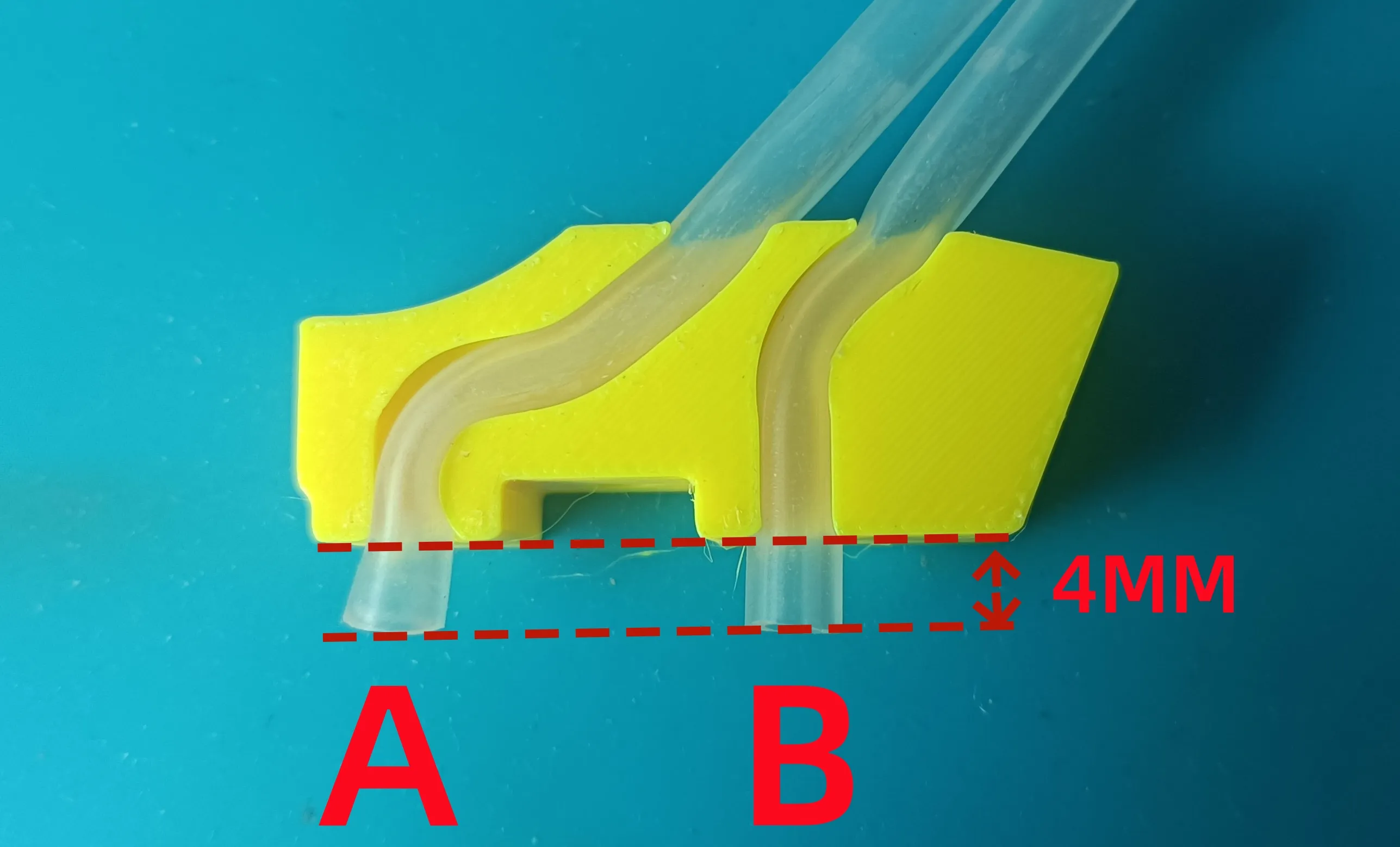

5. A and B silicone tubes must ensure that the lower end is exposed by 4mm, otherwise it may cause the water gun to malfunction.

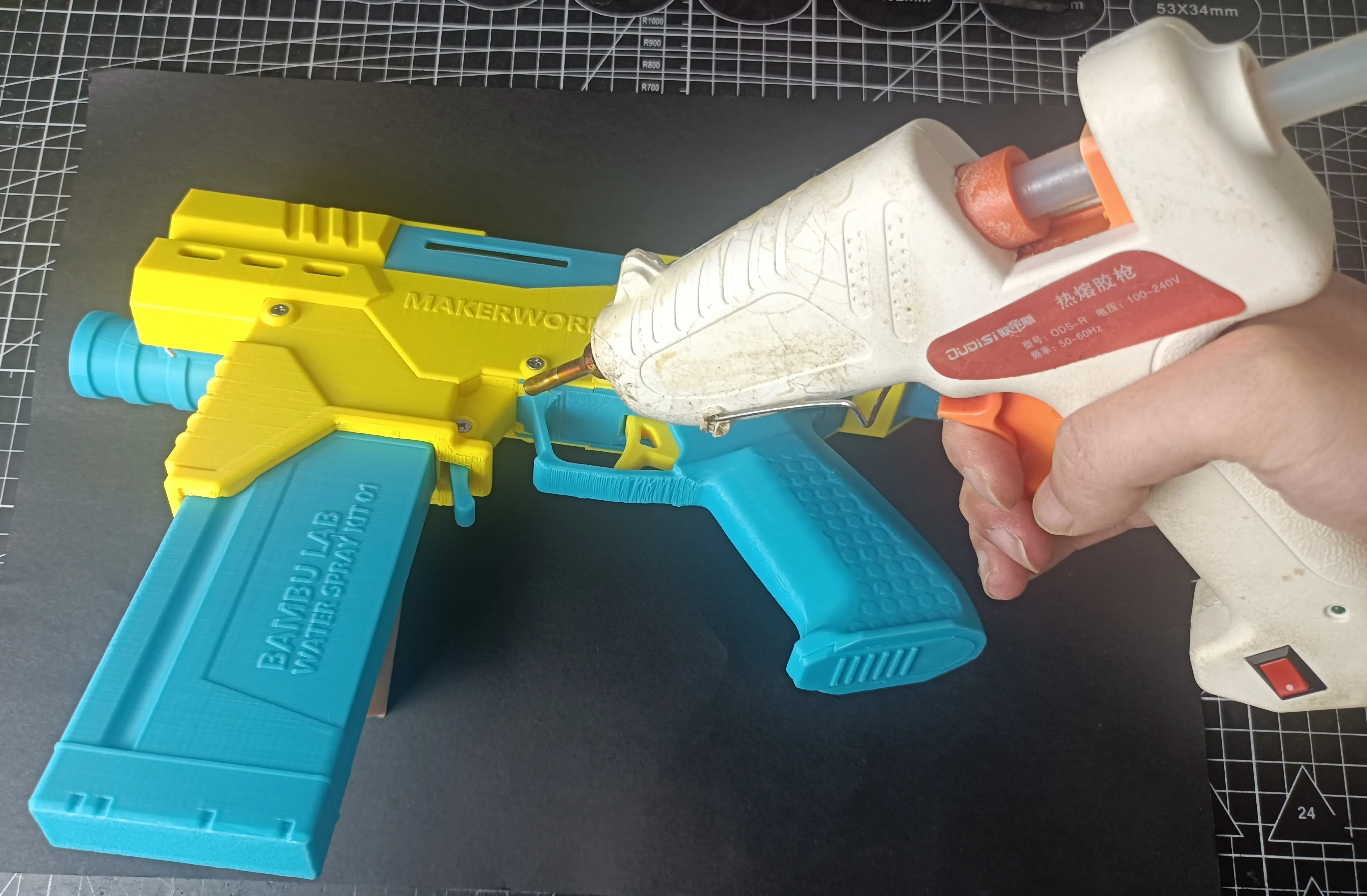

6、This model is not waterproof, please do not immerse the gun body in water. If you have waterproof needs, you can use Hot Glue adhesive to fill all gaps.

——————————————————————————————
2025.2.14 Update:

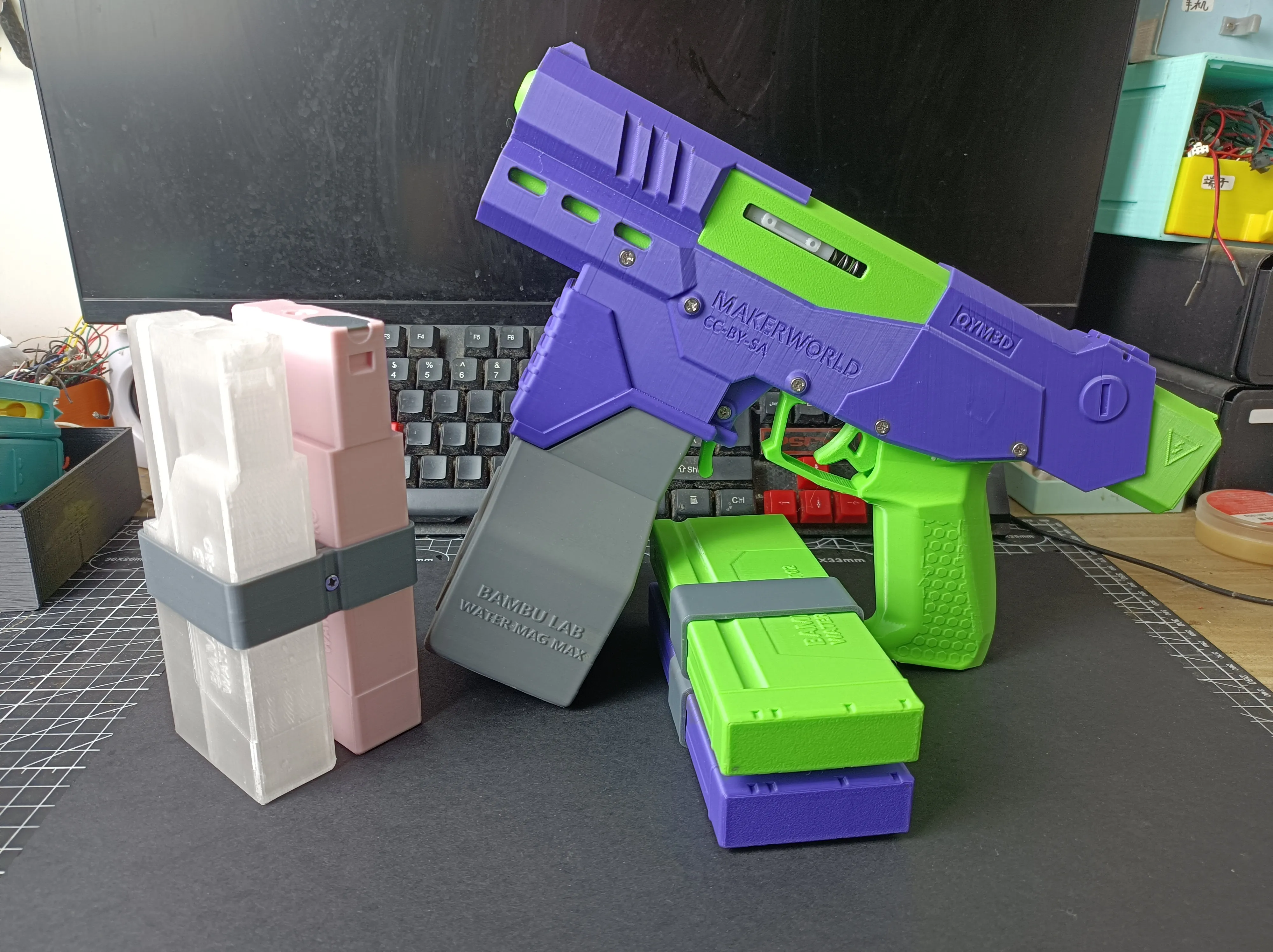

1、2 types of expandable magazines and magazine couplers

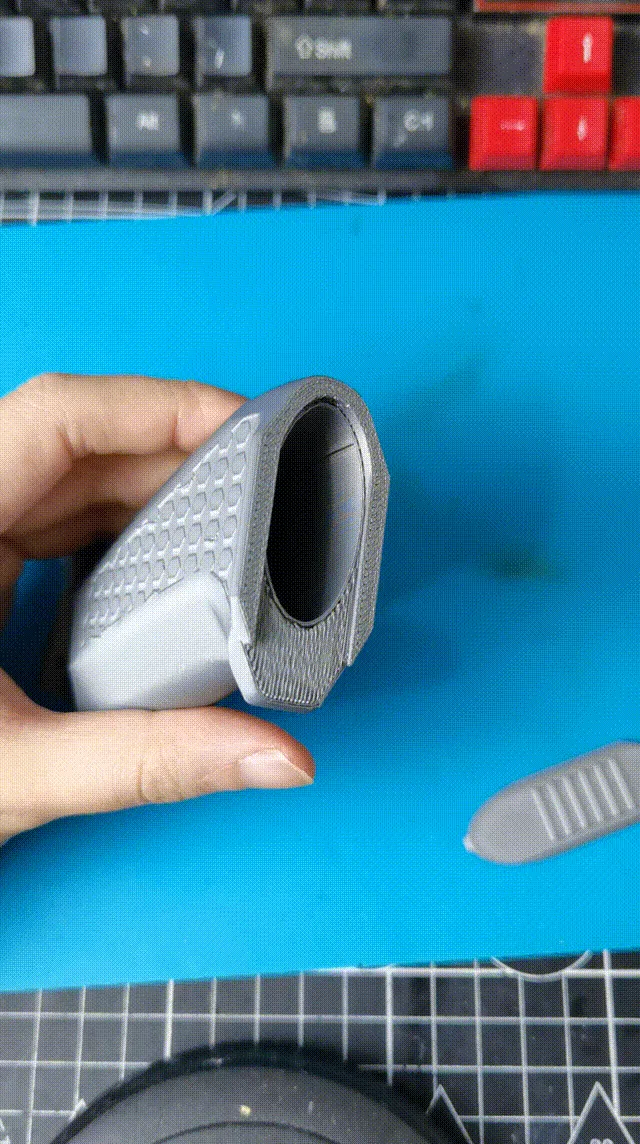

2、The handle has a built-in storage compartment that can hold a 7.4V charger

T-10 Water Toy Gun Lite

Tips:
1. Default 15 ° tree support
2. The magazine uses 3 layers of walls and 30% cube filling to effectively prevent water leakage
3. In addition to the water gun kit, an additional 13 M3 * 16 countersunk screws are required, and the switch is fixed with a 1.75mm filament.
4. The T10 Lite version does not require a water absorbing module. You can keep this module for other projects or wait for an upgraded version to protect it
5. Use the included cutter to cut the rubber tube, ensuring that it is exposed inside the magazine well.
6. If the battery cannot be fully inserted into the battery compartment, please pay attention to trimming or cutting the power cord to shorten it.

7、The use of high toughness materials such as PETG and PLA+for triggers can significantly improve their durability.

Assembly video：

Boost Me (for free)

If you like this work, please Boost Me to support him in creating more excellent works

Boost Me (for free)

Motivate authors to create more high-quality models

Comment & Rating (787)

@3dprintsbuilds

Boosted

Very nice water gun. I also did a video about it. You can watch at : https://youtu.be/wsFY0wkyggQ

@3dAlchemy

Great video, thank you for sharing.

@aaron.tringle

Boosted

Print Profile

T-10 Water Toy Gun Lite

printed out nicely in petg translucent. if I make this again, I would extend the rear just a bit and think of a way to use some tubing as a sort of a spring/buffer to keep the battery from rattling around but still be easier to close. I can close it as is but it's tight and finnicky. the magazine system is the best of all the water guns if printed. I found this gun so much better than the tec-9 one and it's by far the best for serious water gun wars.

@user_3828887361

Boosted

where did you find the sight for the water gun?

@Industrial2024

Boosted

Im also interested in sight

@aaron.tringle

Boosted

Replying to @Industrial2024 :

this model https://makerworld.com/models/474430

@Planlos

Boosted

i print it 5 times With PETG and PETG HF

(Edited)

@ImageGenerator

Boosted

I just printed this out for the first time with PLA, but great thinking! Using PETG sounds much better for long term durability.

@andrewehli9

Replying to @ImageGenerator :

So I’m thinking I’m gonna use ABS because I have PLA Petg and abs but not enough PETG so I’m going to use abs

@RTRON700

why five?

@._Adrien_.

Boosted

Print Profile

T-10 Water Toy Gun Lite

Amazing! Shoots well! Used support for PLA/PETG for interface layers for easy support removal, tried without it and it damaged the model. Printed in PLA from Bambulab.

(Edited)

@user_2400111707

Is this now made of PLA or PETG

(Edited)

Show original

@._Adrien_.

Boosted

Replying to @user_2400111707 :

I made it with Bambu lab PLA

(Edited)

@user_2400111707

Yes great then I would do that too because as a 13-year-old I haven't bought PETG yet due to the price

(Edited)

Show original

@user_2660636430

Boosted

Used the extended rear listed above for a better battery fit. Printed in PETG-HF and PETG-translucent. Great design.

@TFF_Nick

did you change the settings to make the petg look more transparent

@user_2660636430

Boosted

Replying to @TFF_Nick :

No I just used the same regular profile that I used for the HF. I think you might be able to tweak the speed to help with making the translucent filament more see-through but this worked well enough for this attempt. I might try that in the future.

@user_1520015159

Not seeing where the extended rear file is listed, where were you able to find it?

@phlipa

Boosted

Print Profile

T-10 Water Toy Gun Lite

No printing issues. Superb model. Printed with Sunlu Rainbow PETG. It’s a shame the T10 kit is currently unavailable

Show original

@M2theC

Boosted

Cool design and works very well! just had to figure out where to get the pin for the switch. it’s not mentioned in the BOM. I decided to cut off a small hex key.

@Demonbear

Boosted

he used a bit of filament. ypu can see it coming out at the other end when he flips the gun near the end of the video.

@M2theC

Boosted

Replying to @Demonbear :

ah makes sense! video was a bit fast. Or I’m getting old, or both.

@oriental68

Boosted

Printing on the A1 mini, this part shows “no layers detected” during slicing

The designer has replied

Show original

@QYM3D

It's likely a compatibility issue between the new and old versions of Bambu Studio slicing files, this has been fixed, please download the latest version and try again

Show original

@oriental68

Boosted

Replying to @QYM3D :

Thank you!

Show original

@tomo3D

nice model. printed a couple for me and the grand daughter to have a water fight. made a bigger cartridge tank thats suits the style of the gun better

(Edited)

@user_1131163134

have you uploaded the file for the expanded mag ?

@tomo3D

Replying to @user_1131163134 :

unfortunately remixes are not allowed to be uploaded, unless the designer allows it of course, then I'd upload a print profile for it.

(Edited)

@user_1879474975

Hi, i get error when trying to print this model any help?

The designer has replied

@QYM3D

Try downloading a separate STL file instead of 3MF

@robomaniac

that is because the battery cover is right under the handle, just move it
